Слайд 1


Carbon and the molecular diversity of life. (Chapter 4), слайд №1
Описание слайда:

Слайд 2

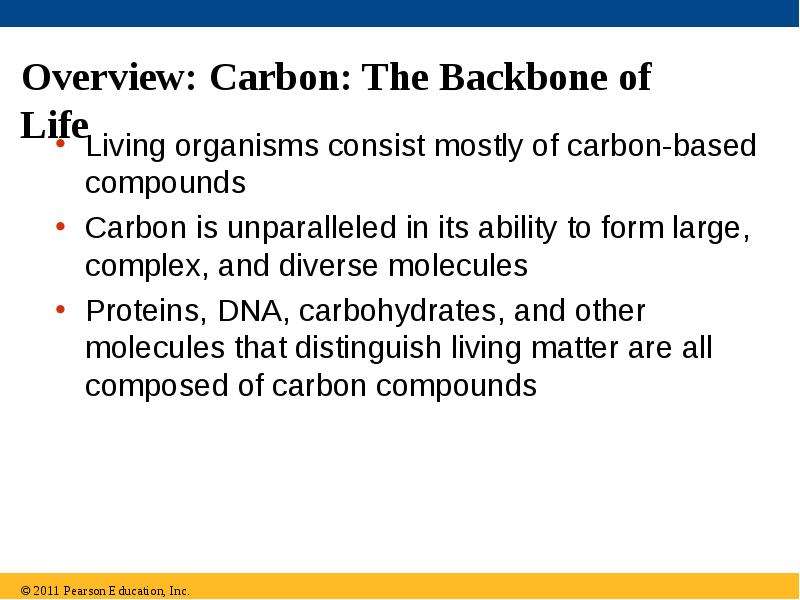

Overview: Carbon: The Backbone of Life Living organisms consist mostly of carbon-based compounds Carbon is unparalleled in its ability to form large,...
Описание слайда:
Overview: Carbon: The Backbone of Life Living organisms consist mostly of carbon-based compounds Carbon is unparalleled in its ability to form large, complex, and diverse molecules Proteins, DNA, carbohydrates, and other molecules that distinguish living matter are all composed of carbon compounds

Слайд 3


Figure 4.1
Описание слайда:
Figure 4.1

Слайд 4

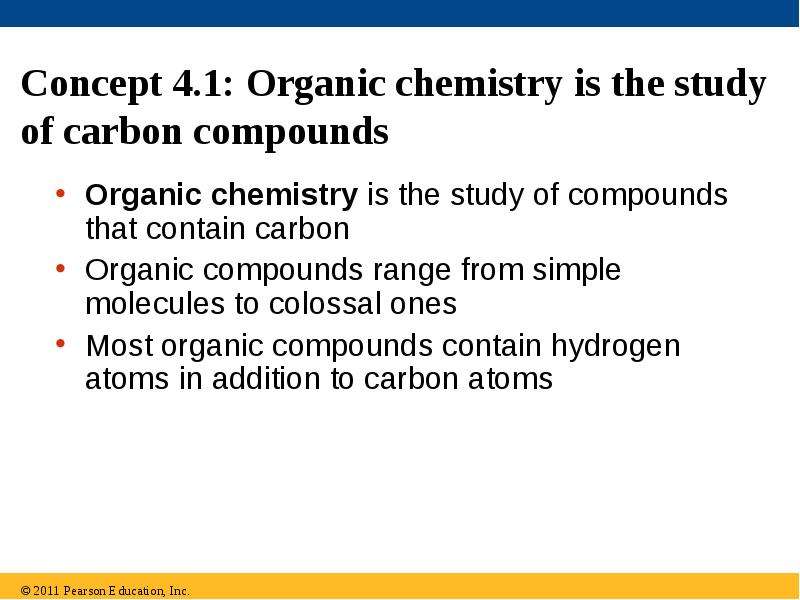

Concept 4.1: Organic chemistry is the study of carbon compounds Organic chemistry is the study of compounds that contain carbon Organic compounds...
Описание слайда:
Concept 4.1: Organic chemistry is the study of carbon compounds Organic chemistry is the study of compounds that contain carbon Organic compounds range from simple molecules to colossal ones Most organic compounds contain hydrogen atoms in addition to carbon atoms

Слайд 5

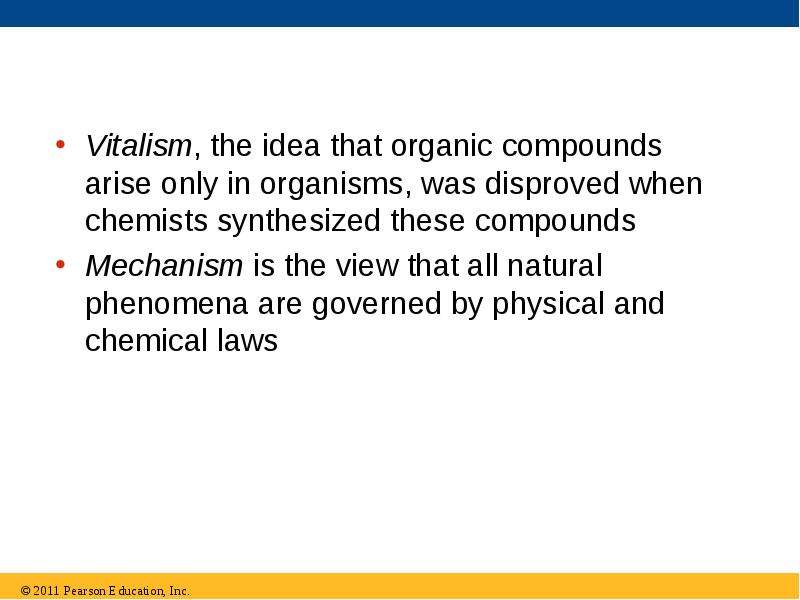

Vitalism, the idea that organic compounds arise only in organisms, was disproved when chemists synthesized these compounds Vitalism, the idea that...
Описание слайда:
Vitalism, the idea that organic compounds arise only in organisms, was disproved when chemists synthesized these compounds Vitalism, the idea that organic compounds arise only in organisms, was disproved when chemists synthesized these compounds Mechanism is the view that all natural phenomena are governed by physical and chemical laws

Слайд 6

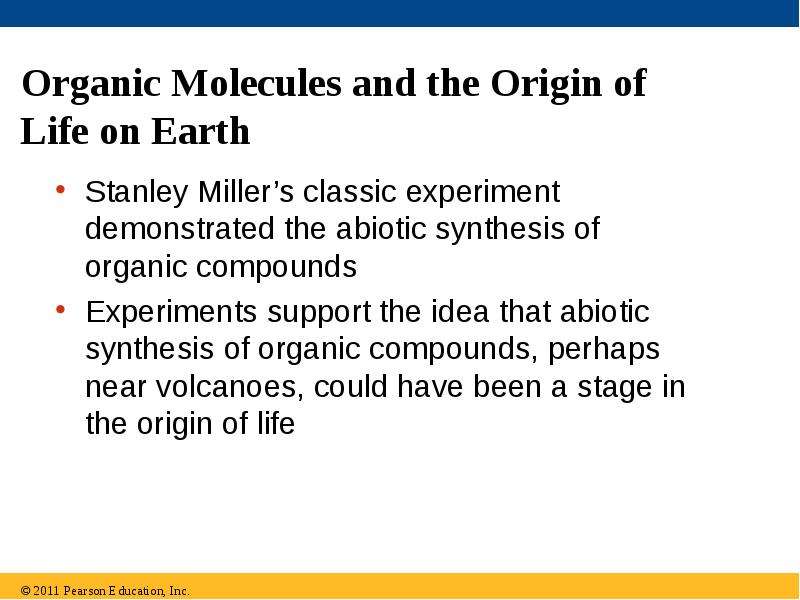

Organic Molecules and the Origin of Life on Earth Stanley Miller’s classic experiment demonstrated the abiotic synthesis of organic compounds...
Описание слайда:
Organic Molecules and the Origin of Life on Earth Stanley Miller’s classic experiment demonstrated the abiotic synthesis of organic compounds Experiments support the idea that abiotic synthesis of organic compounds, perhaps near volcanoes, could have been a stage in the origin of life

Слайд 7

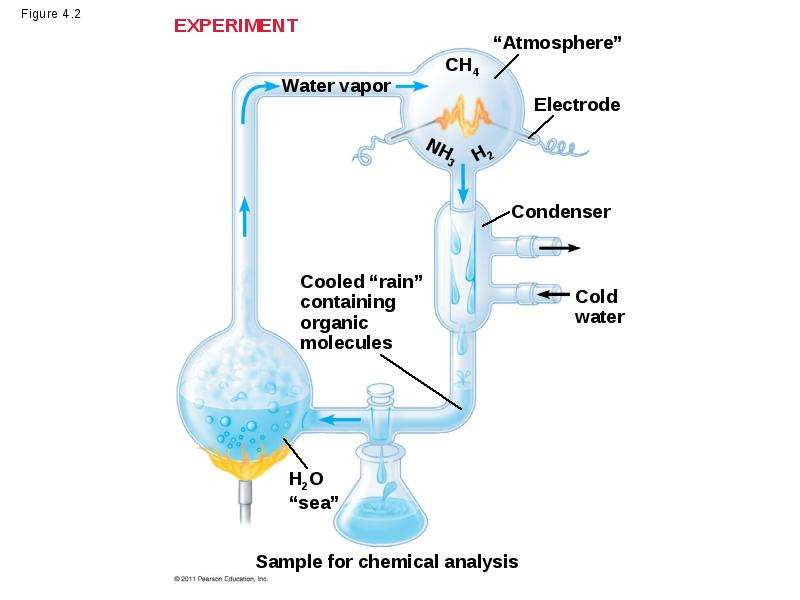

Figure 4.2
Описание слайда:
Figure 4.2

Слайд 8

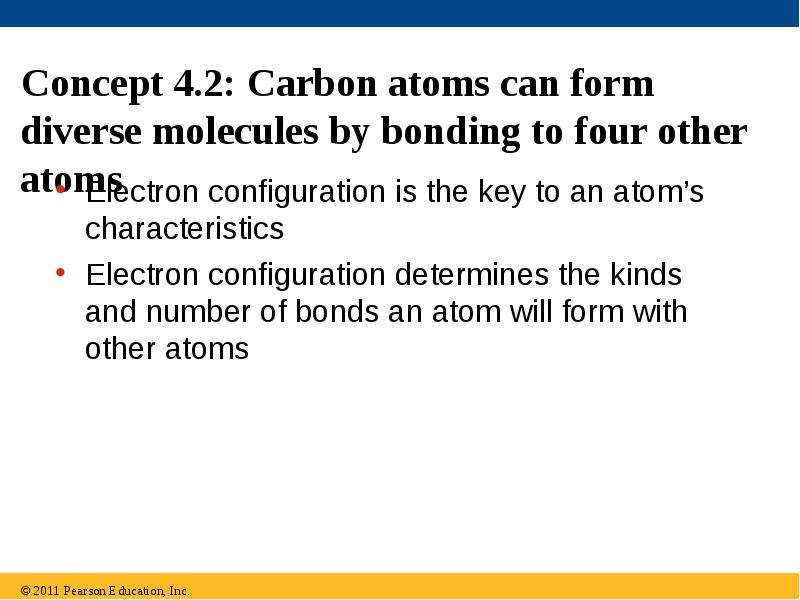

Concept 4.2: Carbon atoms can form diverse molecules by bonding to four other atoms Electron configuration is the key to an atom’s characteristics...
Описание слайда:
Concept 4.2: Carbon atoms can form diverse molecules by bonding to four other atoms Electron configuration is the key to an atom’s characteristics Electron configuration determines the kinds and number of bonds an atom will form with other atoms

Слайд 9

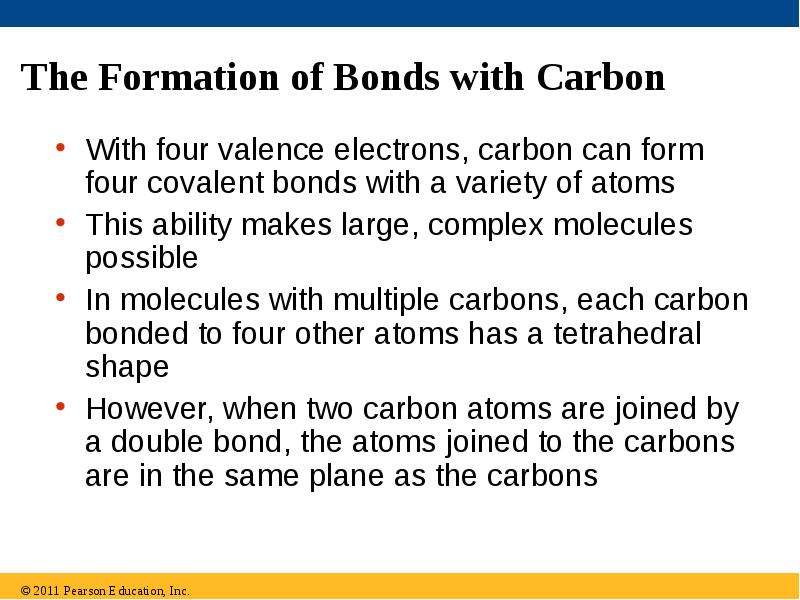

The Formation of Bonds with Carbon With four valence electrons, carbon can form four covalent bonds with a variety of atoms This ability makes large,...
Описание слайда:
The Formation of Bonds with Carbon With four valence electrons, carbon can form four covalent bonds with a variety of atoms This ability makes large, complex molecules possible In molecules with multiple carbons, each carbon bonded to four other atoms has a tetrahedral shape However, when two carbon atoms are joined by a double bond, the atoms joined to the carbons are in the same plane as the carbons

Слайд 10

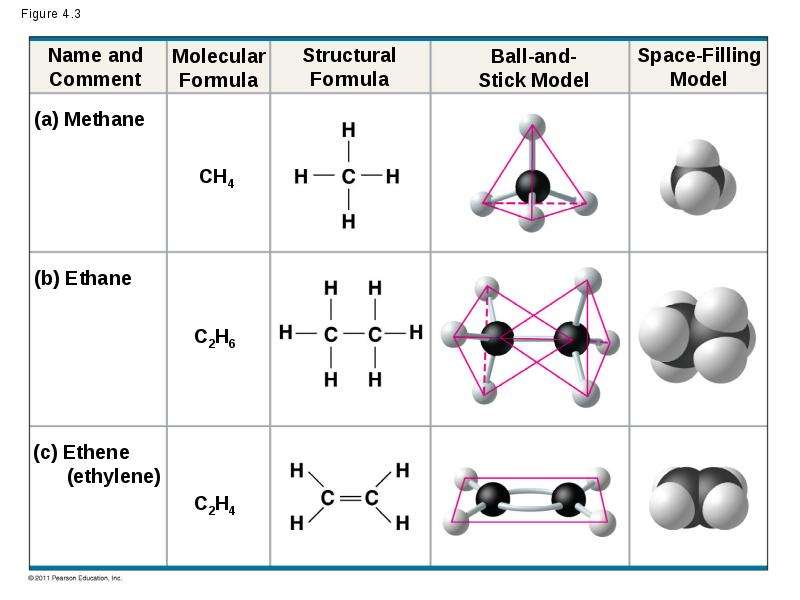

Figure 4.3
Описание слайда:
Figure 4.3

Слайд 11

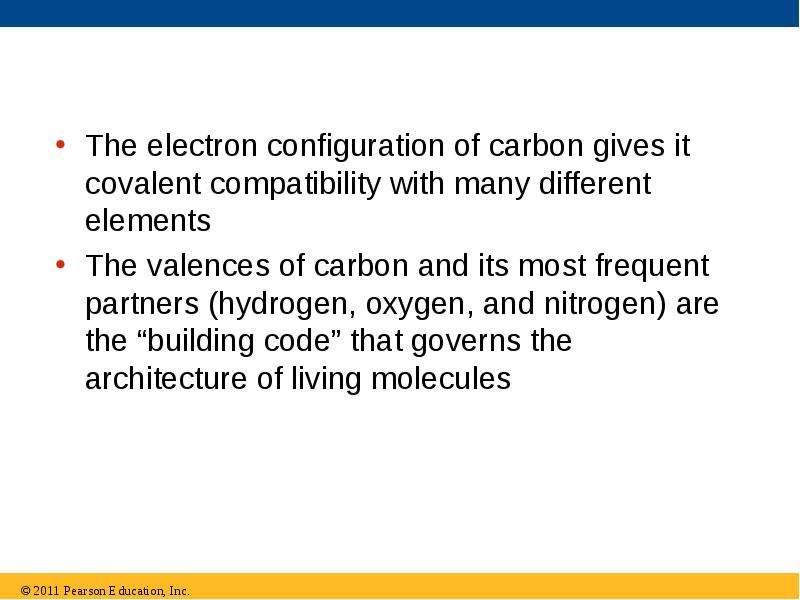

The electron configuration of carbon gives it covalent compatibility with many different elements The electron configuration of carbon gives it...
Описание слайда:
The electron configuration of carbon gives it covalent compatibility with many different elements The electron configuration of carbon gives it covalent compatibility with many different elements The valences of carbon and its most frequent partners (hydrogen, oxygen, and nitrogen) are the “building code” that governs the architecture of living molecules

Слайд 12

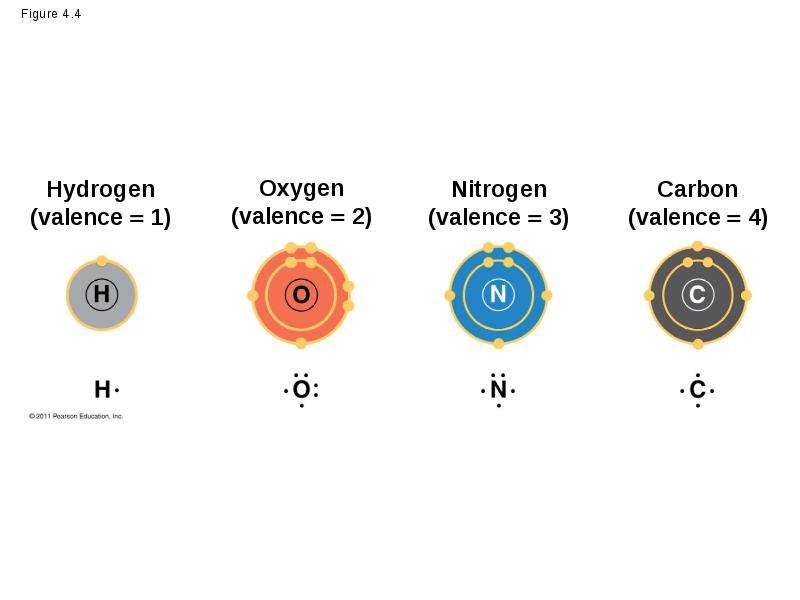

Figure 4.4
Описание слайда:
Figure 4.4

Слайд 13

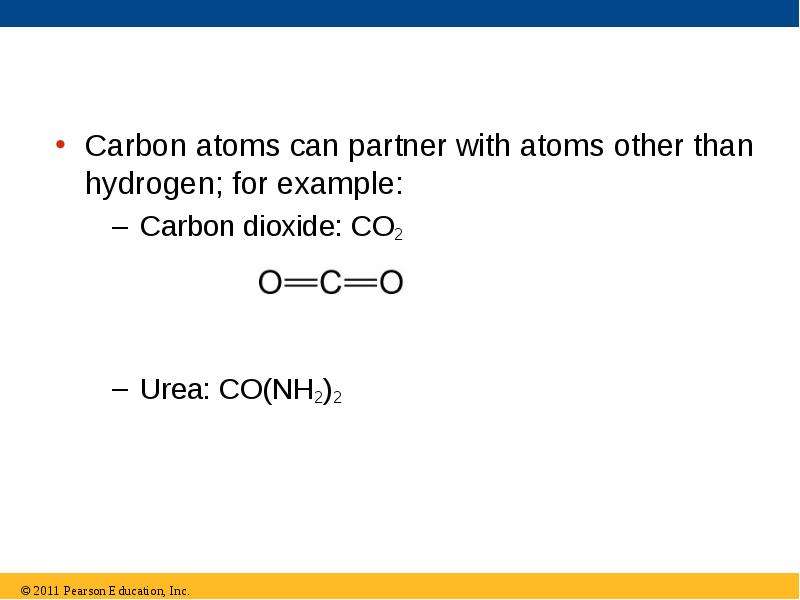

Carbon atoms can partner with atoms other than hydrogen; for example: Carbon atoms can partner with atoms other than hydrogen; for example: Carbon...
Описание слайда:
Carbon atoms can partner with atoms other than hydrogen; for example: Carbon atoms can partner with atoms other than hydrogen; for example: Carbon dioxide: CO2 Urea: CO(NH2)2

Слайд 14


Figure 4.UN01
Описание слайда:
Figure 4.UN01

Слайд 15

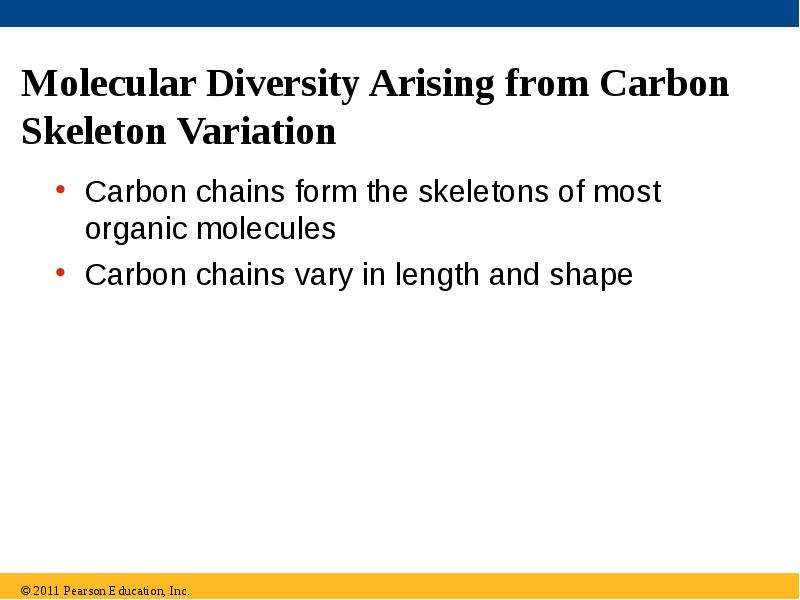

Molecular Diversity Arising from Carbon Skeleton Variation Carbon chains form the skeletons of most organic molecules Carbon chains vary in length...
Описание слайда:
Molecular Diversity Arising from Carbon Skeleton Variation Carbon chains form the skeletons of most organic molecules Carbon chains vary in length and shape

Слайд 16

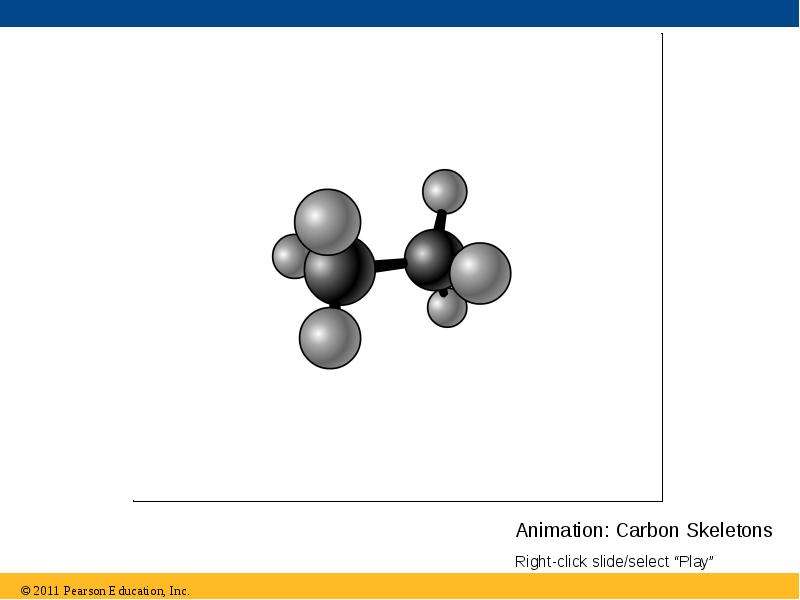

Carbon and the molecular diversity of life. (Chapter 4), слайд №16
Описание слайда:

Слайд 17


Figure 4.5
Описание слайда:
Figure 4.5

Слайд 18


Figure 4.5a
Описание слайда:
Figure 4.5a

Слайд 19

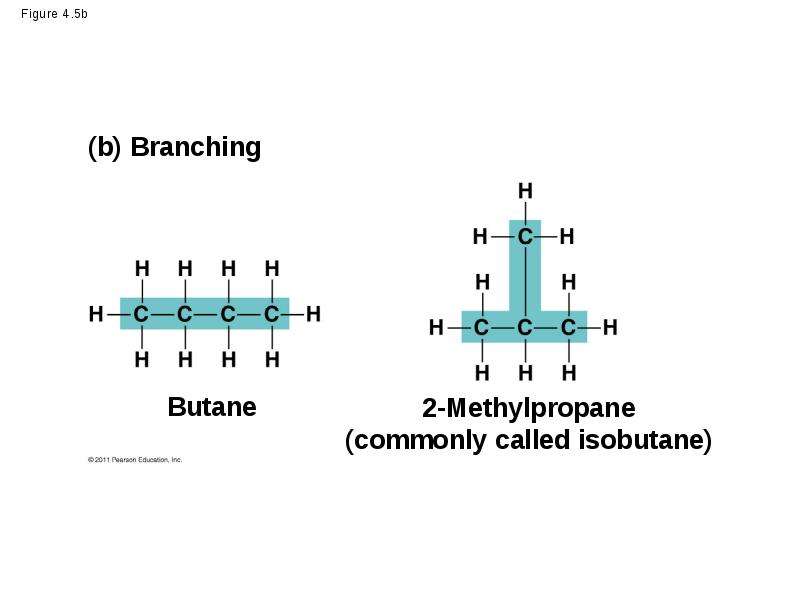

Figure 4.5b
Описание слайда:
Figure 4.5b

Слайд 20

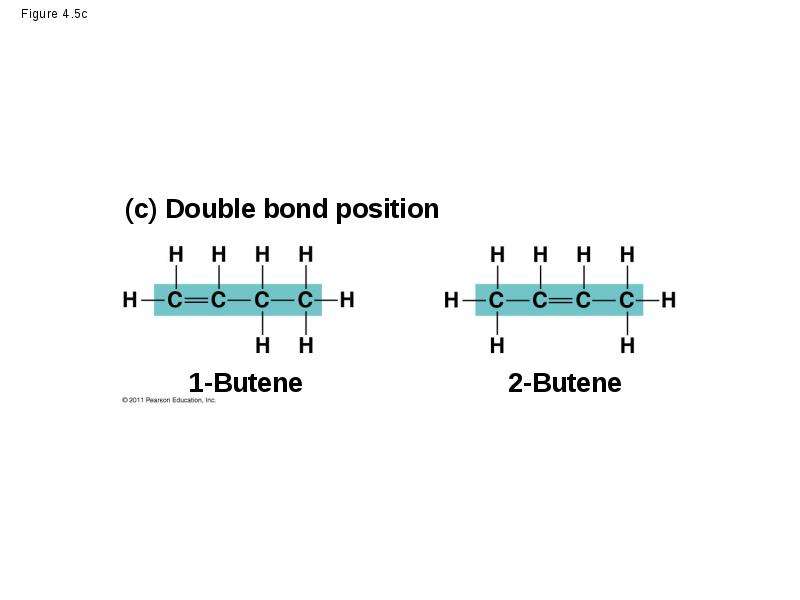

Figure 4.5c
Описание слайда:
Figure 4.5c

Слайд 21

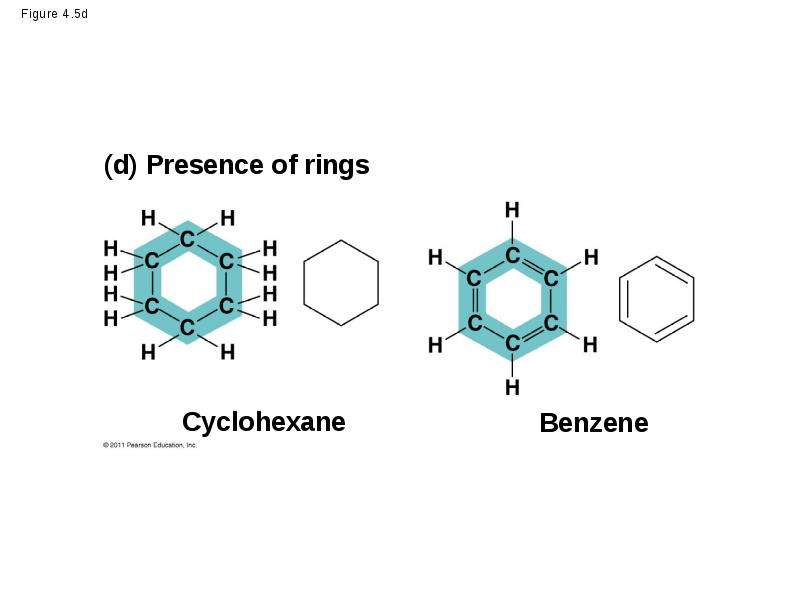

Figure 4.5d
Описание слайда:
Figure 4.5d

Слайд 22

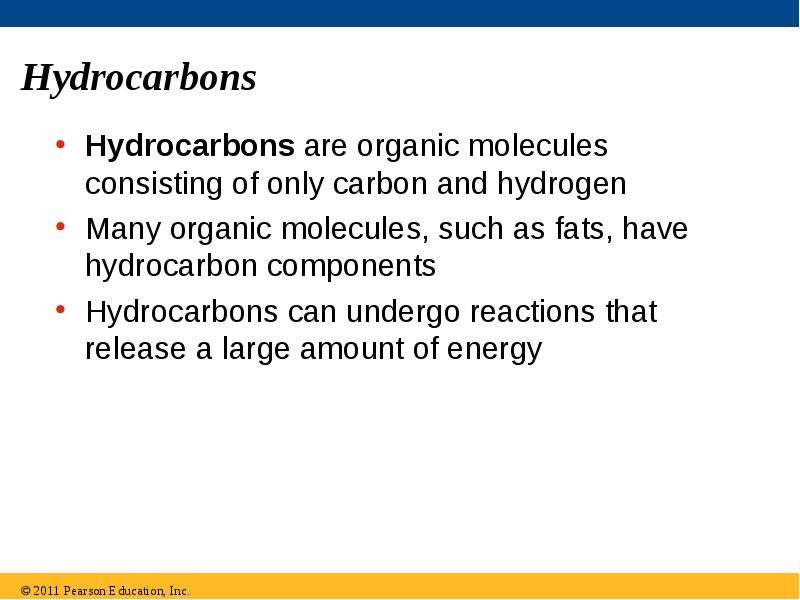

Hydrocarbons Hydrocarbons are organic molecules consisting of only carbon and hydrogen Many organic molecules, such as fats, have hydrocarbon...
Описание слайда:
Hydrocarbons Hydrocarbons are organic molecules consisting of only carbon and hydrogen Many organic molecules, such as fats, have hydrocarbon components Hydrocarbons can undergo reactions that release a large amount of energy

Слайд 23

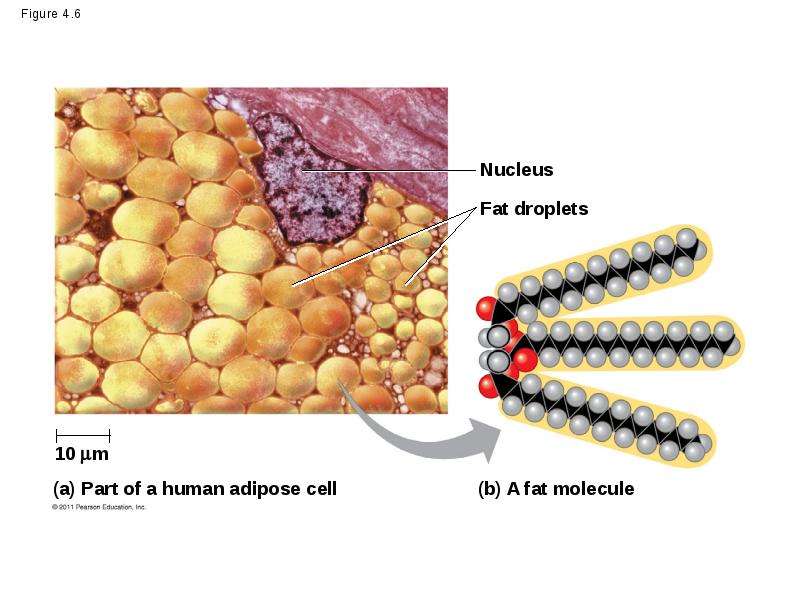

Figure 4.6
Описание слайда:
Figure 4.6

Слайд 24


Figure 4.6a
Описание слайда:
Figure 4.6a

Слайд 25

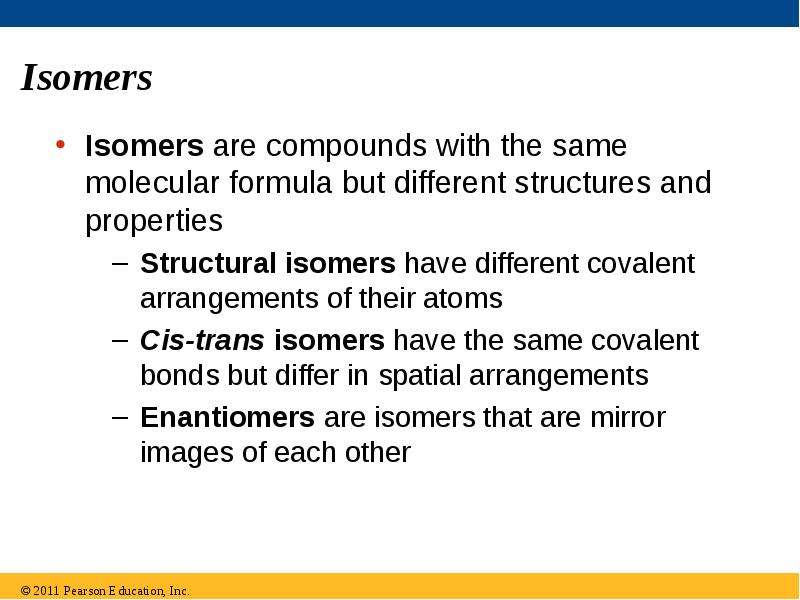

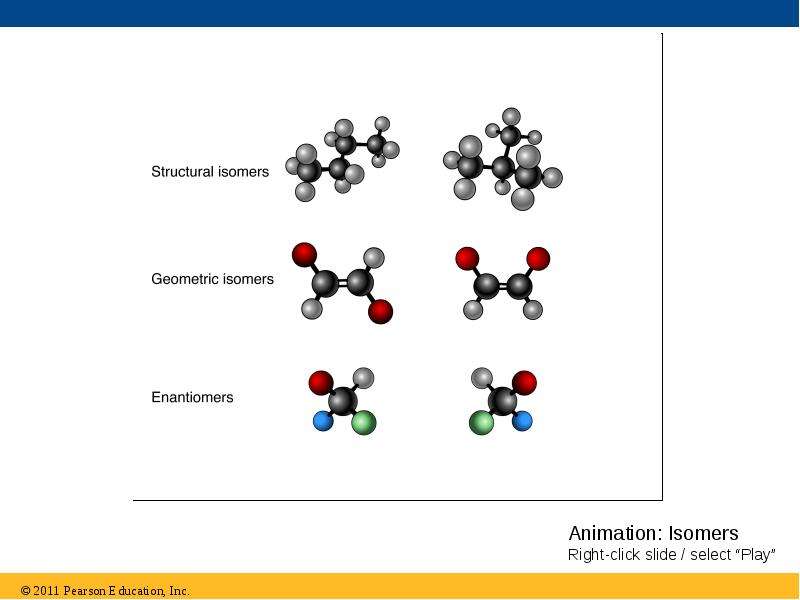

Isomers Isomers are compounds with the same molecular formula but different structures and properties Structural isomers have different covalent...
Описание слайда:

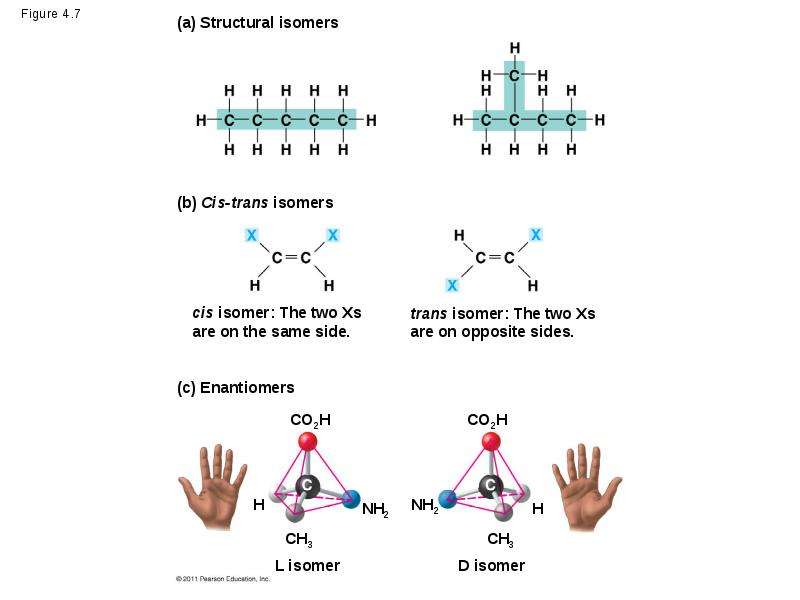

Isomers Isomers are compounds with the same molecular formula but different structures and properties Structural isomers have different covalent arrangements of their atoms Cis-trans isomers have the same covalent bonds but differ in spatial arrangements Enantiomers are isomers that are mirror images of each other

Слайд 26


Carbon and the molecular diversity of life. (Chapter 4), слайд №26
Описание слайда:

Слайд 27


Figure 4.7
Описание слайда:
Figure 4.7

Слайд 28

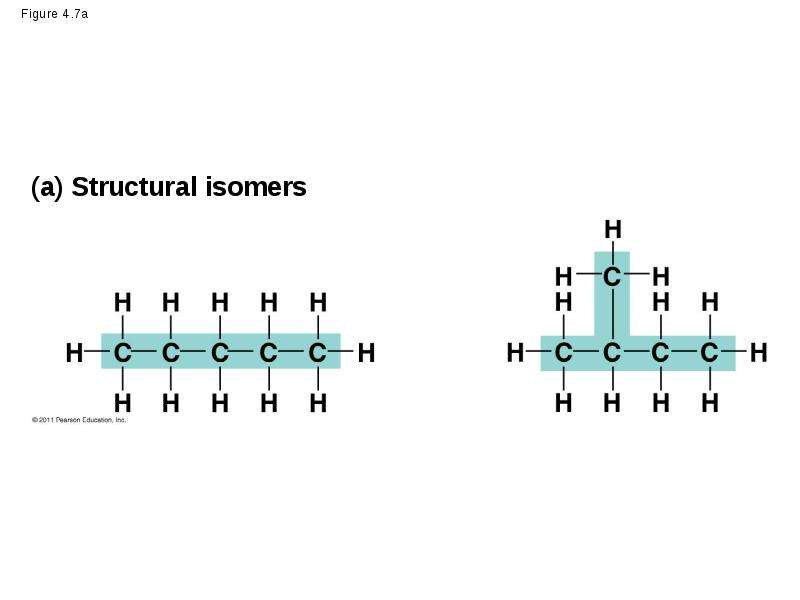

Figure 4.7a
Описание слайда:
Figure 4.7a

Слайд 29

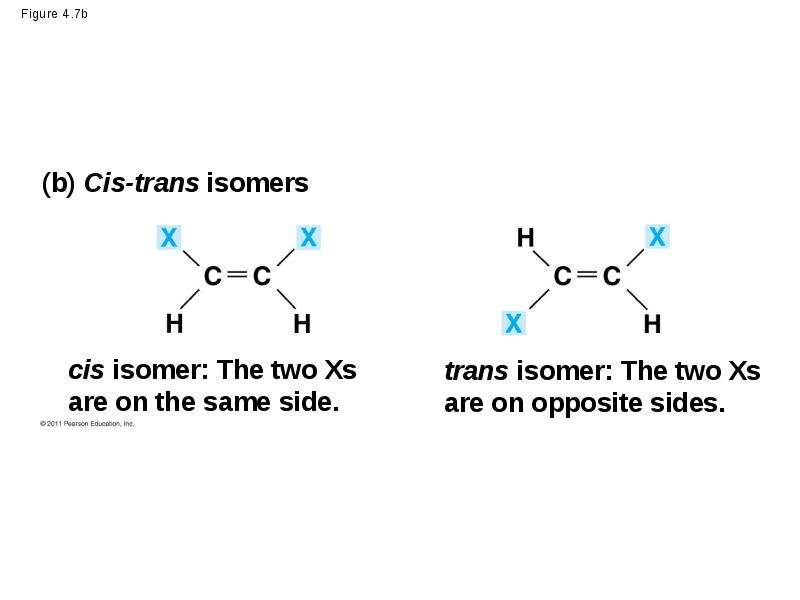

Figure 4.7b
Описание слайда:
Figure 4.7b

Слайд 30

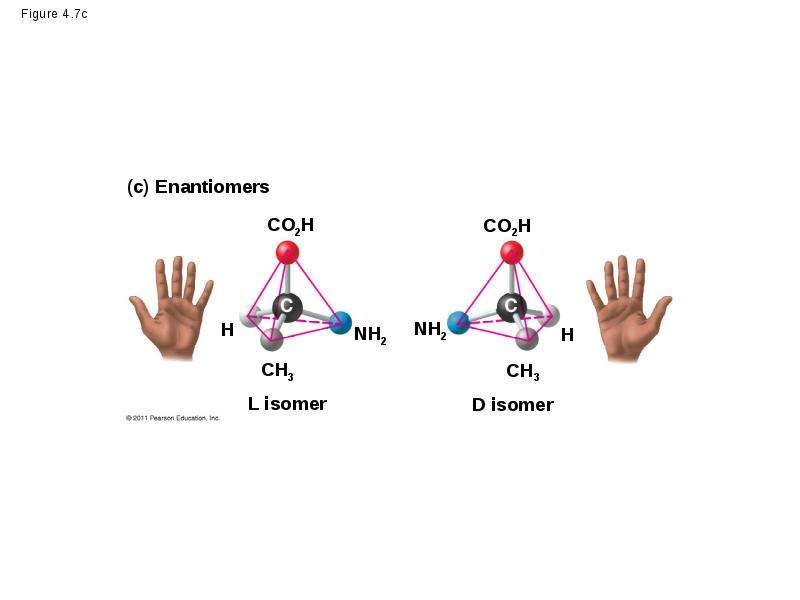

Figure 4.7c
Описание слайда:
Figure 4.7c

Слайд 31

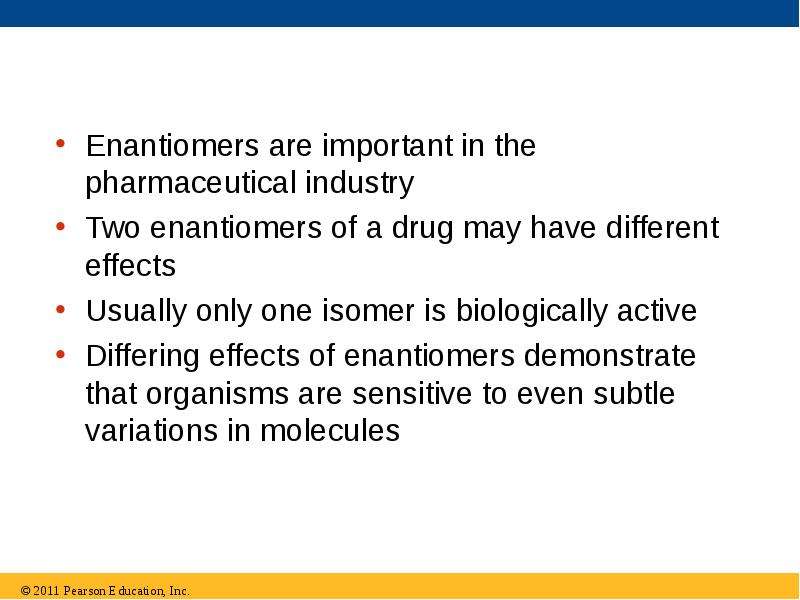

Enantiomers are important in the pharmaceutical industry Enantiomers are important in the pharmaceutical industry Two enantiomers of a drug may have...
Описание слайда:
Enantiomers are important in the pharmaceutical industry Enantiomers are important in the pharmaceutical industry Two enantiomers of a drug may have different effects Usually only one isomer is biologically active Differing effects of enantiomers demonstrate that organisms are sensitive to even subtle variations in molecules

Слайд 32

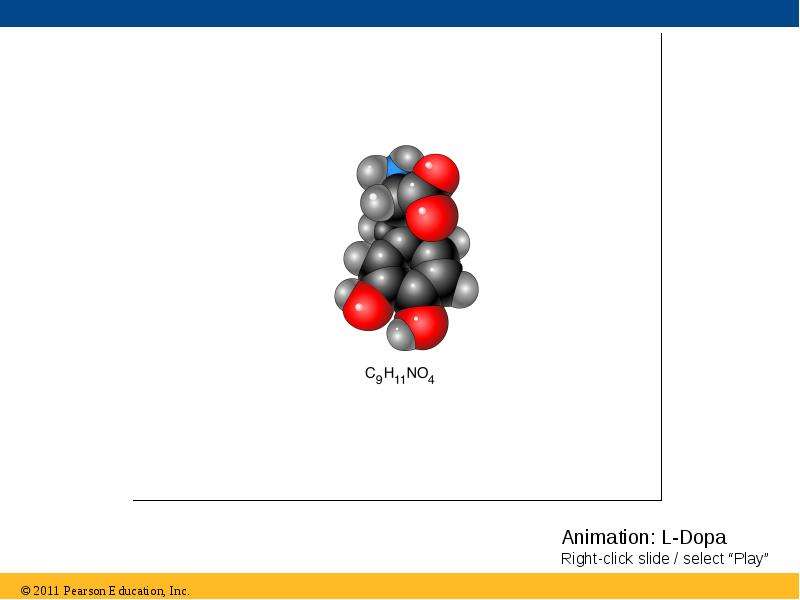

Carbon and the molecular diversity of life. (Chapter 4), слайд №32
Описание слайда:

Слайд 33

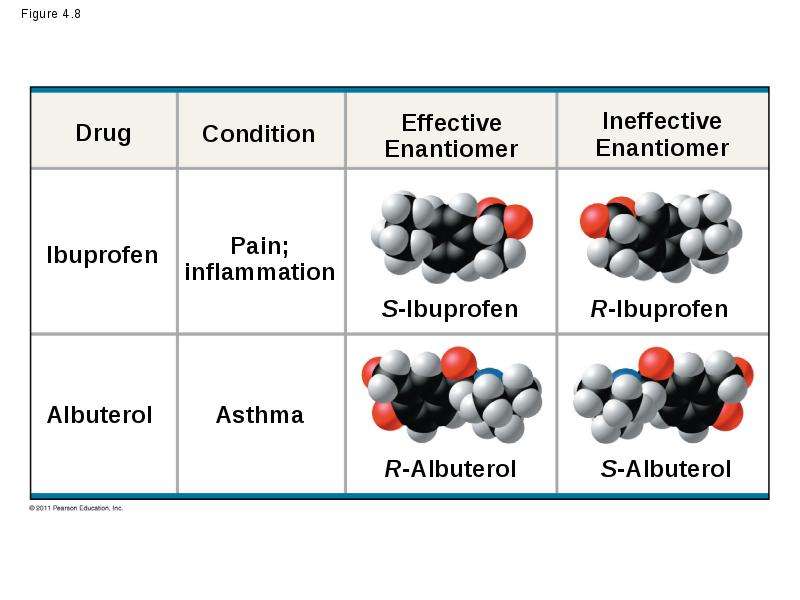

Figure 4.8
Описание слайда:
Figure 4.8

Слайд 34

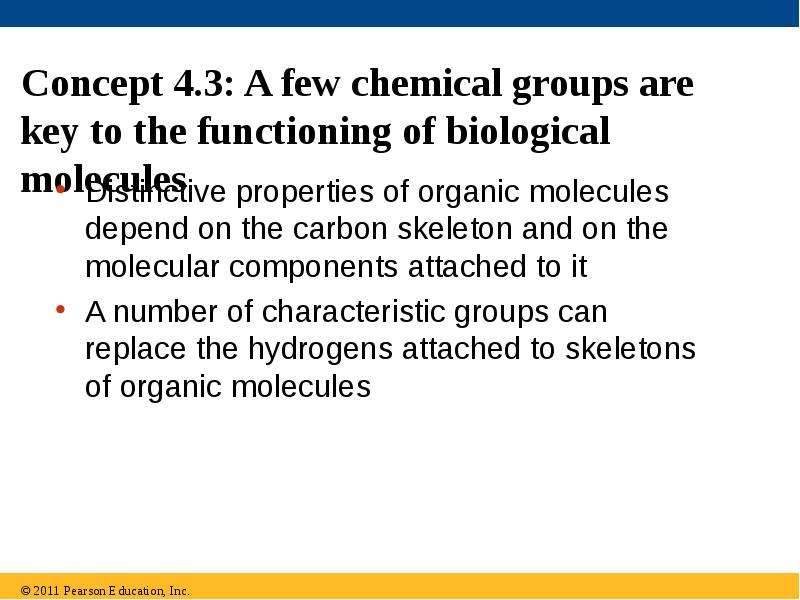

Concept 4.3: A few chemical groups are key to the functioning of biological molecules Distinctive properties of organic molecules depend on the...
Описание слайда:
Concept 4.3: A few chemical groups are key to the functioning of biological molecules Distinctive properties of organic molecules depend on the carbon skeleton and on the molecular components attached to it A number of characteristic groups can replace the hydrogens attached to skeletons of organic molecules

Слайд 35

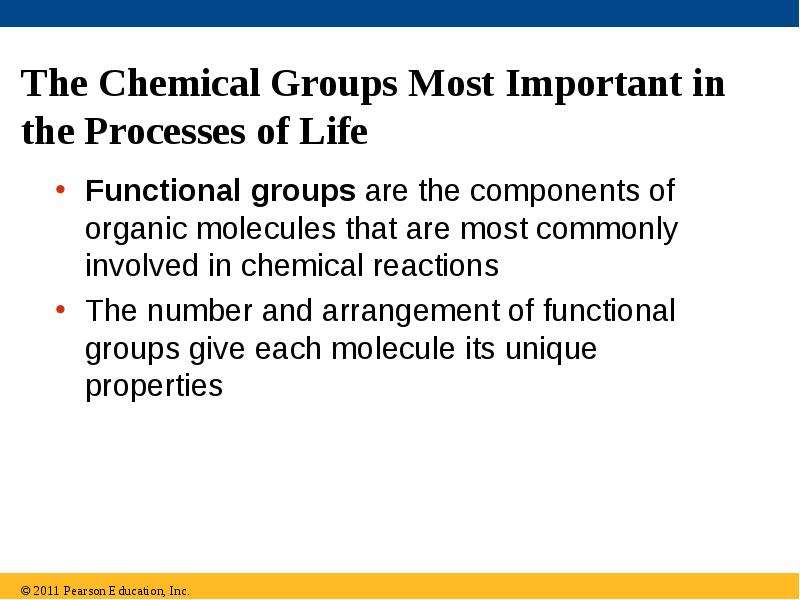

The Chemical Groups Most Important in the Processes of Life Functional groups are the components of organic molecules that are most commonly involved...
Описание слайда:
The Chemical Groups Most Important in the Processes of Life Functional groups are the components of organic molecules that are most commonly involved in chemical reactions The number and arrangement of functional groups give each molecule its unique properties

Слайд 36

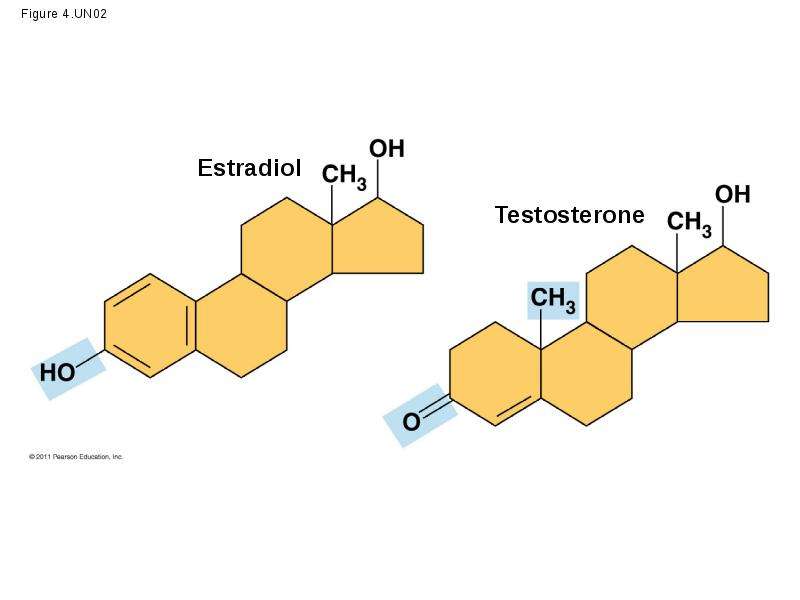

Figure 4.UN02
Описание слайда:
Figure 4.UN02

Слайд 37

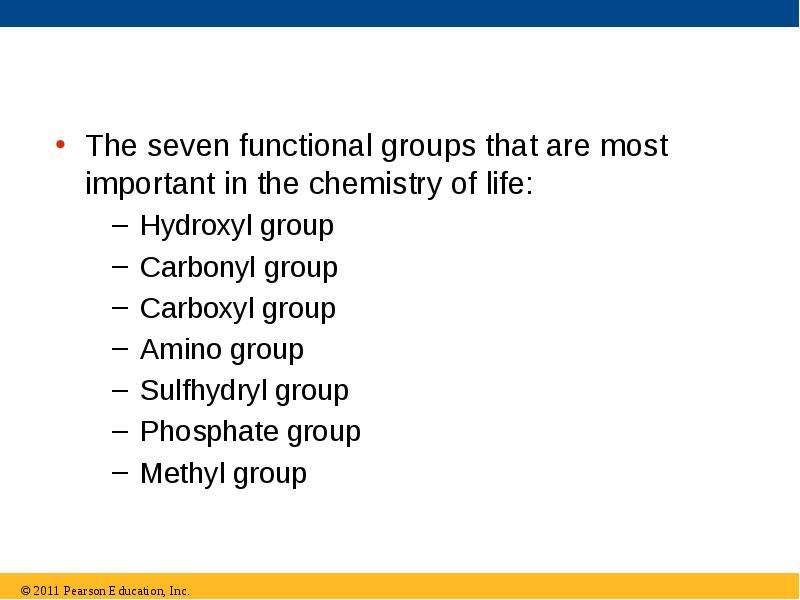

The seven functional groups that are most important in the chemistry of life: The seven functional groups that are most important in the chemistry of...
Описание слайда:
The seven functional groups that are most important in the chemistry of life: The seven functional groups that are most important in the chemistry of life: Hydroxyl group Carbonyl group Carboxyl group Amino group Sulfhydryl group Phosphate group Methyl group

Слайд 38

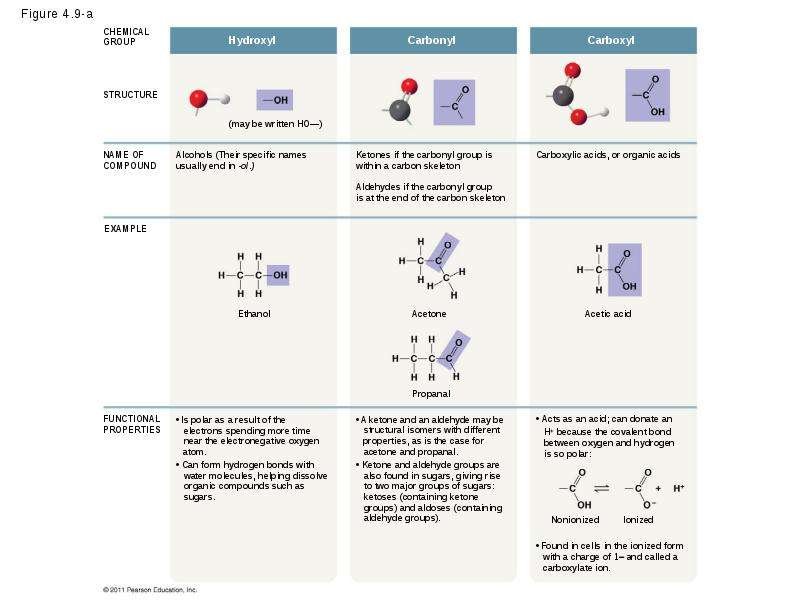

Figure 4.9-a
Описание слайда:
Figure 4.9-a

Слайд 39

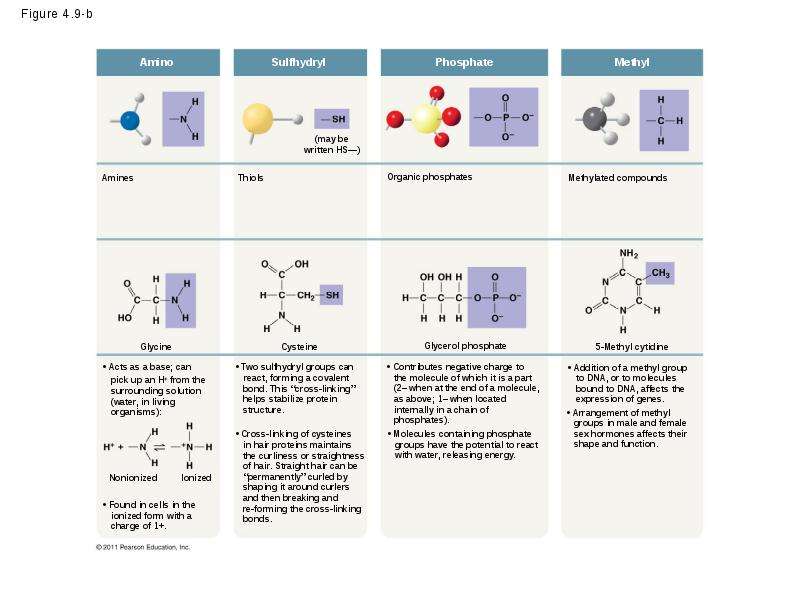

Figure 4.9-b
Описание слайда:
Figure 4.9-b

Слайд 40

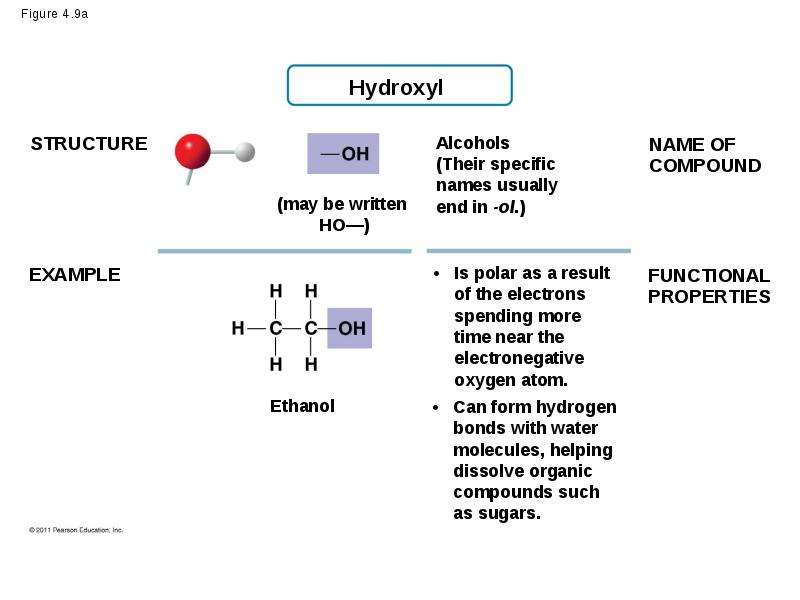

Figure 4.9a
Описание слайда:
Figure 4.9a

Слайд 41

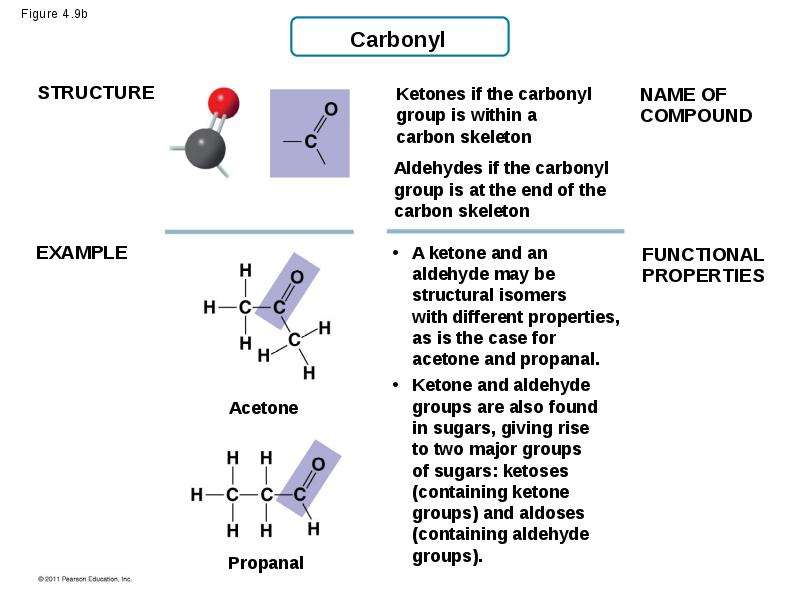

Figure 4.9b
Описание слайда:
Figure 4.9b

Слайд 42

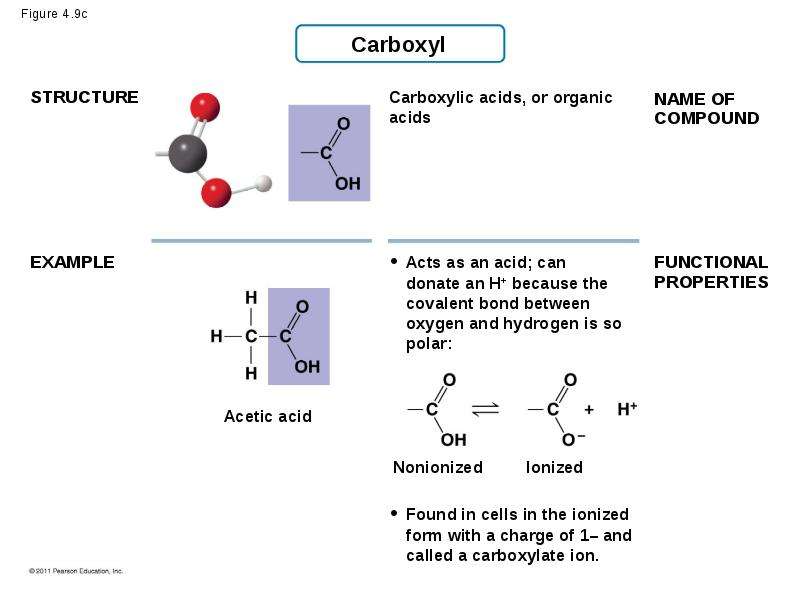

Figure 4.9c
Описание слайда:
Figure 4.9c

Слайд 43

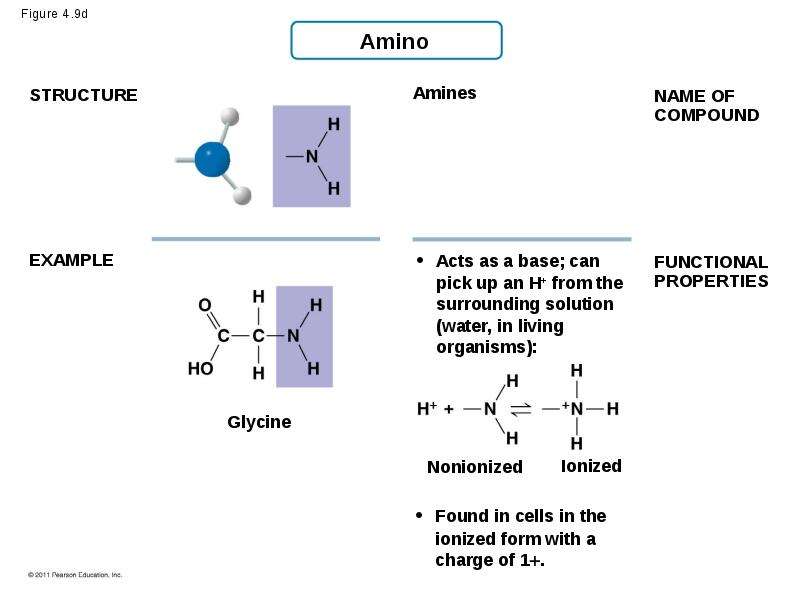

Figure 4.9d
Описание слайда:
Figure 4.9d

Слайд 44

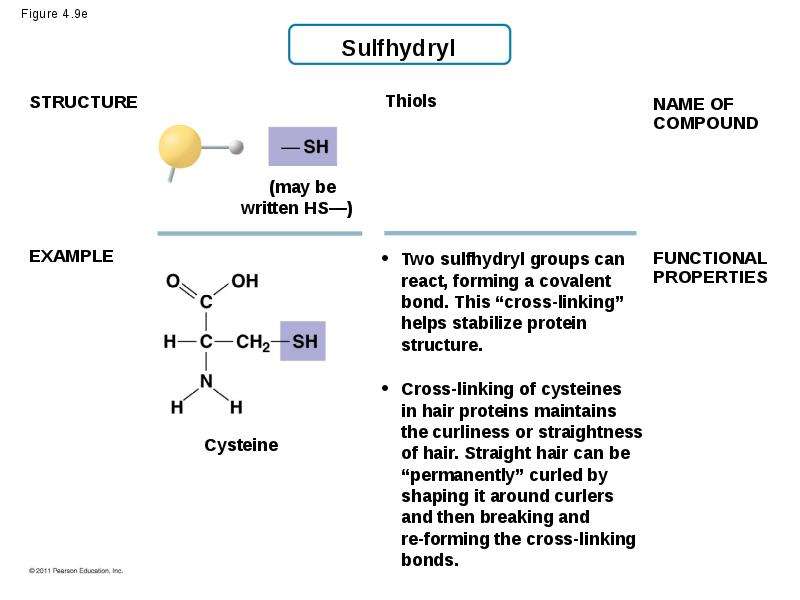

Figure 4.9e
Описание слайда:
Figure 4.9e

Слайд 45

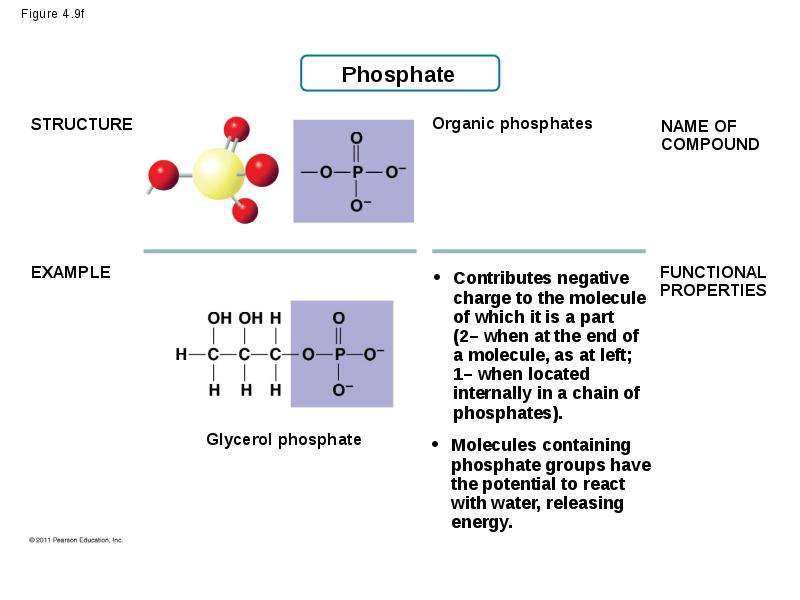

Figure 4.9f
Описание слайда:
Figure 4.9f

Слайд 46

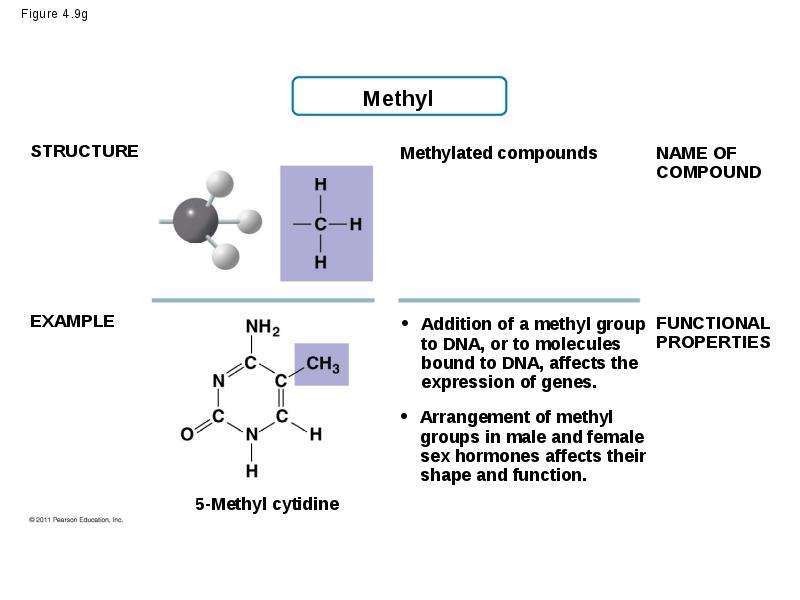

Figure 4.9g
Описание слайда:
Figure 4.9g

Слайд 47

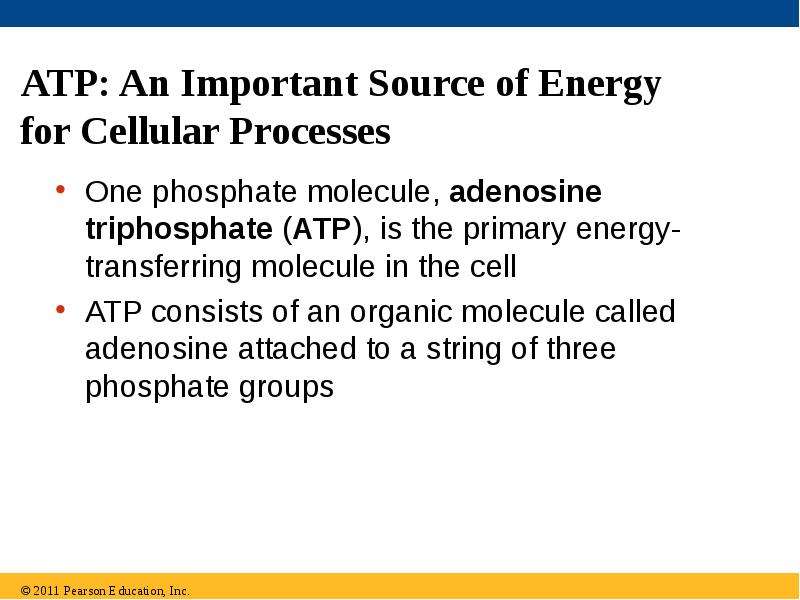

ATP: An Important Source of Energy for Cellular Processes One phosphate molecule, adenosine triphosphate (ATP), is the primary energy-transferring...
Описание слайда:
ATP: An Important Source of Energy for Cellular Processes One phosphate molecule, adenosine triphosphate (ATP), is the primary energy-transferring molecule in the cell ATP consists of an organic molecule called adenosine attached to a string of three phosphate groups

Слайд 48


Figure 4.UN03
Описание слайда:
Figure 4.UN03

Слайд 49

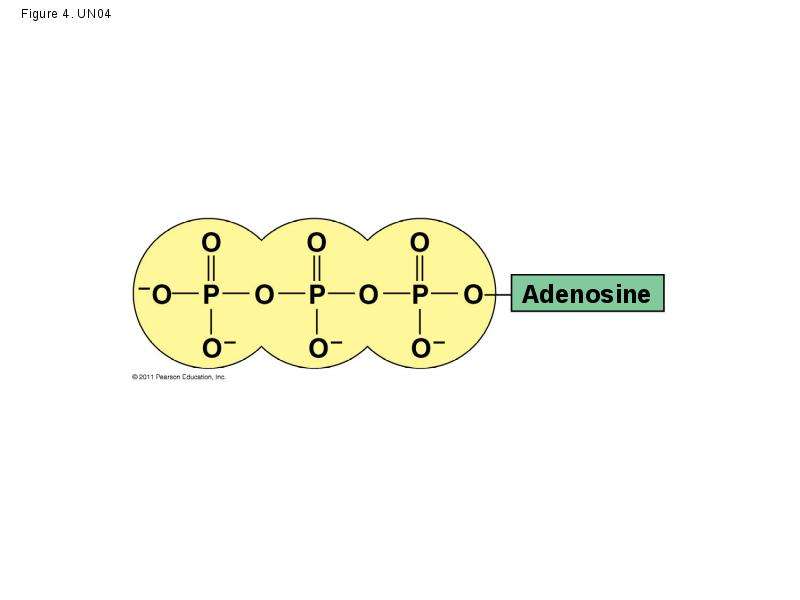

Figure 4. UN04
Описание слайда:
Figure 4. UN04

Слайд 50

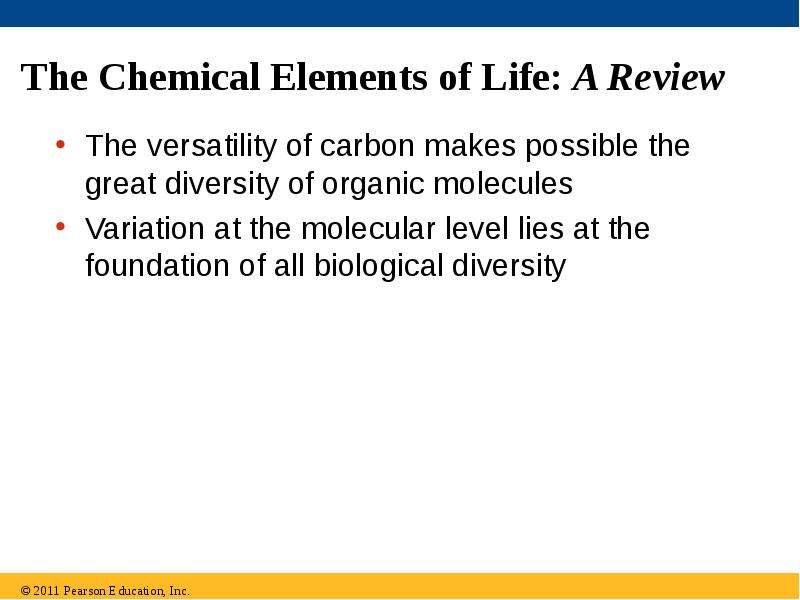

The Chemical Elements of Life: A Review The versatility of carbon makes possible the great diversity of organic molecules Variation at the molecular...
Описание слайда:
The Chemical Elements of Life: A Review The versatility of carbon makes possible the great diversity of organic molecules Variation at the molecular level lies at the foundation of all biological diversity

Слайд 51

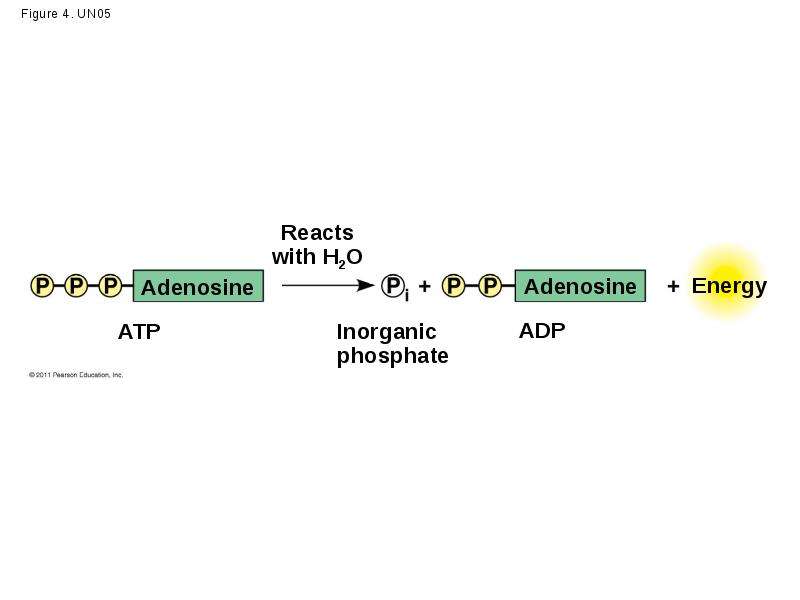

Figure 4. UN05
Описание слайда:
Figure 4. UN05

Слайд 52


Figure 4. UN07
Описание слайда:
Figure 4. UN07

Слайд 53


Figure 4. UN08
Описание слайда:
Figure 4. UN08

Слайд 54


Figure 4. UN09
Описание слайда:
Figure 4. UN09

Слайд 55

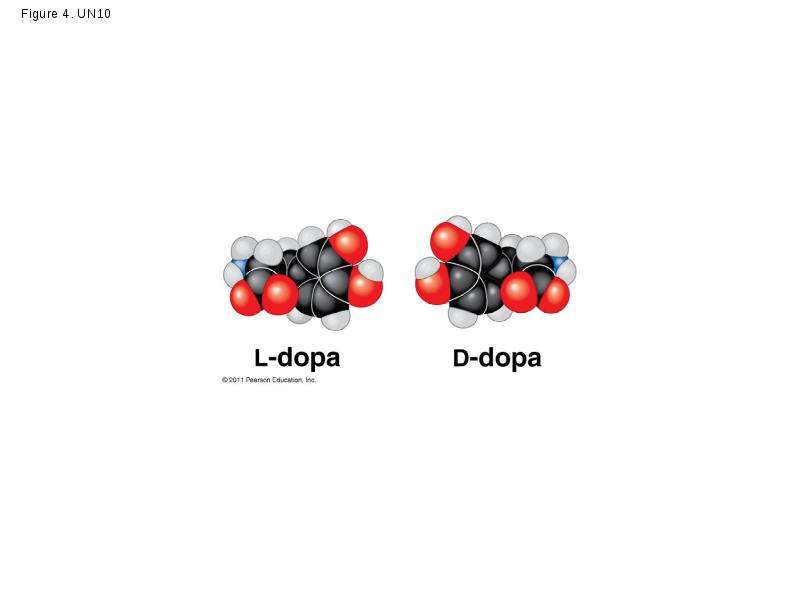

Figure 4. UN10
Описание слайда:
Figure 4. UN10

Слайд 56


Figure 4. UN11
Описание слайда:
Figure 4. UN11

Слайд 57


Figure 4. UN12
Описание слайда:
Figure 4. UN12

Слайд 58


Figure 4. UN13
Описание слайда:
Figure 4. UN13

Слайд 59


Figure 4. UN14
Описание слайда:
Figure 4. UN14

Слайд 60


Figure 4. UN15
Описание слайда:
Figure 4. UN15
