Слайд 1

Описание слайда:

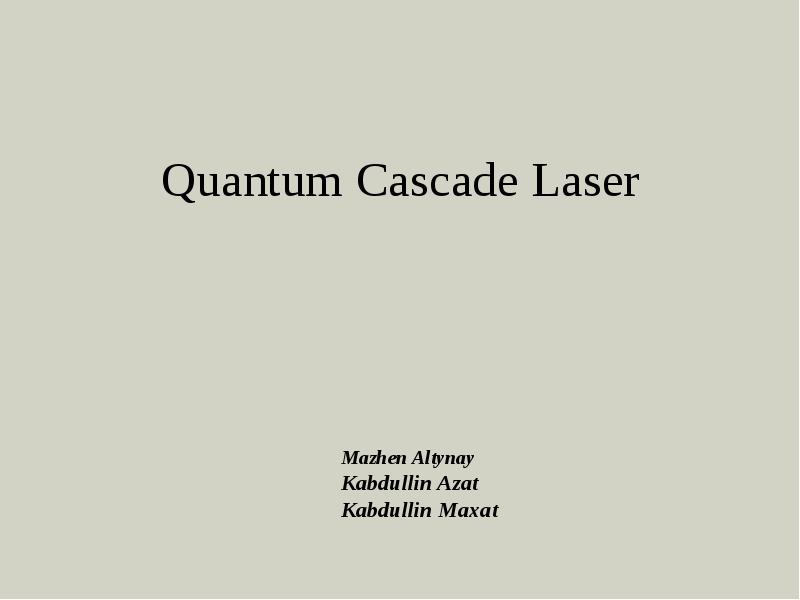

Quantum Cascade Laser

Слайд 2

Описание слайда:

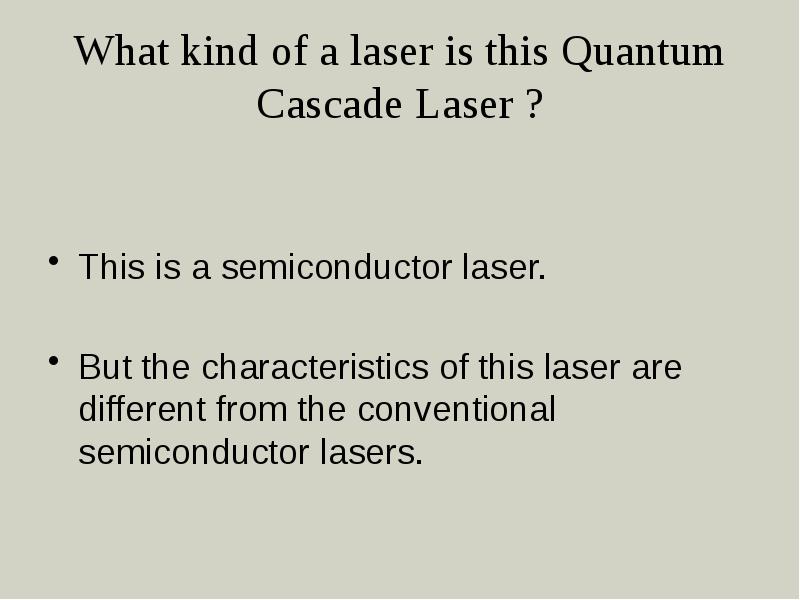

What kind of a laser is this Quantum Cascade Laser ? This is a semiconductor laser. But the characteristics of this laser are different from the conventional semiconductor lasers.

Слайд 3

Описание слайда:

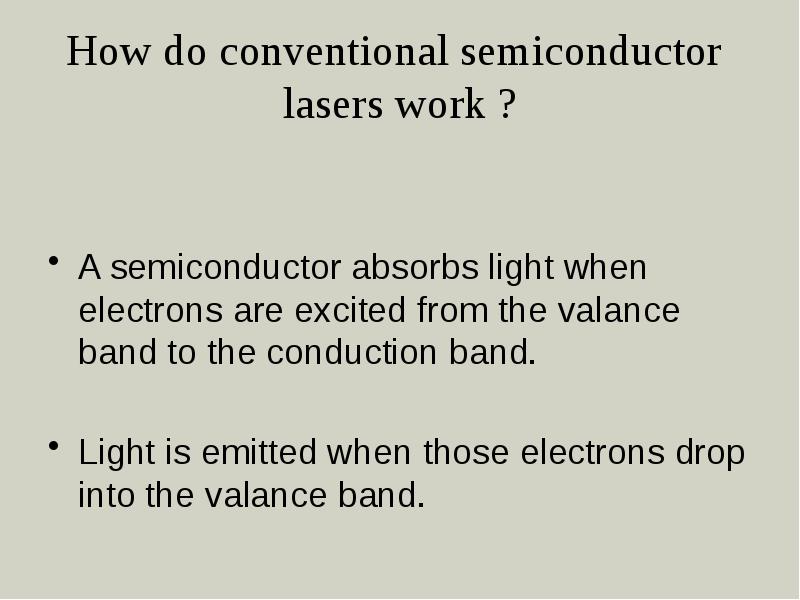

How do conventional semiconductor lasers work ? A semiconductor absorbs light when electrons are excited from the valance band to the conduction band. Light is emitted when those electrons drop into the valance band.

Слайд 4

Описание слайда:

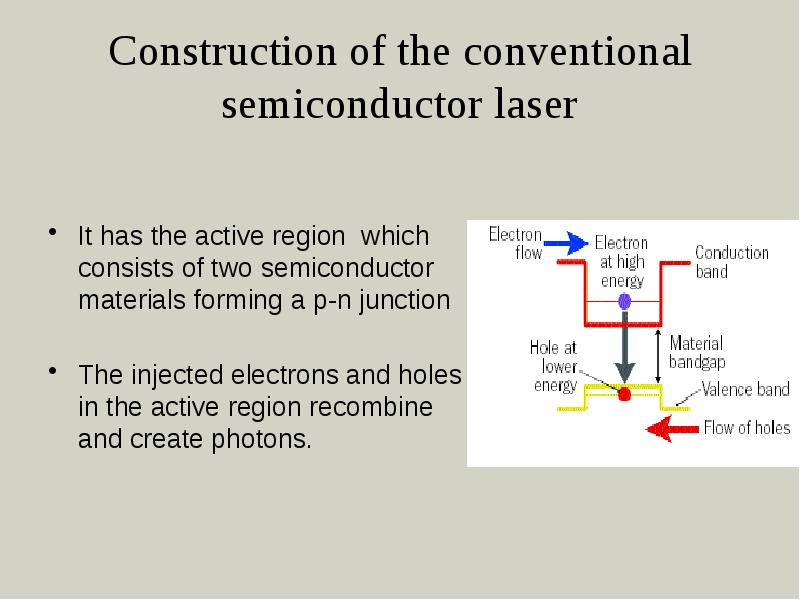

Construction of the conventional semiconductor laser It has the active region which consists of two semiconductor materials forming a p-n junction The injected electrons and holes in the active region recombine and create photons.

Слайд 5

Описание слайда:

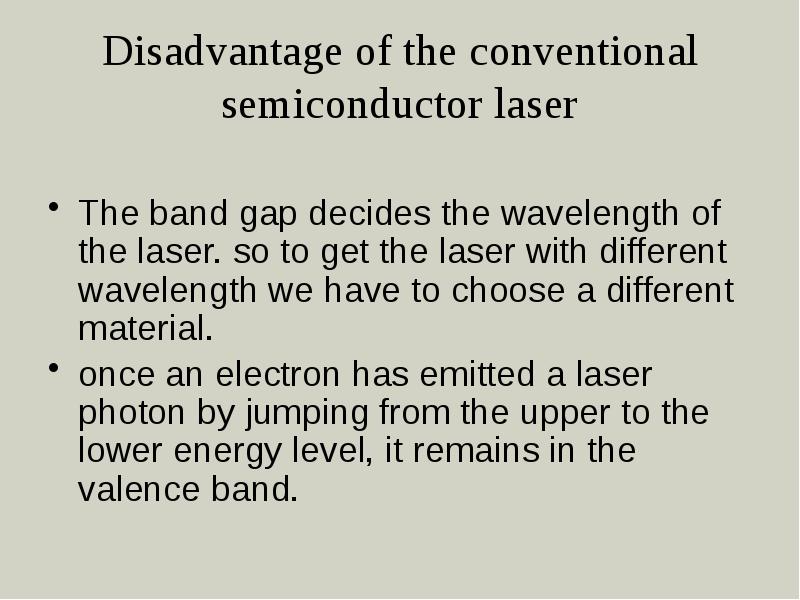

Disadvantage of the conventional semiconductor laser The band gap decides the wavelength of the laser. so to get the laser with different wavelength we have to choose a different material. once an electron has emitted a laser photon by jumping from the upper to the lower energy level, it remains in the valence band.

Слайд 6

Описание слайда:

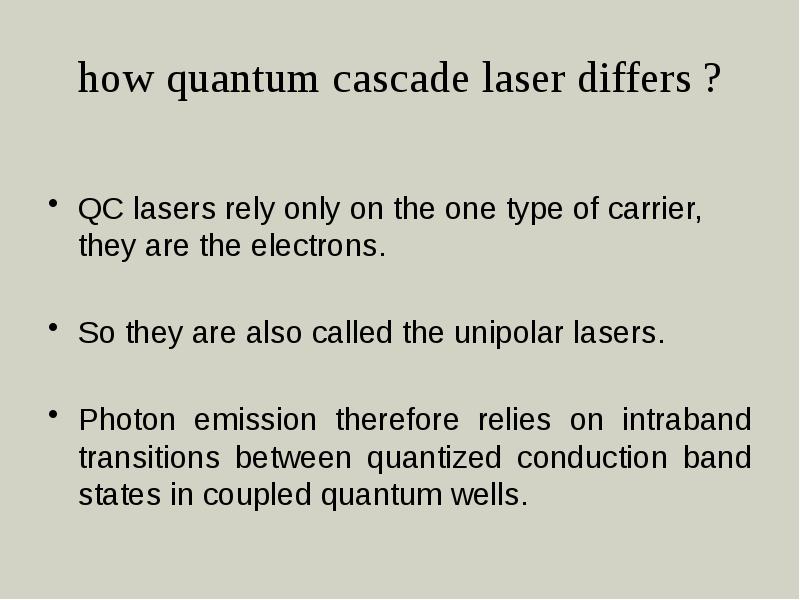

how quantum cascade laser differs ? QC lasers rely only on the one type of carrier, they are the electrons. So they are also called the unipolar lasers. Photon emission therefore relies on intraband transitions between quantized conduction band states in coupled quantum wells.

Слайд 7

Описание слайда:

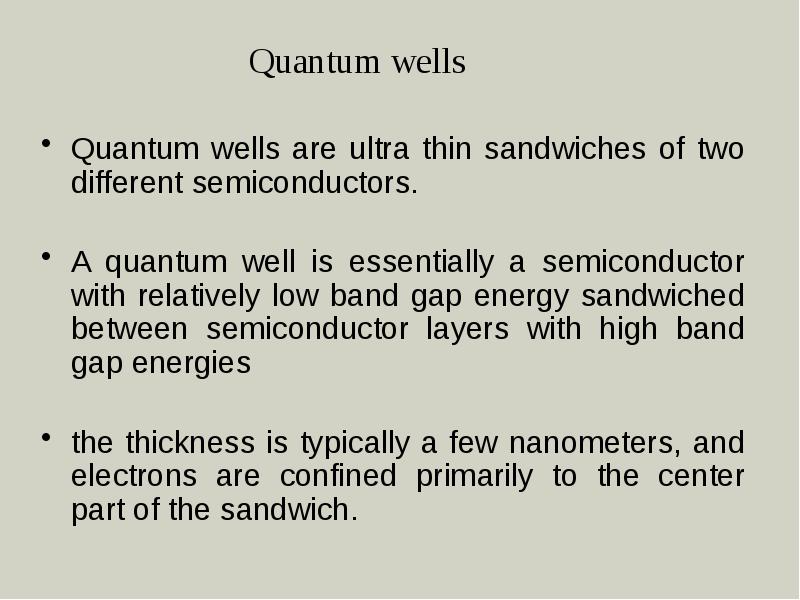

Quantum wells Quantum wells are ultra thin sandwiches of two different semiconductors. A quantum well is essentially a semiconductor with relatively low band gap energy sandwiched between semiconductor layers with high band gap energies the thickness is typically a few nanometers, and electrons are confined primarily to the center part of the sandwich.

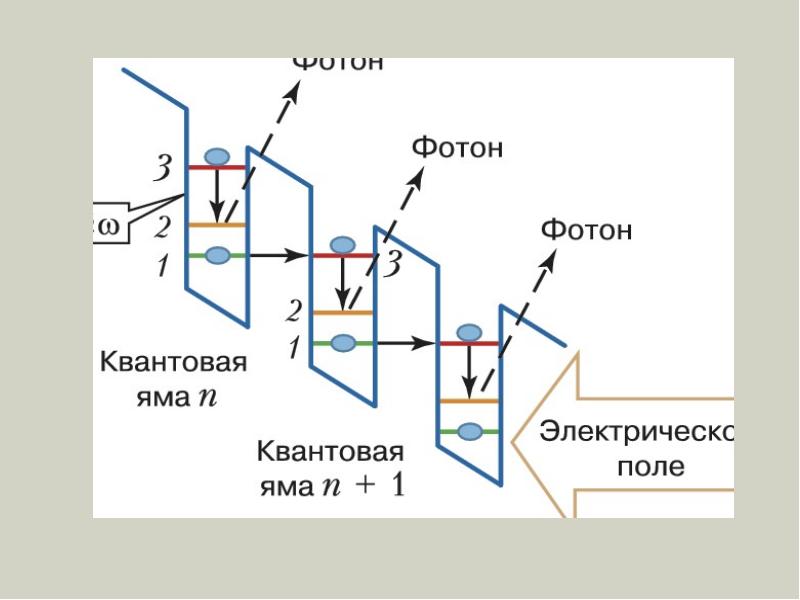

Слайд 8

Описание слайда:

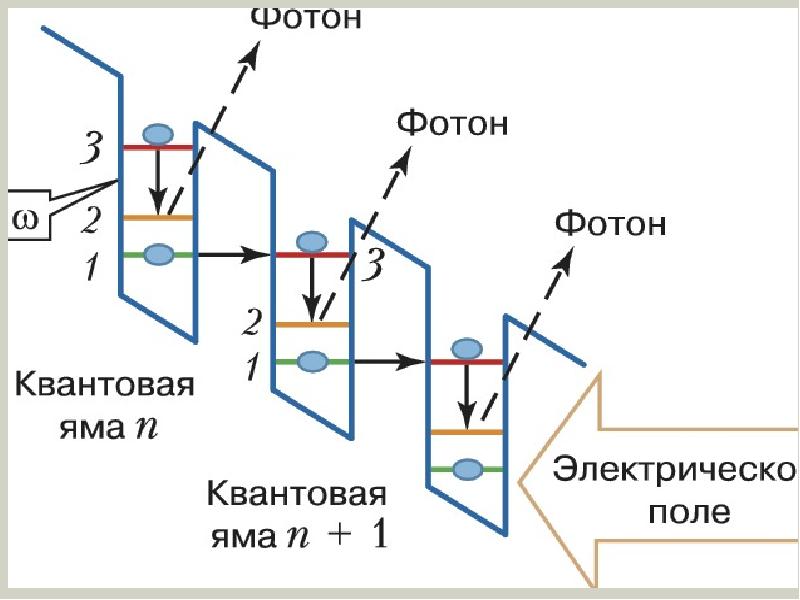

Слайд 9

Описание слайда:

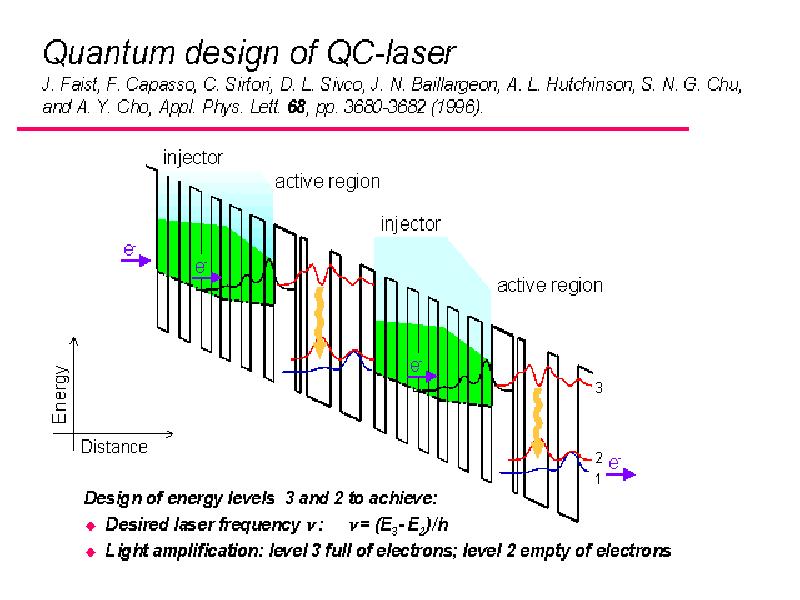

Слайд 10

Описание слайда:

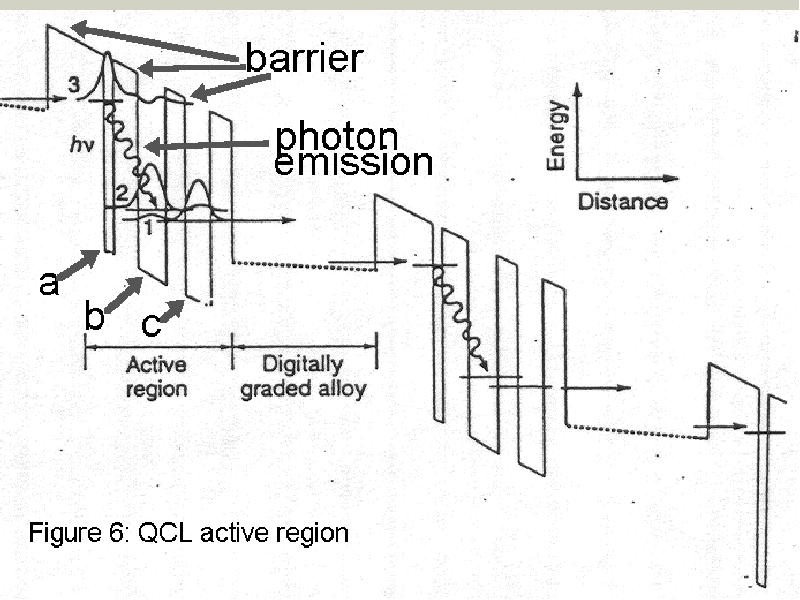

Слайд 11

Описание слайда:

Слайд 12

Описание слайда:

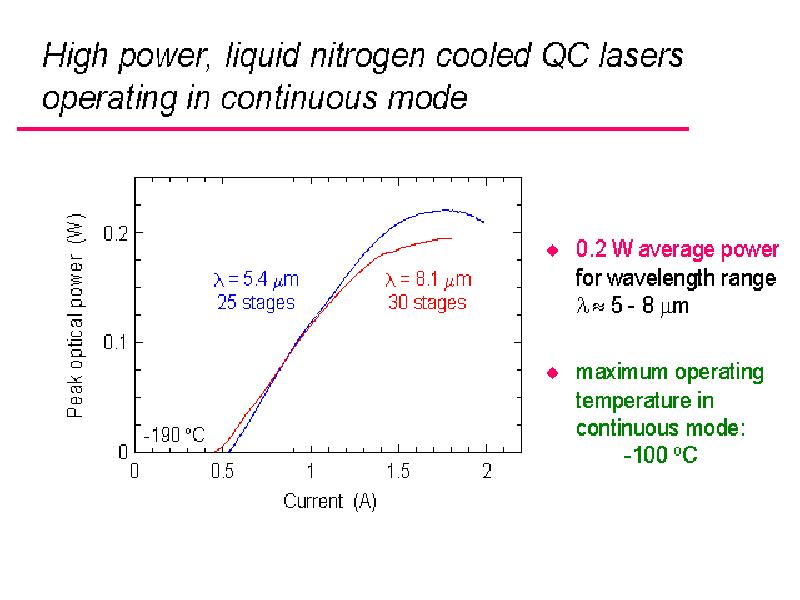

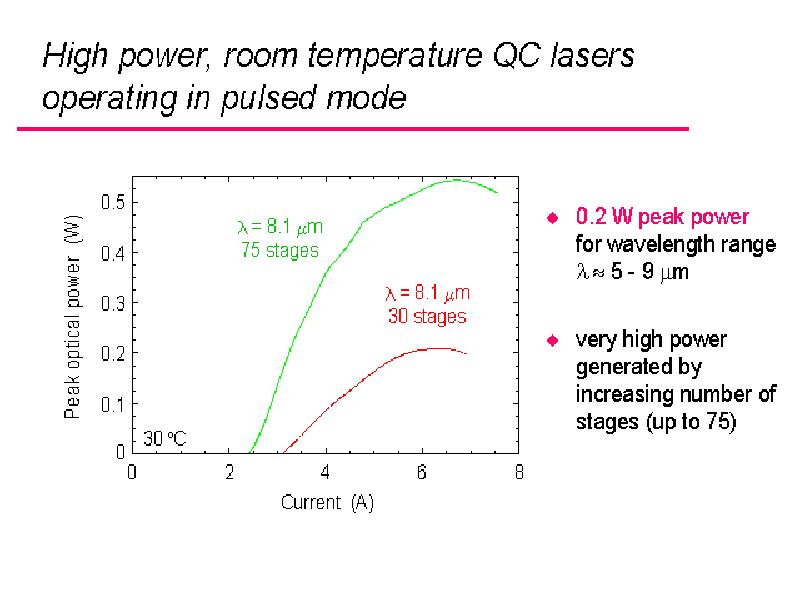

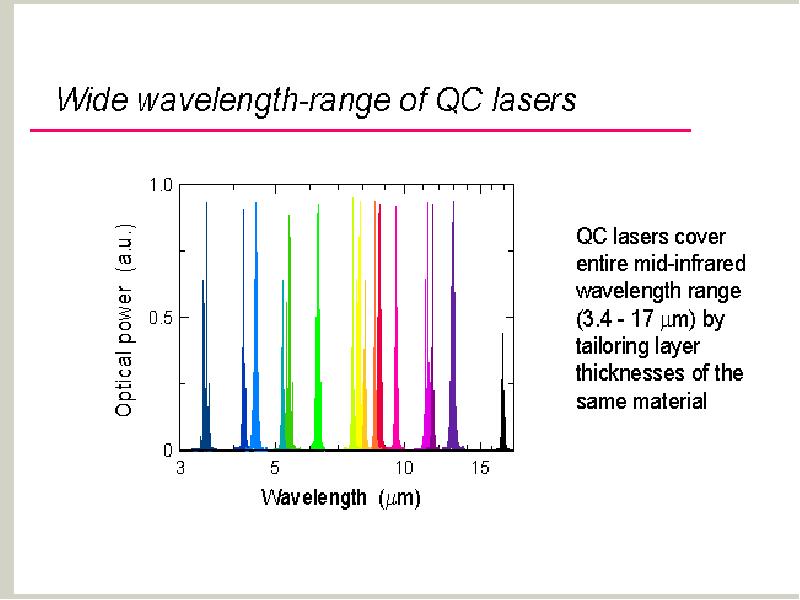

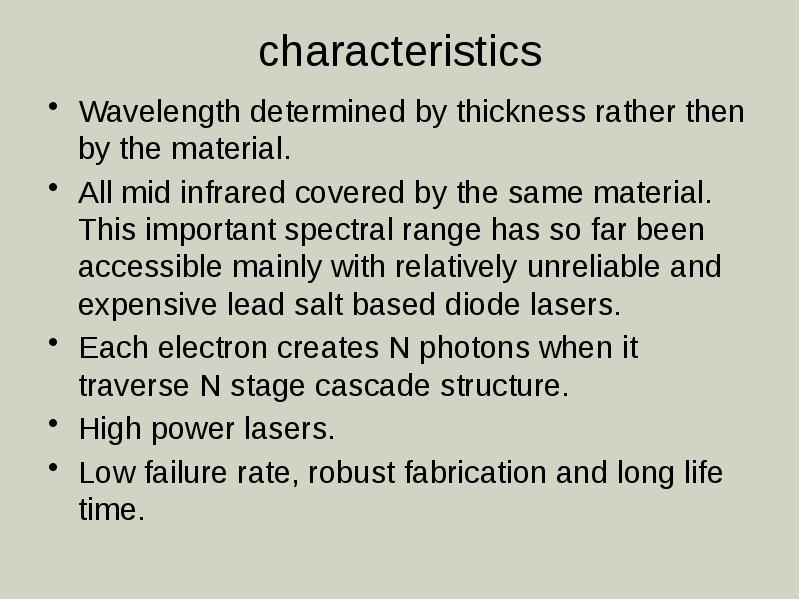

characteristics Wavelength determined by thickness rather then by the material. All mid infrared covered by the same material. This important spectral range has so far been accessible mainly with relatively unreliable and expensive lead salt based diode lasers. Each electron creates N photons when it traverse N stage cascade structure. High power lasers. Low failure rate, robust fabrication and long life time.

Слайд 13

Описание слайда:

Слайд 14

Описание слайда:

Слайд 15

Описание слайда:

Слайд 16

Описание слайда:

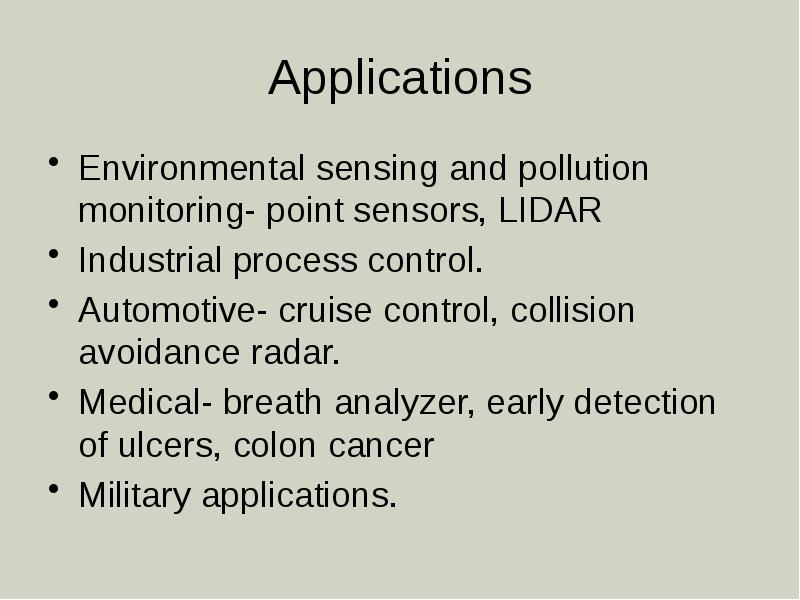

Applications Environmental sensing and pollution monitoring- point sensors, LIDAR Industrial process control. Automotive- cruise control, collision avoidance radar. Medical- breath analyzer, early detection of ulcers, colon cancer Military applications.
