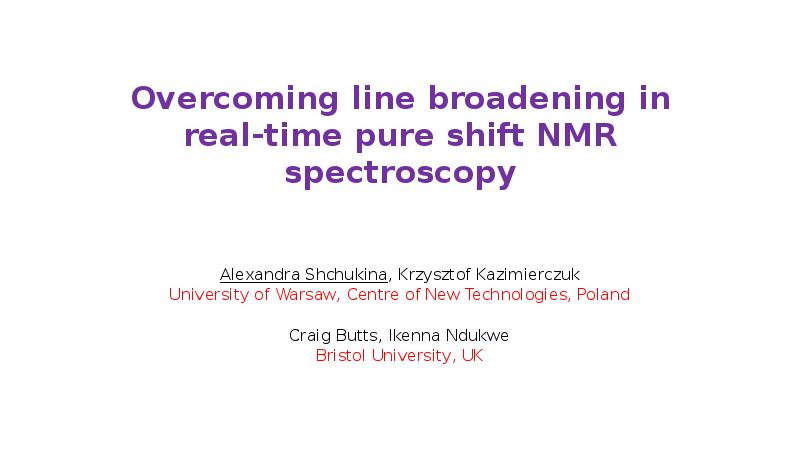

Overcoming line broadening in real-time pure shift NMR spectroscopy Alexandra Shchukina, Krzysztof Kazimierczuk University of Warsaw, Centre of New Technologies, Poland Craig Butts, Ikenna Ndukwe Bristol University, UK

Слайд 2

Описание слайда:

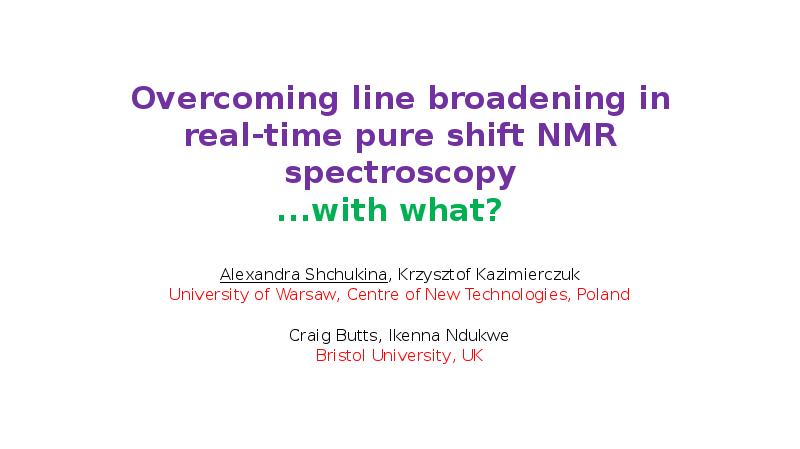

Overcoming line broadening in real-time pure shift NMR spectroscopy ...with what? Alexandra Shchukina, Krzysztof Kazimierczuk University of Warsaw, Centre of New Technologies, Poland Craig Butts, Ikenna Ndukwe Bristol University, UK

Слайд 3

Описание слайда:

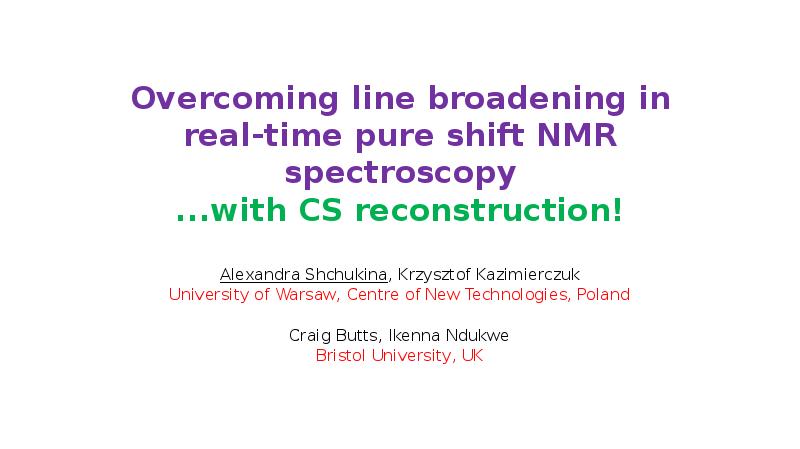

Overcoming line broadening in real-time pure shift NMR spectroscopy ...with CS reconstruction! Alexandra Shchukina, Krzysztof Kazimierczuk University of Warsaw, Centre of New Technologies, Poland Craig Butts, Ikenna Ndukwe Bristol University, UK

Слайд 4

Описание слайда:

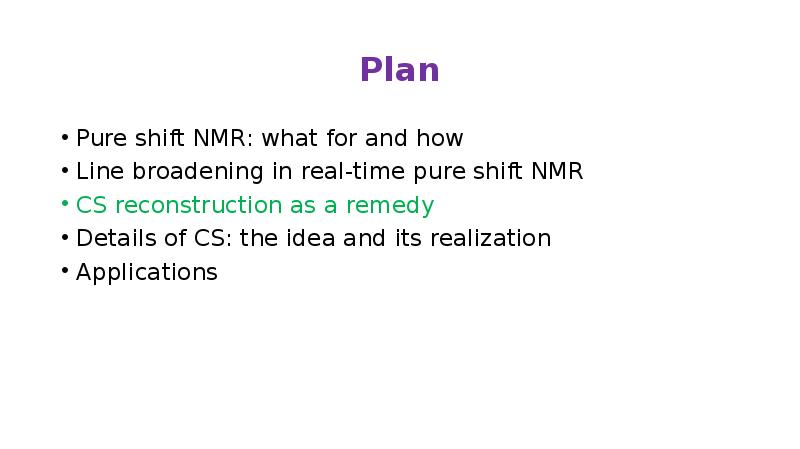

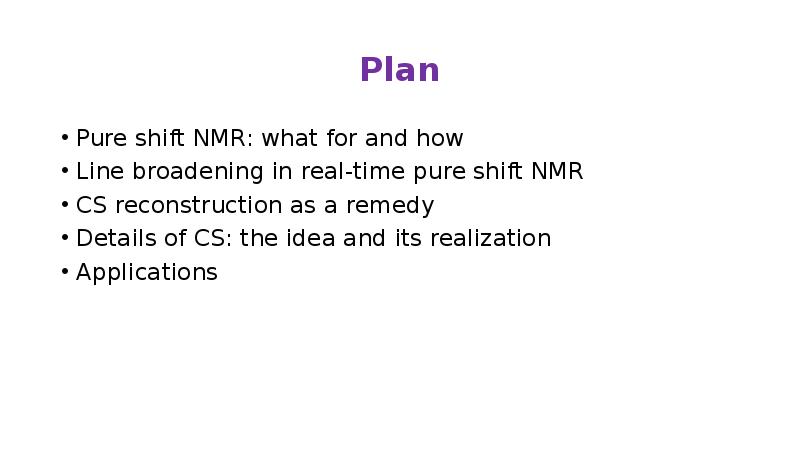

Pure shift NMR: what for and how Line broadening in real-time pure shift NMR CS reconstruction as a remedy Details of CS: the idea and its realization Applications

Слайд 5

Описание слайда:

Pure shift NMR: what for and how Line broadening in real-time pure shift NMR CS reconstruction as a remedy Details of CS: the idea and its realization Applications

Слайд 6

Описание слайда:

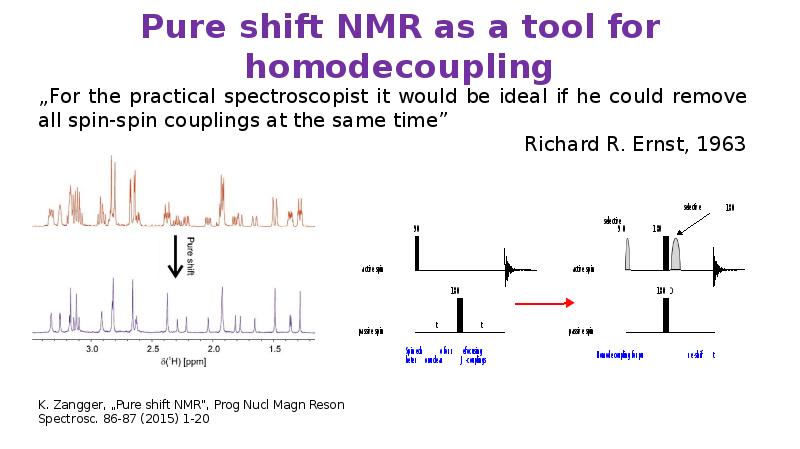

Pure shift NMR as a tool for homodecoupling

Слайд 7

Описание слайда:

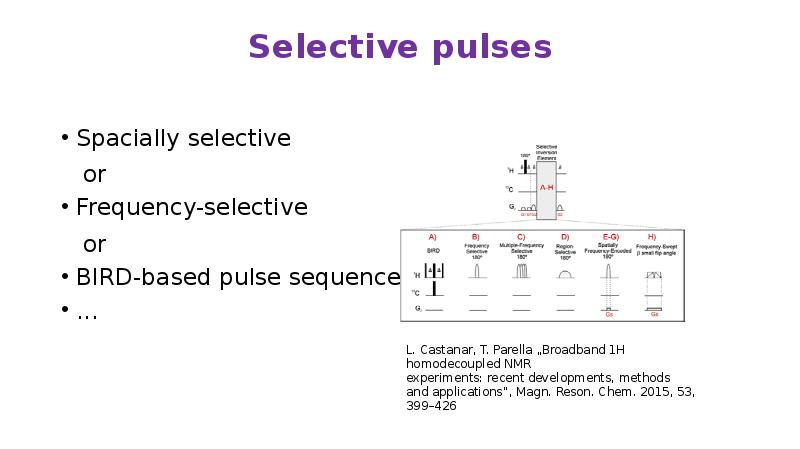

Selective pulses Spacially selective or Frequency-selective or BIRD-based pulse sequences ...

Слайд 8

Описание слайда:

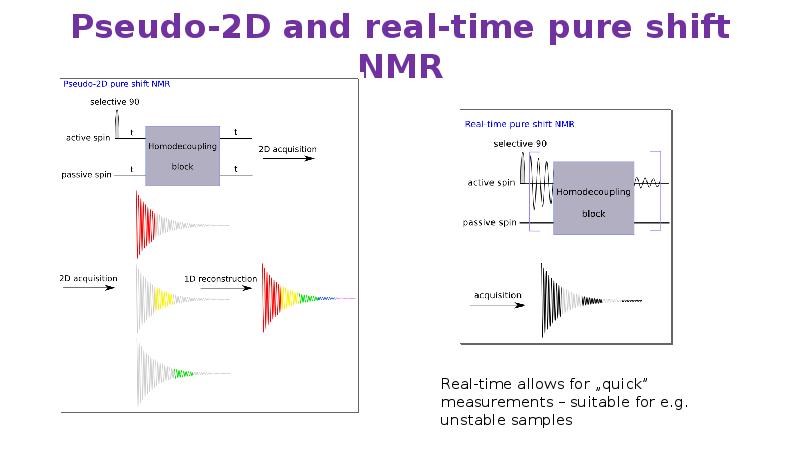

Pseudo-2D and real-time pure shift NMR

Слайд 9

Описание слайда:

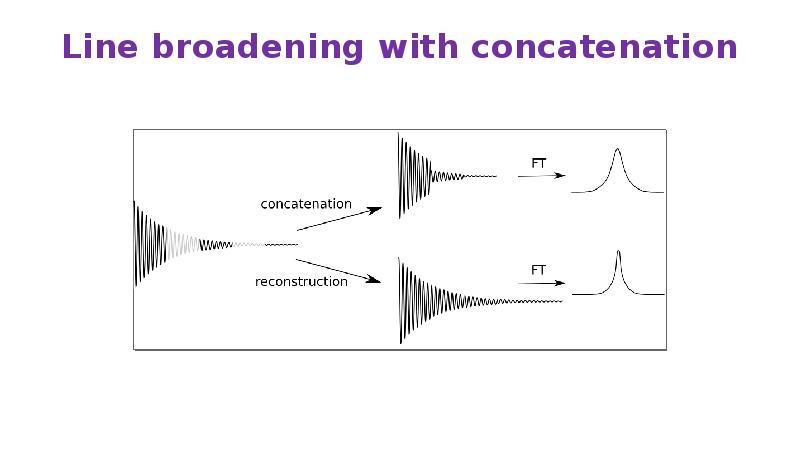

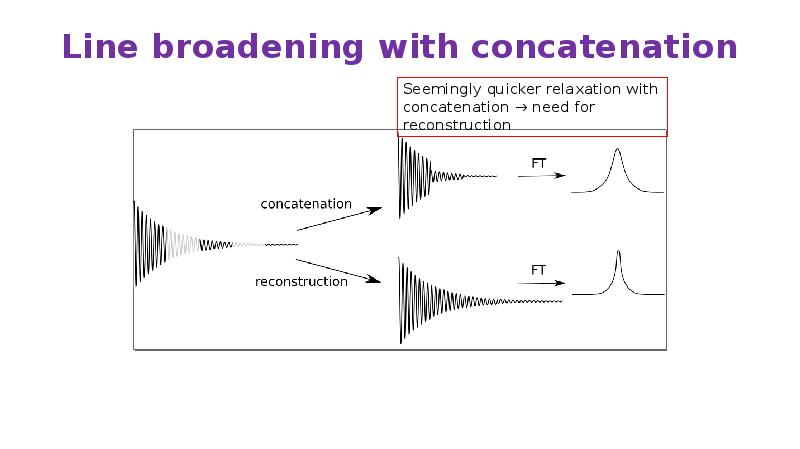

Line broadening with concatenation

Слайд 10

Описание слайда:

Line broadening with concatenation

Слайд 11

Описание слайда:

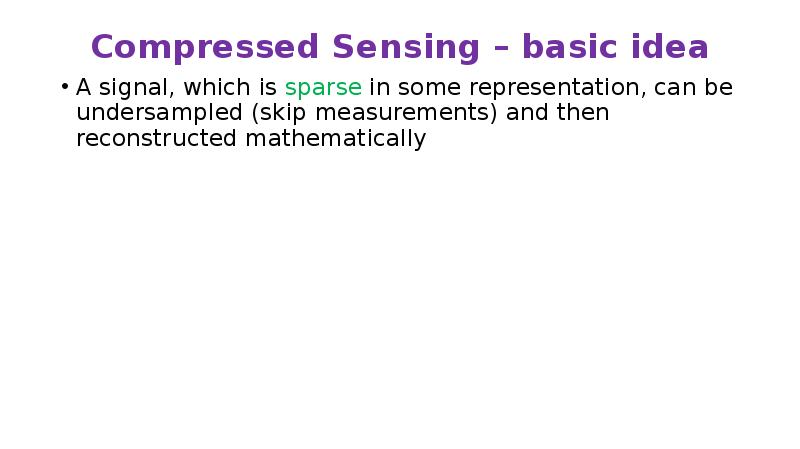

Compressed Sensing – basic idea A signal, which is sparse in some representation, can be undersampled (skip measurements) and then reconstructed mathematically

Слайд 12

Описание слайда:

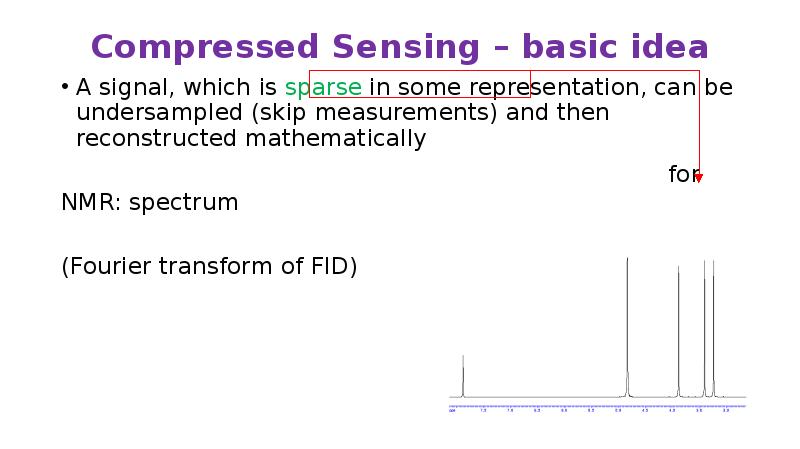

Compressed Sensing – basic idea A signal, which is sparse in some representation, can be undersampled (skip measurements) and then reconstructed mathematically for NMR: spectrum (Fourier transform of FID)

Слайд 13

Описание слайда:

Слайд 14

Описание слайда:

Слайд 15

Описание слайда:

Слайд 16

Описание слайда:

Compressed Sensing – basic idea A signal, which is sparse in some representation, can be undersampled (skip measurements) and then reconstructed mathematically Full sampling: (full system), – inverse Fourier transform, – spectrum, – FID Undersampling: (undetermined system) CS reconstruction: subject to (out of all possible FIDs choose the one which gives the sparsest spectrum)
