Слайд 1

Описание слайда:

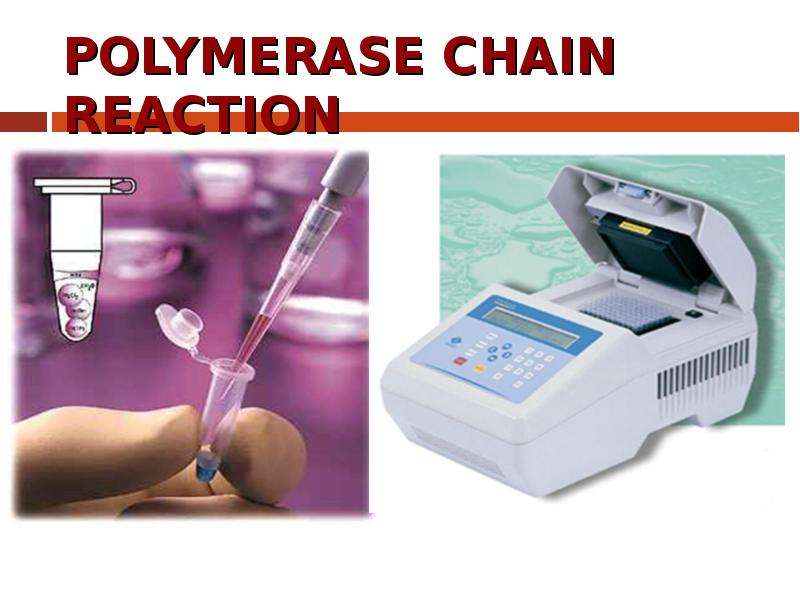

POLYMERASE CHAIN REACTION

Слайд 2

Описание слайда:

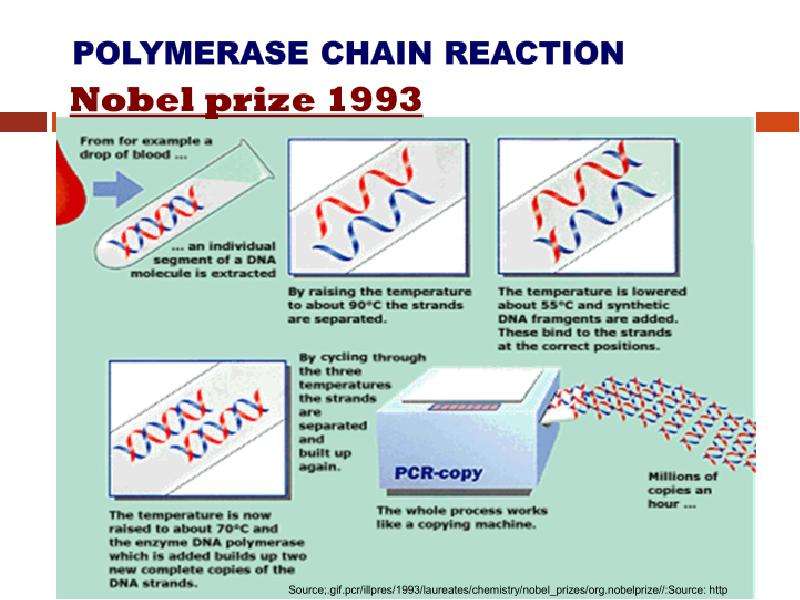

POLYMERASE CHAIN REACTION

Слайд 3

Описание слайда:

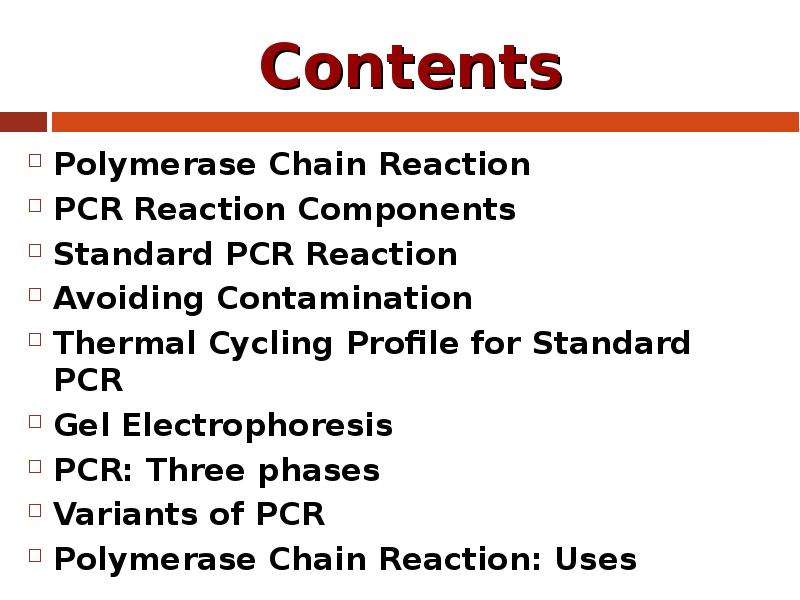

Contents Polymerase Chain Reaction PCR Reaction Components Standard PCR Reaction Avoiding Contamination Thermal Cycling Profile for Standard PCR Gel Electrophoresis PCR: Three phases Variants of PCR Polymerase Chain Reaction: Uses

Слайд 4

Описание слайда:

Слайд 5

Описание слайда:

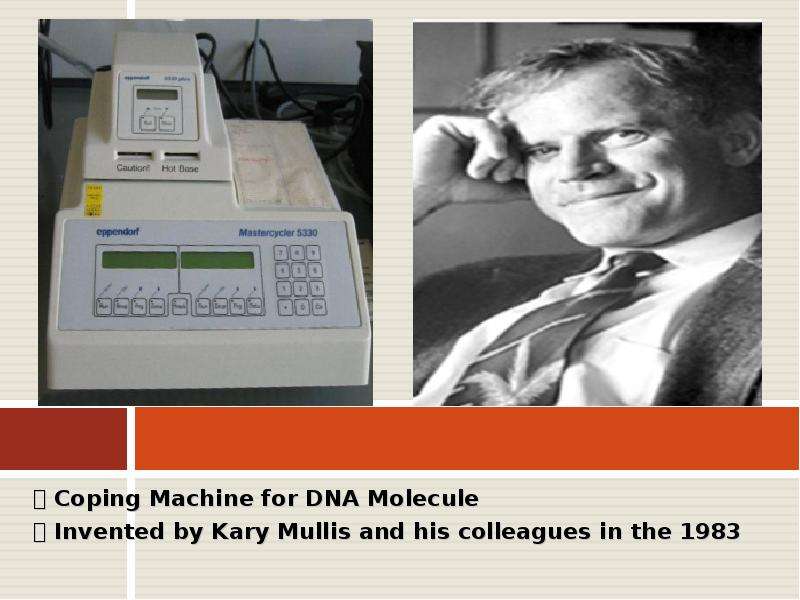

 Coping Machine for DNA Molecule  Coping Machine for DNA Molecule  Invented by Kary Mullis and his colleagues in the 1983

Слайд 6

Описание слайда:

Polymerase Chain Reaction PCR: Technique for in vitro (test tube) amplification of specific DNA sequences via the temperature mediated. DNA polymerase enzyme by simultaneous primer extension of complementary strands of DNA. PCR: This system for DNA replication that allows a "target" DNA sequence to be selectively amplified, several million-fold in just a few hours.

Слайд 7

Описание слайда:

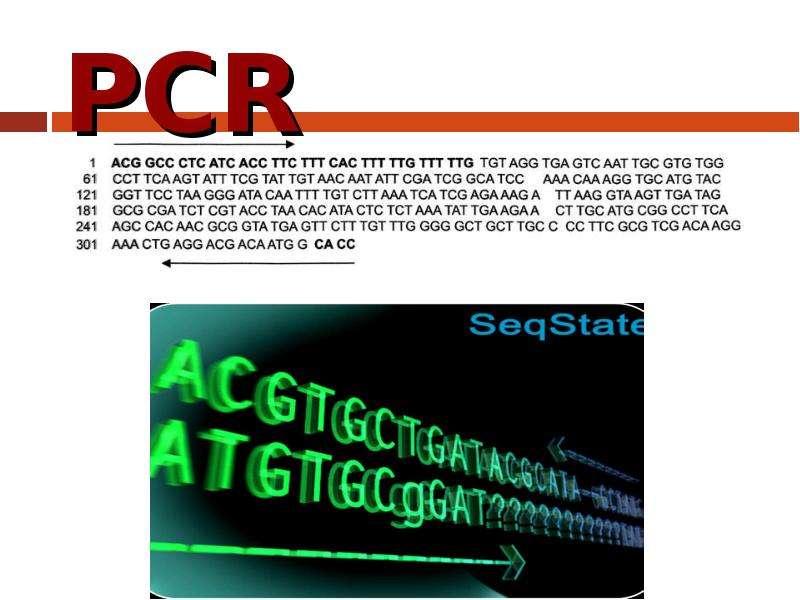

PCR

Слайд 8

Описание слайда:

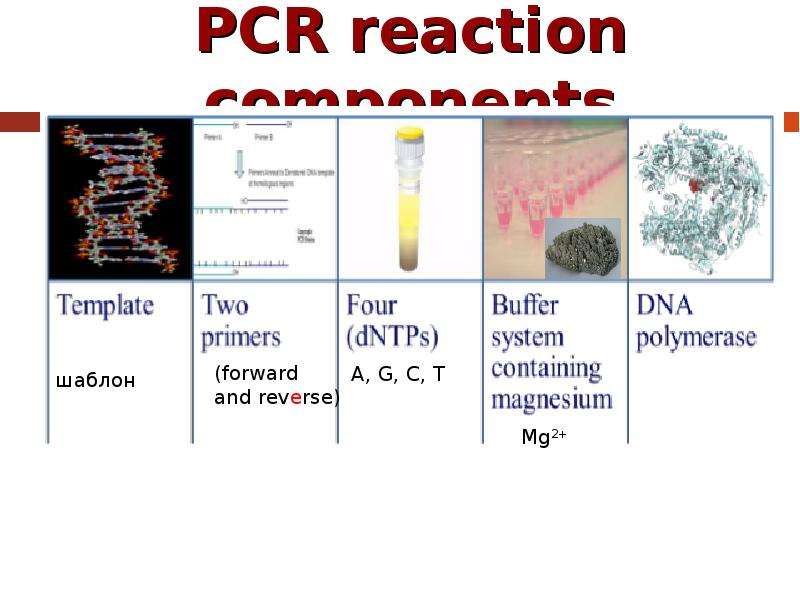

PCR reaction components

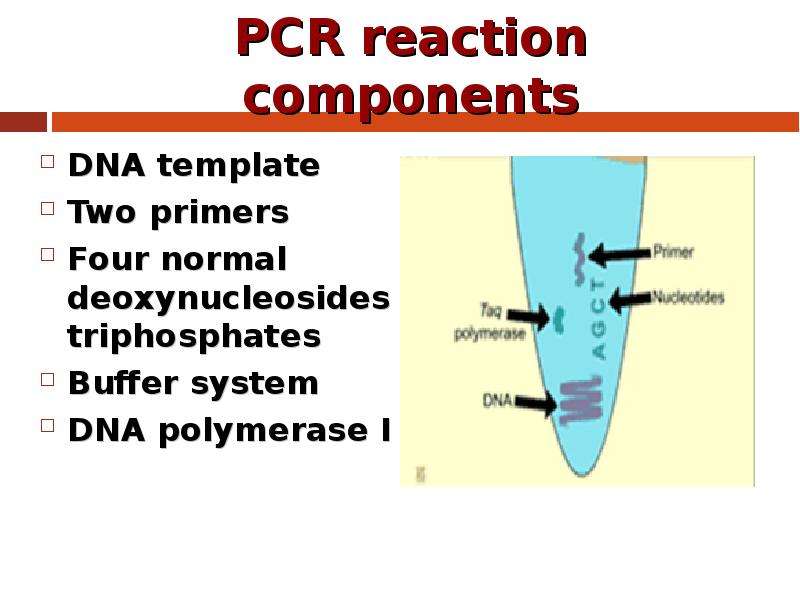

Слайд 9

Описание слайда:

PCR reaction components DNA template Two primers Four normal deoxynucleosides triphosphates Buffer system DNA polymerase I

Слайд 10

Описание слайда:

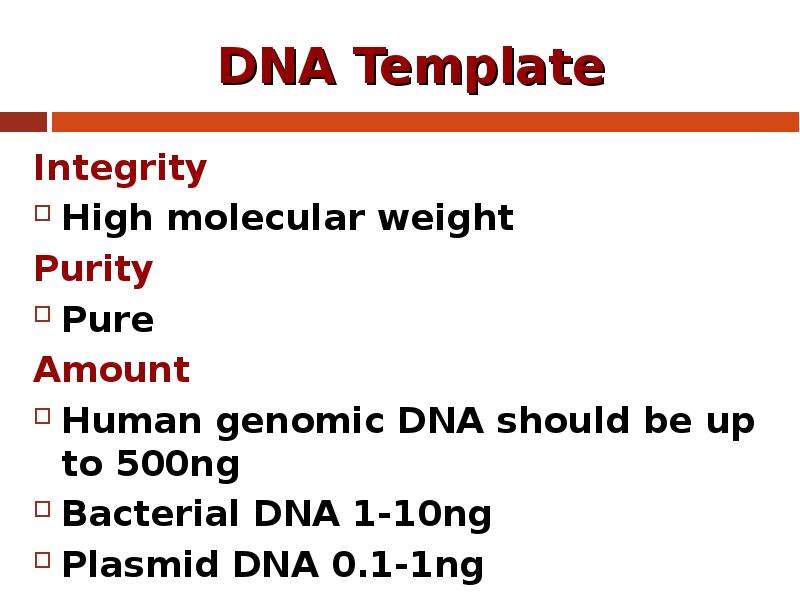

DNA Template Integrity High molecular weight Purity Pure Amount Human genomic DNA should be up to 500ng Bacterial DNA 1-10ng Plasmid DNA 0.1-1ng

Слайд 11

Описание слайда:

Primers Typical primers are 18-28 bases in length, Having 40- 60% GC composition, Have a balanced distribution of G/C and A/T rich domains, The calculated Tm for a given primer pair should be balanced (difference no more than 5 °C), Primer concentration between 0.1 and 0.6 µM are generally optimal, Contain no internal secondary structure, Have a cytosine and guanine at the 3'-end because they form three hydrogen bonds with the matrix molecules, making a more stable hybridization

Слайд 12

Описание слайда:

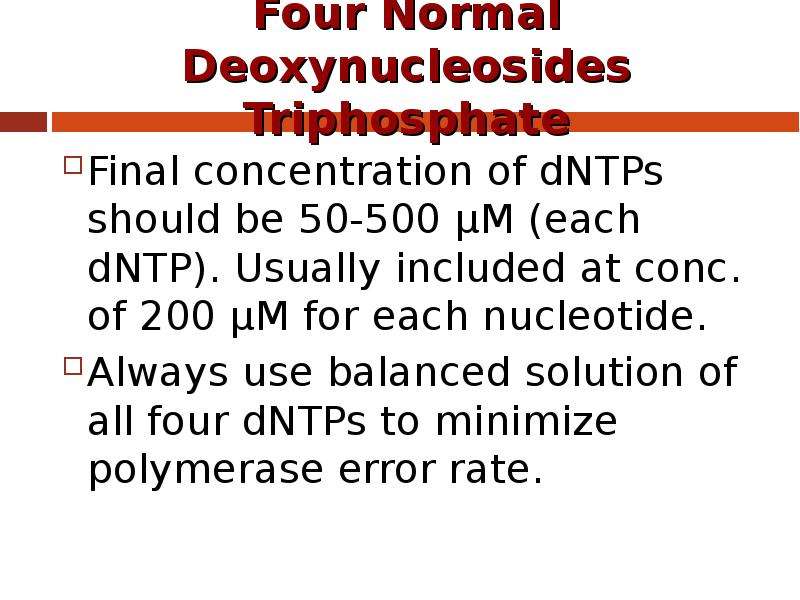

Four Normal Deoxynucleosides Triphosphate Final concentration of dNTPs should be 50-500 µM (each dNTP). Usually included at conc. of 200 µM for each nucleotide. Always use balanced solution of all four dNTPs to minimize polymerase error rate.

Слайд 13

Описание слайда:

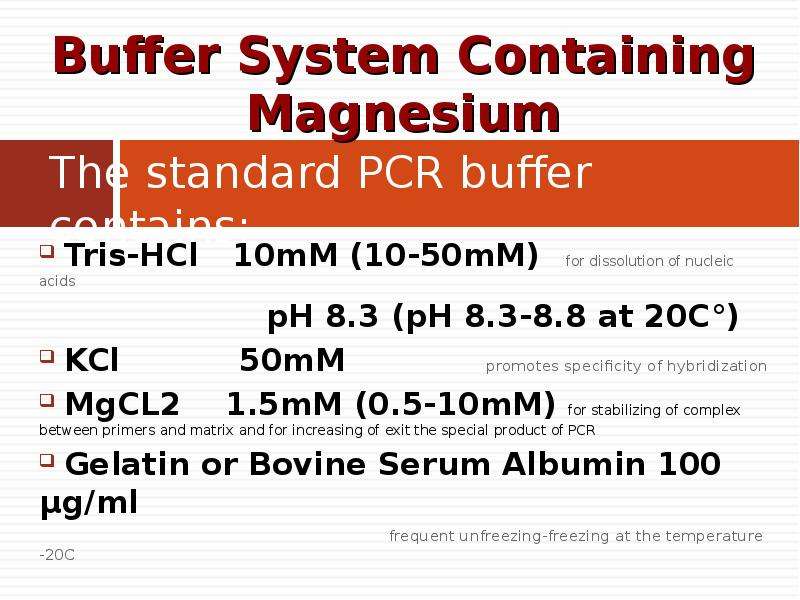

The standard PCR buffer contains: Tris-HCl 10mM (10-50mM) for dissolution of nucleic acids рH 8.3 (рH 8.3-8.8 at 20C°) KCl 50mM promotes specificity of hybridization MgCL2 1.5mM (0.5-10mM) for stabilizing of complex between primers and matrix and for increasing of exit the special product of PCR Gelatin or Bovine Serum Albumin 100 µg/ml frequent unfreezing-freezing at the temperature -20C

Слайд 14

Описание слайда:

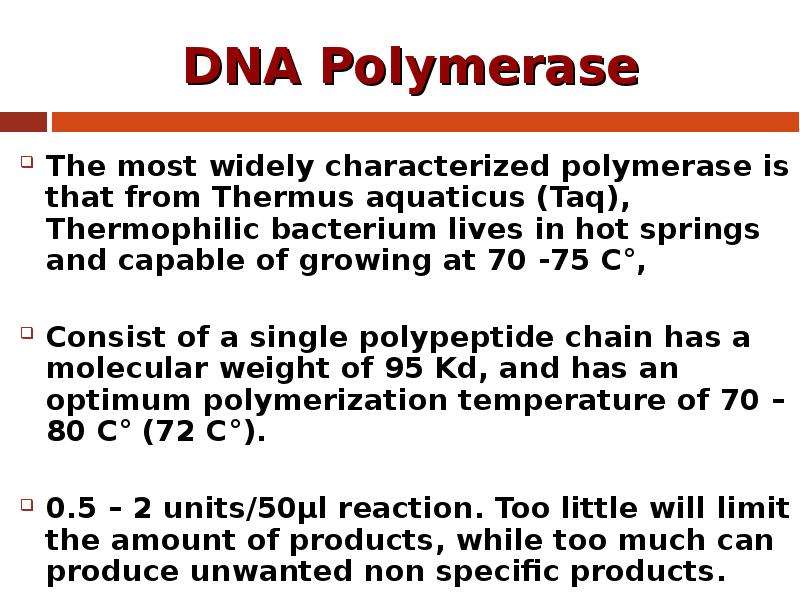

DNA Polymerase The most widely characterized polymerase is that from Thermus aquaticus (Taq), Thermophilic bacterium lives in hot springs and capable of growing at 70 -75 C°, Consist of a single polypeptide chain has a molecular weight of 95 Kd, and has an optimum polymerization temperature of 70 – 80 C° (72 C°). 0.5 – 2 units/50µl reaction. Too little will limit the amount of products, while too much can produce unwanted non specific products.

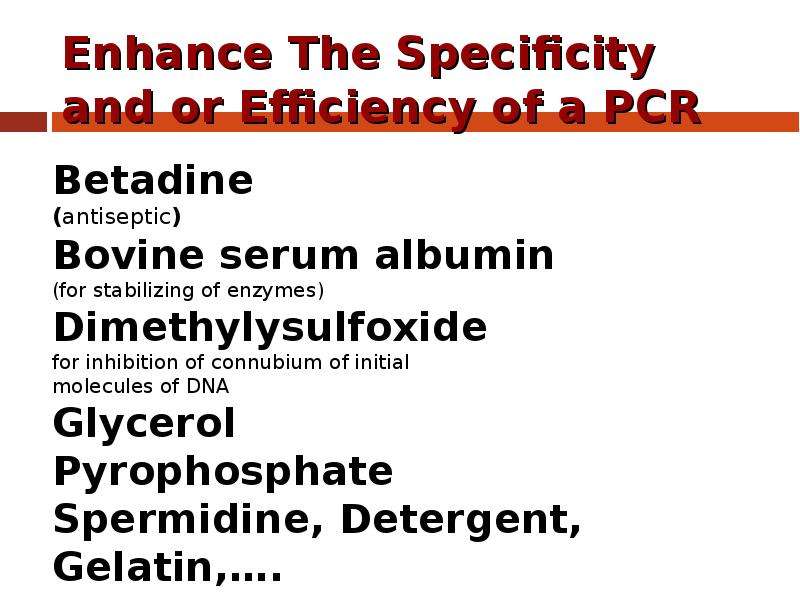

Слайд 15

Описание слайда:

Enhance The Specificity and or Efficiency of a PCR

Слайд 16

Описание слайда:

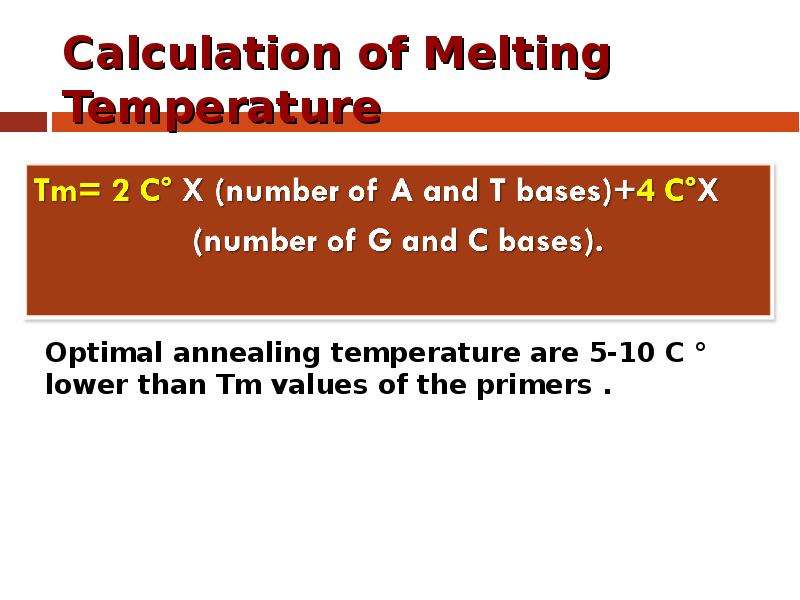

Calculation of Melting Temperature

Слайд 17

Описание слайда:

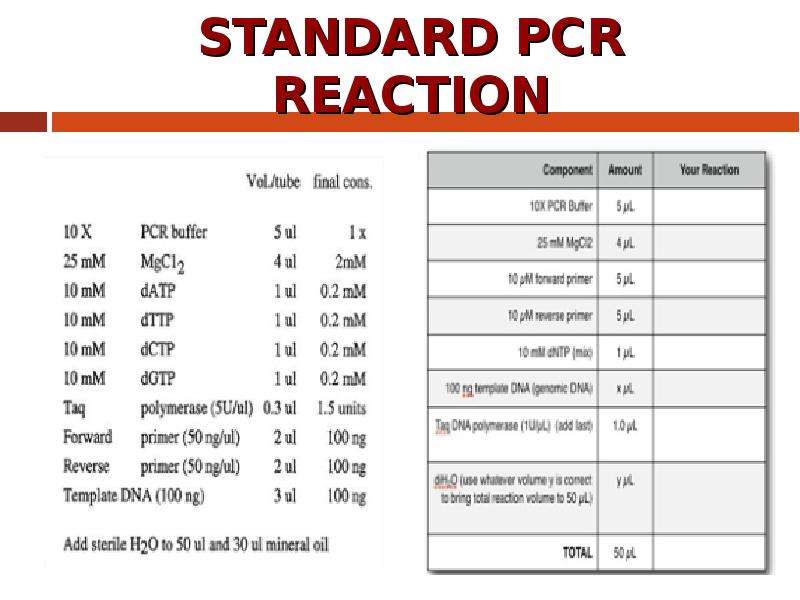

STANDARD PCR REACTION

Слайд 18

Описание слайда:

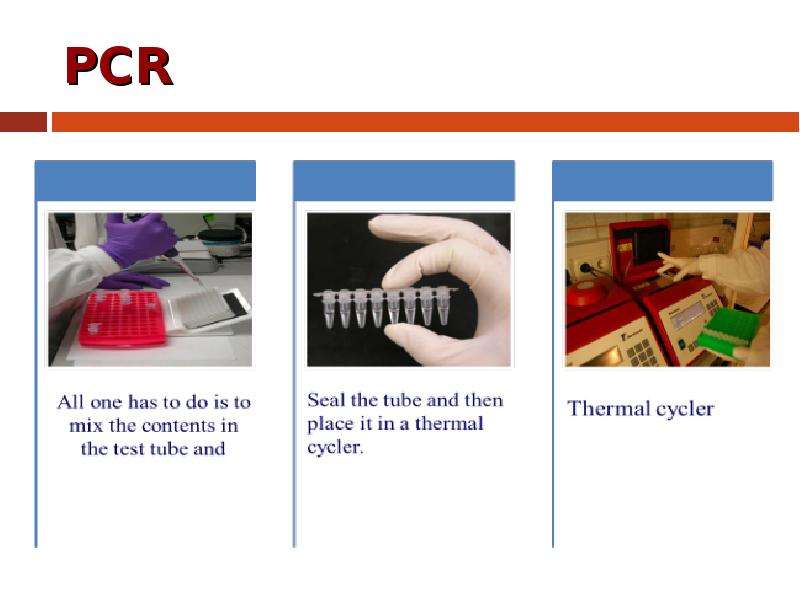

PCR

Слайд 19

Описание слайда:

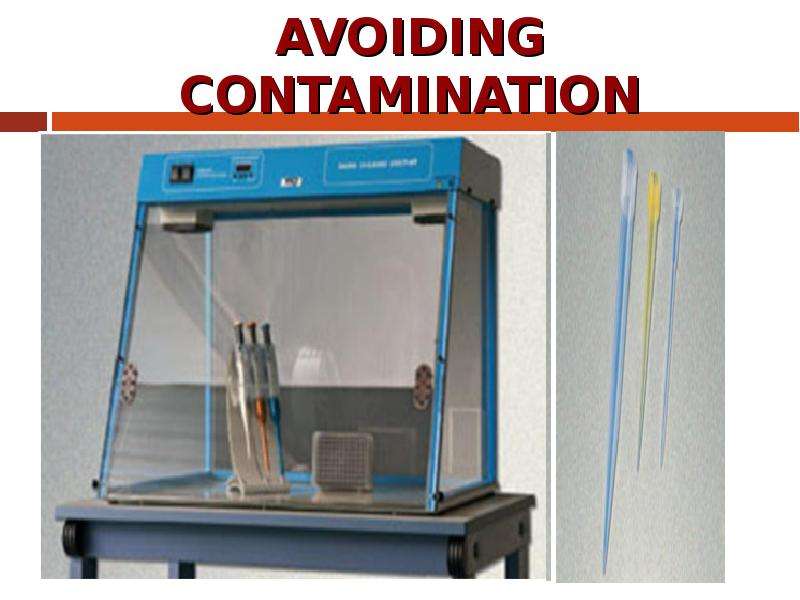

AVOIDING CONTAMINATION

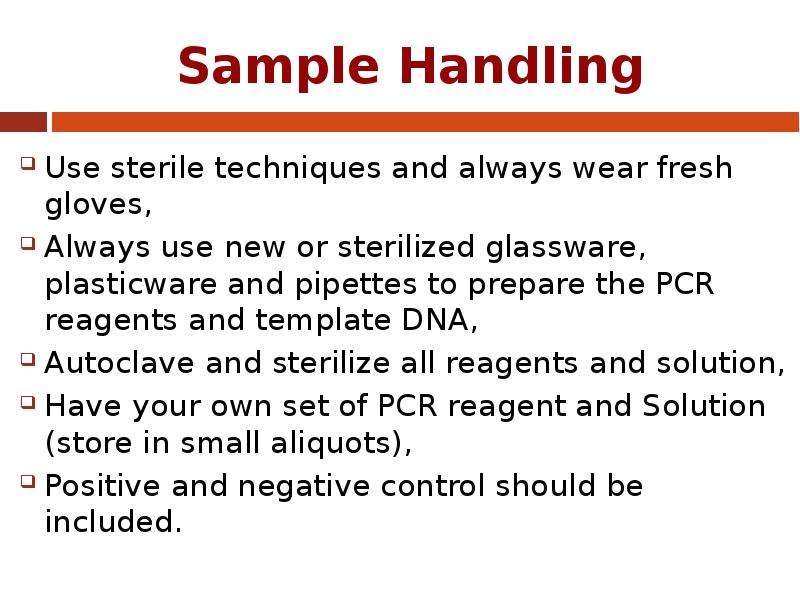

Слайд 20

Описание слайда:

Sample Handling Use sterile techniques and always wear fresh gloves, Always use new or sterilized glassware, plasticware and pipettes to prepare the PCR reagents and template DNA, Autoclave and sterilize all reagents and solution, Have your own set of PCR reagent and Solution (store in small aliquots), Positive and negative control should be included.

Слайд 21

Описание слайда:

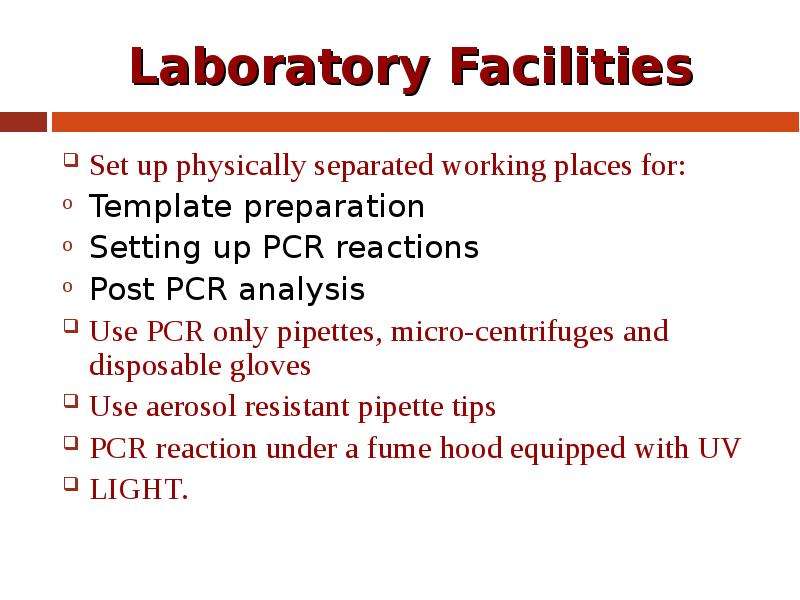

Laboratory Facilities Set up physically separated working places for: Template preparation Setting up PCR reactions Post PCR analysis Use PCR only pipettes, micro-centrifuges and disposable gloves Use aerosol resistant pipette tips PCR reaction under a fume hood equipped with UV LIGHT.

Слайд 22

Описание слайда:

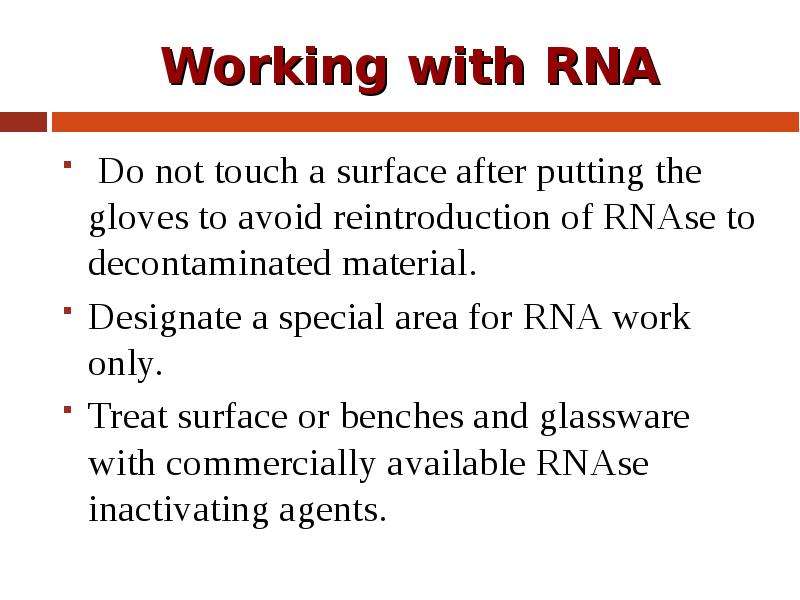

Working with RNA Do not touch a surface after putting the gloves to avoid reintroduction of RNAse to decontaminated material. Designate a special area for RNA work only. Treat surface or benches and glassware with commercially available RNAse inactivating agents.

Слайд 23

Описание слайда:

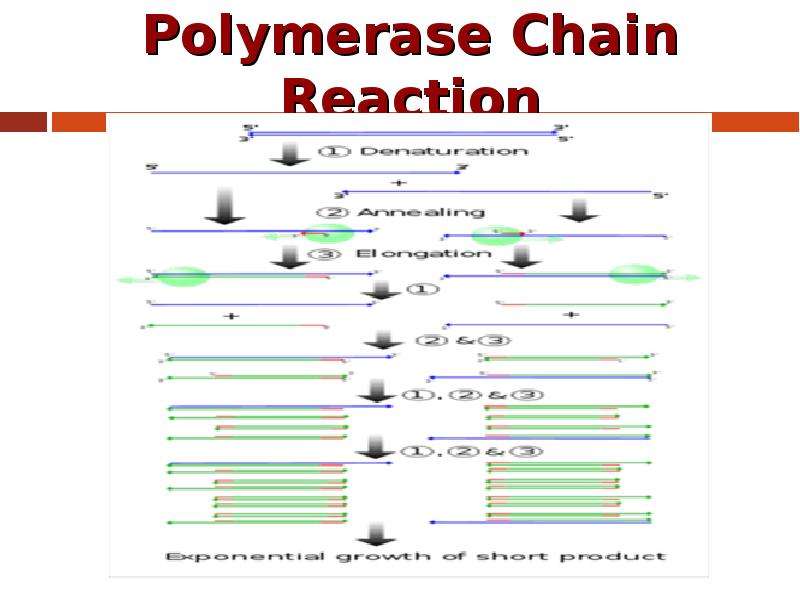

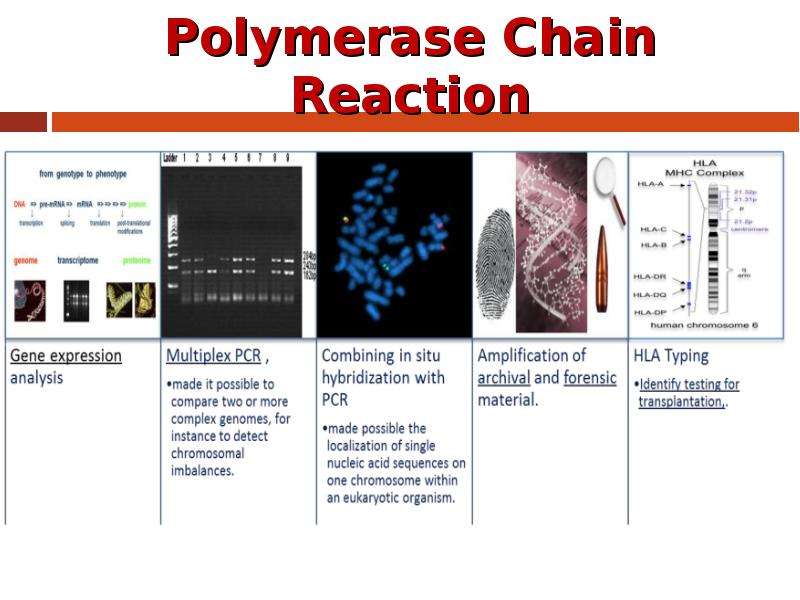

Polymerase Chain Reaction

Слайд 24

Описание слайда:

Слайд 25

Описание слайда:

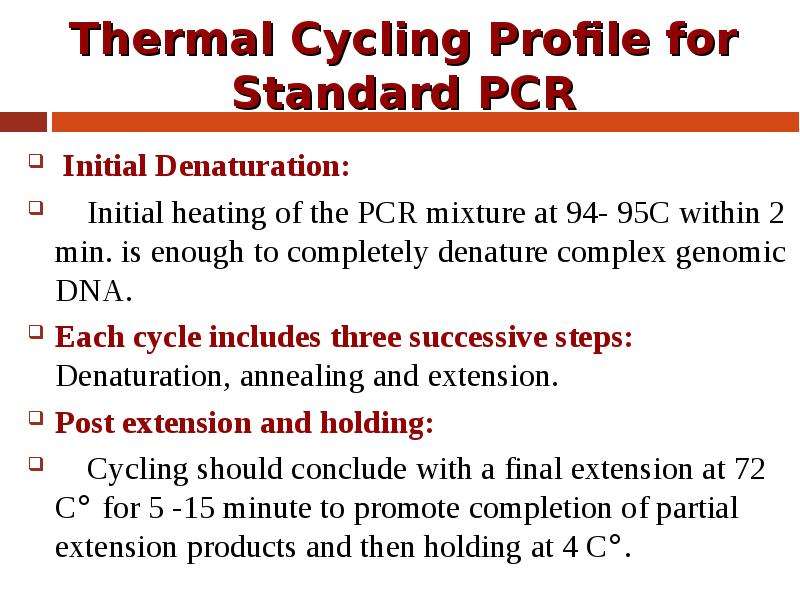

Thermal Cycling Profile for Standard PCR Initial Denaturation: Initial heating of the PCR mixture at 94- 95C within 2 min. is enough to completely denature complex genomic DNA. Each cycle includes three successive steps: Denaturation, annealing and extension. Post extension and holding: Cycling should conclude with a final extension at 72 C° for 5 -15 minute to promote completion of partial extension products and then holding at 4 C°.

Слайд 26

Описание слайда:

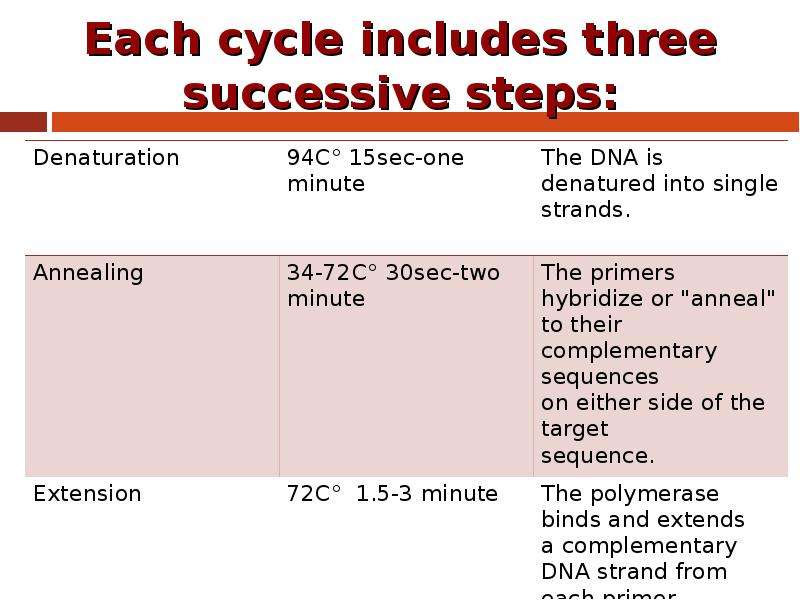

Each cycle includes three successive steps:

Слайд 27

Описание слайда:

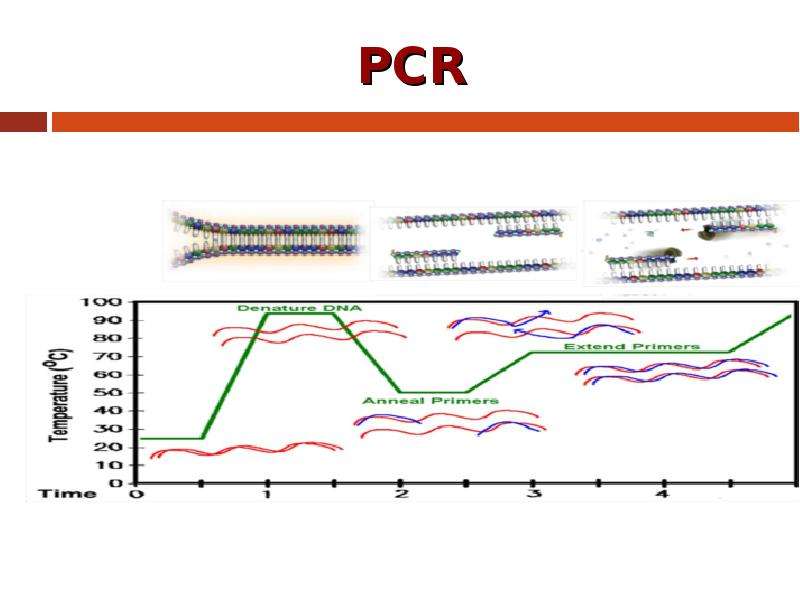

PCR

Слайд 28

Описание слайда:

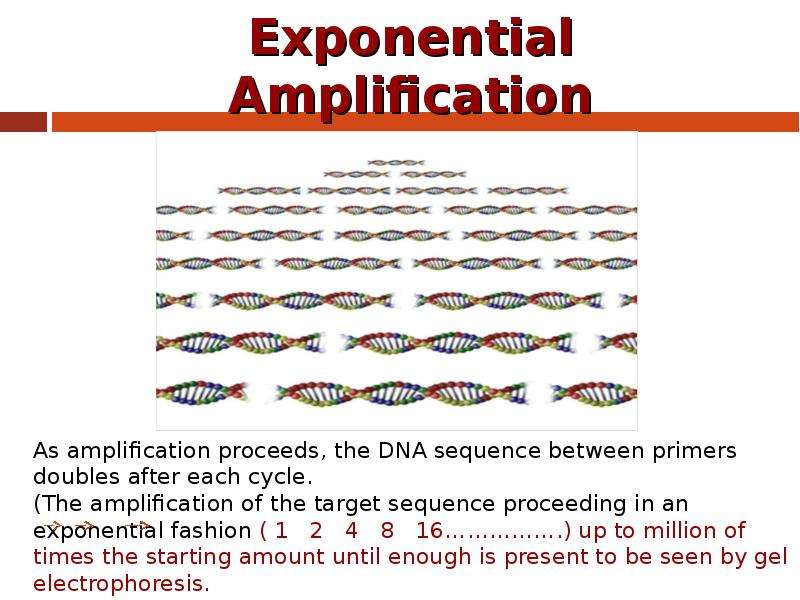

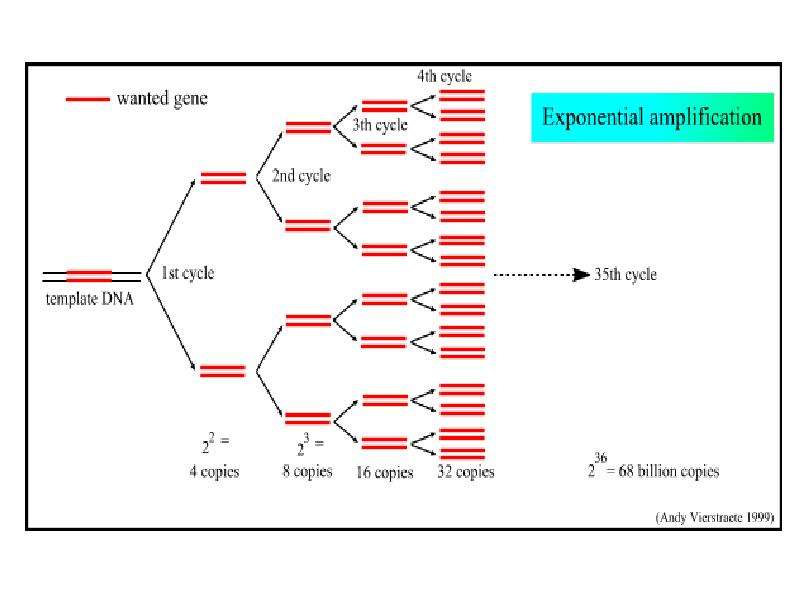

Exponential Amplification

Слайд 29

Описание слайда:

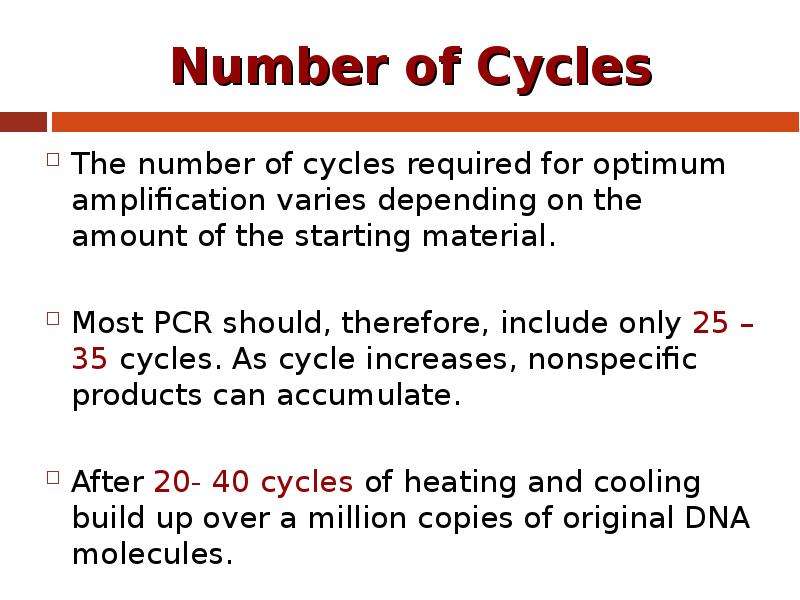

Number of Cycles The number of cycles required for optimum amplification varies depending on the amount of the starting material. Most PCR should, therefore, include only 25 – 35 cycles. As cycle increases, nonspecific products can accumulate. After 20- 40 cycles of heating and cooling build up over a million copies of original DNA molecules.

Слайд 30

Описание слайда:

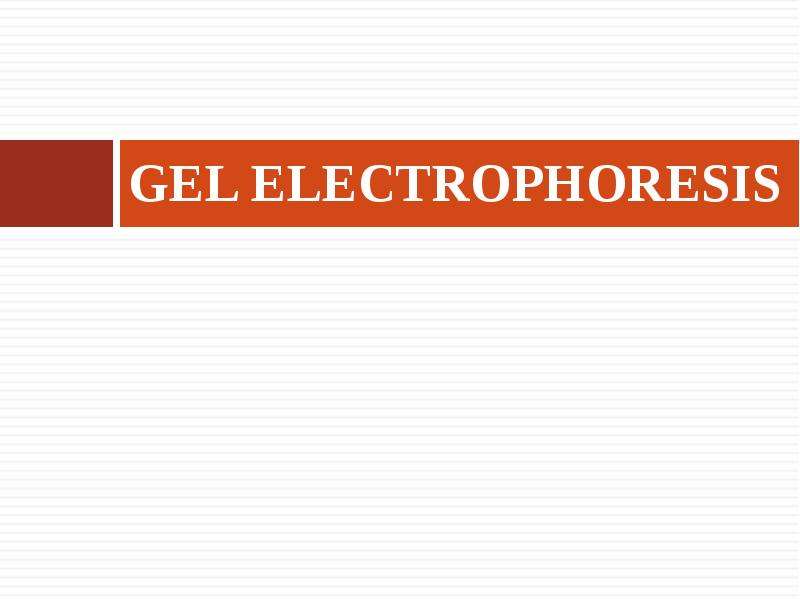

GEL ELECTROPHORESIS

Слайд 31

Описание слайда:

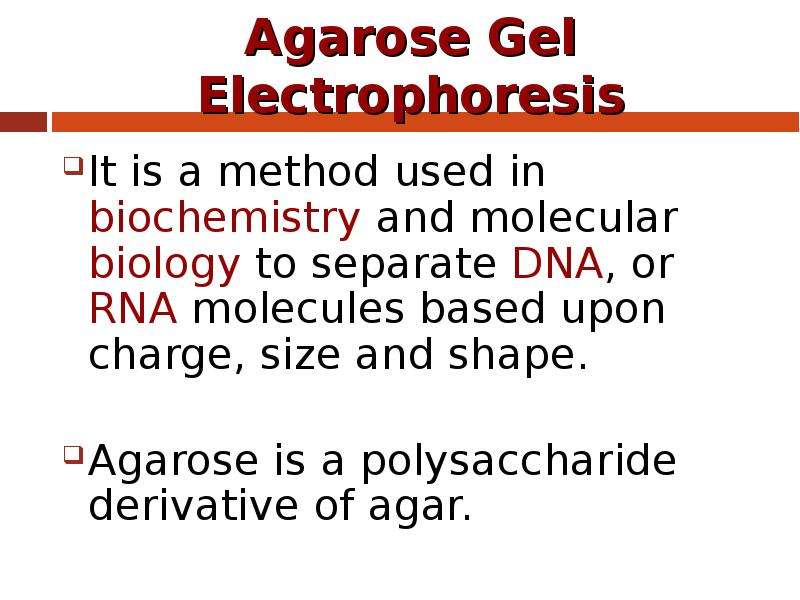

Agarose Gel Electrophoresis It is a method used in biochemistry and molecular biology to separate DNA, or RNA molecules based upon charge, size and shape. Agarose is a polysaccharide derivative of agar.

Слайд 32

Описание слайда:

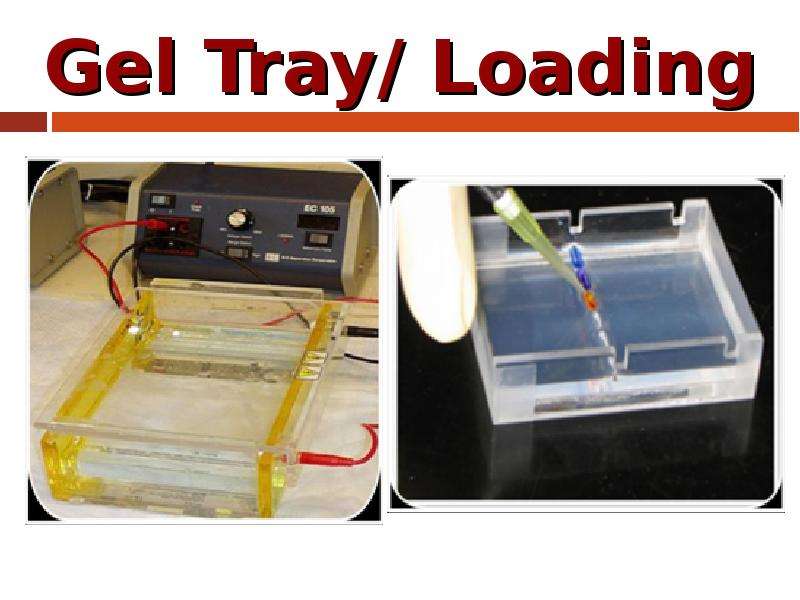

Gel Tray/ Loading

Слайд 33

Описание слайда:

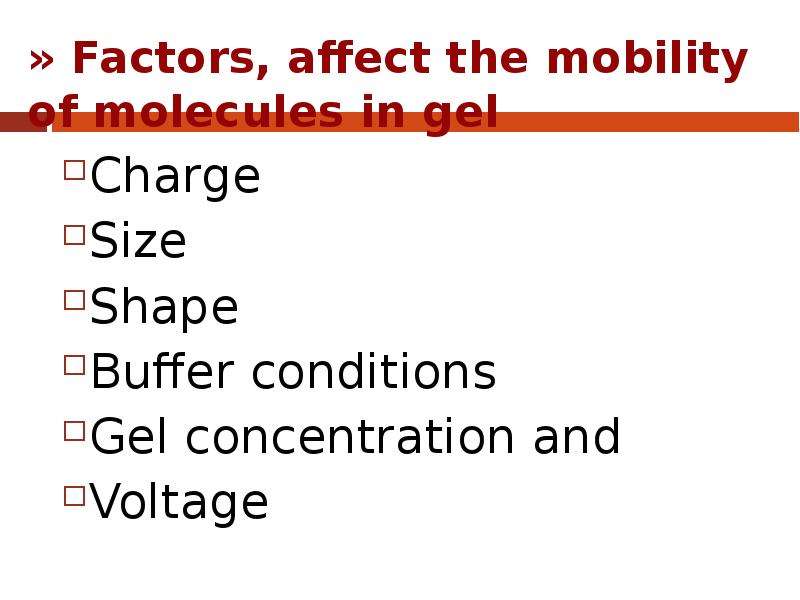

Слайд 34

Описание слайда:

» Factors, affect the mobility of molecules in gel Charge Size Shape Buffer conditions Gel concentration and Voltage

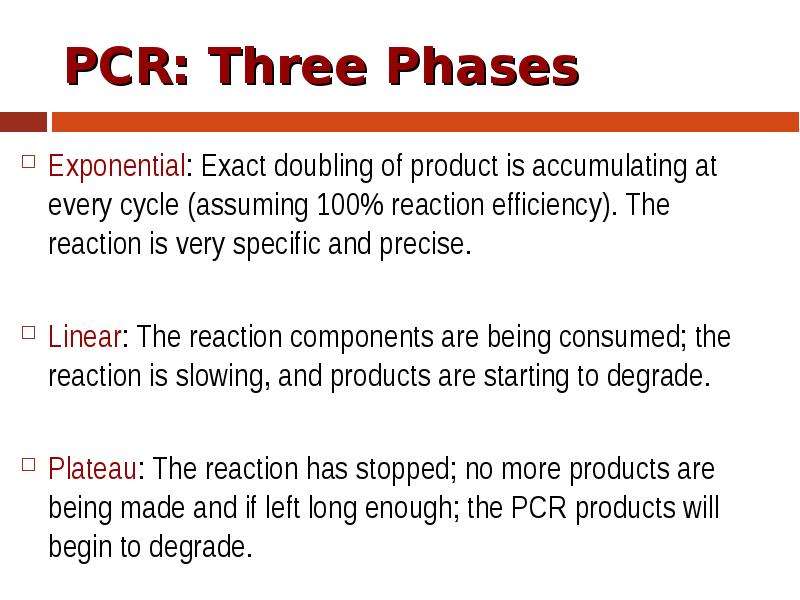

Слайд 35

Описание слайда:

PCR: Three Phases Exponential: Exact doubling of product is accumulating at every cycle (assuming 100% reaction efficiency). The reaction is very specific and precise. Linear: The reaction components are being consumed; the reaction is slowing, and products are starting to degrade. Plateau: The reaction has stopped; no more products are being made and if left long enough; the PCR products will begin to degrade.

Слайд 36

Описание слайда:

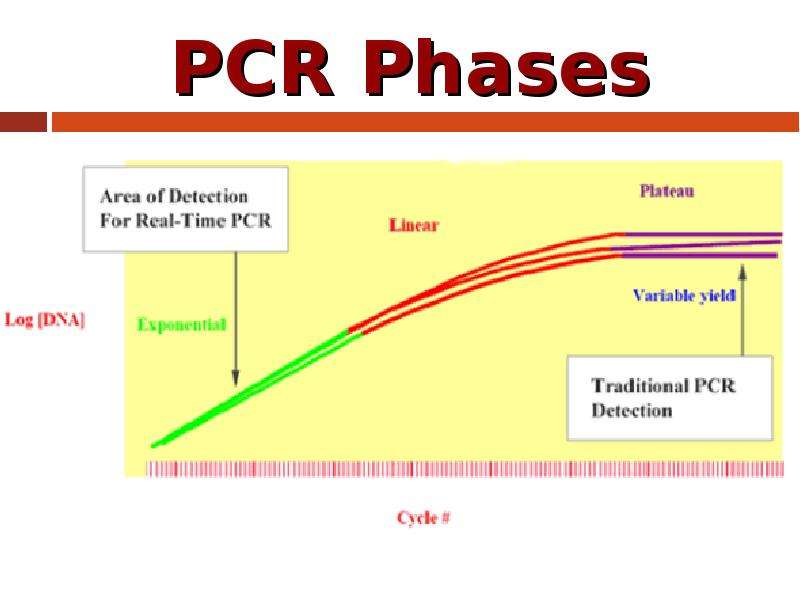

PCR Phases

Слайд 37

Описание слайда:

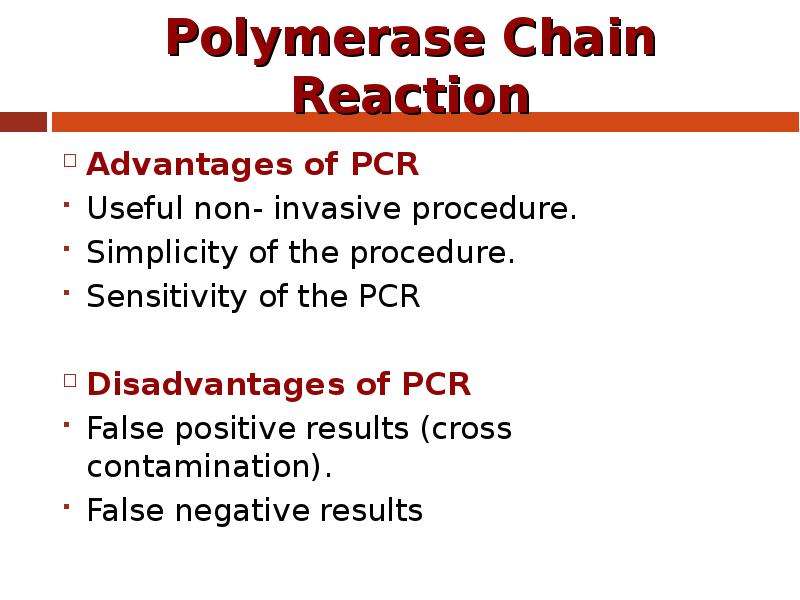

Polymerase Chain Reaction Advantages of PCR Useful non- invasive procedure. Simplicity of the procedure. Sensitivity of the PCR Disadvantages of PCR False positive results (cross contamination). False negative results

Слайд 38

Описание слайда:

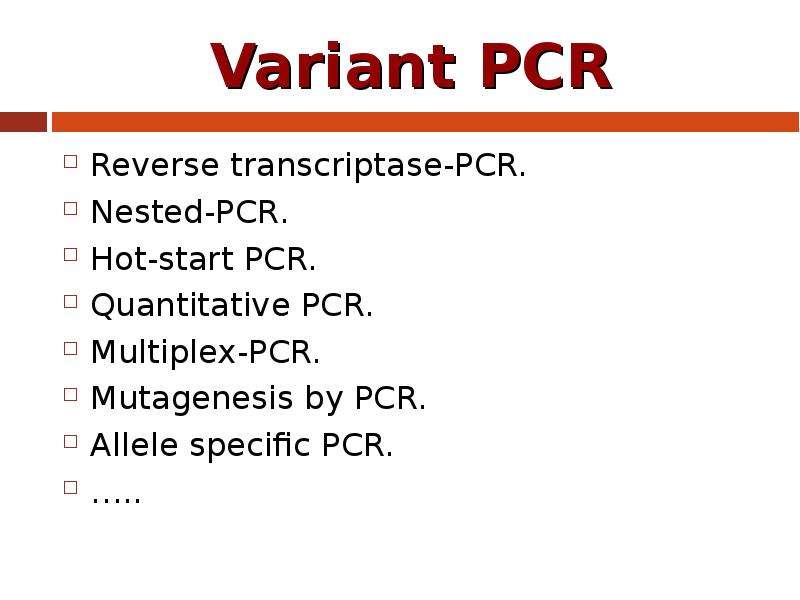

Variant PCR Reverse transcriptase-PCR. Nested-PCR. Hot-start PCR. Quantitative PCR. Multiplex-PCR. Mutagenesis by PCR. Allele specific PCR. …..

Слайд 39

Описание слайда:

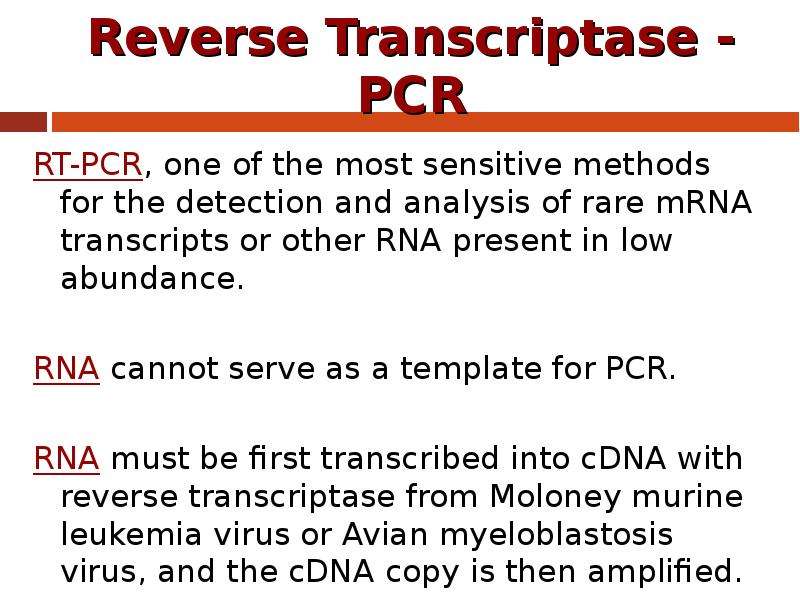

Reverse Transcriptase - PCR RT-PCR, one of the most sensitive methods for the detection and analysis of rare mRNA transcripts or other RNA present in low abundance. RNA cannot serve as a template for PCR. RNA must be first transcribed into cDNA with reverse transcriptase from Moloney murine leukemia virus or Avian myeloblastosis virus, and the cDNA copy is then amplified.

Слайд 40

Описание слайда:

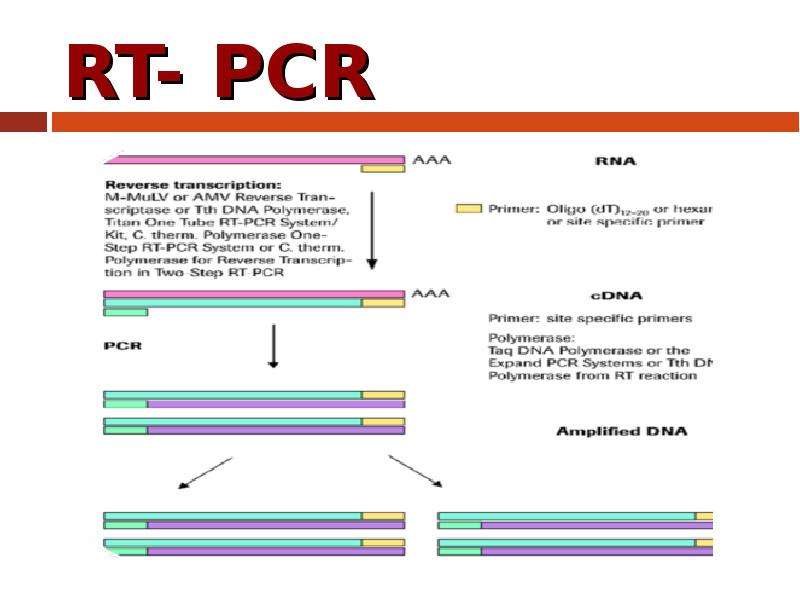

RT- PCR

Слайд 41

Описание слайда:

Nested PCR Nested PCR is a very specific PCR amplification. Nested PCR use two pairs (instead of one pair) of PCR primers are used to amplify a fragment.

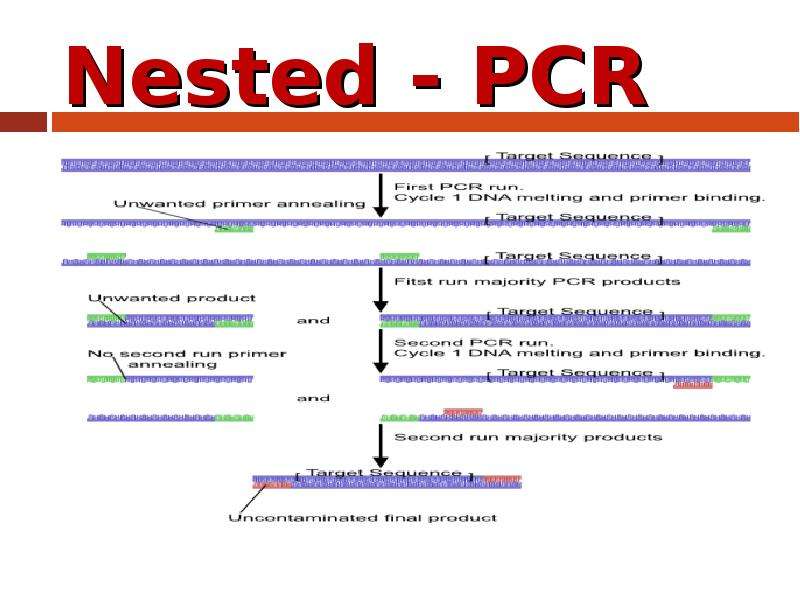

Слайд 42

Описание слайда:

Nested - PCR

Слайд 43

Описание слайда:

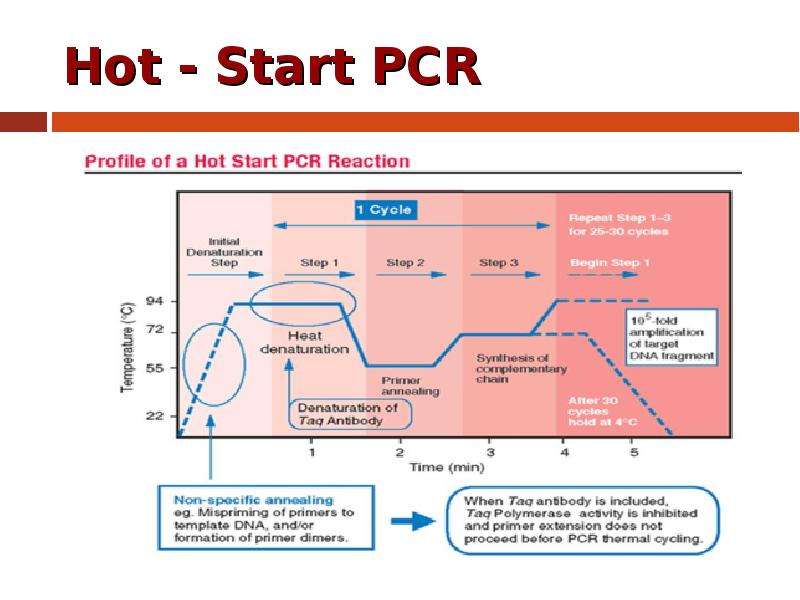

Hot - Start PCR Hot Start PCR significantly improves specificity, sensitivity and yield of PCR. The technique may be performed manually by heating the reaction components to the melting temperature (e.g., 95˚C) before adding the polymerase. Specialized enzyme systems can be used.

Слайд 44

Описание слайда:

Hot - Start PCR

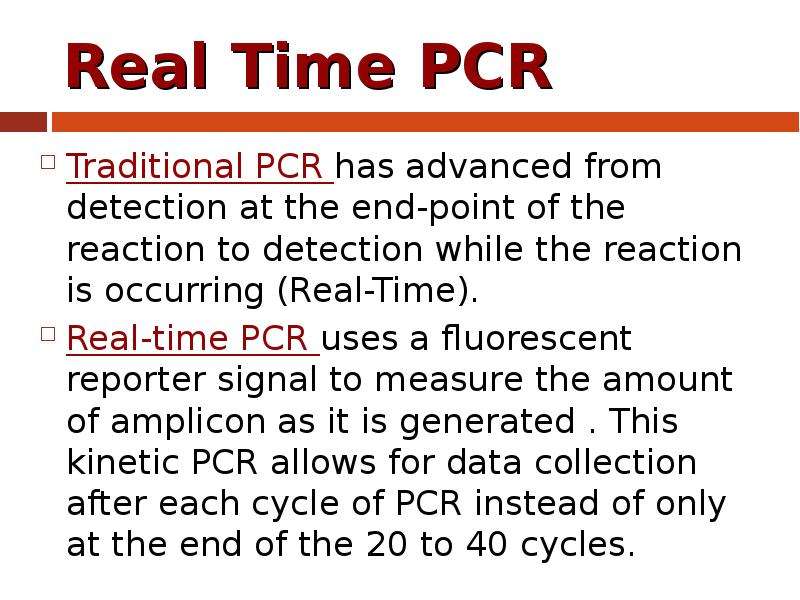

Слайд 45

Описание слайда:

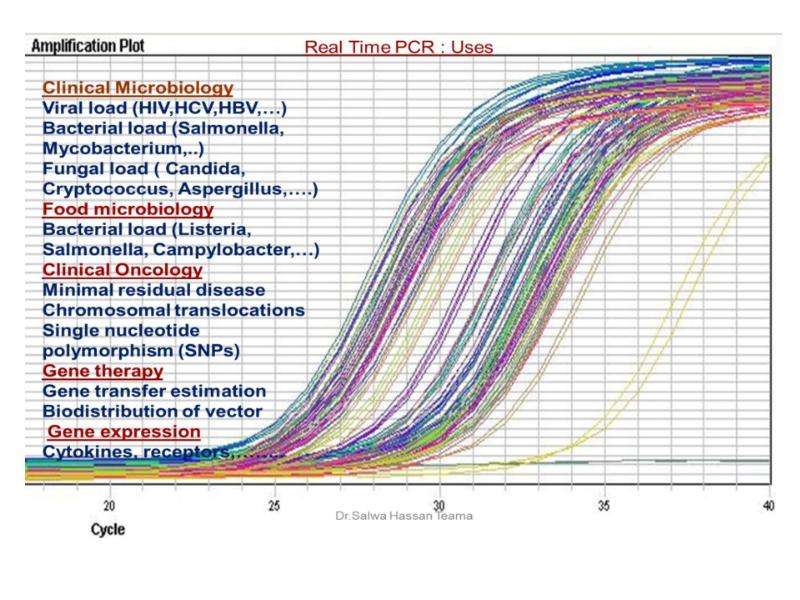

Real Time PCR Traditional PCR has advanced from detection at the end-point of the reaction to detection while the reaction is occurring (Real-Time). Real-time PCR uses a fluorescent reporter signal to measure the amount of amplicon as it is generated . This kinetic PCR allows for data collection after each cycle of PCR instead of only at the end of the 20 to 40 cycles.

Слайд 46

Описание слайда:

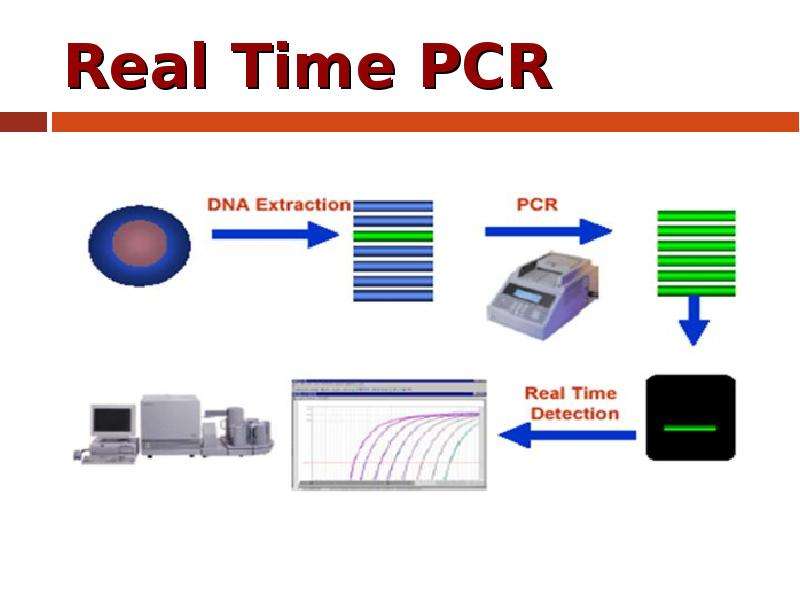

Real Time PCR

Слайд 47

Описание слайда:

Слайд 48

Описание слайда:

Infectious Diseases/ Cancer Detection of infectious agents, such as Pathogenic bacteria, Viruses or Protozoa. Cancer Detection of malignant diseases by PCR, Recurrence of hematological cancers has also been evaluated and Detection of micro-metastasis in blood, lymph nodes and bone marrow.

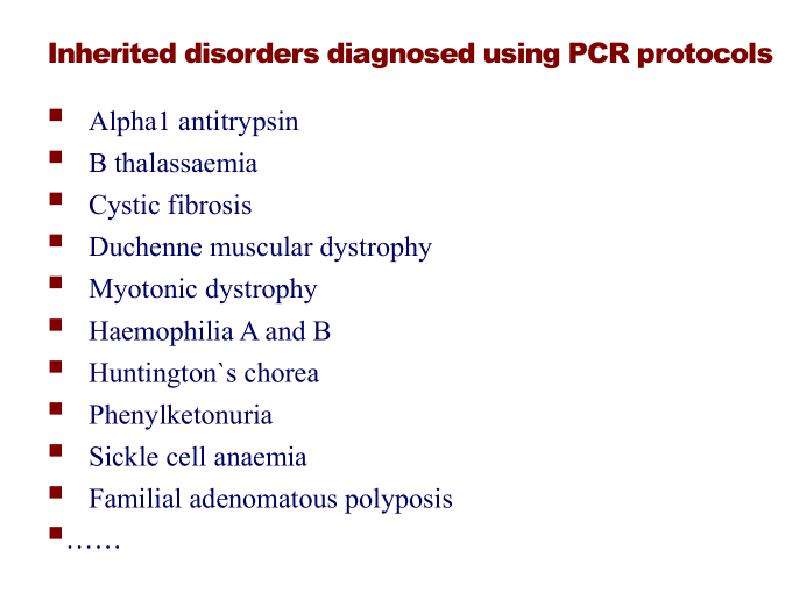

Слайд 49

Описание слайда:

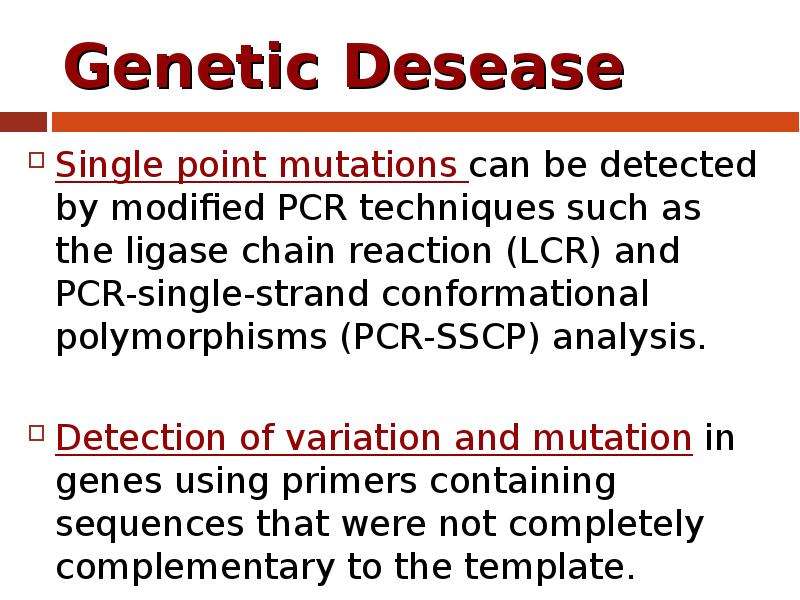

Genetic Desease Single point mutations can be detected by modified PCR techniques such as the ligase chain reaction (LCR) and PCR-single-strand conformational polymorphisms (PCR-SSCP) analysis. Detection of variation and mutation in genes using primers containing sequences that were not completely complementary to the template.

Слайд 50

Описание слайда:

Слайд 51

Описание слайда:

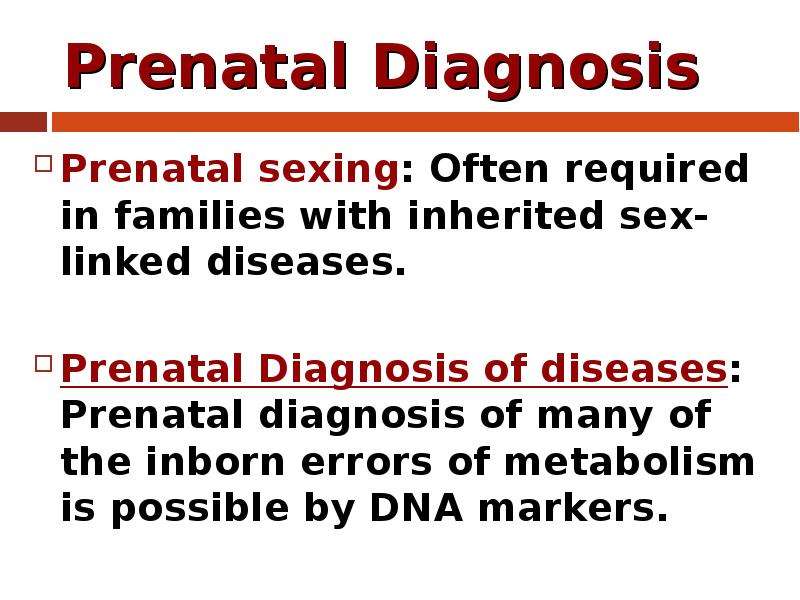

Prenatal Diagnosis Prenatal sexing: Often required in families with inherited sex-linked diseases. Prenatal Diagnosis of diseases: Prenatal diagnosis of many of the inborn errors of metabolism is possible by DNA markers.

Слайд 52

Описание слайда:

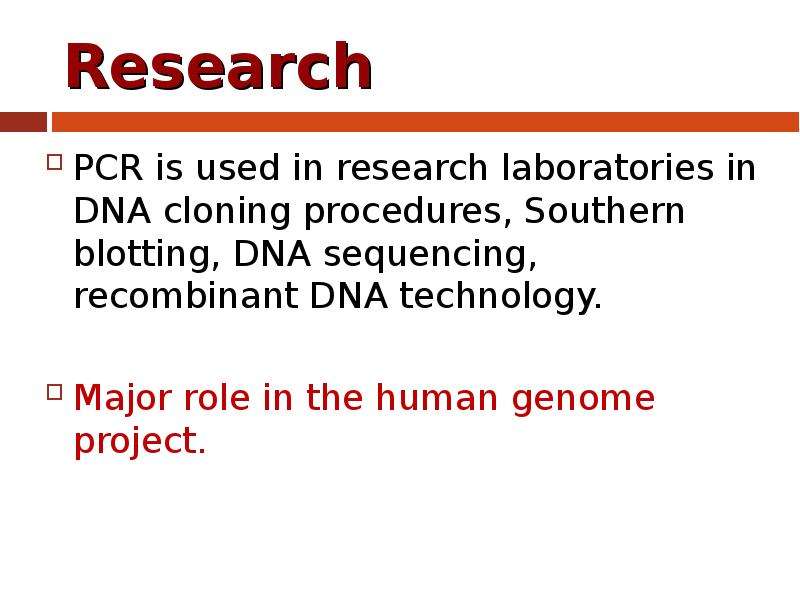

Research PCR is used in research laboratories in DNA cloning procedures, Southern blotting, DNA sequencing, recombinant DNA technology. Major role in the human genome project.
