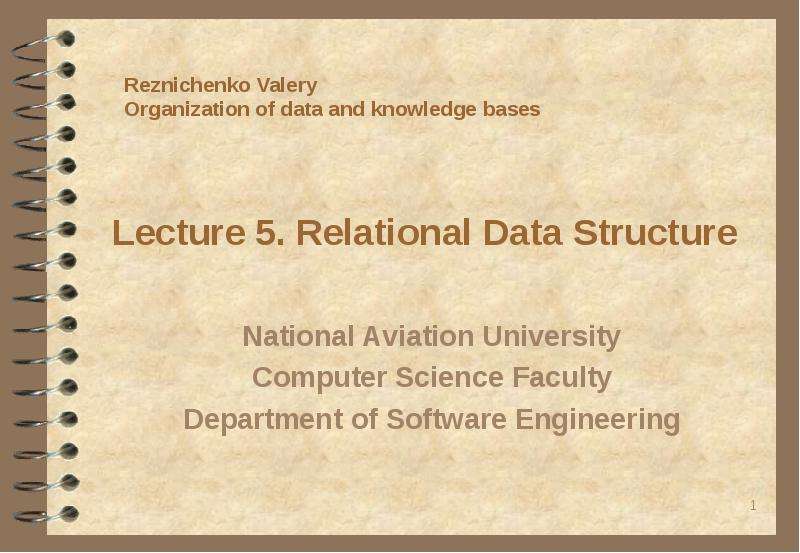

Lecture 5. Relational Data Structure National Aviation University Computer Science Faculty Department of Software Engineering

Слайд 2

Описание слайда:

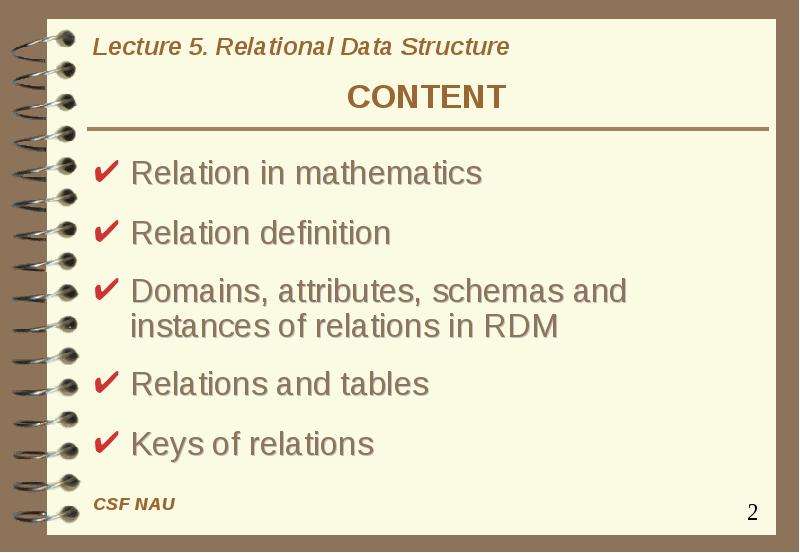

CONTENT Relation in mathematics Relation definition Domains, attributes, schemas and instances of relations in RDM Relations and tables Keys of relations

Слайд 3

Описание слайда:

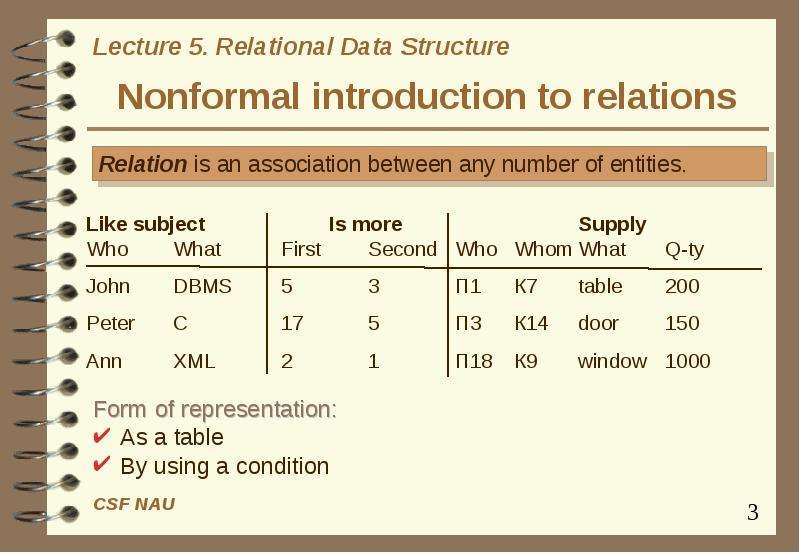

Nonformal introduction to relations Form of representation: As a table By using a condition

Слайд 4

Описание слайда:

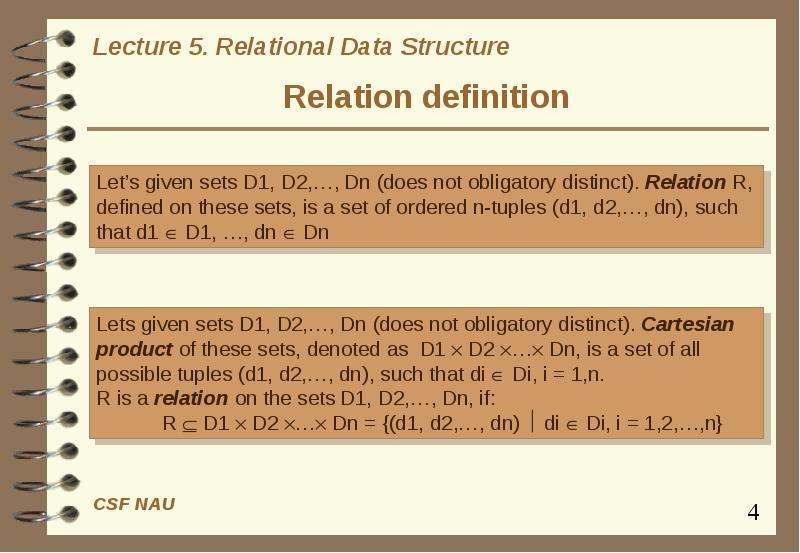

Relation definition

Слайд 5

Описание слайда:

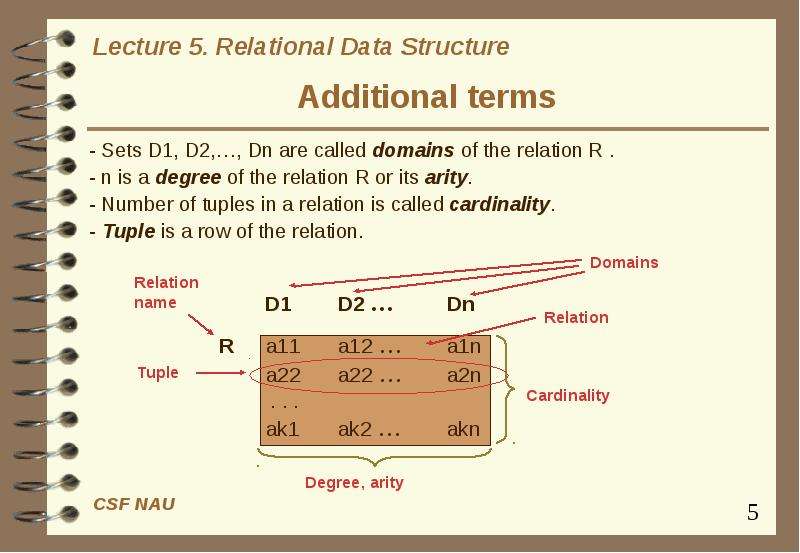

Additional terms

Слайд 6

Описание слайда:

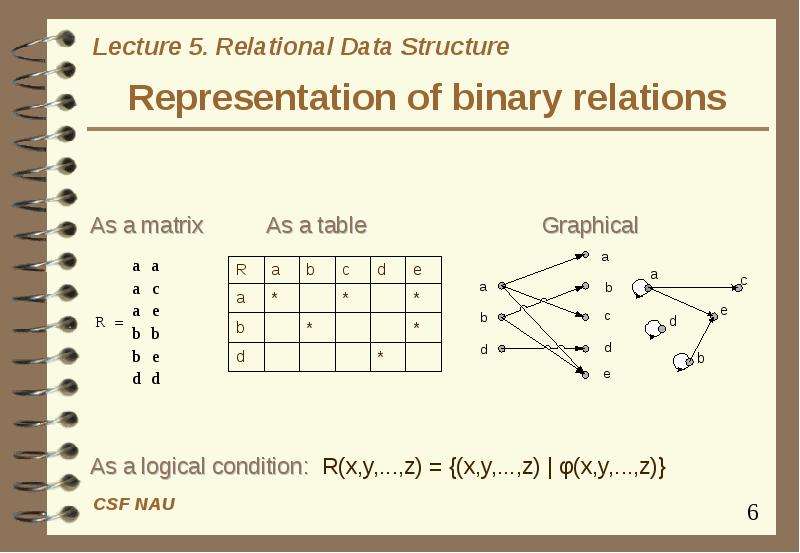

Representation of binary relations

Слайд 7

Описание слайда:

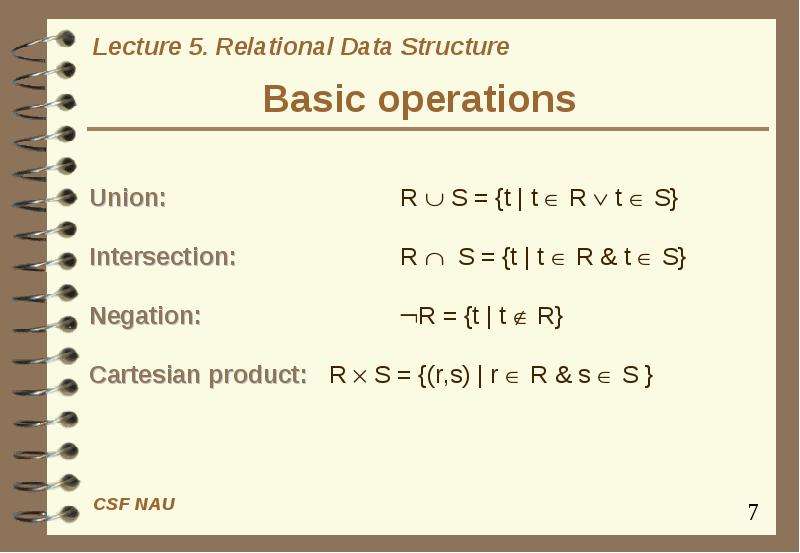

Basic operations

Слайд 8

Описание слайда:

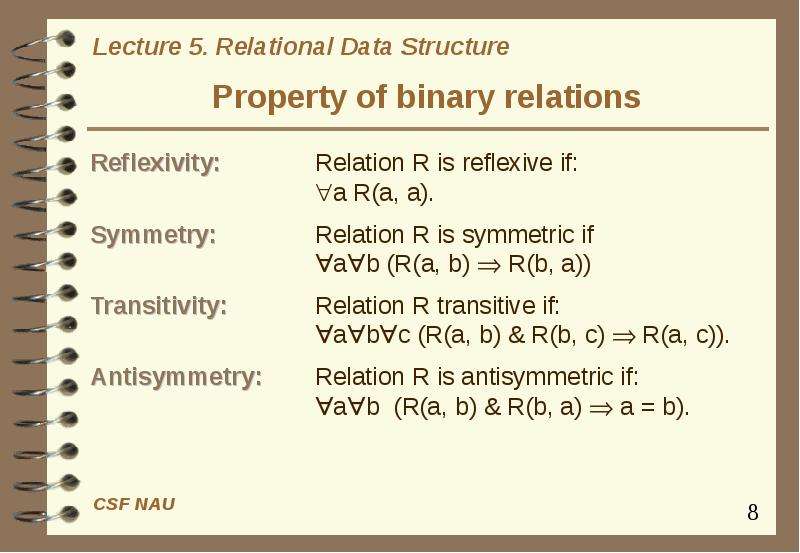

Property of binary relations

Слайд 9

Описание слайда:

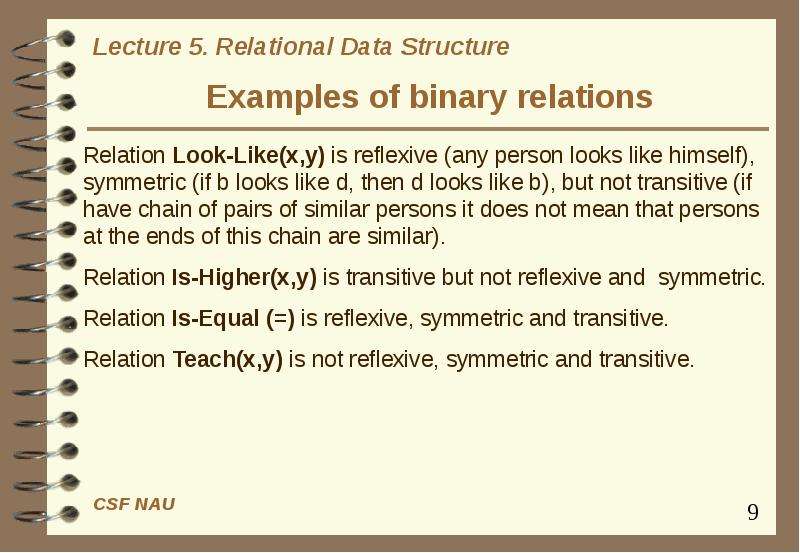

Examples of binary relations

Слайд 10

Описание слайда:

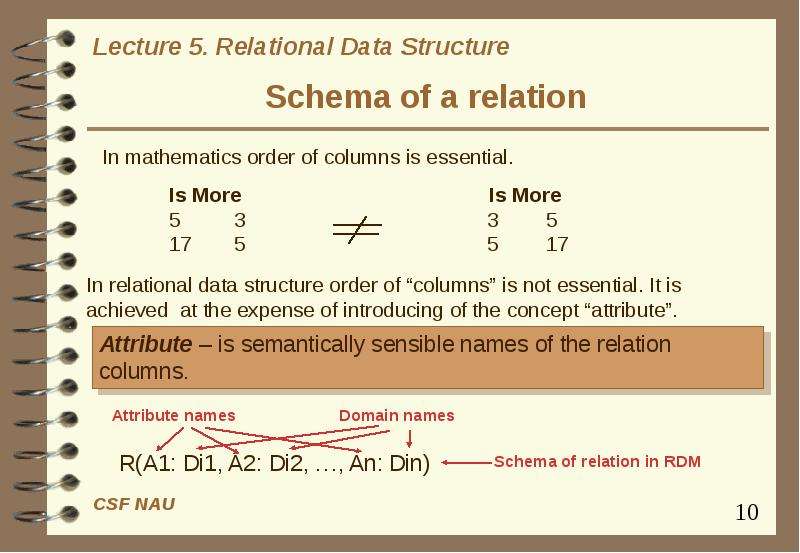

Schema of a relation

Слайд 11

Описание слайда:

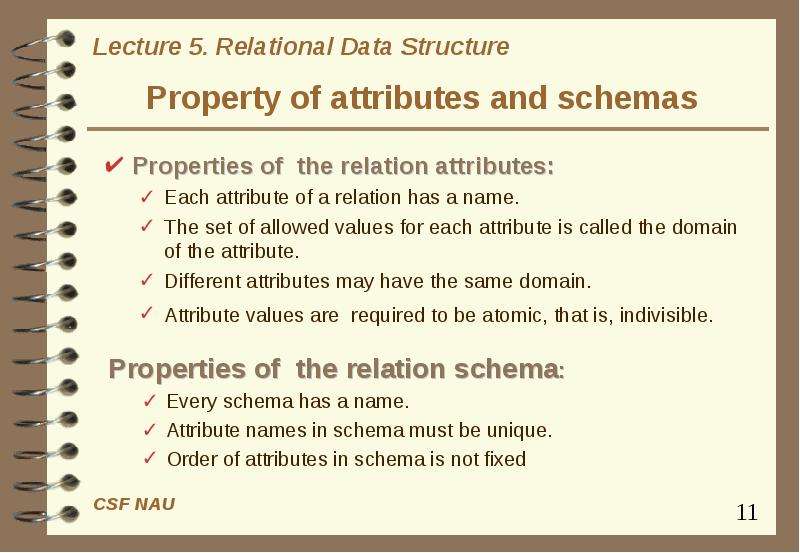

Property of attributes and schemas Properties of the relation attributes: Each attribute of a relation has a name. The set of allowed values for each attribute is called the domain of the attribute. Different attributes may have the same domain. Attribute values are required to be atomic, that is, indivisible.

Слайд 12

Описание слайда:

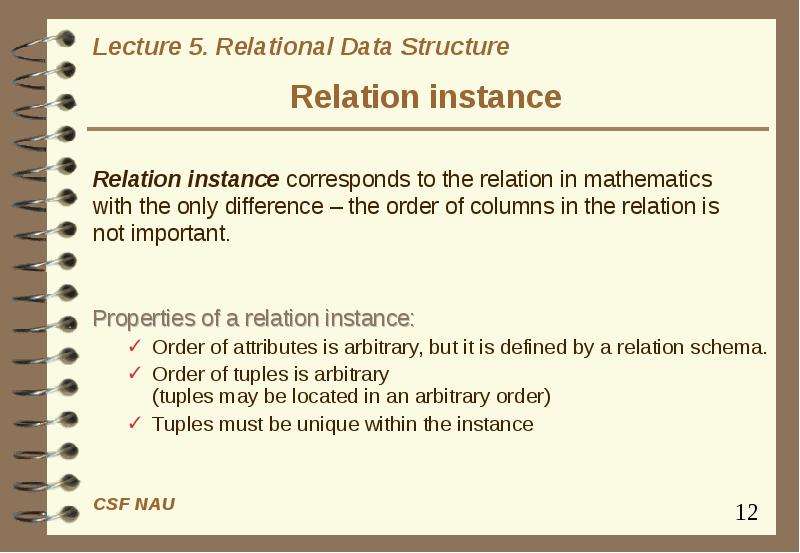

Relation instance Properties of a relation instance: Order of attributes is arbitrary, but it is defined by a relation schema. Order of tuples is arbitrary (tuples may be located in an arbitrary order) Tuples must be unique within the instance

Слайд 13

Описание слайда:

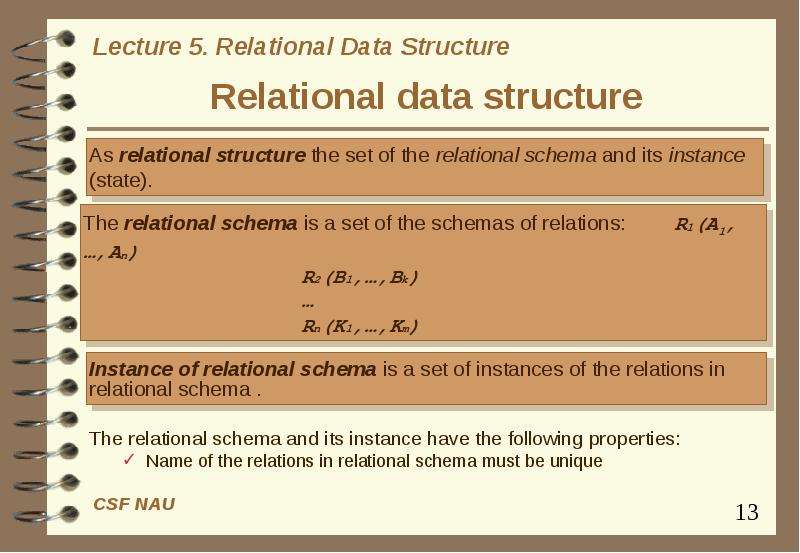

Relational data structure The relational schema and its instance have the following properties: Name of the relations in relational schema must be unique

Слайд 14

Описание слайда:

Relations and tables

Слайд 15

Описание слайда:

Term correspondence

Слайд 16

Описание слайда:

Keys

Слайд 17

Описание слайда:

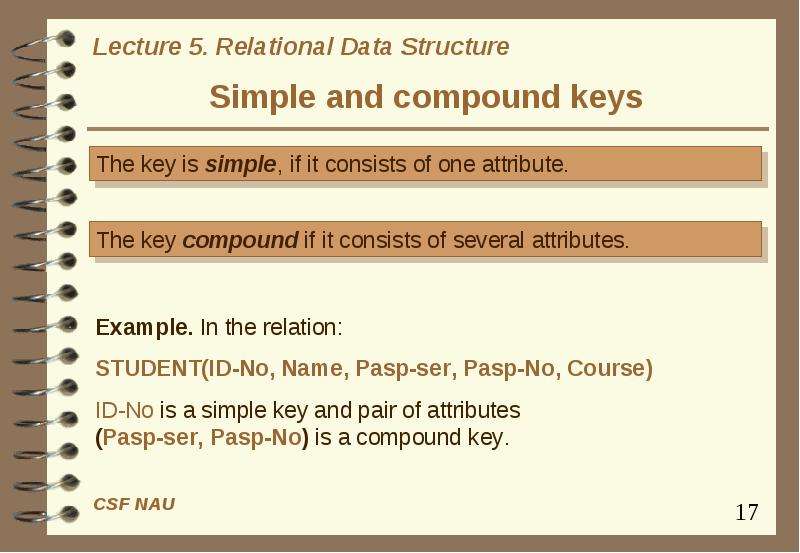

Simple and compound keys

Слайд 18

Описание слайда:

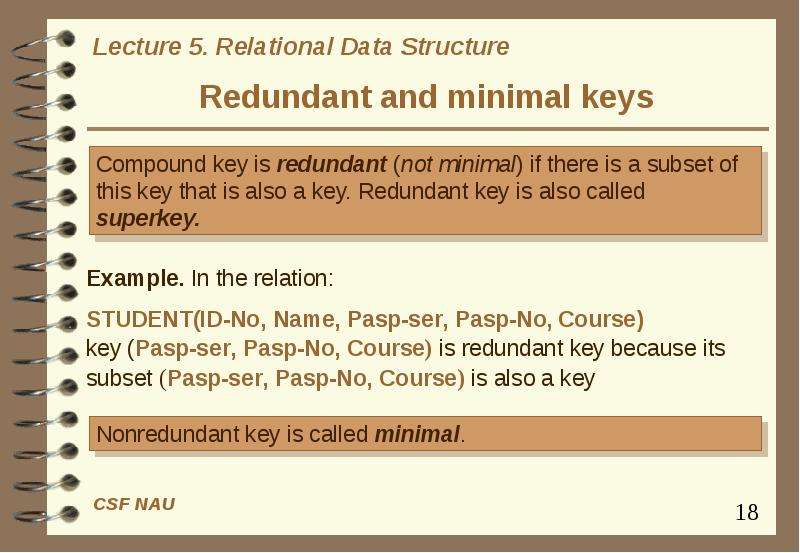

Redundant and minimal keys

Слайд 19

Описание слайда:

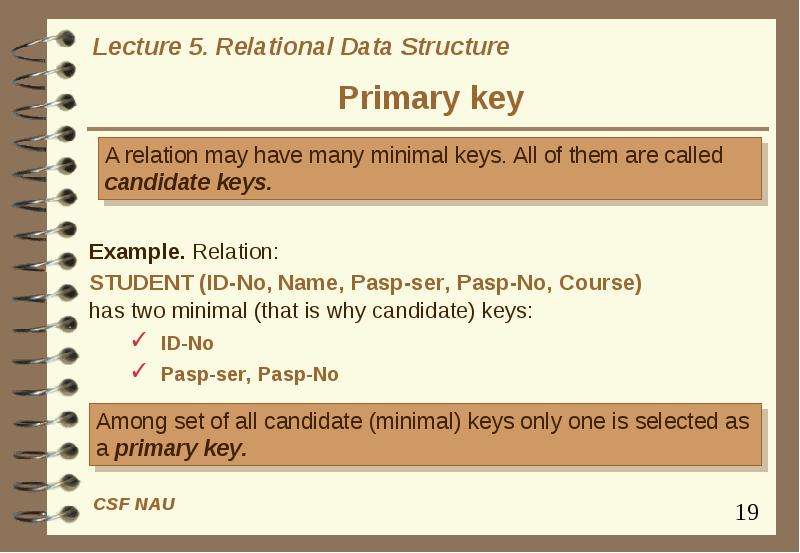

Primary key Example. Relation: STUDENT (ID-No, Name, Pasp-ser, Pasp-No, Course) has two minimal (that is why candidate) keys: ID-No Pasp-ser, Pasp-No

Слайд 20

Описание слайда:

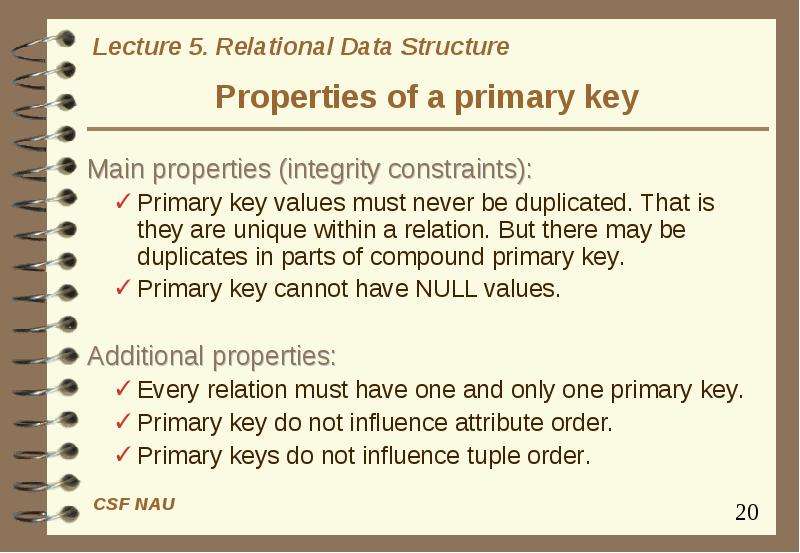

Properties of a primary key Main properties (integrity constraints): Primary key values must never be duplicated. That is they are unique within a relation. But there may be duplicates in parts of compound primary key. Primary key cannot have NULL values. Additional properties: Every relation must have one and only one primary key. Primary key do not influence attribute order. Primary keys do not influence tuple order.

Слайд 21

Описание слайда:

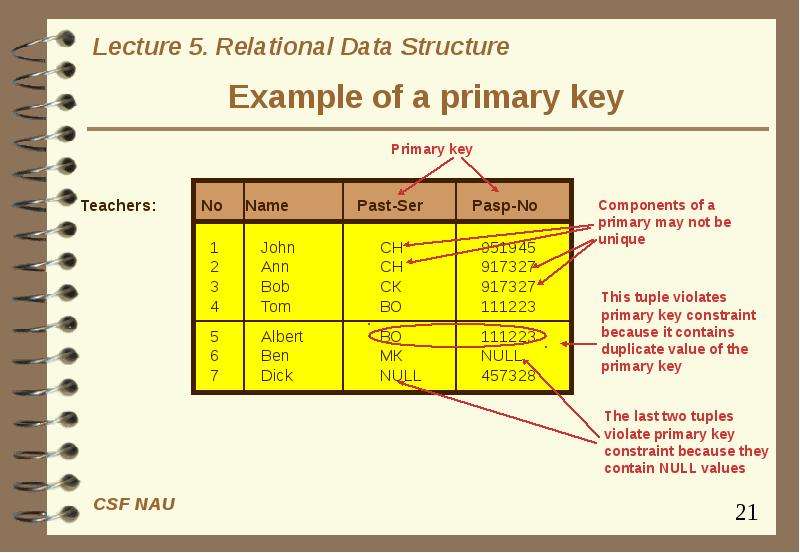

Example of a primary key

Слайд 22

Описание слайда:

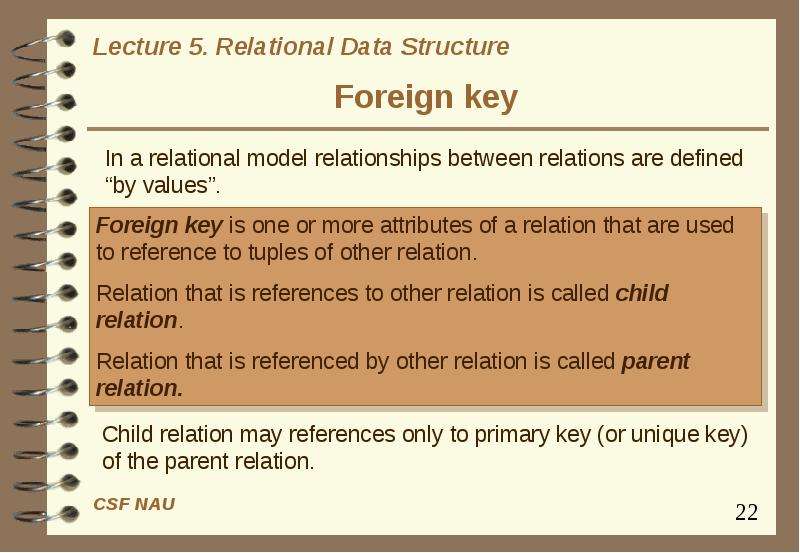

Foreign key

Слайд 23

Описание слайда:

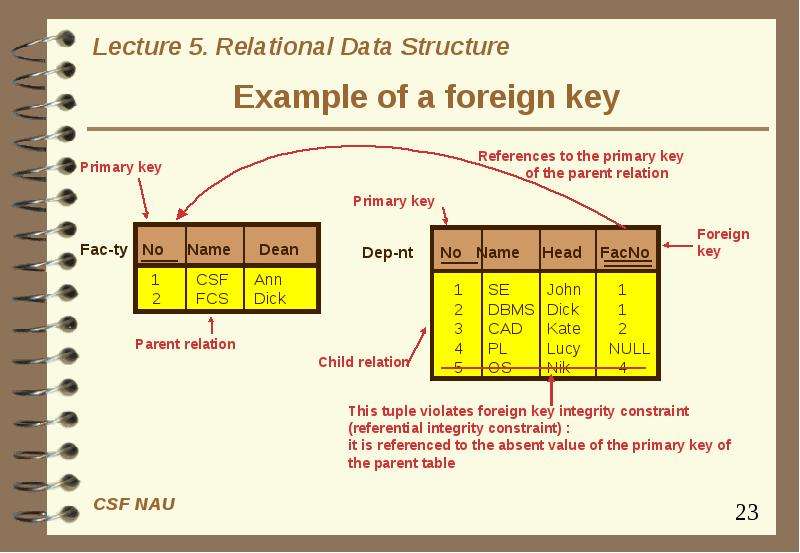

Example of a foreign key

Слайд 24

Описание слайда:

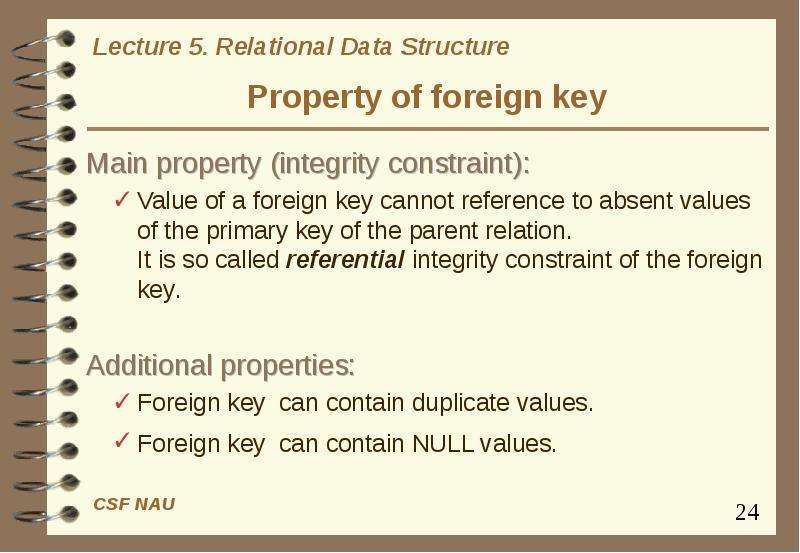

Property of foreign key Main property (integrity constraint): Value of a foreign key cannot reference to absent values of the primary key of the parent relation. It is so called referential integrity constraint of the foreign key. Additional properties: Foreign key can contain duplicate values. Foreign key can contain NULL values.

Слайд 25

Описание слайда:

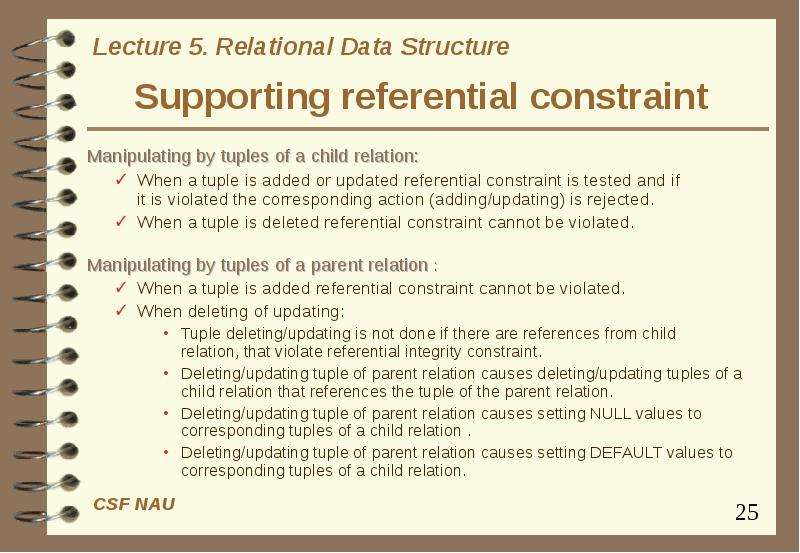

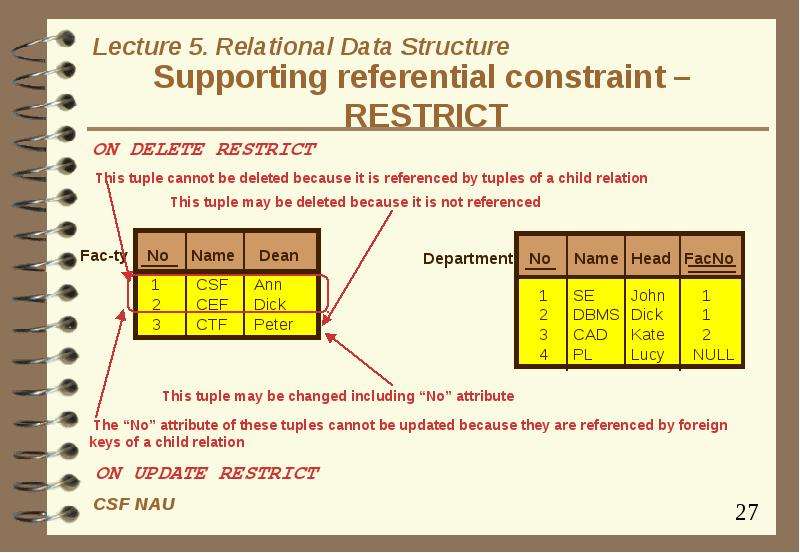

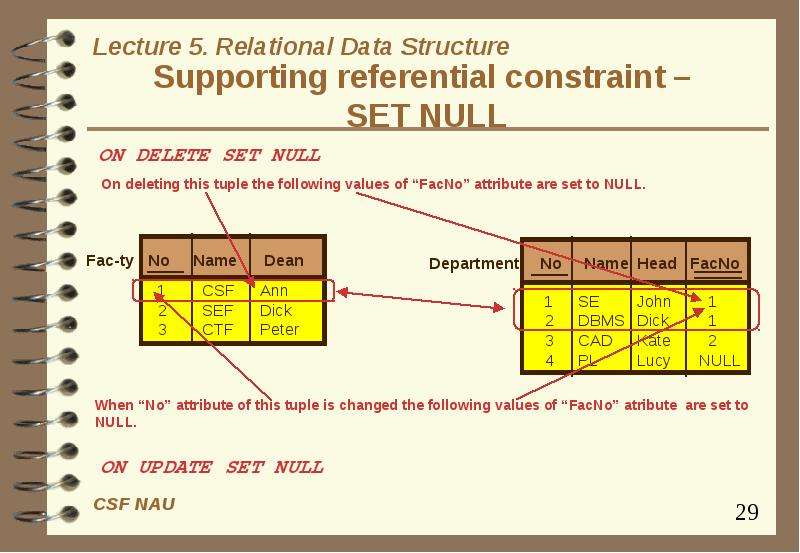

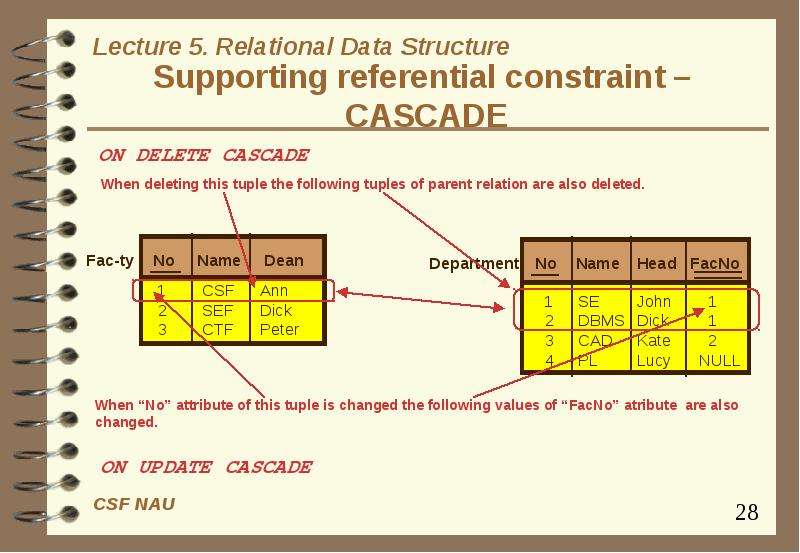

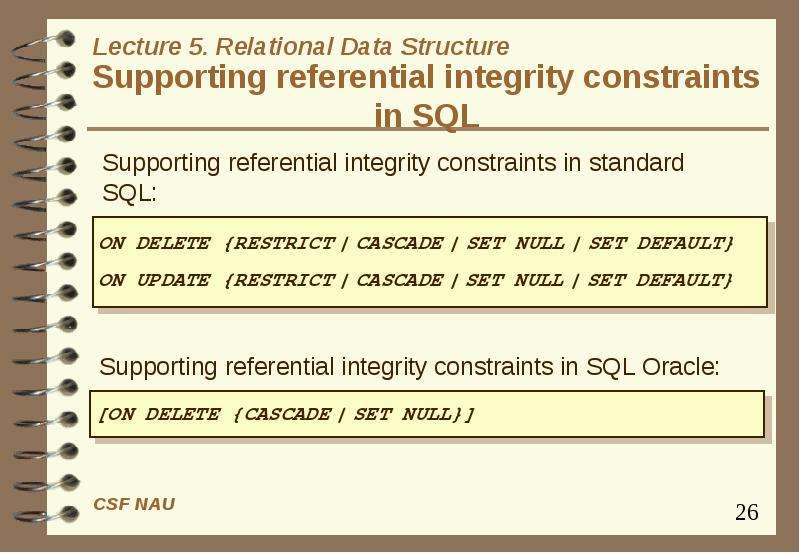

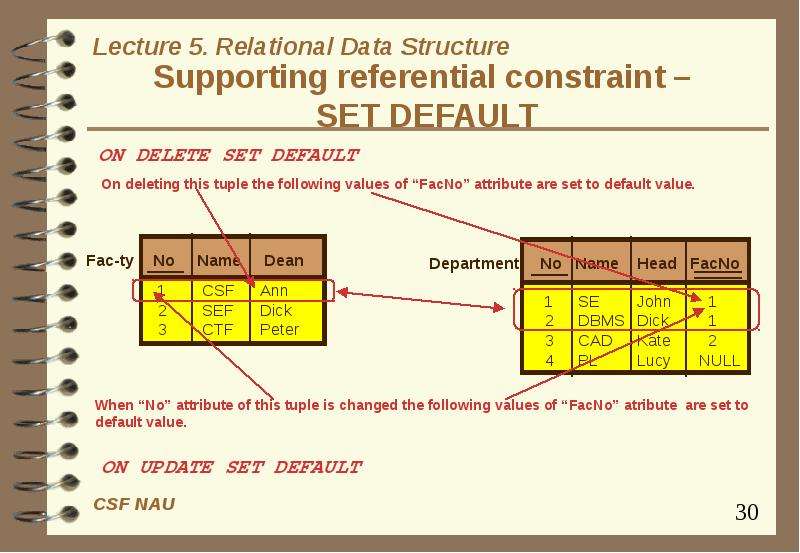

Supporting referential constraint Manipulating by tuples of a child relation: When a tuple is added or updated referential constraint is tested and if it is violated the corresponding action (adding/updating) is rejected. When a tuple is deleted referential constraint cannot be violated. Manipulating by tuples of a parent relation : When a tuple is added referential constraint cannot be violated. When deleting of updating: Tuple deleting/updating is not done if there are references from child relation, that violate referential integrity constraint. Deleting/updating tuple of parent relation causes deleting/updating tuples of a child relation that references the tuple of the parent relation. Deleting/updating tuple of parent relation causes setting NULL values to corresponding tuples of a child relation . Deleting/updating tuple of parent relation causes setting DEFAULT values to corresponding tuples of a child relation.
