Слайд 1


SURFACE LAYER State of the surface layer has a significant impact on vegetable and animal kingdoms, on the activity and state of humanity as a whole,...
Описание слайда:
SURFACE LAYER State of the surface layer has a significant impact on vegetable and animal kingdoms, on the activity and state of humanity as a whole, and on individual people. All kind of exchange between surface and the atmosphere come about through the surface layer. (heat, momentum, water vapor fluxes go through it) Processes within the surface layer are different from all other layers of the atmosphere.

Слайд 2


Some characteristics of the surface layer Surface layer (SL) is greatly influenced by the underlying surface. The latter supplies the SL with heat,...
Описание слайда:
Some characteristics of the surface layer Surface layer (SL) is greatly influenced by the underlying surface. The latter supplies the SL with heat, water vapor, and admixtures and here the air currents experience the friction effect. Meteorological parameters experience variations with time and altitude that are much stronger than in the rest of the atmosphere. Inversions are frequent phenomena in the surface layer. The most important process in the surface layer is EDDY MIXING.

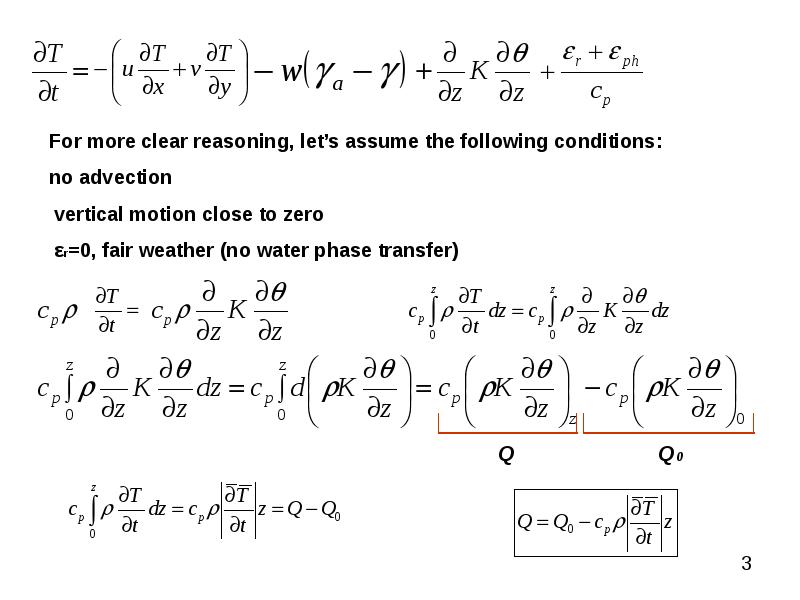

Слайд 3


SURFACE LAYER, слайд №3
Описание слайда:

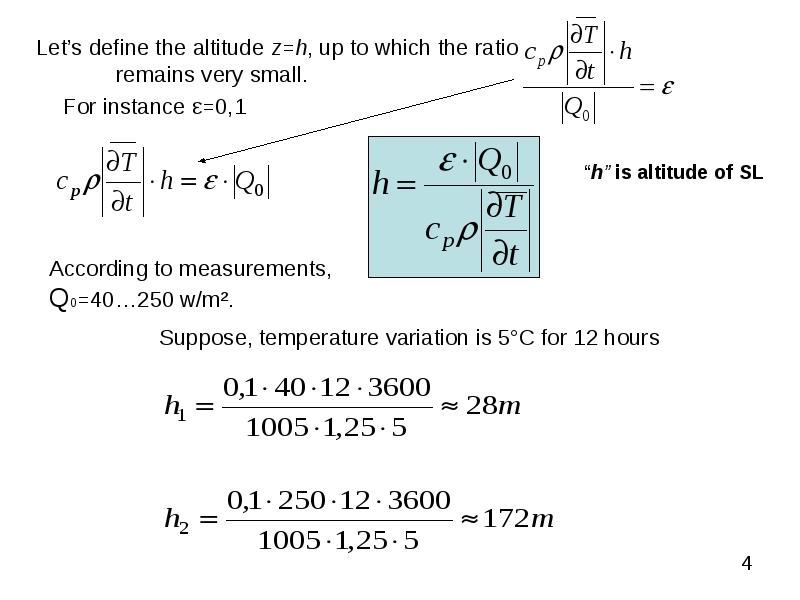

Слайд 4


SURFACE LAYER, слайд №4
Описание слайда:

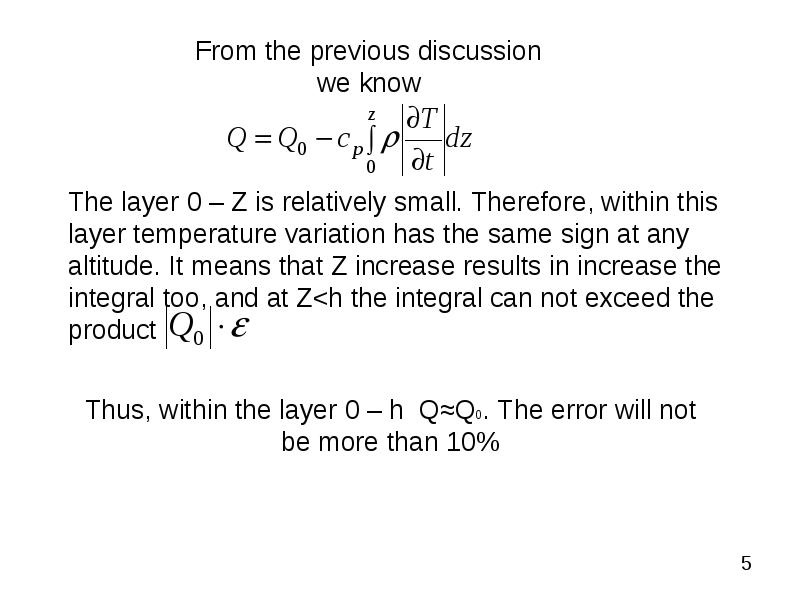

Слайд 5


SURFACE LAYER, слайд №5
Описание слайда:

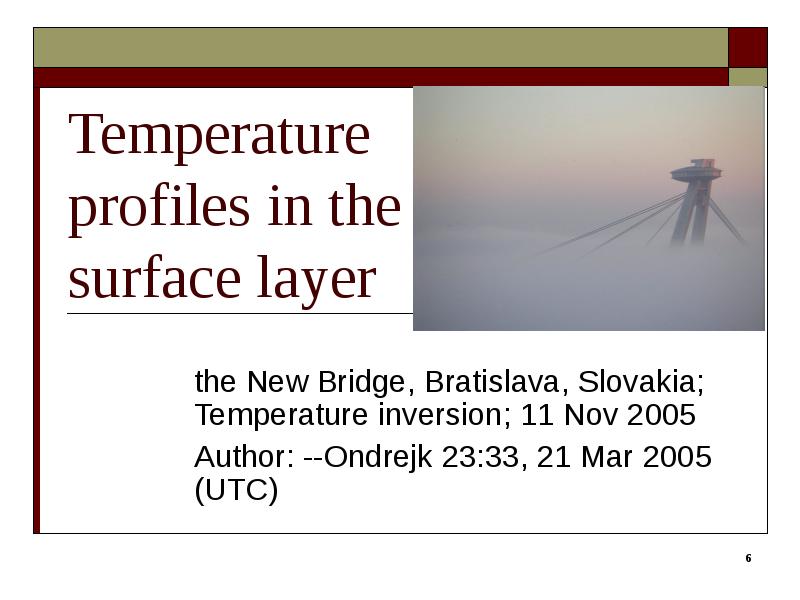

Слайд 6


Temperature profiles in the surface layer the New Bridge, Bratislava, Slovakia; Temperature inversion; 11 Nov 2005 Author: --Ondrejk 23:33, 21 Mar...
Описание слайда:
Temperature profiles in the surface layer the New Bridge, Bratislava, Slovakia; Temperature inversion; 11 Nov 2005 Author: --Ondrejk 23:33, 21 Mar 2005 (UTC)

Слайд 7


eddy coefficient k grows up with z in the surface layer assume there’s linear growth of k:
Описание слайда:
eddy coefficient k grows up with z in the surface layer assume there’s linear growth of k:

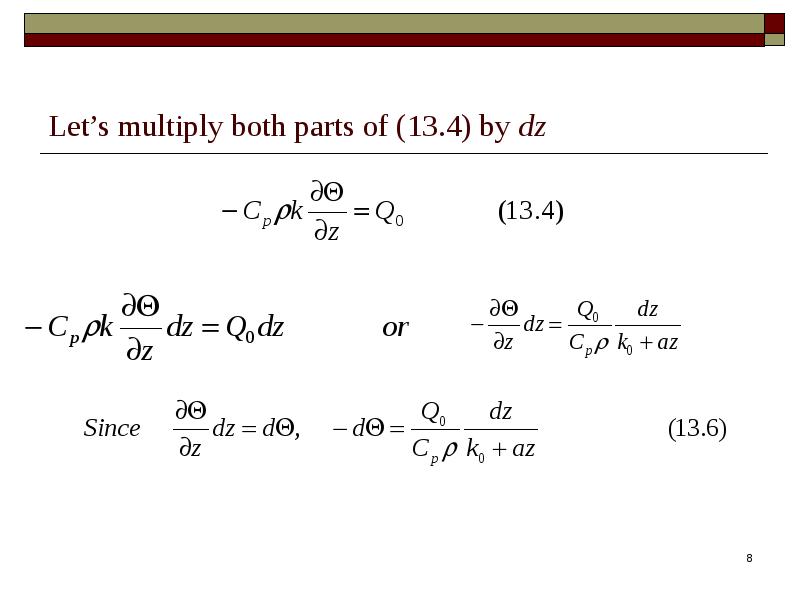

Слайд 8


Let’s multiply both parts of (13.4) by dz
Описание слайда:
Let’s multiply both parts of (13.4) by dz

Слайд 9


Let’s integrate (13.6) from z=0 ( ) to arbitrary chosen z we adopted that (13.7) is a logarithmic law of air temperature distribution in the surface...
Описание слайда:
Let’s integrate (13.6) from z=0 ( ) to arbitrary chosen z we adopted that (13.7) is a logarithmic law of air temperature distribution in the surface layer. As known

Слайд 10


(13.7) can be rewritten as T0 is measured just at the surface (significant inaccuracy). Let’s reduce such errors (13.8 for z=z1 ): substitute in...
Описание слайда:
(13.7) can be rewritten as T0 is measured just at the surface (significant inaccuracy). Let’s reduce such errors (13.8 for z=z1 ): substitute in (13.8)

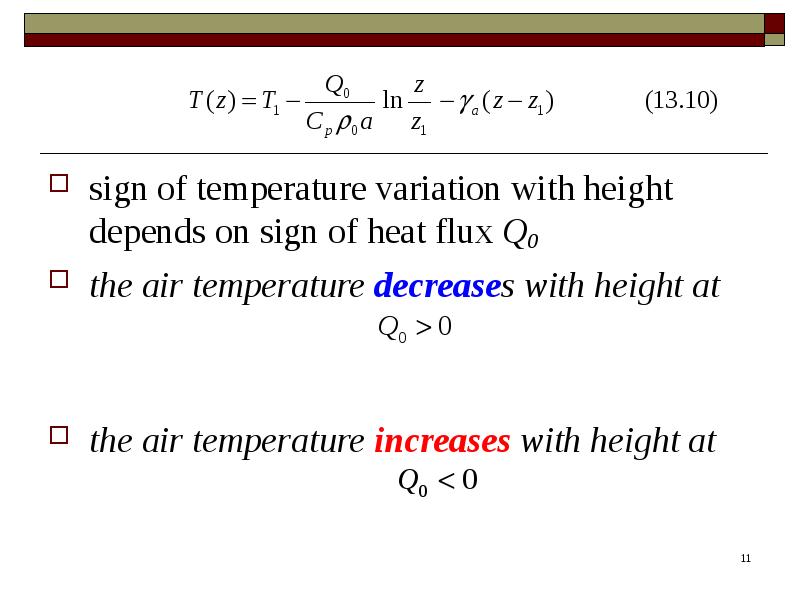

Слайд 11


sign of temperature variation with height depends on sign of heat flux Q0 the air temperature decreases with height at the air temperature increases...
Описание слайда:
sign of temperature variation with height depends on sign of heat flux Q0 the air temperature decreases with height at the air temperature increases with height at

Слайд 12


Some empirical studies have shown that logarithmic law describes T(z) more or less correctly at neutral stratification when coefficient k0 can be...
Описание слайда:
Some empirical studies have shown that logarithmic law describes T(z) more or less correctly at neutral stratification when coefficient k0 can be expressed with roughness parameter z00 substituting (13.11) into (13.10):

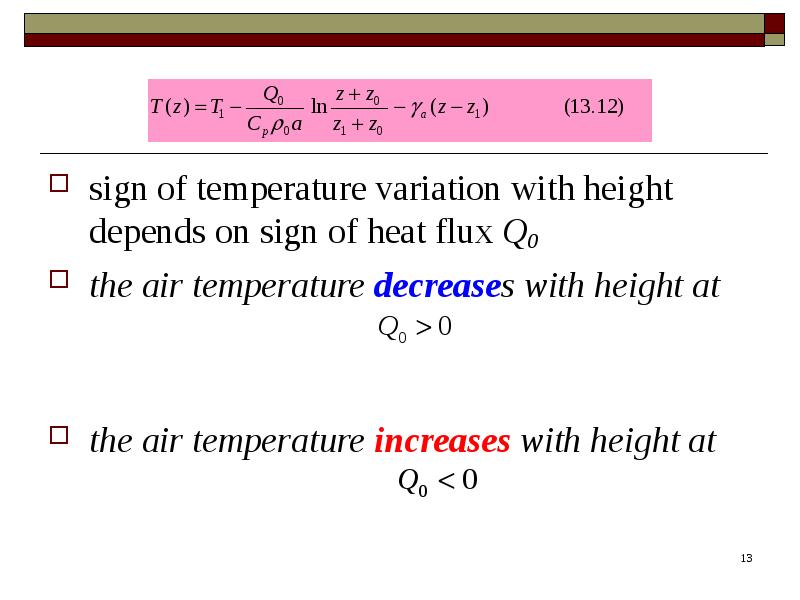

Слайд 13


sign of temperature variation with height depends on sign of heat flux Q0 sign of temperature variation with height depends on sign of heat flux Q0...
Описание слайда:
sign of temperature variation with height depends on sign of heat flux Q0 sign of temperature variation with height depends on sign of heat flux Q0 the air temperature decreases with height at the air temperature increases with height at
