Слайд 1


Interaction of the atmosphere with underlying surfaces. Heat budgets
Описание слайда:
Interaction of the atmosphere with underlying surfaces. Heat budgets

Слайд 2

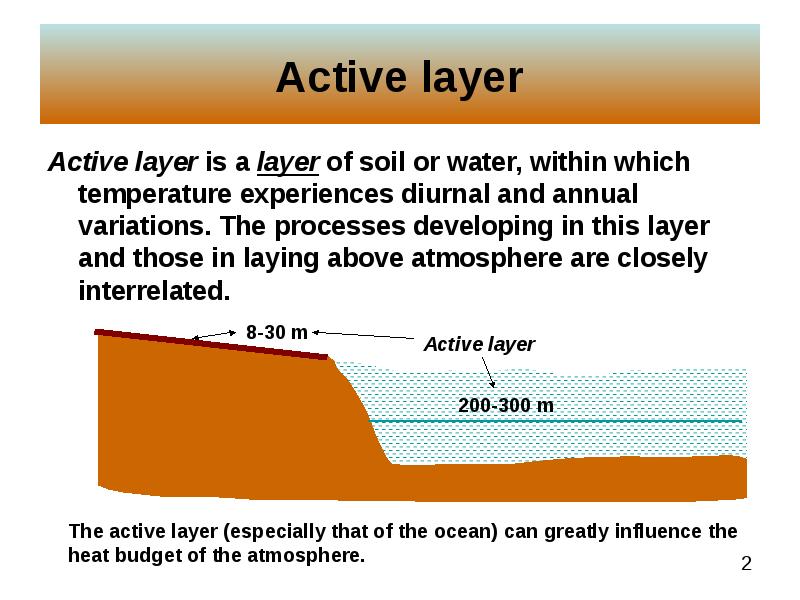

Active layer Active layer is a layer of soil or water, within which temperature experiences diurnal and annual variations. The processes developing...
Описание слайда:
Active layer Active layer is a layer of soil or water, within which temperature experiences diurnal and annual variations. The processes developing in this layer and those in laying above atmosphere are closely interrelated.

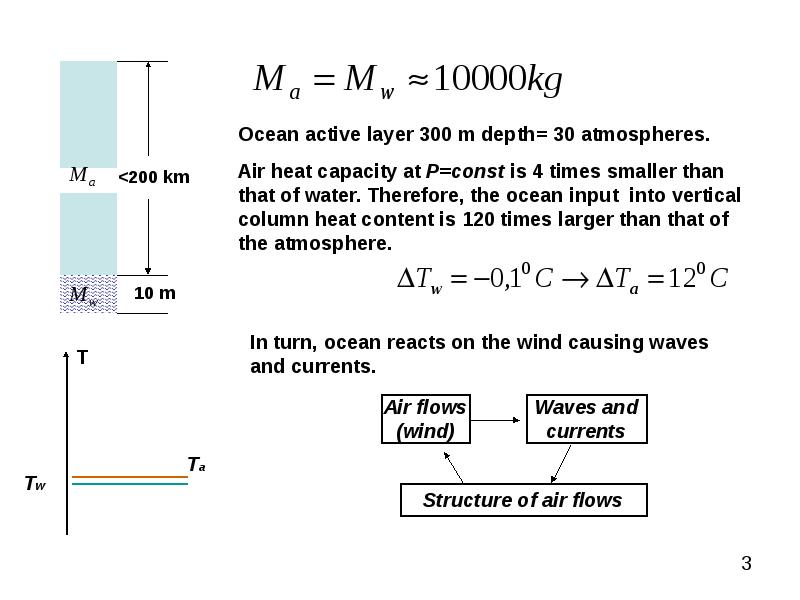

Слайд 3


Interaction of the atmosphere with underlying surfaces, слайд №3
Описание слайда:

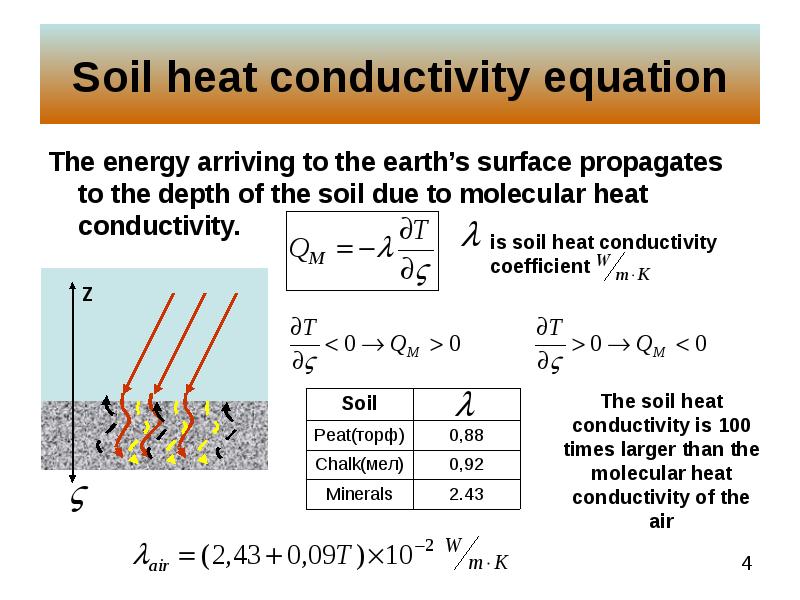

Слайд 4


Soil heat conductivity equation The energy arriving to the earth’s surface propagates to the depth of the soil due to molecular heat conductivity.
Описание слайда:
Soil heat conductivity equation The energy arriving to the earth’s surface propagates to the depth of the soil due to molecular heat conductivity.

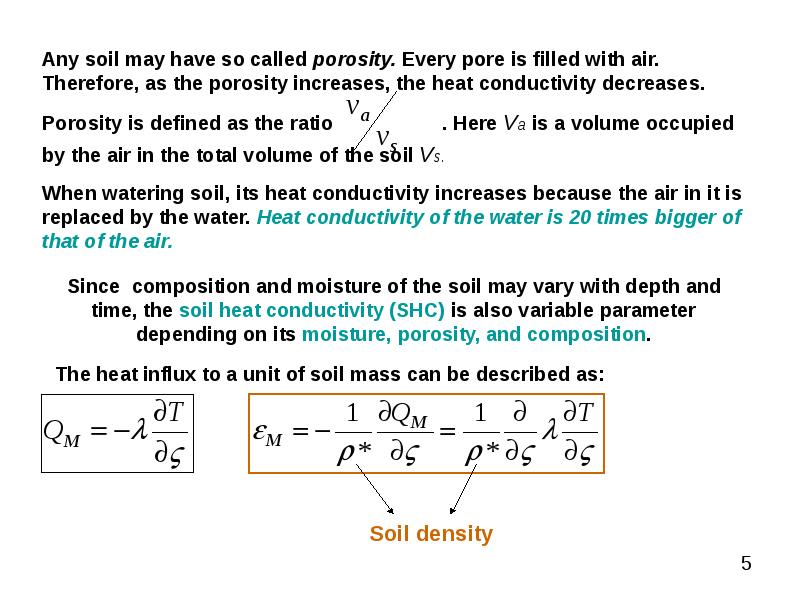

Слайд 5


Interaction of the atmosphere with underlying surfaces, слайд №5
Описание слайда:

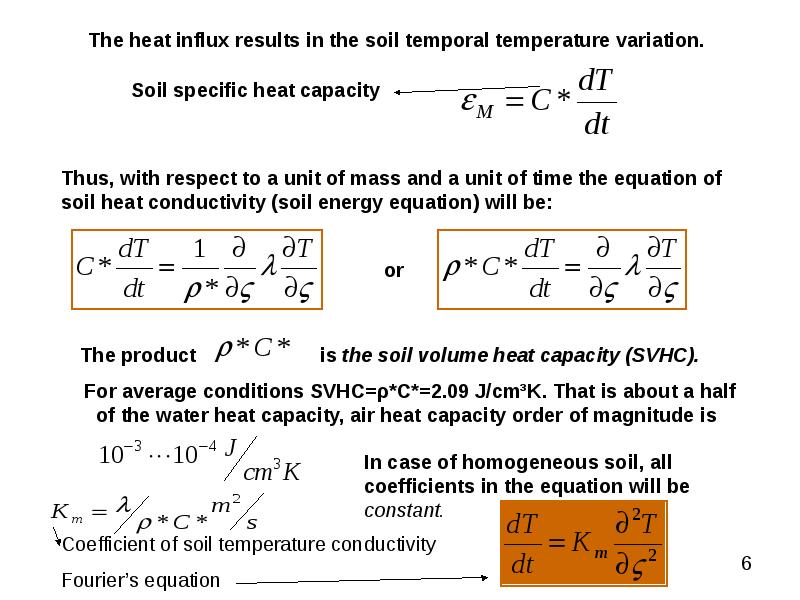

Слайд 6


Interaction of the atmosphere with underlying surfaces, слайд №6
Описание слайда:

Слайд 7

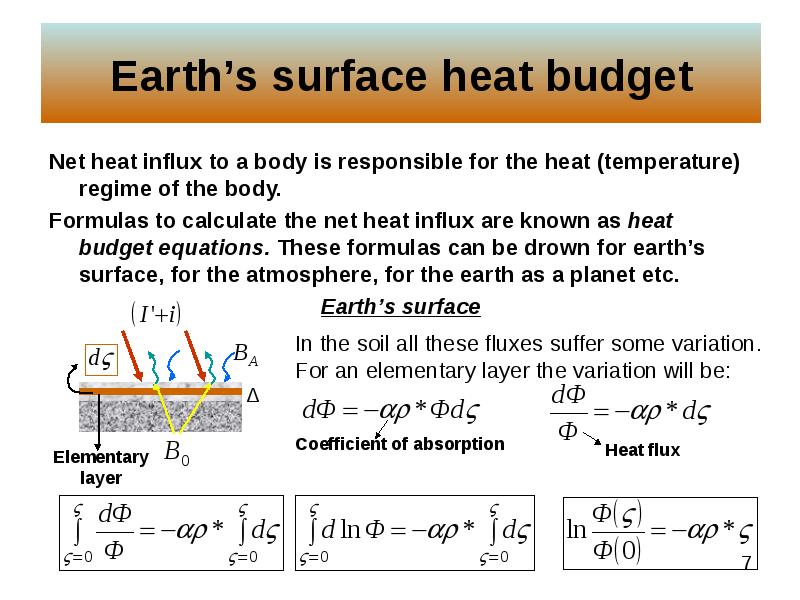

Net heat influx to a body is responsible for the heat (temperature) regime of the body. Formulas to calculate the net heat influx are known as heat...
Описание слайда:
Net heat influx to a body is responsible for the heat (temperature) regime of the body. Formulas to calculate the net heat influx are known as heat budget equations. These formulas can be drown for earth’s surface, for the atmosphere, for the earth as a planet etc. Earth’s surface

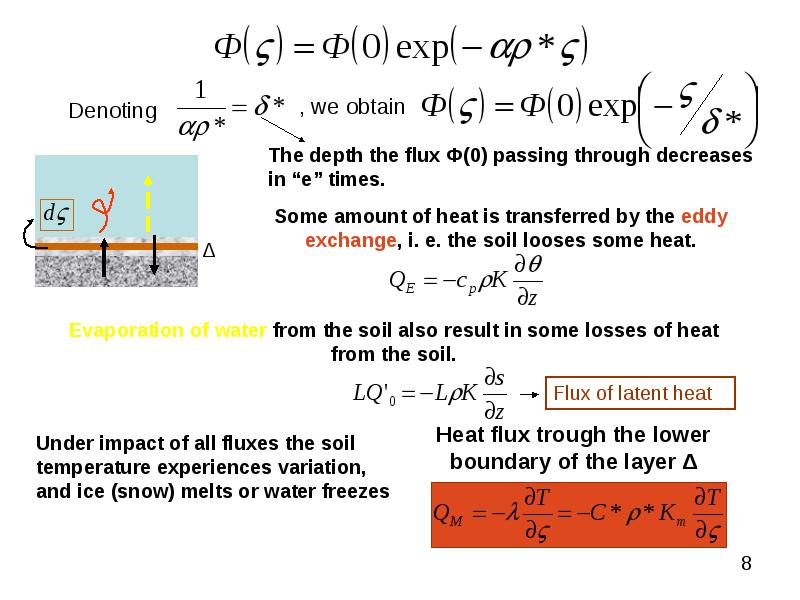

Слайд 8


Interaction of the atmosphere with underlying surfaces, слайд №8
Описание слайда:

Слайд 9

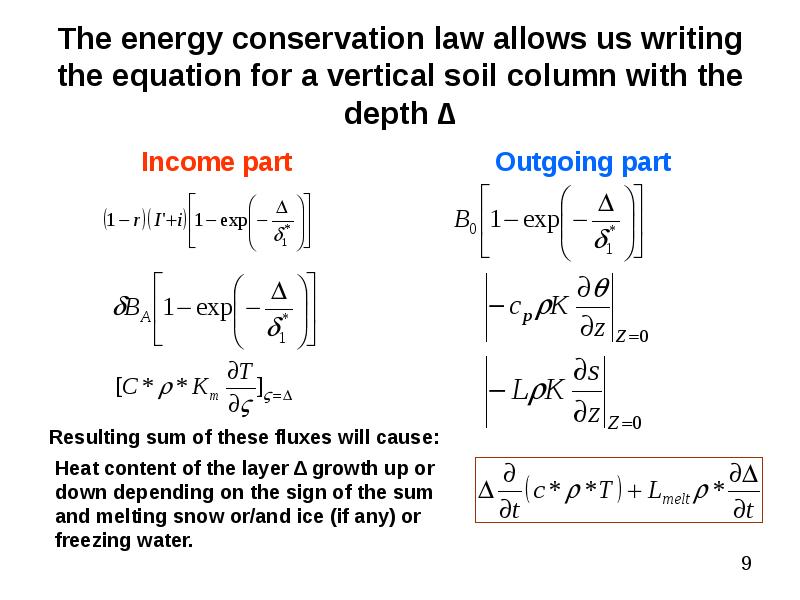

The energy conservation law allows us writing the equation for a vertical soil column with the depth ∆ Income part
Описание слайда:
The energy conservation law allows us writing the equation for a vertical soil column with the depth ∆ Income part

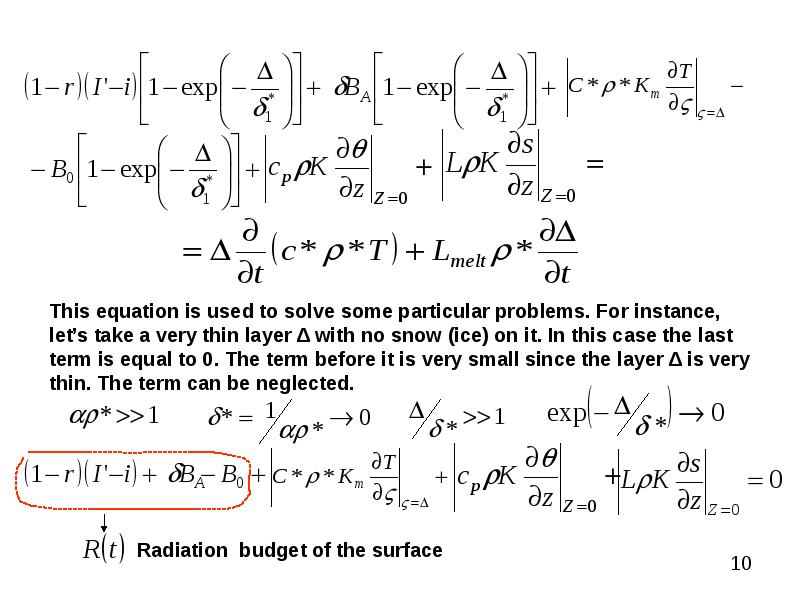

Слайд 10


Interaction of the atmosphere with underlying surfaces, слайд №10
Описание слайда:

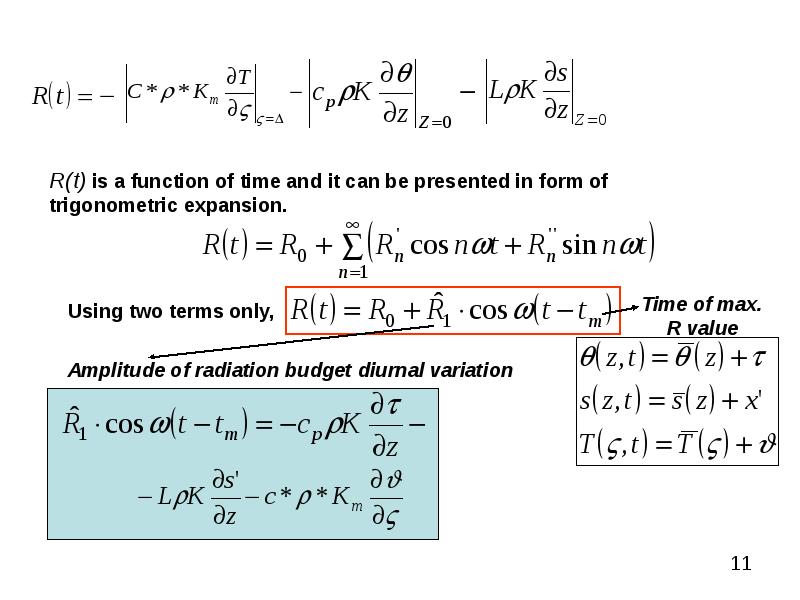

Слайд 11


Interaction of the atmosphere with underlying surfaces, слайд №11
Описание слайда:

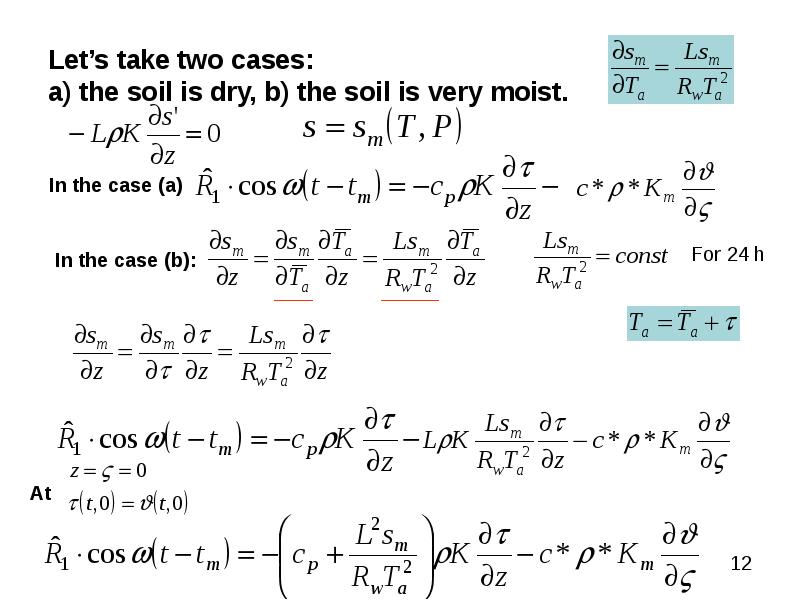

Слайд 12


Let’s take two cases: a) the soil is dry, b) the soil is very moist.
Описание слайда:
Let’s take two cases: a) the soil is dry, b) the soil is very moist.

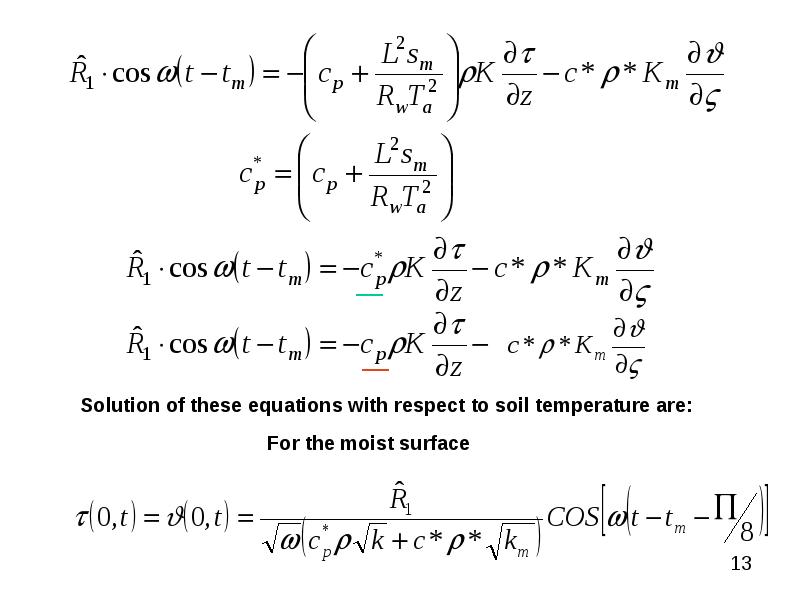

Слайд 13


Interaction of the atmosphere with underlying surfaces, слайд №13
Описание слайда:

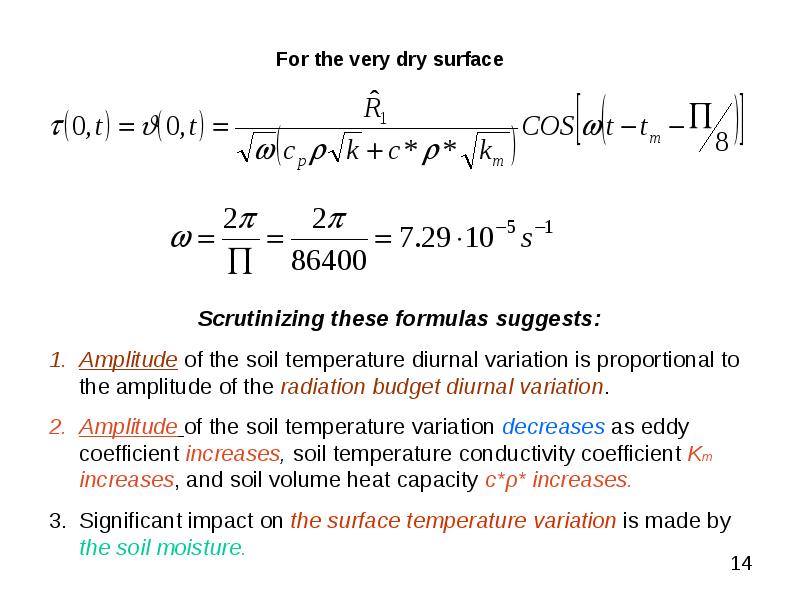

Слайд 14


Interaction of the atmosphere with underlying surfaces, слайд №14
Описание слайда:

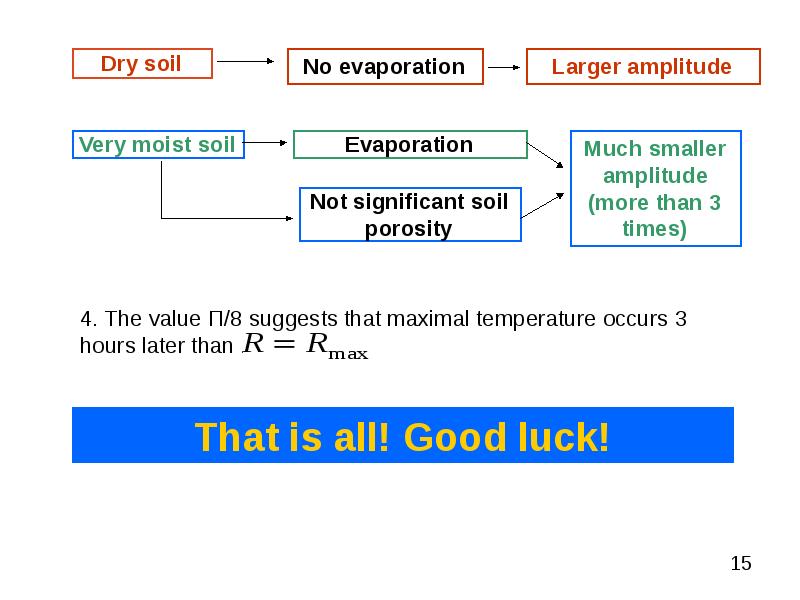

Слайд 15


Interaction of the atmosphere with underlying surfaces, слайд №15
Описание слайда:
