Слайд 1

Описание слайда:

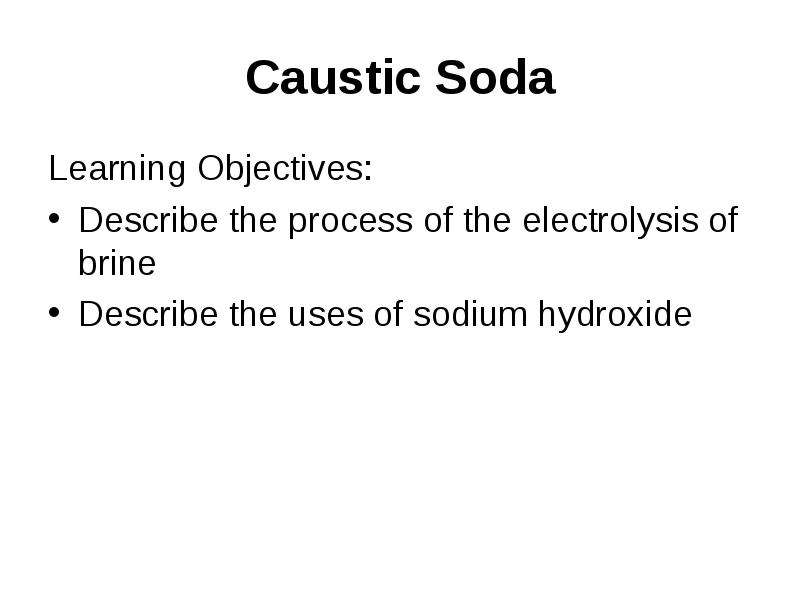

Caustic Soda Learning Objectives: Describe the process of the electrolysis of brine Describe the uses of sodium hydroxide

Слайд 2

Описание слайда:

Draw the practical set up you would need for electrolysis

Слайд 3

Описание слайда:

Слайд 4

Описание слайда:

Electrolysis of Brine Practical

Слайд 5

Описание слайда:

Questions 1 What did the universal indicator show you about the type of substance formed in: a the anode dish b the cathode dish? 2 Chlorine gas is given off at the anode. How can you tell? 3 Suggest the name of an acid that might be formed in the anode dish. 4 Chlorine is an important ingredient in bleach. What observation can you make that shows the bleaching property of chlorine? 5 Why would the experiment not have worked without the filter paper between the two dishes? 6 What would be the problem with connecting the two dishes up with a piece of metal wire? 7 Give the formulae of the two ions found in sodium chloride. 8 Which of these ions will be attracted to: a the anode b the cathode?

Слайд 6

Описание слайда:

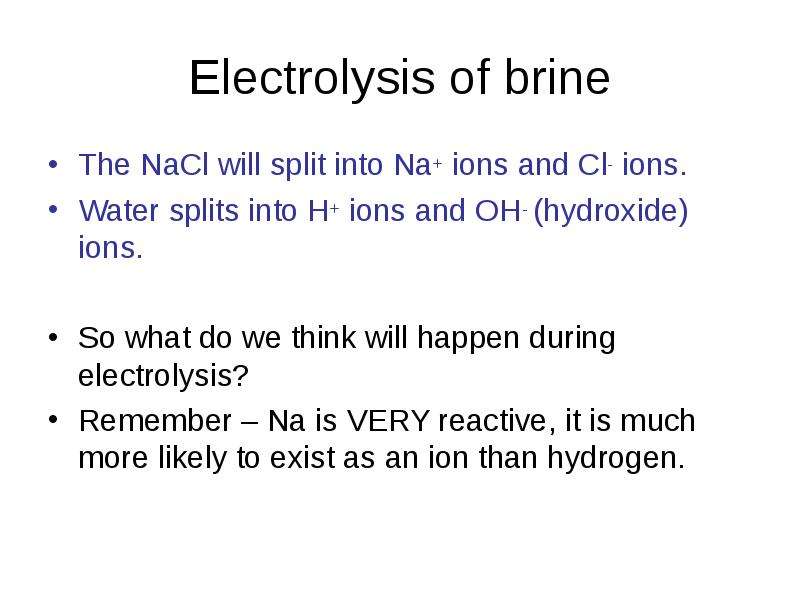

Electrolysis of brine The NaCl will split into Na+ ions and Cl- ions. Water splits into H+ ions and OH- (hydroxide) ions. So what do we think will happen during electrolysis? Remember – Na is VERY reactive, it is much more likely to exist as an ion than hydrogen.

Слайд 7

Описание слайда:

Слайд 8

Описание слайда:

Now let’s see what actually happens

Слайд 9

Описание слайда:

Electrolysis of brine The H+ and Cl- ions are discharged at the electrodes.

Слайд 10

Описание слайда:

Electrolysis of brine Hydrogen comes off at the cathode ( - ) 2H+(aq) + 2e- H2(g) Hydrogen is …… oxidised or reduced?

Слайд 11

Описание слайда:

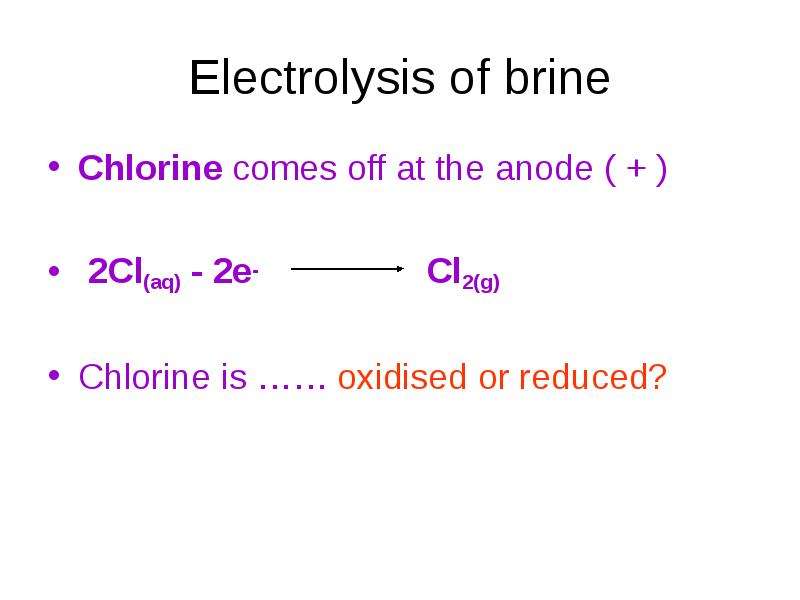

Electrolysis of brine Chlorine comes off at the anode ( + ) 2Cl(aq) - 2e- Cl2(g) Chlorine is …… oxidised or reduced?

Слайд 12

Описание слайда:

Electrolysis of brine The Na+ and OH- ions stay in solution. They join together to form sodium hydroxide. This is a very important alkali

Слайд 13

Описание слайда:

Слайд 14

Описание слайда:

Слайд 15

Описание слайда:

Hydrogen Used to make margarine (helps to make the oils in the margarine spread on your bread) Used as a fuel (already important in space rockets, but may be the fuel of cars after the oil age)
