Слайд 1

Описание слайда:

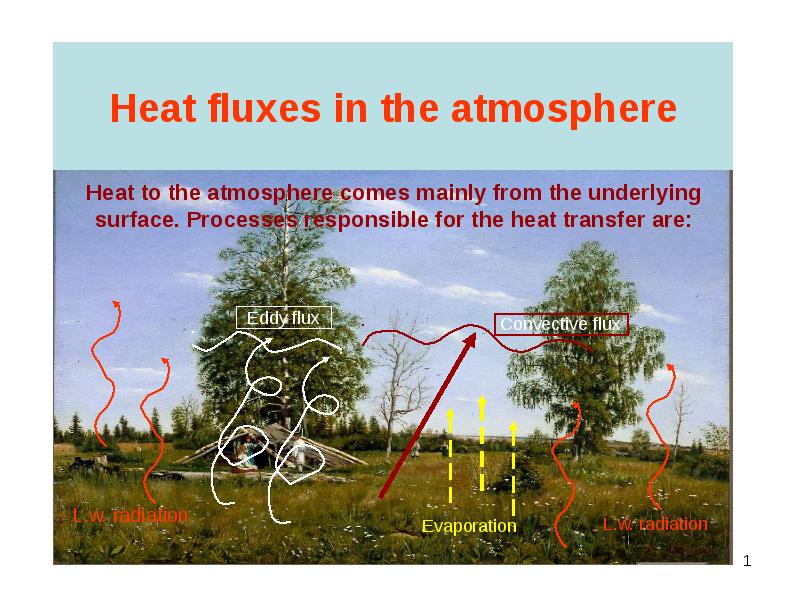

Heat fluxes in the atmosphere Heat to the atmosphere comes mainly from the underlying surface. Processes responsible for the heat transfer are:

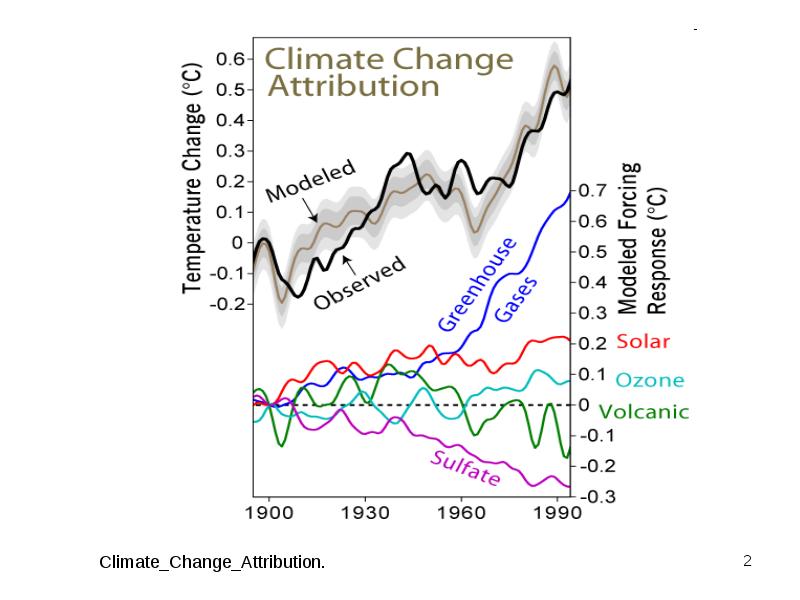

Слайд 2

Описание слайда:

Слайд 3

Описание слайда:

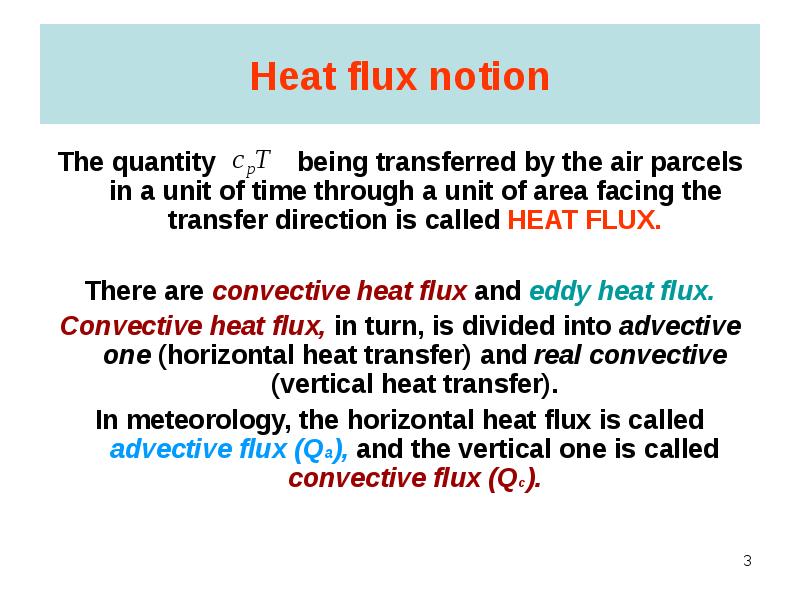

Heat flux notion The quantity being transferred by the air parcels in a unit of time through a unit of area facing the transfer direction is called HEAT FLUX. There are convective heat flux and eddy heat flux. Convective heat flux, in turn, is divided into advective one (horizontal heat transfer) and real convective (vertical heat transfer). In meteorology, the horizontal heat flux is called advective flux (Qa), and the vertical one is called convective flux (Qc).

Слайд 4

Описание слайда:

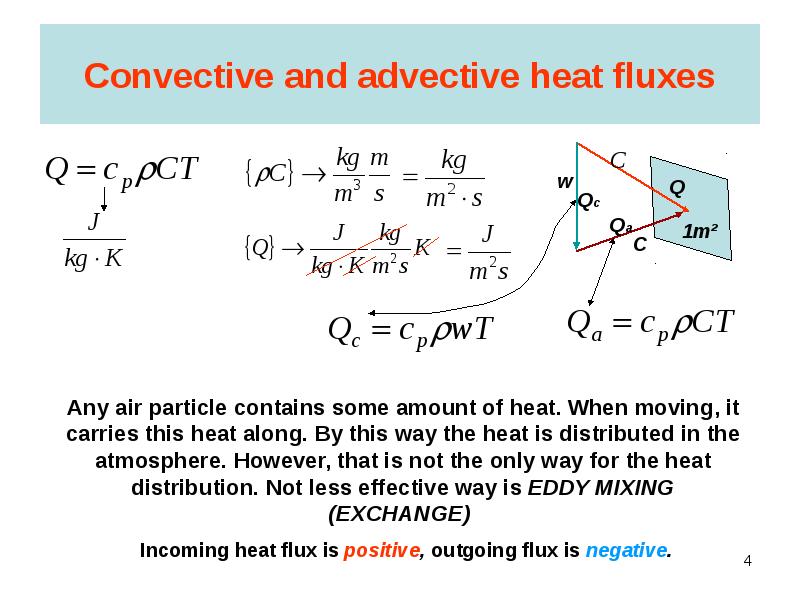

Convective and advective heat fluxes

Слайд 5

Описание слайда:

Eddy heat flux Eddy heat flux is caused by wind velocity pulsation

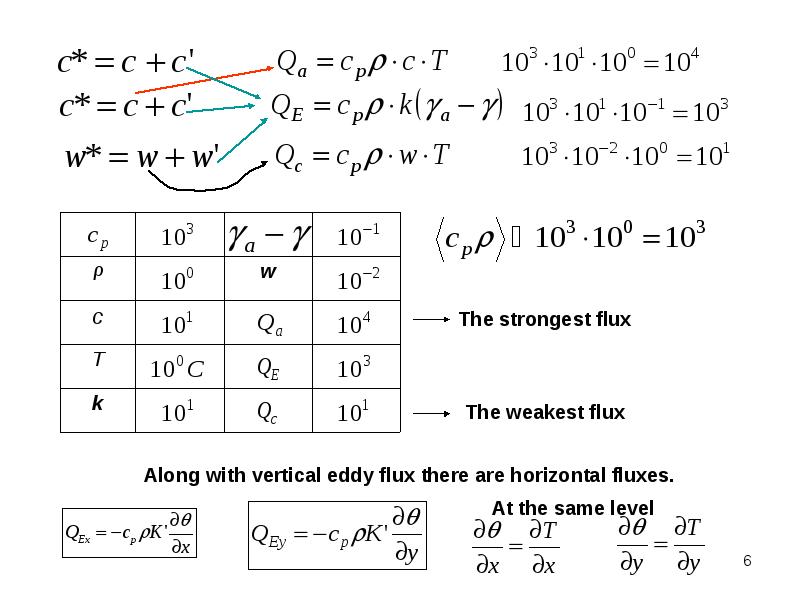

Слайд 6

Описание слайда:

Слайд 7

Описание слайда:

Слайд 8

Описание слайда:

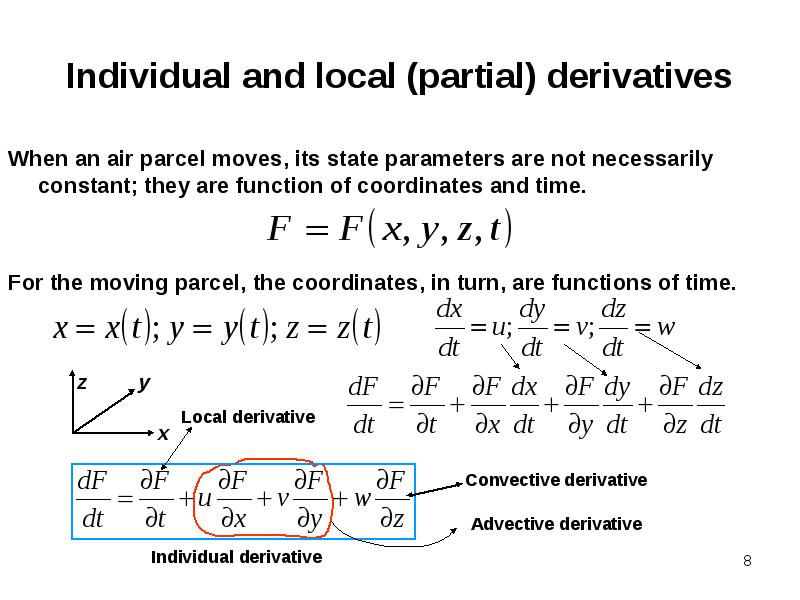

Individual and local (partial) derivatives When an air parcel moves, its state parameters are not necessarily constant; they are function of coordinates and time. For the moving parcel, the coordinates, in turn, are functions of time.

Слайд 9

Описание слайда:

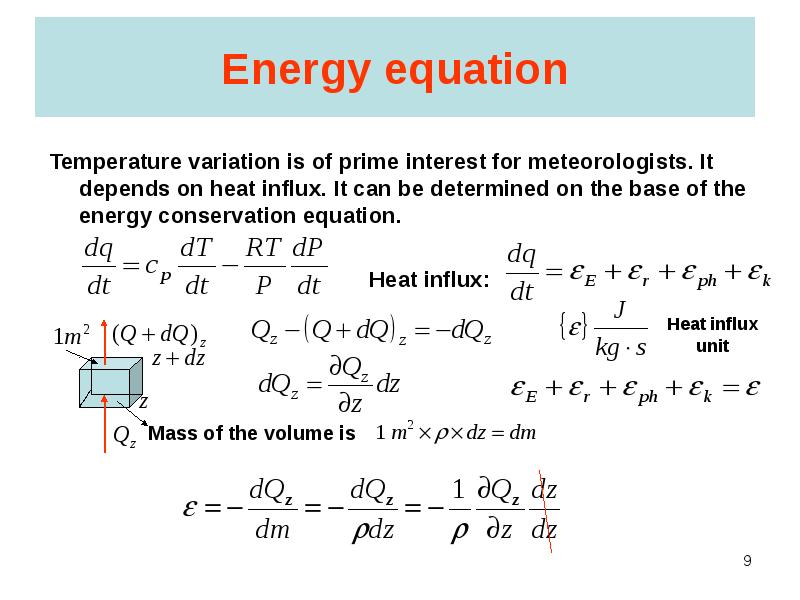

Energy equation Temperature variation is of prime interest for meteorologists. It depends on heat influx. It can be determined on the base of the energy conservation equation. Heat influx:

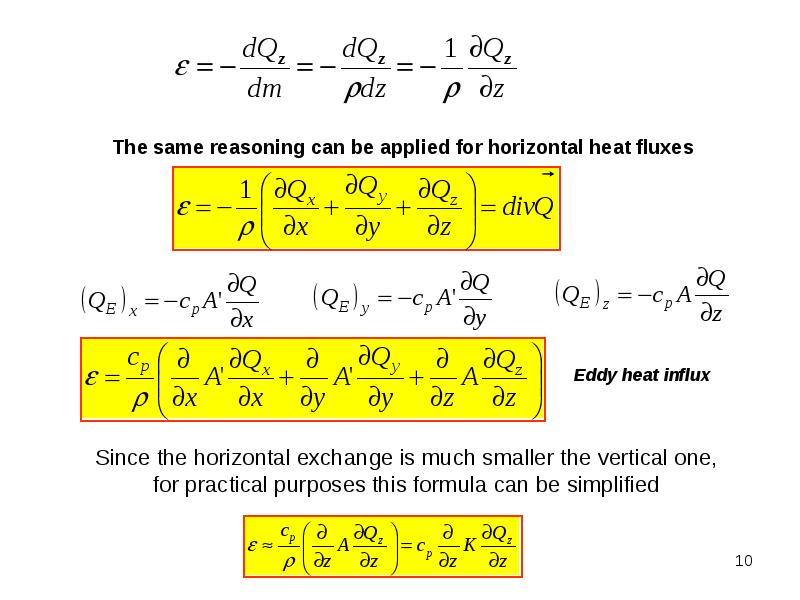

Слайд 10

Описание слайда:

Слайд 11

Описание слайда:

Слайд 12

Описание слайда:

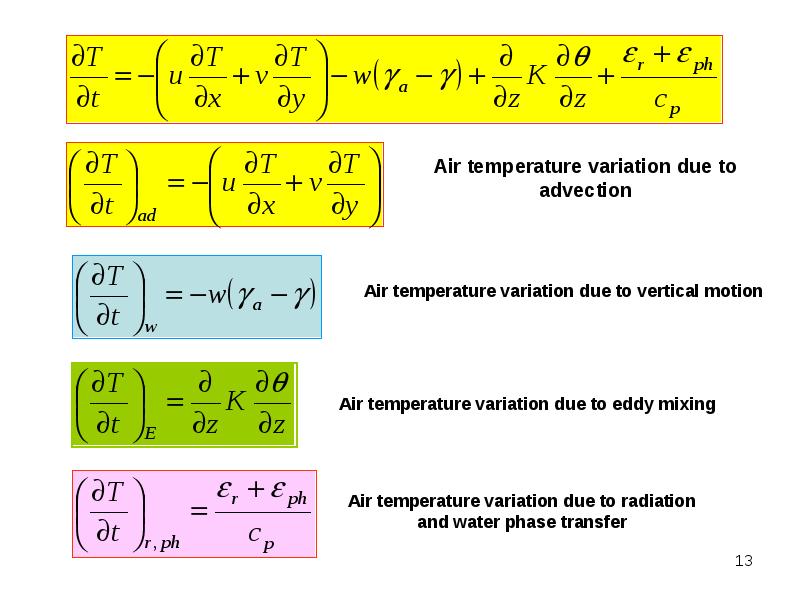

Слайд 13

Описание слайда:

Слайд 14

Описание слайда:

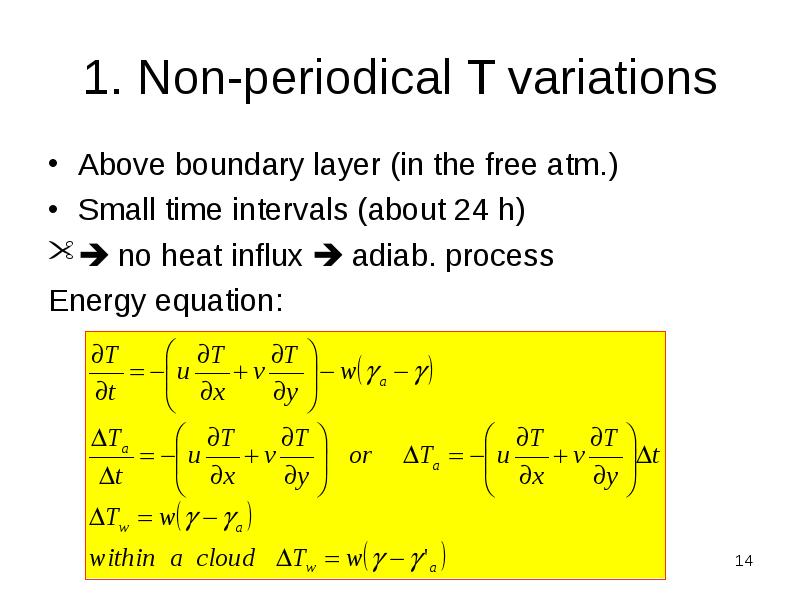

1. Non-periodical T variations Above boundary layer (in the free atm.) Small time intervals (about 24 h)  no heat influx  adiab. process Energy equation:

Слайд 15

Описание слайда:

2. Periodical T variations Within the boundary layer (diurnal T variations) long time intervals  only vertical eddy heat influx Energy equation ( or equation of the conductivity of the atm.):

Слайд 16

Описание слайда:

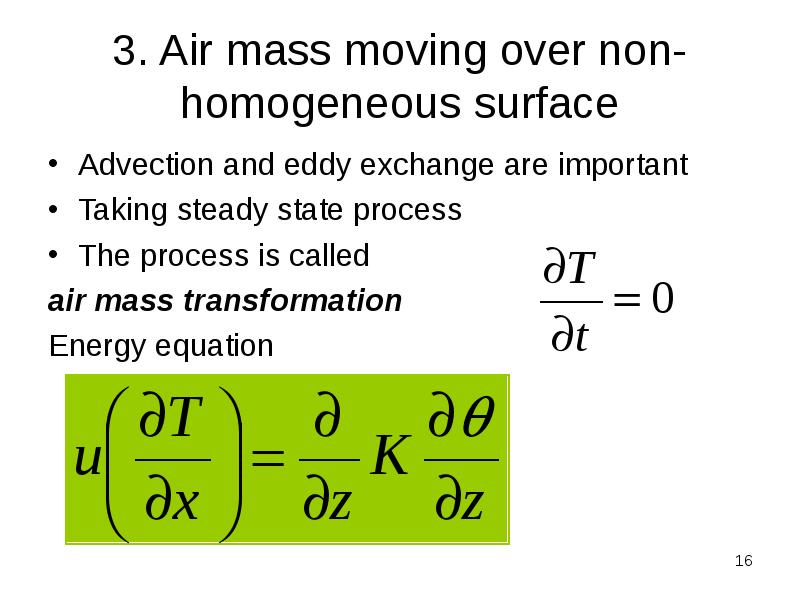

3. Air mass moving over non-homogeneous surface Advection and eddy exchange are important Taking steady state process The process is called air mass transformation Energy equation
