Вы можете ознакомиться и скачать презентацию на тему Propositional logic. Доклад-сообщение содержит 104 слайдов. Презентации для любого класса можно скачать бесплатно. Если материал и наш сайт презентаций Mypresentation Вам понравились – поделитесь им с друзьями с помощью социальных кнопок и добавьте в закладки в своем браузере.

Слайды и текст этой презентации

Слайд 1

Описание слайда:

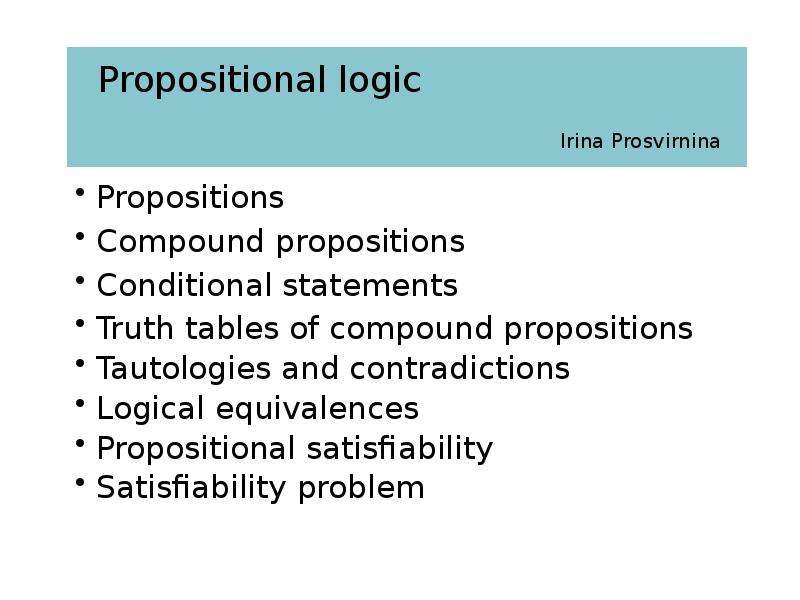

Propositional logic Irina Prosvirnina Propositions Compound propositions Conditional statements Truth tables of compound propositions Tautologies and contradictions Logical equivalences Propositional satisfiability Satisfiability problem

Слайд 2

Описание слайда:

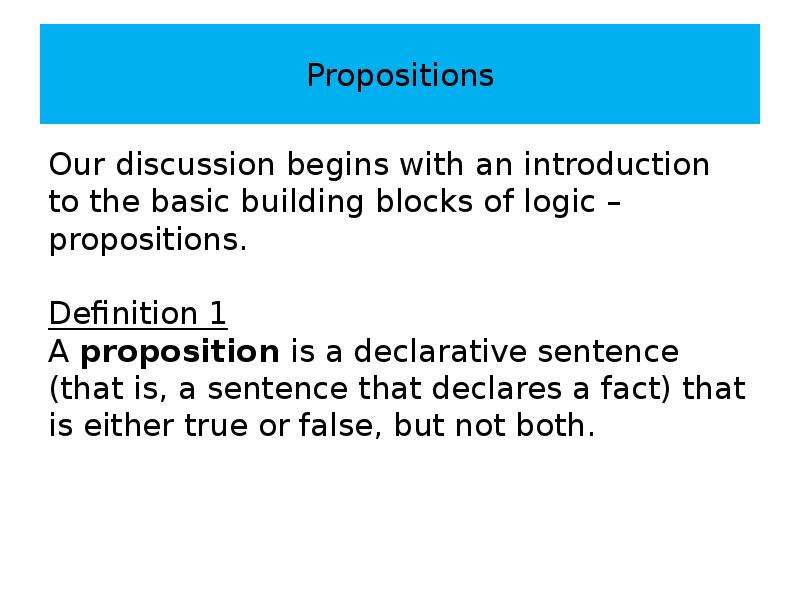

Propositions Our discussion begins with an introduction to the basic building blocks of logic – propositions. Definition 1 A proposition is a declarative sentence (that is, a sentence that declares a fact) that is either true or false, but not both.

Слайд 3

Описание слайда:

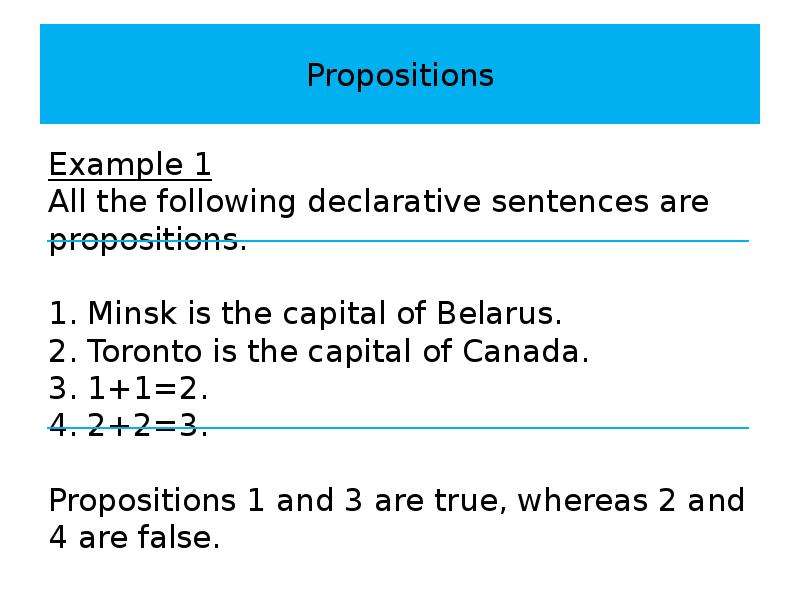

Propositions Example 1 All the following declarative sentences are propositions. 1. Minsk is the capital of Belarus. 2. Toronto is the capital of Canada. 3. 1+1=2. 4. 2+2=3. Propositions 1 and 3 are true, whereas 2 and 4 are false.

Слайд 4

Описание слайда:

Propositions Example 2 Consider the following sentences. 1. What time is it? 2. Read this carefully. 3. . 4. . Sentences 1 and 2 are not propositions because they are not declarative sentences. Sentences 3 and 4 are not propositions because they are neither true nor false. Note that each of sentences 3 and 4 can be turned into a proposition if we assign values to the variables.

Слайд 5

Описание слайда:

Propositions We use letters to denote propositional variables (or statement variables), that is, variables that represent propositions, just as letters are used to denote numerical variables. The conventional letters used for propositional variables are ,... . The truth value of a proposition is true, denoted by , if it is a true proposition, and the truth value of a proposition is false, denoted by , if it is a false proposition.

Слайд 6

Описание слайда:

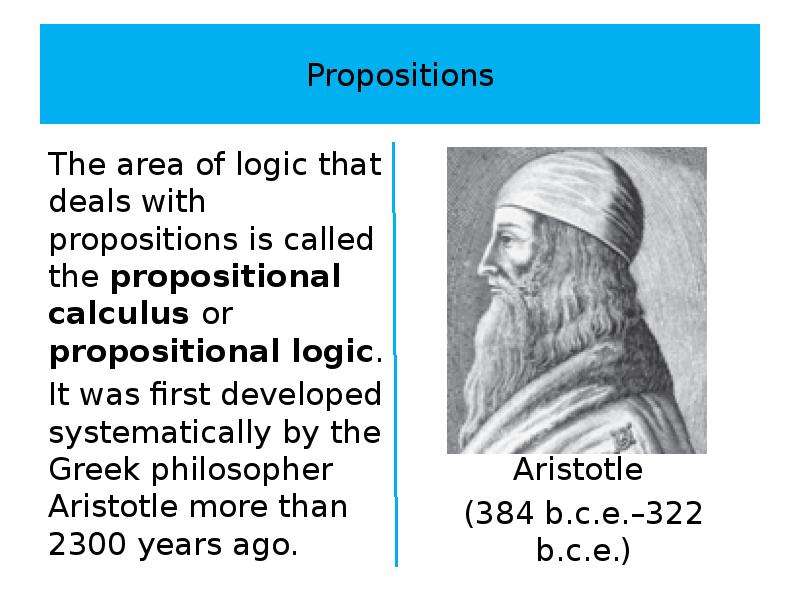

Propositions The area of logic that deals with propositions is called the propositional calculus or propositional logic. It was first developed systematically by the Greek philosopher Aristotle more than 2300 years ago.

Слайд 7

Описание слайда:

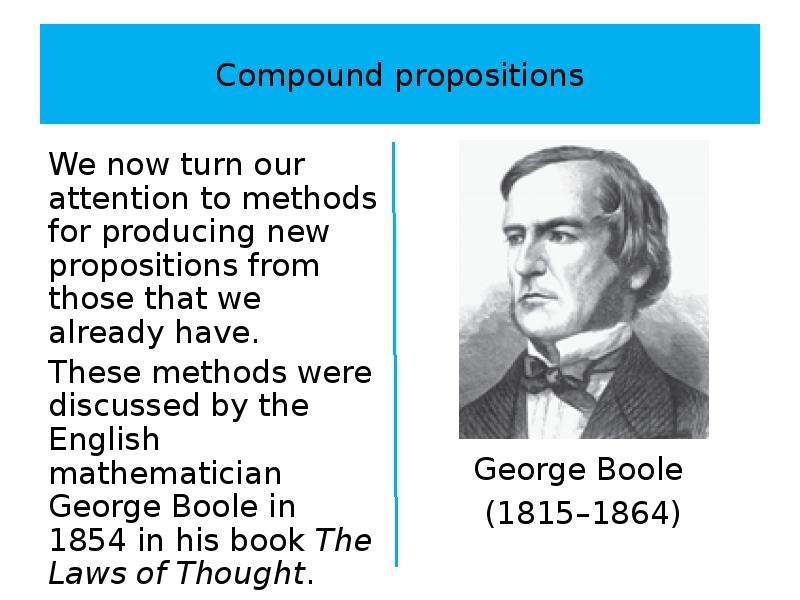

Compound propositions We now turn our attention to methods for producing new propositions from those that we already have. These methods were discussed by the English mathematician George Boole in 1854 in his book The Laws of Thought.

Слайд 8

Описание слайда:

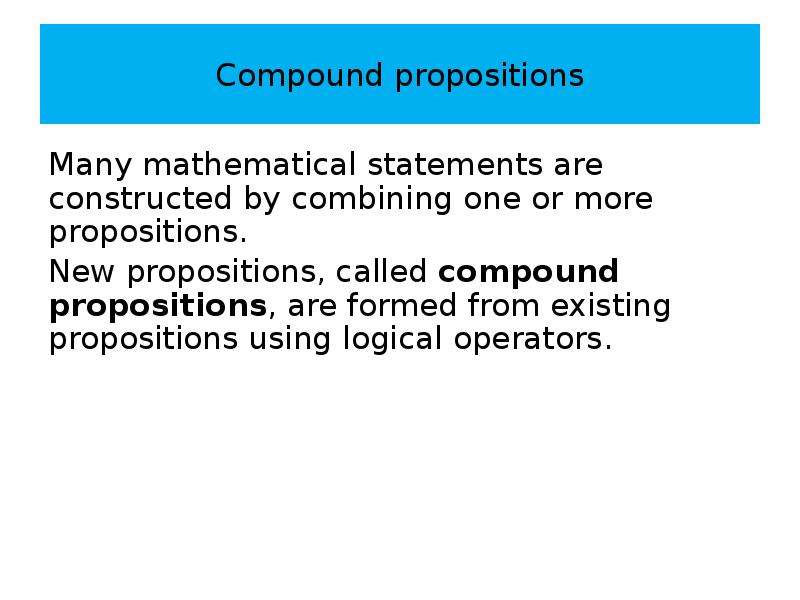

Compound propositions Many mathematical statements are constructed by combining one or more propositions. New propositions, called compound propositions, are formed from existing propositions using logical operators.

Слайд 9

Описание слайда:

The negation of a proposition Definition 2 Let p be a proposition. The negation of p, denoted by p (also denoted by p), is the statement “It is not the case that p.” The proposition p is read “not p.” The truth value of the negation of p, p, is the opposite of the truth value of p.

Слайд 10

Описание слайда:

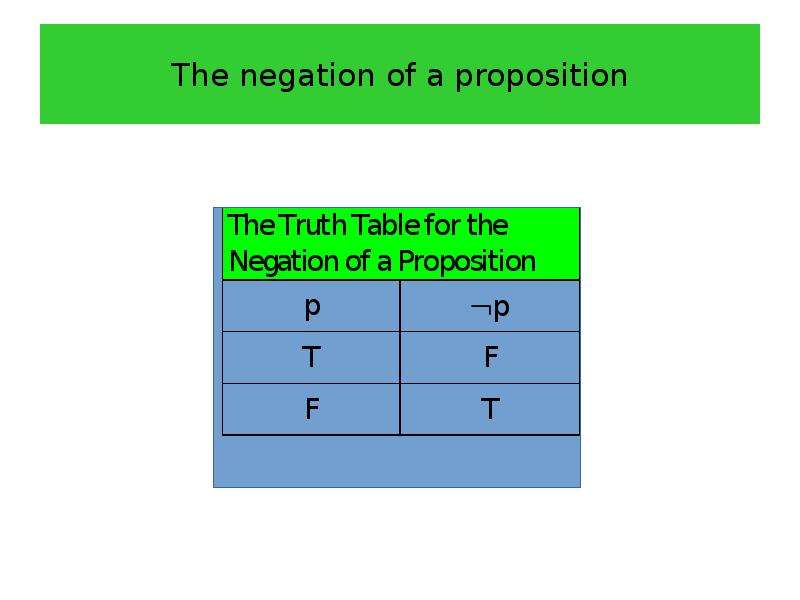

The negation of a proposition

Слайд 11

Описание слайда:

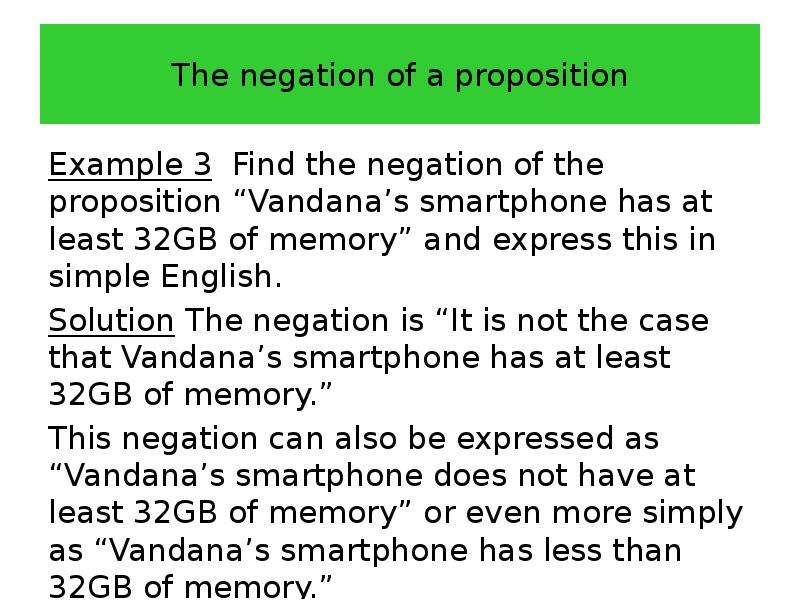

The negation of a proposition Example 3 Find the negation of the proposition “Vandana’s smartphone has at least 32GB of memory” and express this in simple English. Solution The negation is “It is not the case that Vandana’s smartphone has at least 32GB of memory.” This negation can also be expressed as “Vandana’s smartphone does not have at least 32GB of memory” or even more simply as “Vandana’s smartphone has less than 32GB of memory.”

Слайд 12

Описание слайда:

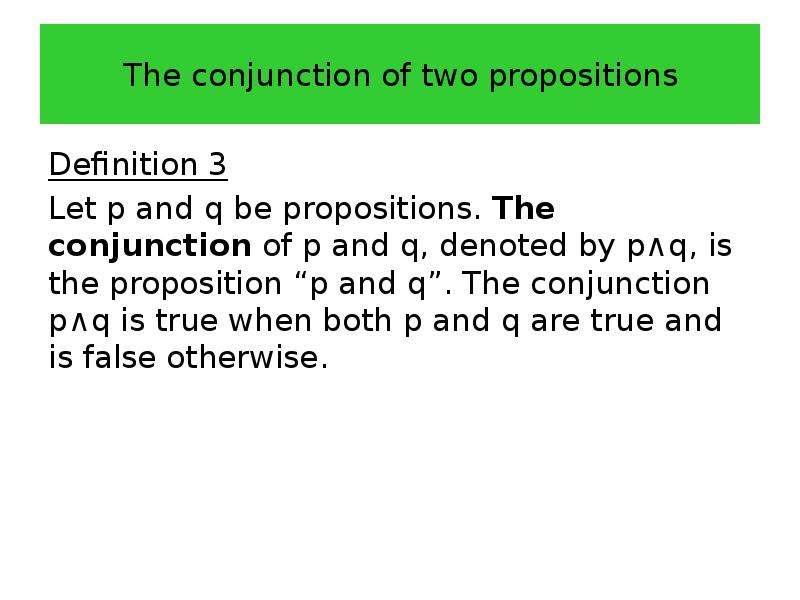

The conjunction of two propositions Definition 3 Let p and q be propositions. The conjunction of p and q, denoted by p∧q, is the proposition “p and q”. The conjunction p∧q is true when both p and q are true and is false otherwise.

Слайд 13

Описание слайда:

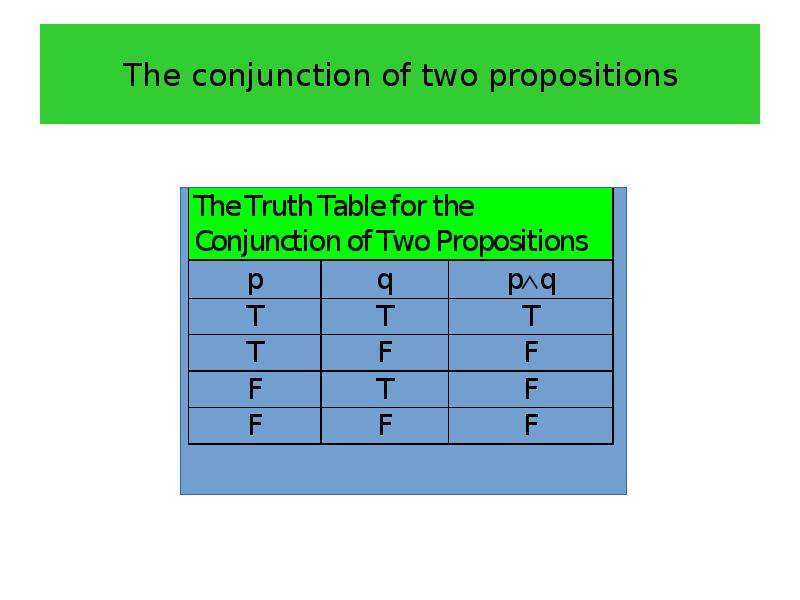

The conjunction of two propositions

Слайд 14

Описание слайда:

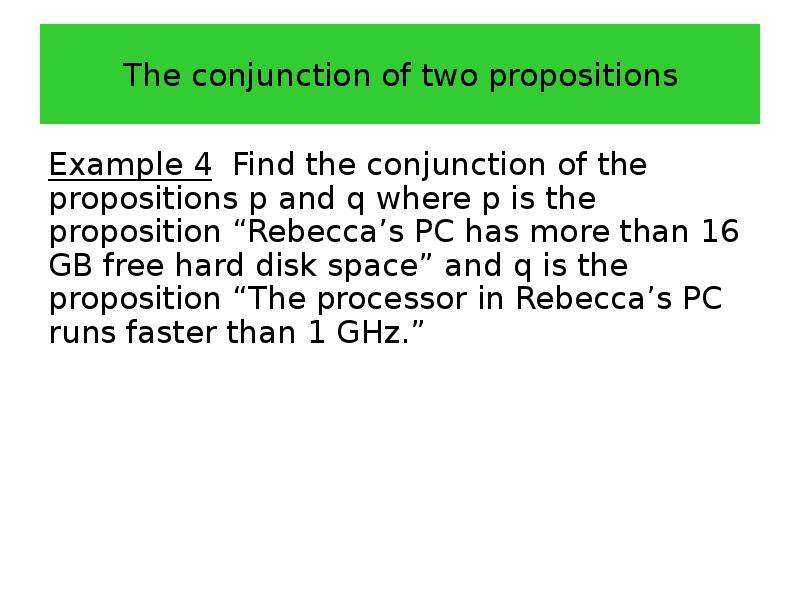

The conjunction of two propositions Example 4 Find the conjunction of the propositions p and q where p is the proposition “Rebecca’s PC has more than 16 GB free hard disk space” and q is the proposition “The processor in Rebecca’s PC runs faster than 1 GHz.”

Слайд 15

Описание слайда:

The conjunction of two propositions Solution The conjunction of these propositions, p∧q, is the proposition “Rebecca’s PC has more than 16 GB free hard disk space, and the processor in Rebecca’s PC runs faster than 1 GHz.” This conjunction can be expressed more simply as “Rebecca’s PC has more than 16 GB free hard disk space, and its processor runs faster than 1 GHz.” For this conjunction to be true, both conditions given must be true. It is false, when one or both of these conditions are false.

Слайд 16

Описание слайда:

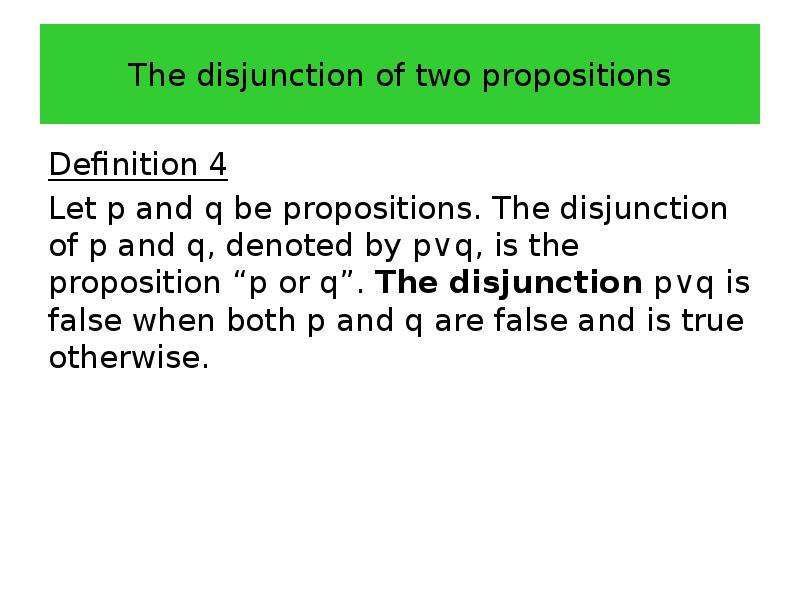

The disjunction of two propositions Definition 4 Let p and q be propositions. The disjunction of p and q, denoted by p∨q, is the proposition “p or q”. The disjunction p∨q is false when both p and q are false and is true otherwise.

Слайд 17

Описание слайда:

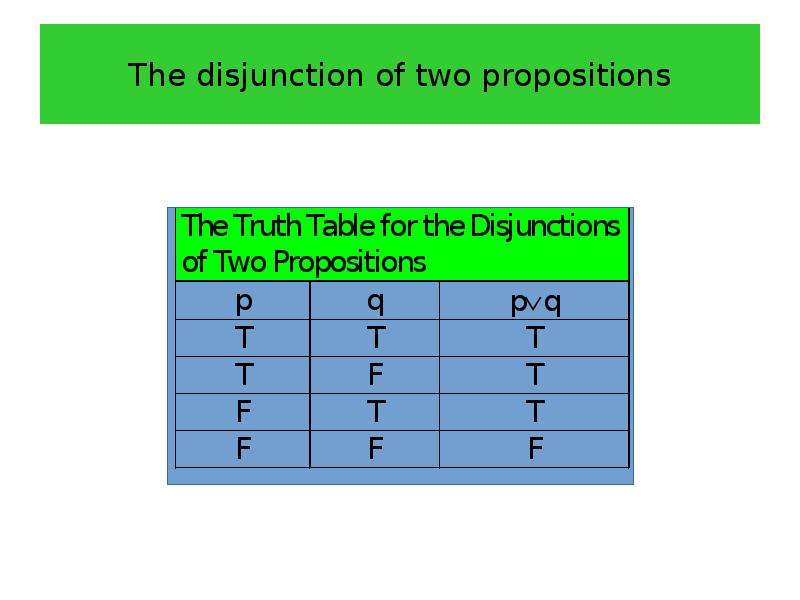

The disjunction of two propositions

Слайд 18

Описание слайда:

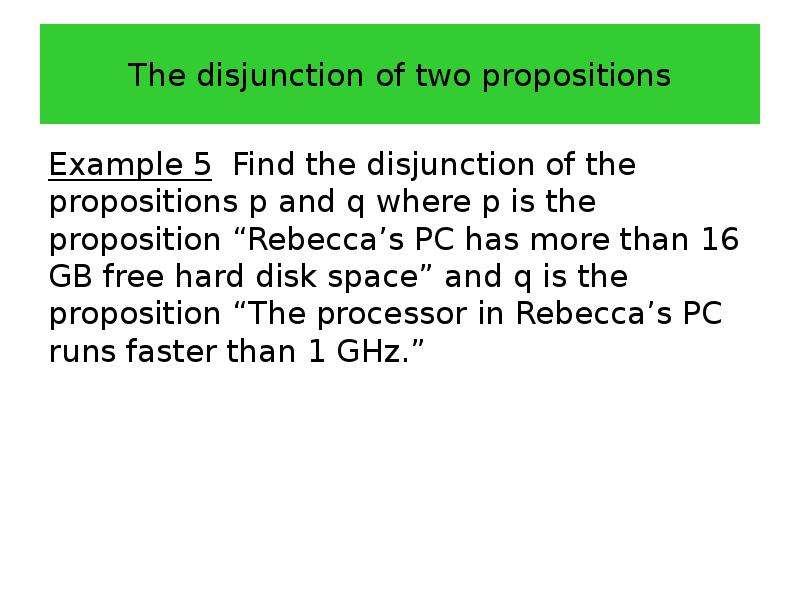

The disjunction of two propositions Example 5 Find the disjunction of the propositions p and q where p is the proposition “Rebecca’s PC has more than 16 GB free hard disk space” and q is the proposition “The processor in Rebecca’s PC runs faster than 1 GHz.”

Слайд 19

Описание слайда:

The disjunction of two propositions Solution The disjunction of p and q, p∨q, is the proposition “Rebecca’s PC has at least 16 GB free hard disk space, or the processor in Rebecca’s PC runs faster than 1 GHz.” This proposition is true when Rebecca’s PC has at least 16 GB free hard disk space, when the PC’s processor runs faster than 1 GHz, and when both conditions are true. It is false when both of these conditions are false, that is, when Rebecca’s PC has less than 16 GB free hard disk space and the processor in her PC runs at 1 GHz or slower.

Слайд 20

Описание слайда:

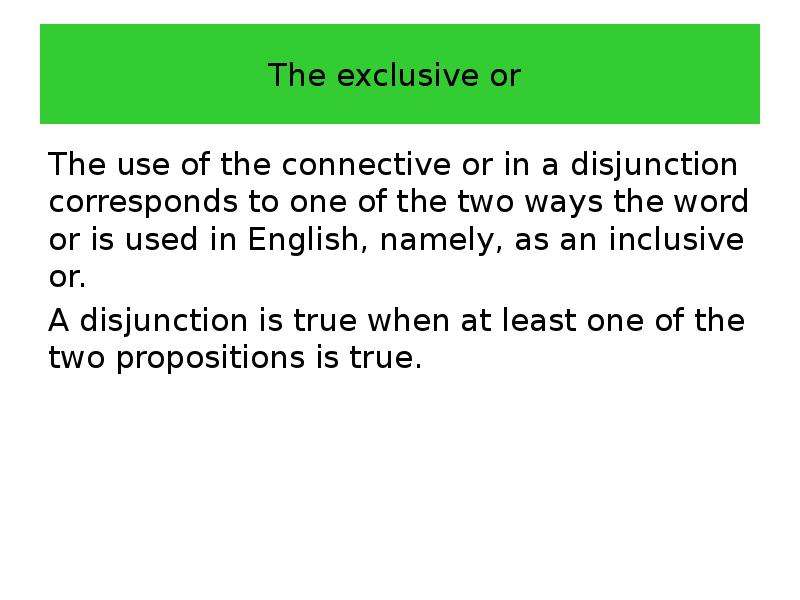

The exclusive or The use of the connective or in a disjunction corresponds to one of the two ways the word or is used in English, namely, as an inclusive or. A disjunction is true when at least one of the two propositions is true.

Слайд 21

Описание слайда:

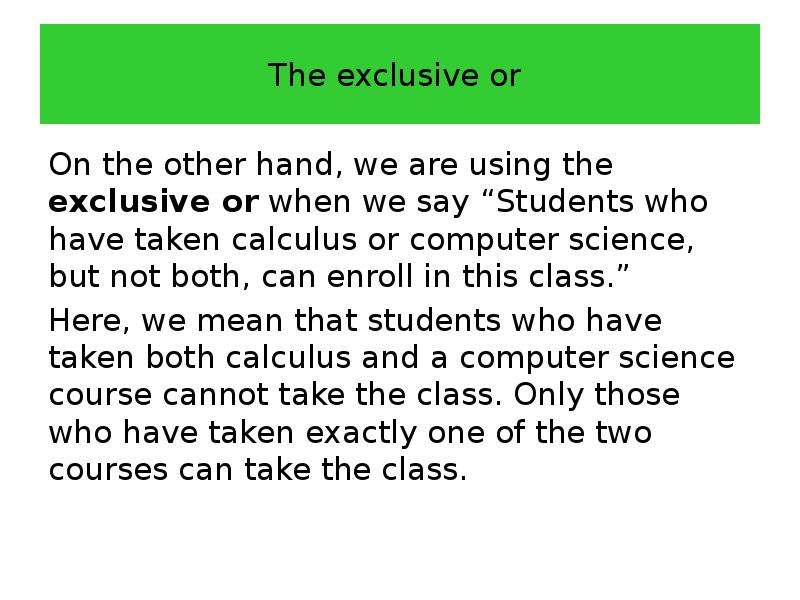

The exclusive or On the other hand, we are using the exclusive or when we say “Students who have taken calculus or computer science, but not both, can enroll in this class.” Here, we mean that students who have taken both calculus and a computer science course cannot take the class. Only those who have taken exactly one of the two courses can take the class.

Слайд 22

Описание слайда:

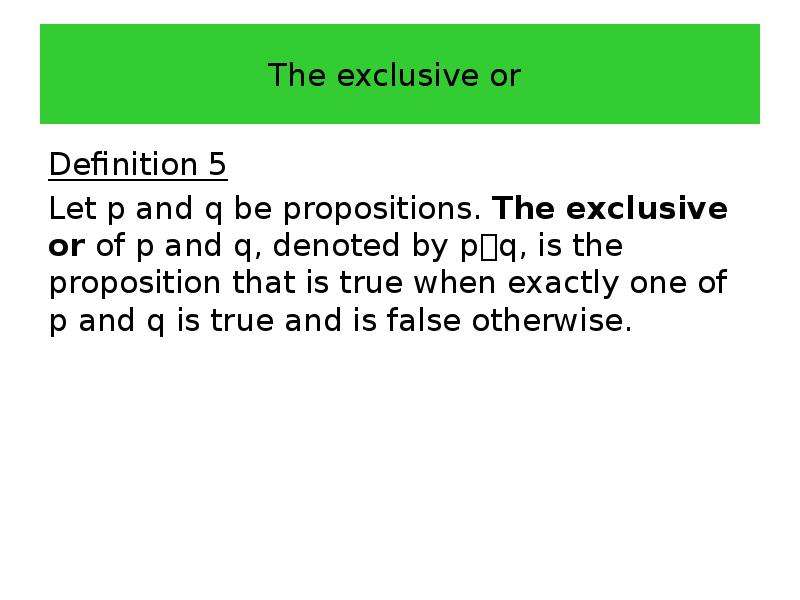

The exclusive or Definition 5 Let p and q be propositions. The exclusive or of p and q, denoted by pq, is the proposition that is true when exactly one of p and q is true and is false otherwise.

Слайд 23

Описание слайда:

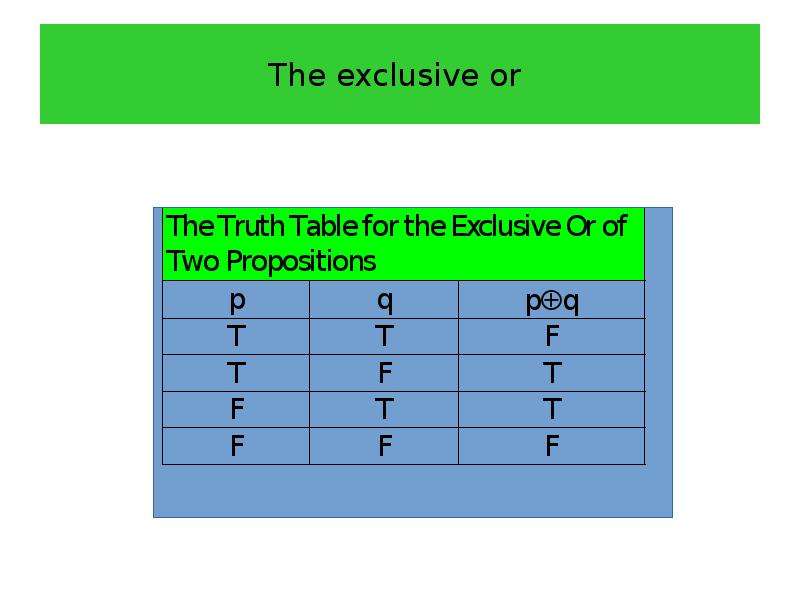

The exclusive or

Слайд 24

Описание слайда:

Conditional statements Definition 6 Let and be propositions. The conditional statement is the proposition “if , then ”. The conditional statement is false when is true and is false, and true otherwise. In the conditional statement , is called the hypothesis (or antecedent or premise) and is called the conclusion (or consequence).

Слайд 25

Описание слайда:

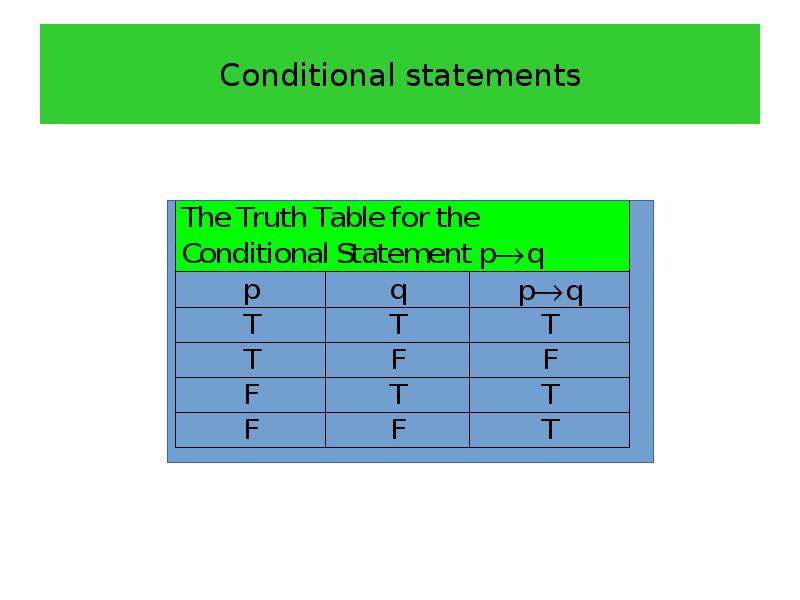

Conditional statements

Слайд 26

Описание слайда:

Conditional statements The statement is called a conditional statement because asserts that is true on the condition that holds. A conditional statement is also called an implication.

Слайд 27

Описание слайда:

Conditional statements Because conditional statements play such an essential role in mathematical reasoning, a variety of terminology is used to express . You will encounter most if not all of the following ways to express this conditional statement: “if , then ” “ implies ” “ is sufficient for ” “a sufficient condition for is ” “ is necessary for ” “a necessary condition for is ” “ follows from ” “ unless ”

Слайд 28

Описание слайда:

Conditional statements Example 6 Let be the statement “Maria learns discrete mathematics” and the statement “Maria will find a good job.” Express the statement as a statement in English. Solution From the definition of conditional statements, we see that represents the statement “If Maria learns discrete mathematics, then she will find a good job.” There are many other ways to express this conditional statement in English. Among the most natural of these are: “Maria will find a good job when she learns discrete mathematics.” “For Maria to get a good job, it is sufficient for her to learn discrete mathematics.”

Слайд 29

Описание слайда:

Converse, contrapositive and inverse We can form some new conditional statements starting with a conditional statement . In particular, there are three related conditional statements that occur so often that they have special names. The proposition is called the converse of . The contrapositive of is the proposition . The proposition is called the inverse of . We will see that of these three conditional statements formed from , only the contrapositive always has the same truth value as .

Слайд 30

Описание слайда:

Converse, contrapositive and inverse Example 7 What are the contrapositive, the converse, and the inverse of the conditional statement “The home team wins whenever it is raining?” Solution Because “ whenever ” is one of the ways to express the conditional statement , the original statement can be rewritten as “If it is raining, then the home team wins.” Consequently, the contrapositive of this conditional statement is “If the home team does not win, then it is not raining.” The converse is “If the home team wins, then it is raining.” The inverse is “If it is not raining, then the home team does not win.”

Слайд 31

Описание слайда:

Biconditionals We now introduce another way to combine propositions that expresses that two propositions have the same truth value. Definition 7 Let and be propositions. The biconditional statement is the proposition “ if and only if .” The biconditional statement is true when and have the same truth values, and is false otherwise. Biconditional statements are also called bi-implications.

Слайд 32

Описание слайда:

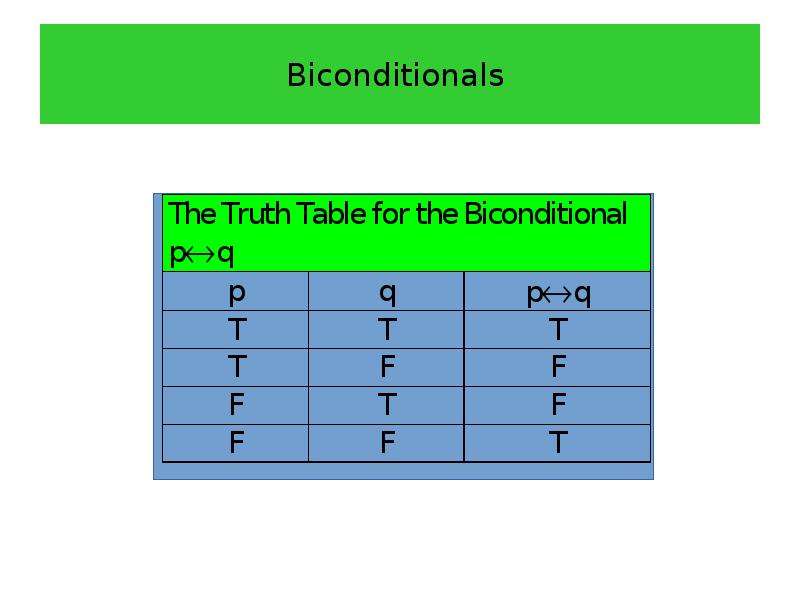

Biconditionals

Слайд 33

Описание слайда:

Biconditionals Note that the statement pq is true when both the conditional statements pq and qp are true and is false otherwise. That is why we use the words “if and only if” to express this logical connective and why it is symbolically written by combining the symbols and . There are some other common ways to express pq: “p is necessary and sufficient for q” “if p then q, and conversely” “p iff q” (The last way of expressing the biconditional statement pq uses the abbreviation “iff” for “if and only if”.)

Слайд 34

Описание слайда:

Biconditionals Example 8 Let be the statement “You can take the flight,” and let be the statement “You buy a ticket.” Then is the statement “You can take the flight if and only if you buy a ticket.” This statement is true if and are either both true or both false, that is, if you buy a ticket and can take the flight or if you do not buy a ticket and you cannot take the flight. It is false when p and q have opposite truth values, that is, when you do not buy a ticket, but you can take the flight (such as when you get a free trip) and when you buy a ticket but you cannot take the flight (such as when the airline bumps you).

Слайд 35

Описание слайда:

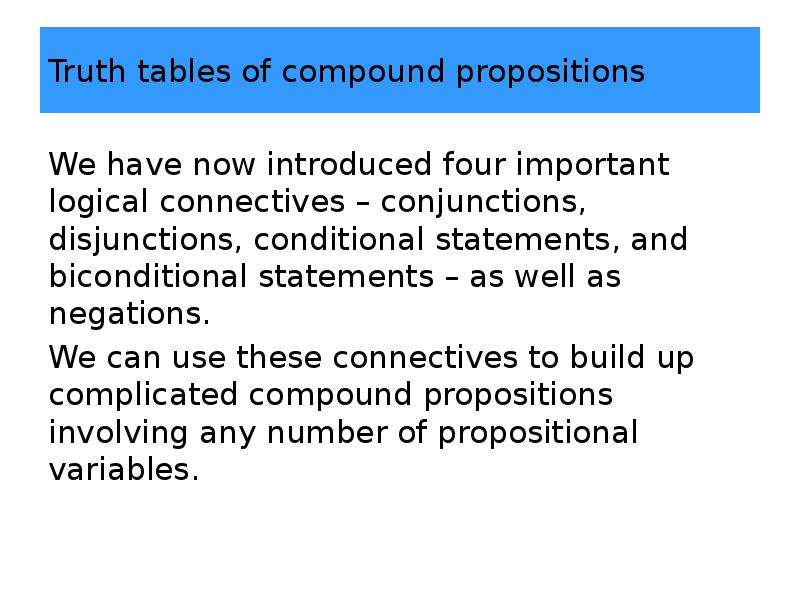

Truth tables of compound propositions We have now introduced four important logical connectives – conjunctions, disjunctions, conditional statements, and biconditional statements – as well as negations. We can use these connectives to build up complicated compound propositions involving any number of propositional variables.

Слайд 36

Описание слайда:

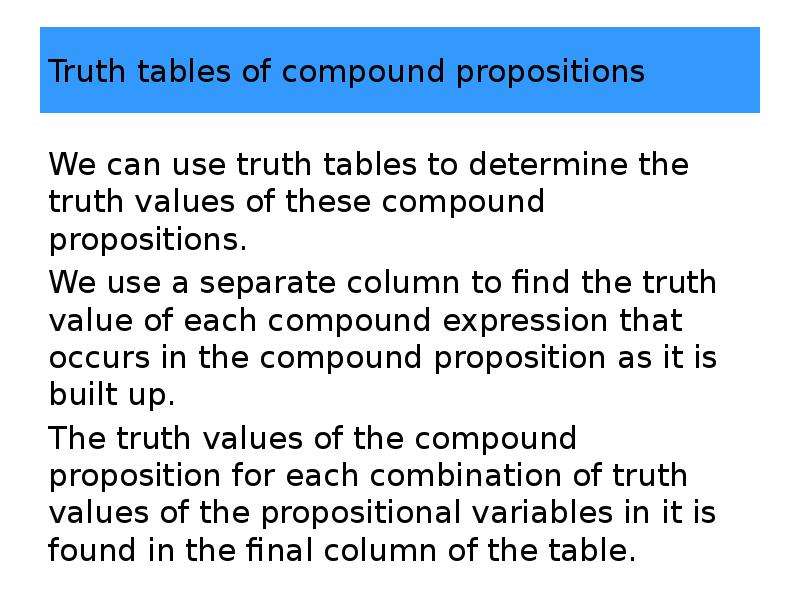

Truth tables of compound propositions We can use truth tables to determine the truth values of these compound propositions. We use a separate column to find the truth value of each compound expression that occurs in the compound proposition as it is built up. The truth values of the compound proposition for each combination of truth values of the propositional variables in it is found in the final column of the table.

Слайд 37

Описание слайда:

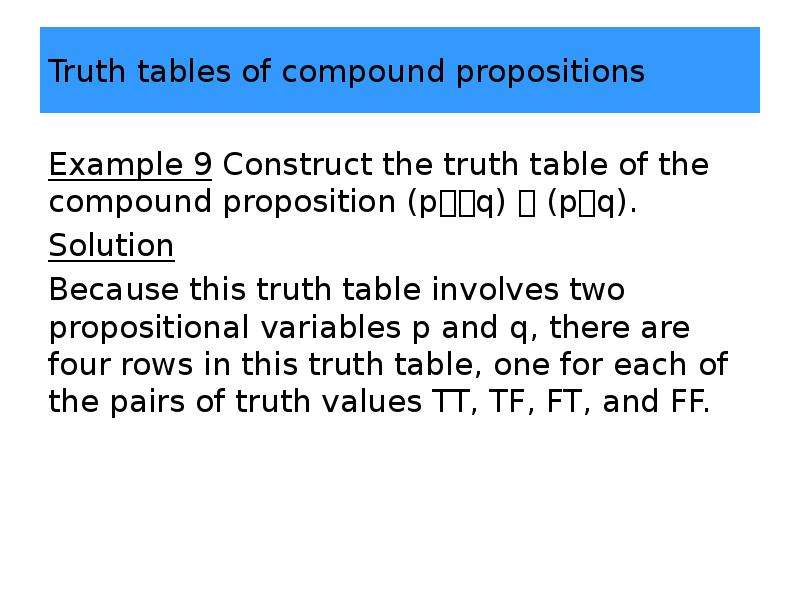

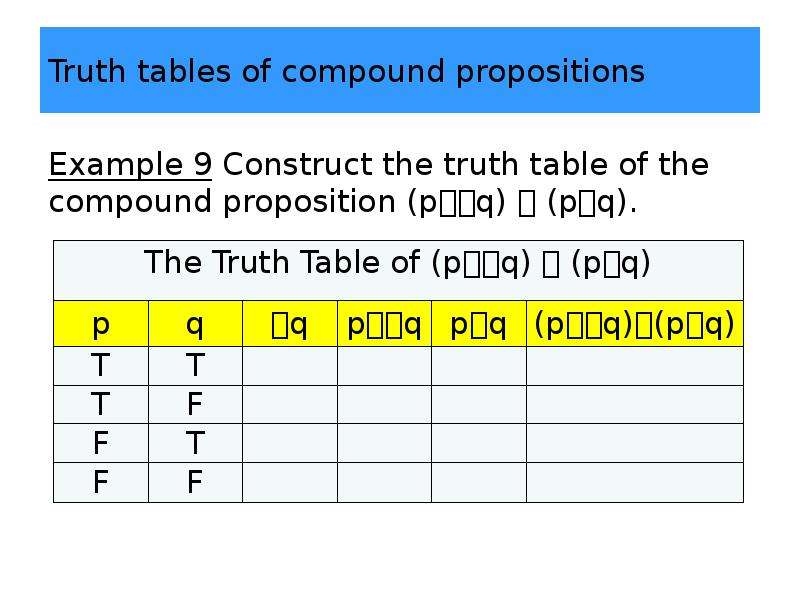

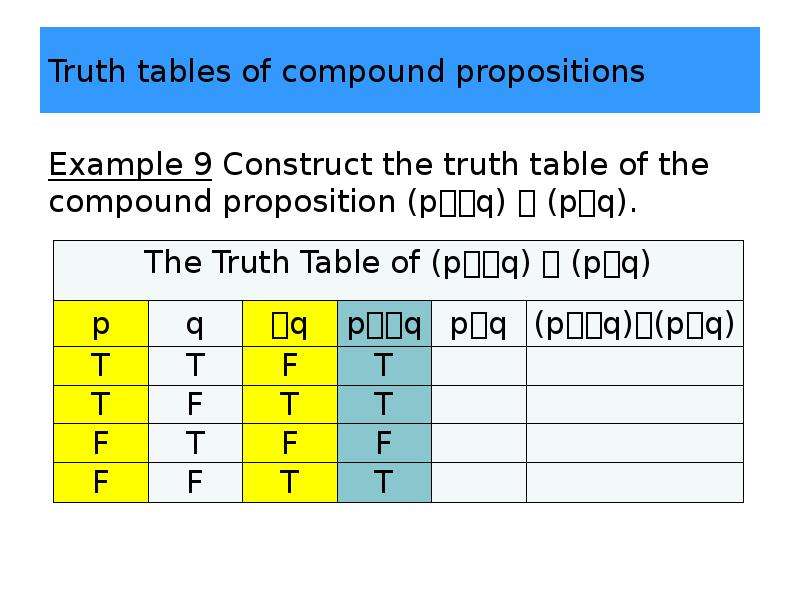

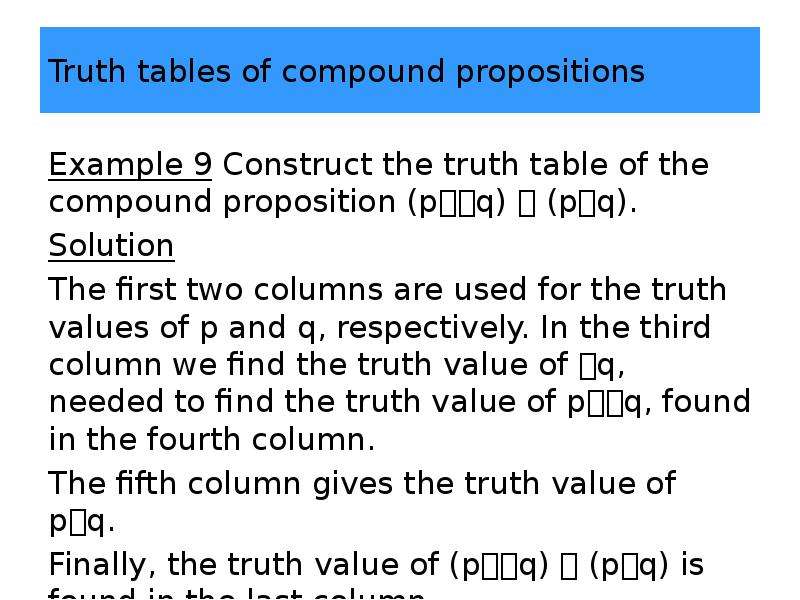

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq). Solution Because this truth table involves two propositional variables p and q, there are four rows in this truth table, one for each of the pairs of truth values TT, TF, FT, and FF.

Слайд 38

Описание слайда:

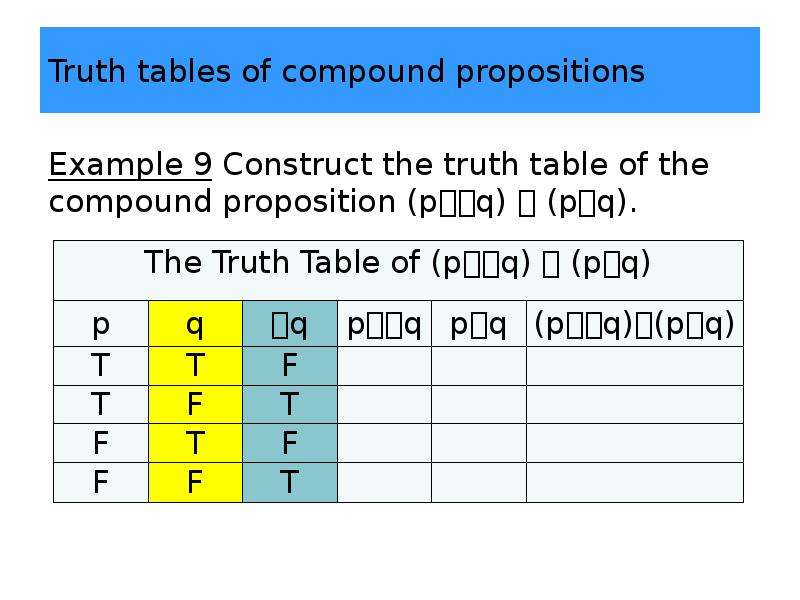

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq). Solution The first two columns are used for the truth values of p and q, respectively. In the third column we find the truth value of q, needed to find the truth value of pq, found in the fourth column. The fifth column gives the truth value of pq. Finally, the truth value of (pq)  (pq) is found in the last column.

Слайд 39

Описание слайда:

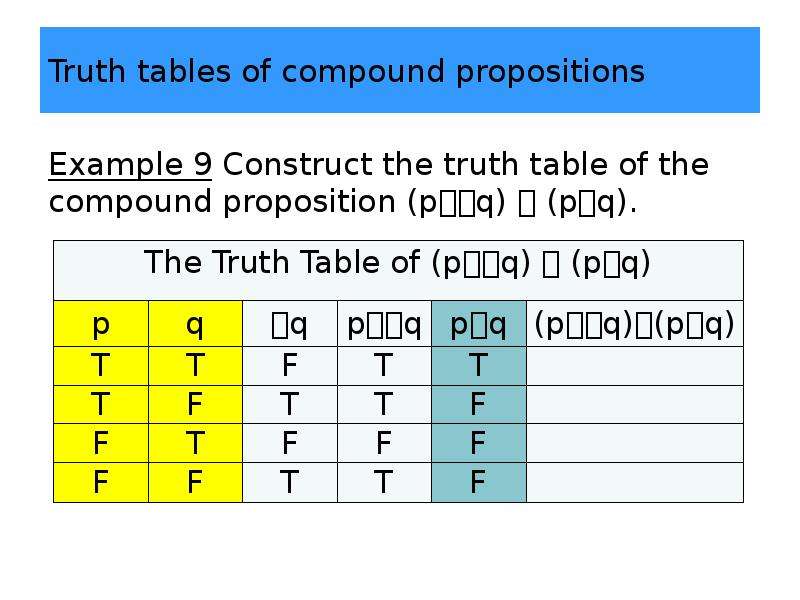

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq).

Слайд 40

Описание слайда:

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq).

Слайд 41

Описание слайда:

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq).

Слайд 42

Описание слайда:

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq).

Слайд 43

Описание слайда:

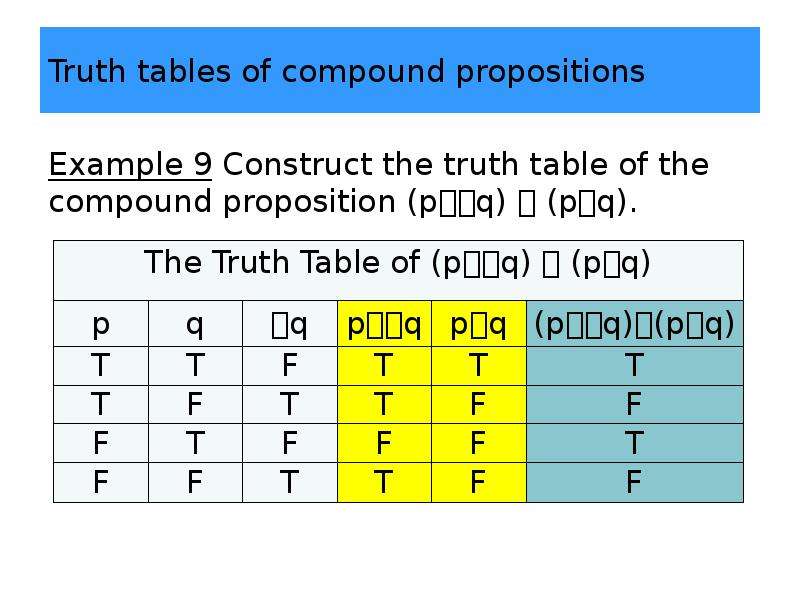

Truth tables of compound propositions Example 9 Construct the truth table of the compound proposition (pq)  (pq).

Слайд 44

Описание слайда:

Precedence of logical operators We can construct compound propositions using the negation operator and the logical operators defined so far. We will generally use parentheses to specify the order in which logical operators in a compound proposition are to be applied. For instance, ∨∧ is the conjunction of ∨ and .

Слайд 45

Описание слайда:

Precedence of logical operators This table displays the precedence levels of the logical operators, , ∧, ∨, , and .

Слайд 46

Описание слайда:

Precedence of logical operators To reduce the number of parentheses, we specify that the negation operator is applied before all other logical operators. This means that p∧q is the conjunction of p and q, namely, (p)∧q, not the negation of the conjunction of p and q, namely (p∧q).

Слайд 47

Описание слайда:

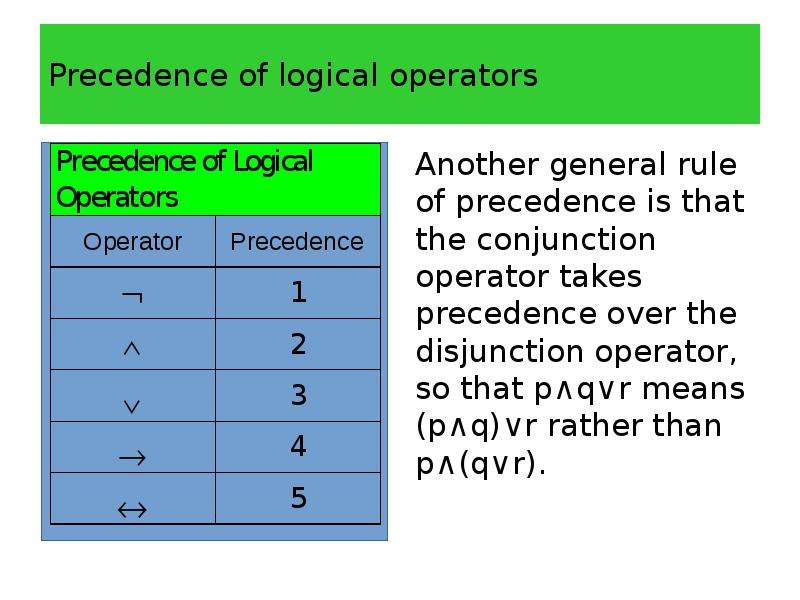

Precedence of logical operators Another general rule of precedence is that the conjunction operator takes precedence over the disjunction operator, so that p∧q∨r means (p∧q)∨r rather than p∧(q∨r).

Слайд 48

Описание слайда:

Precedence of logical operators Finally, it is an accepted rule that the conditional and biconditional operators and have lower precedence than the conjunction and disjunction operators, ∧ and ∨. Consequently, p∨qr is the same as (p∨q)r. The conditional operator has precedence over the biconditional operator.

Слайд 49

Описание слайда:

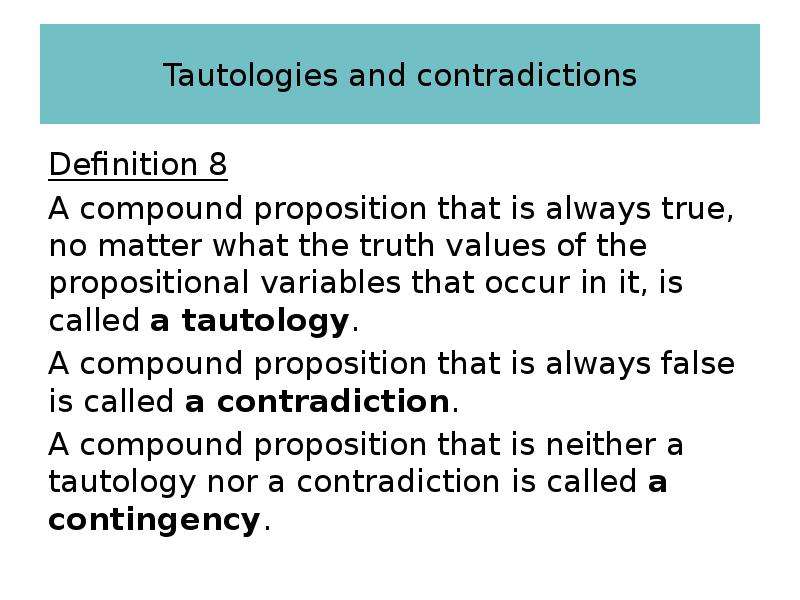

Tautologies and contradictions Definition 8 A compound proposition that is always true, no matter what the truth values of the propositional variables that occur in it, is called a tautology. A compound proposition that is always false is called a contradiction. A compound proposition that is neither a tautology nor a contradiction is called a contingency.

Слайд 50

Описание слайда:

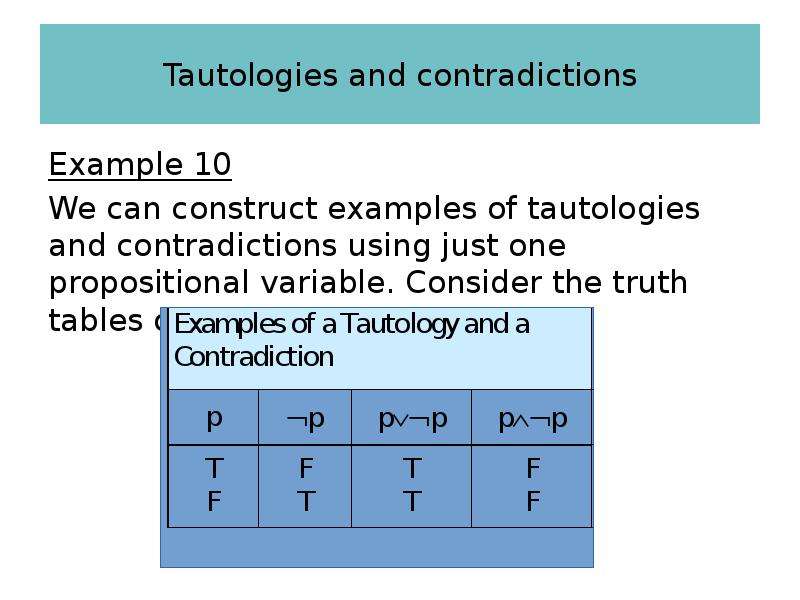

Tautologies and contradictions Example 10 We can construct examples of tautologies and contradictions using just one propositional variable. Consider the truth tables of pp and pp.

Слайд 51

Описание слайда:

Tautologies and contradictions Example 10 Because p∨p is always true, it is a tautology. Because p∧p is always false, it is a contradiction.

Слайд 52

Описание слайда:

Logical equivalences Definition 9 The compound propositions p and q are called logically equivalent if pq is a tautology. The notation pq denotes that p and q are logically equivalent. Remark: The symbol is not a logical connective, and pq is not a compound proposition but rather is the statement that pq is a tautology. The symbol is sometimes used instead of to denote logical equivalence.

Слайд 53

Описание слайда:

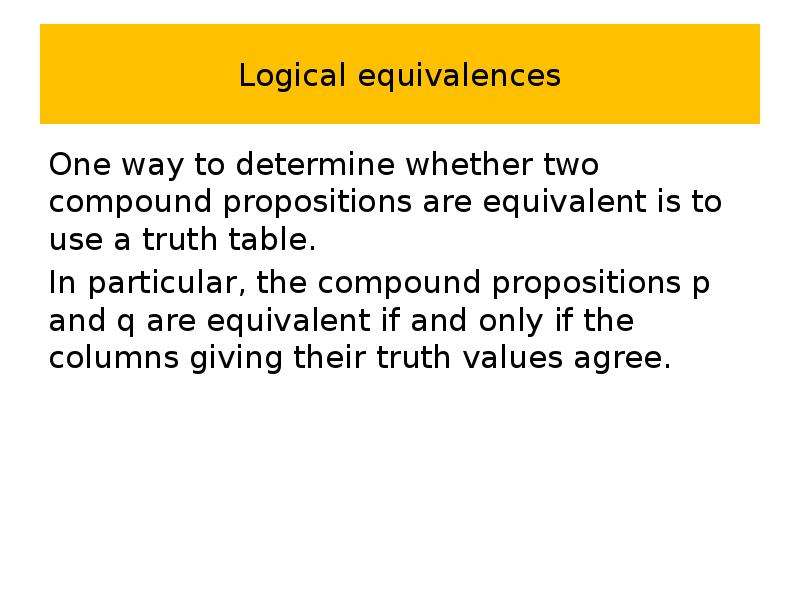

Logical equivalences One way to determine whether two compound propositions are equivalent is to use a truth table. In particular, the compound propositions p and q are equivalent if and only if the columns giving their truth values agree.

Слайд 54

Описание слайда:

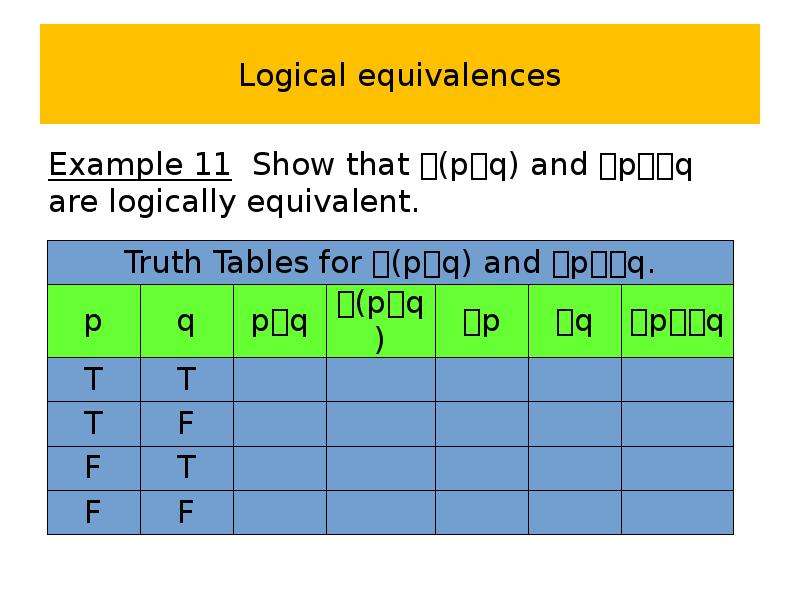

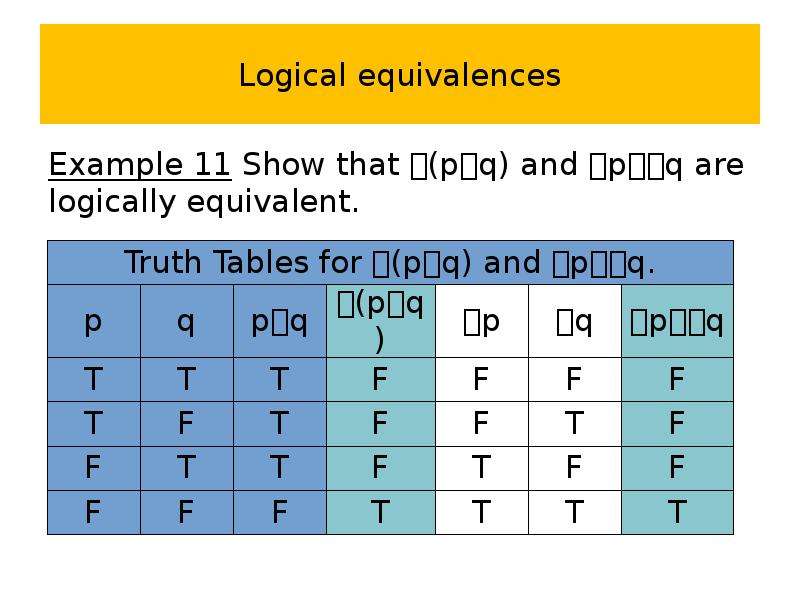

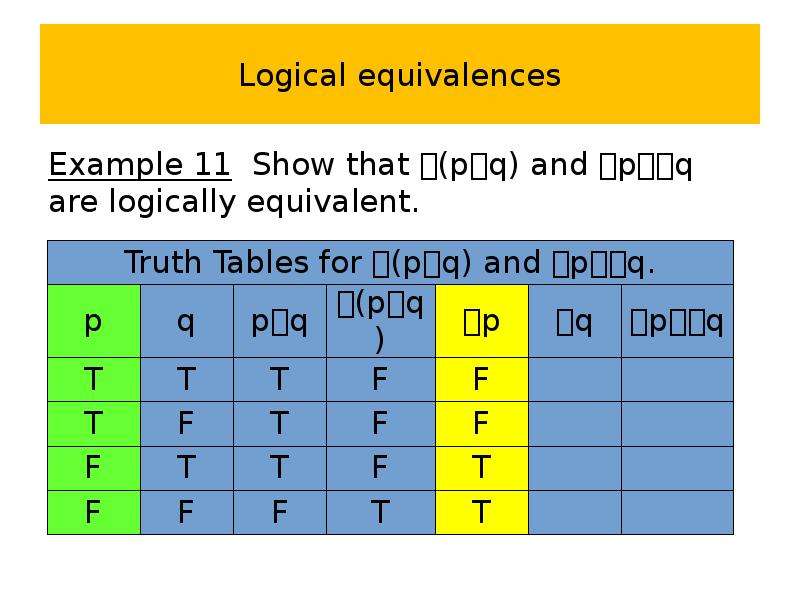

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 55

Описание слайда:

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 56

Описание слайда:

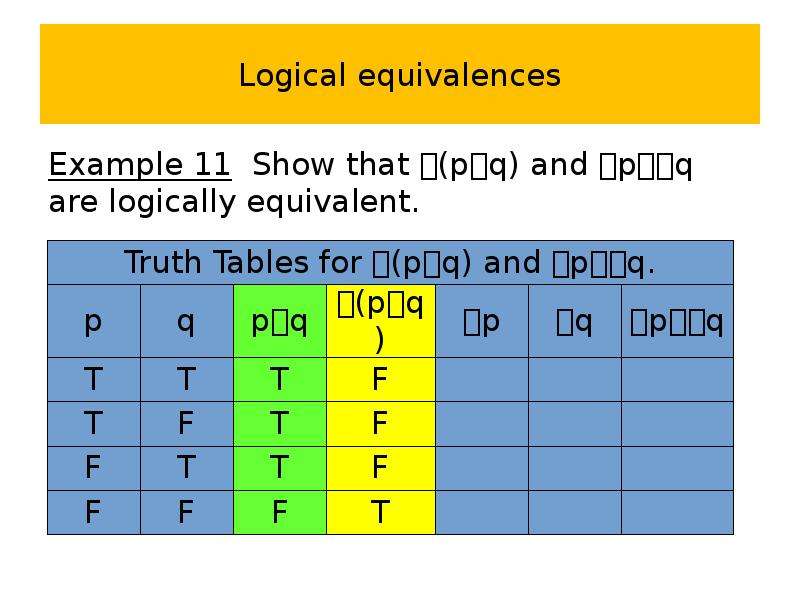

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 57

Описание слайда:

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 58

Описание слайда:

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 59

Описание слайда:

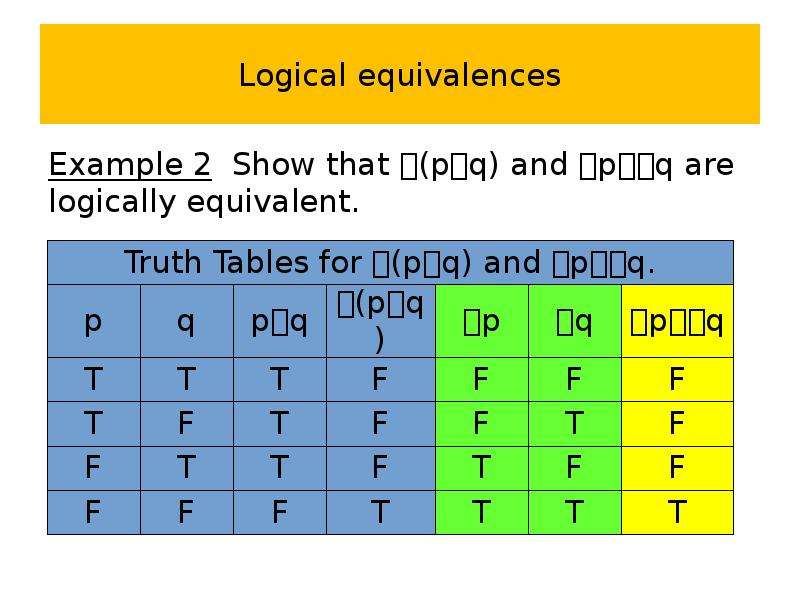

Logical equivalences Example 2 Show that (pq) and pq are logically equivalent.

Слайд 60

Описание слайда:

Logical equivalences Example 11 Show that (pq) and pq are logically equivalent.

Слайд 61

Описание слайда:

Logical equivalences

Слайд 62

Описание слайда:

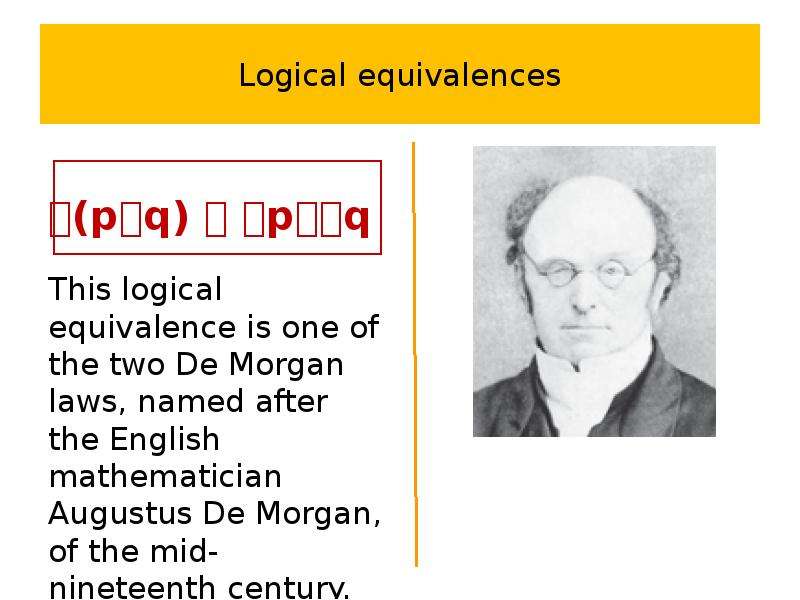

Logical equivalences (pq)  pq This logical equivalence is one of the two De Morgan laws, named after the English mathematician Augustus De Morgan, of the mid-nineteenth century.

Слайд 63

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent. Solution: We construct the truth table for these compound propositions.

Слайд 64

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent.

Слайд 65

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent.

Слайд 66

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent.

Слайд 67

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent.

Слайд 68

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent.

Слайд 69

Описание слайда:

Logical equivalences Example 12 Show that pq and p∨q are logically equivalent. Because the truth values of p∨q and pq agree, they are logically equivalent.

Слайд 70

Описание слайда:

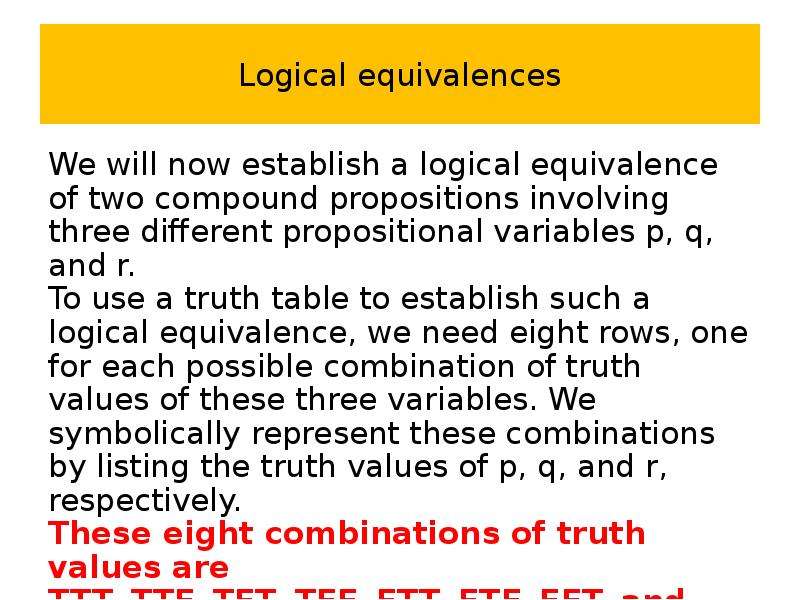

Logical equivalences We will now establish a logical equivalence of two compound propositions involving three different propositional variables p, q, and r. To use a truth table to establish such a logical equivalence, we need eight rows, one for each possible combination of truth values of these three variables. We symbolically represent these combinations by listing the truth values of p, q, and r, respectively. These eight combinations of truth values are TTT, TTF, TFT, TFF, FTT, FTF, FFT, and FFF; we use this order when we display the rows of the truth table.

Слайд 71

Описание слайда:

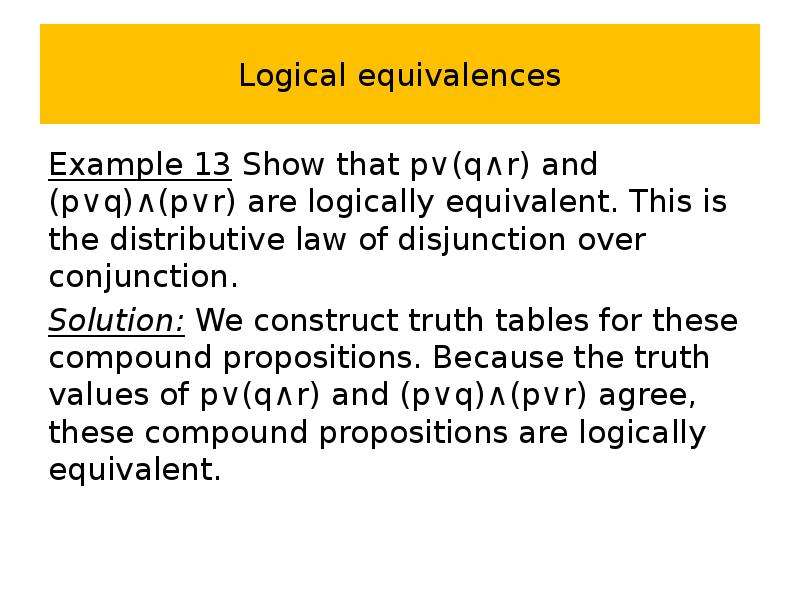

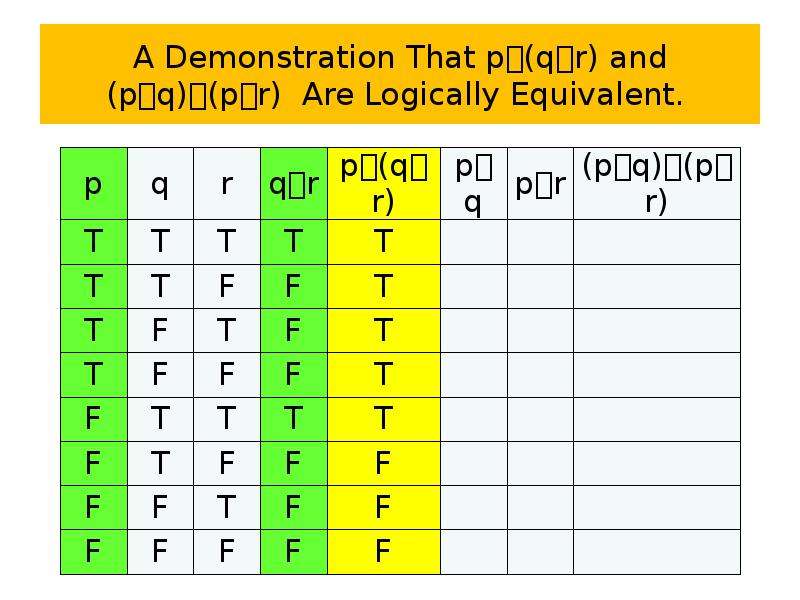

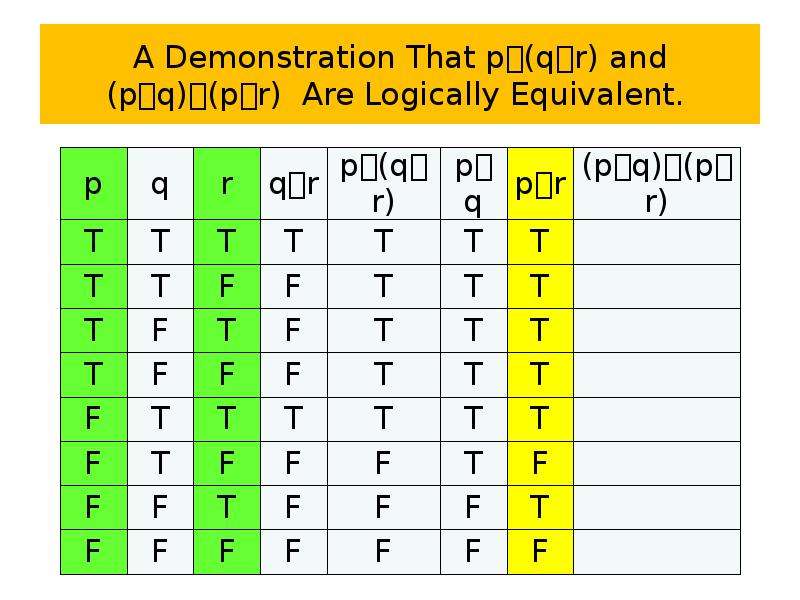

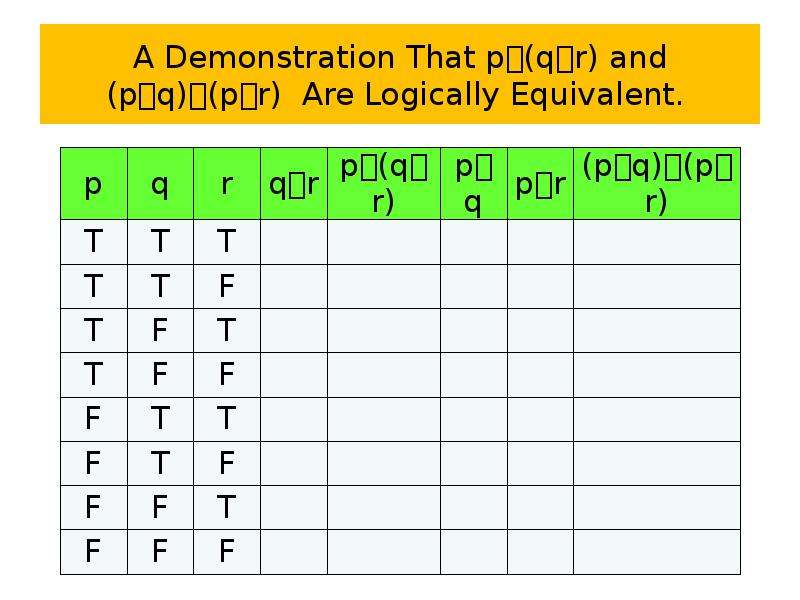

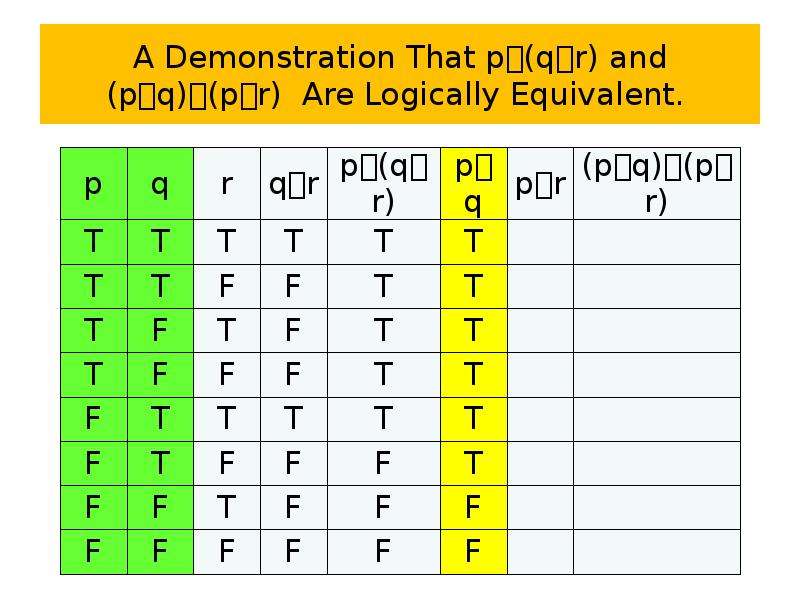

Logical equivalences Example 13 Show that p∨(q∧r) and (p∨q)∧(p∨r) are logically equivalent. This is the distributive law of disjunction over conjunction. Solution: We construct truth tables for these compound propositions. Because the truth values of p∨(q∧r) and (p∨q)∧(p∨r) agree, these compound propositions are logically equivalent.
