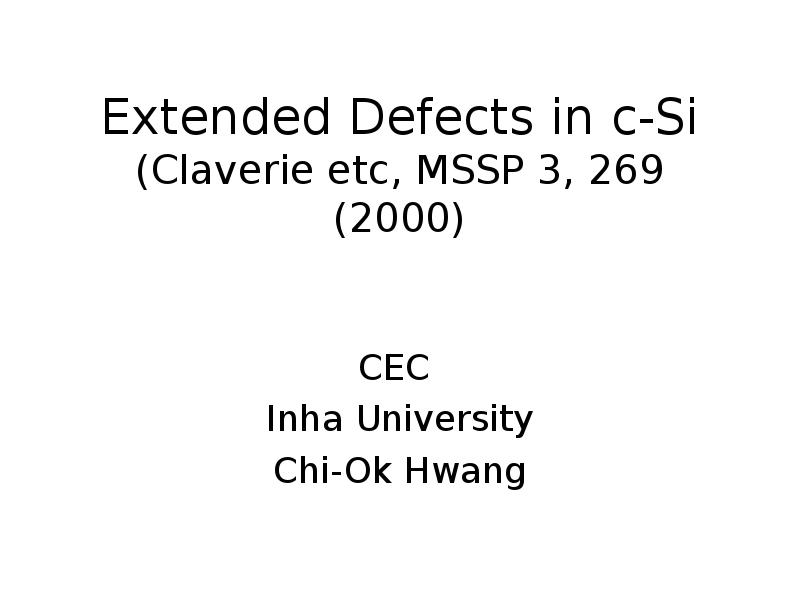

Extended Defects in c-Si (Claverie etc, MSSP 3, 269 (2000) CEC Inha University Chi-Ok Hwang

Слайд 2

Описание слайда:

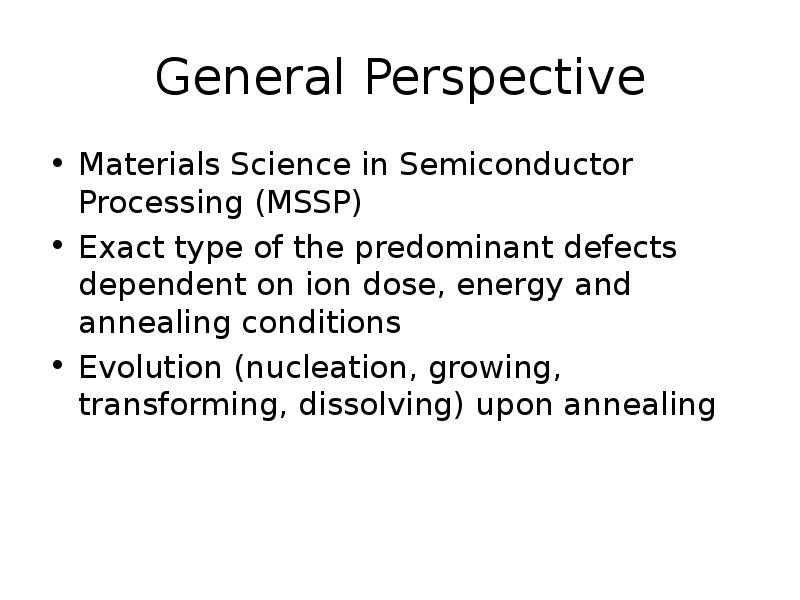

General Perspective Materials Science in Semiconductor Processing (MSSP) Exact type of the predominant defects dependent on ion dose, energy and annealing conditions Evolution (nucleation, growing, transforming, dissolving) upon annealing

Слайд 3

Описание слайда:

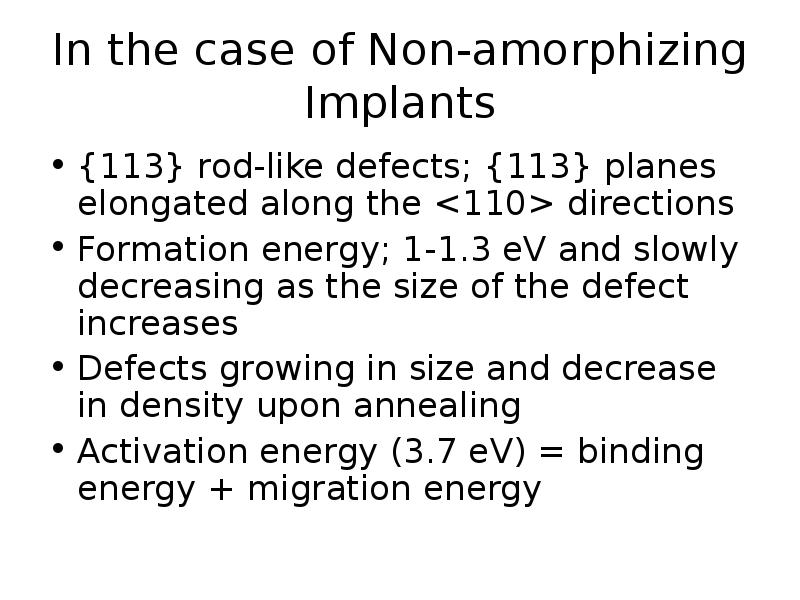

In the case of Non-amorphizing Implants {113} rod-like defects; {113} planes elongated along the directions Formation energy; 1-1.3 eV and slowly decreasing as the size of the defect increases Defects growing in size and decrease in density upon annealing Activation energy (3.7 eV) = binding energy + migration energy

Слайд 4

Описание слайда:

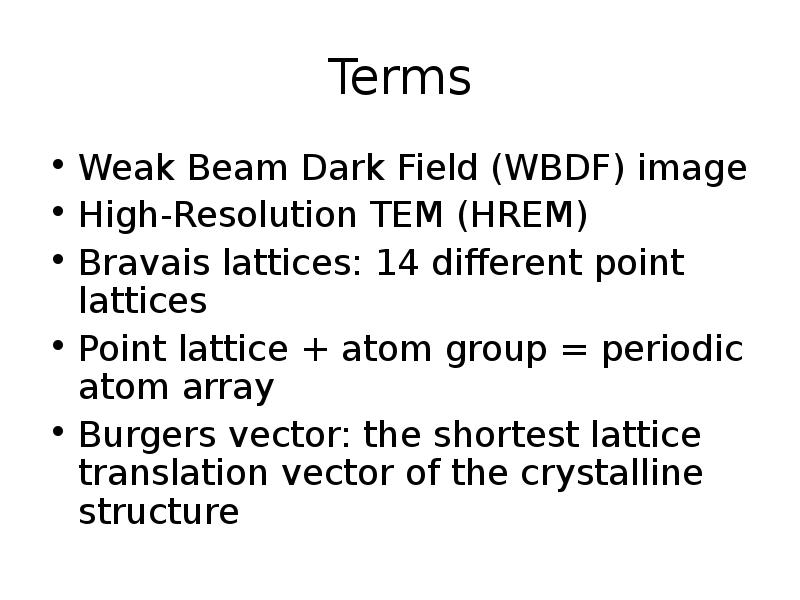

Terms Weak Beam Dark Field (WBDF) image High-Resolution TEM (HREM) Bravais lattices: 14 different point lattices Point lattice + atom group = periodic atom array Burgers vector: the shortest lattice translation vector of the crystalline structure

Слайд 5

Описание слайда:

{113} Defects

Слайд 6

Описание слайда:

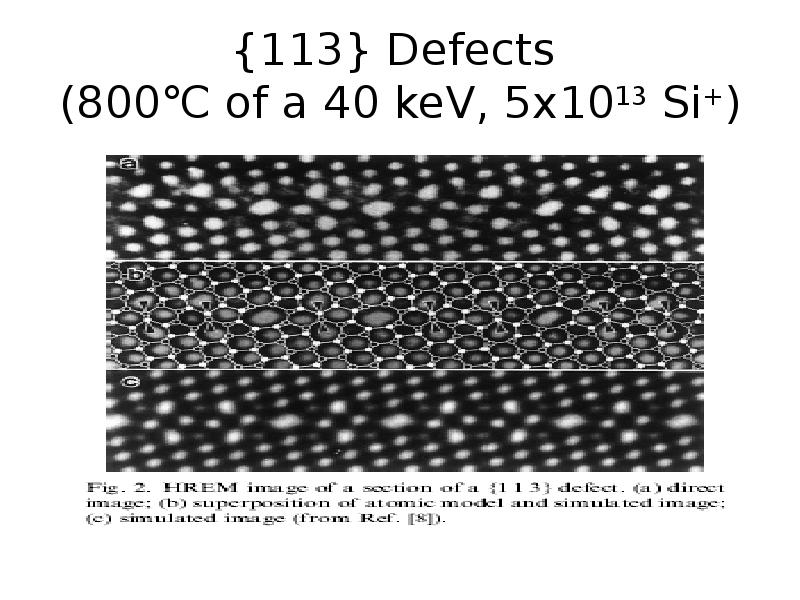

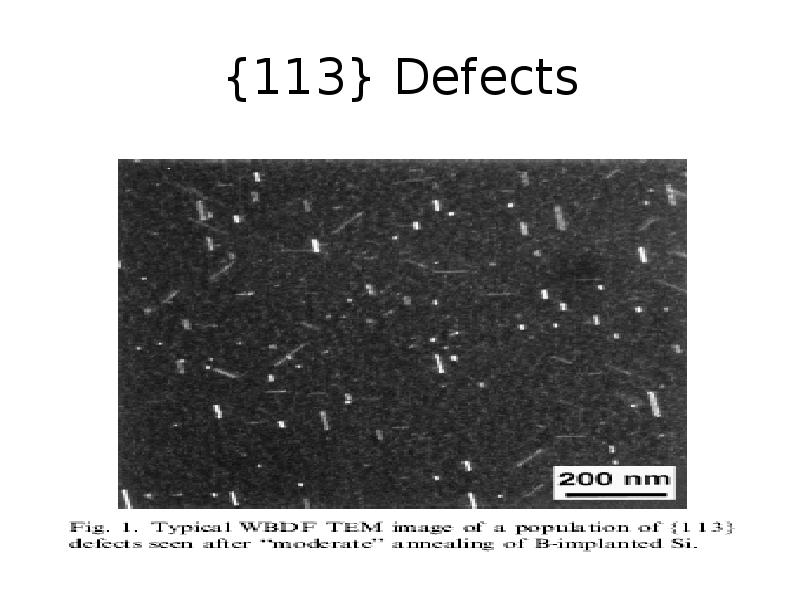

{113} Defects (800℃ of a 40 keV, 5x1013 Si+)

Слайд 7

Описание слайда:

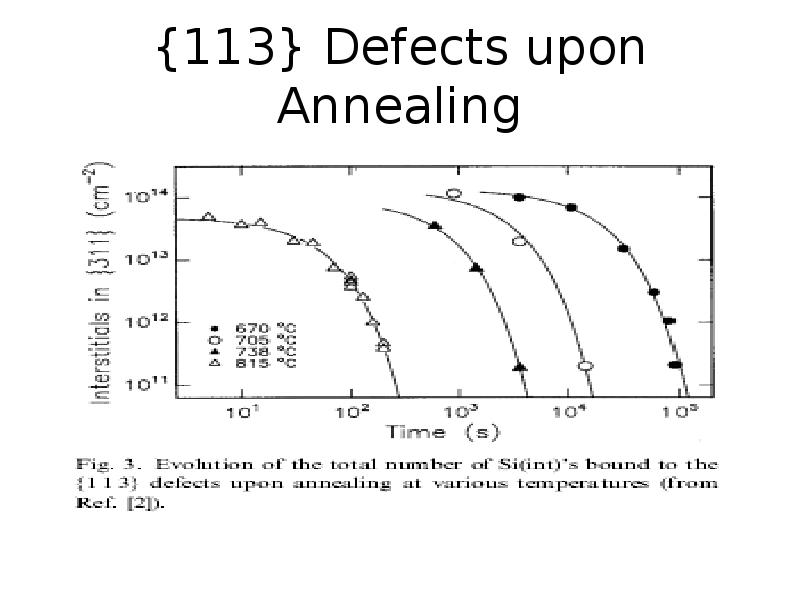

{113} Defects upon Annealing

Слайд 8

Описание слайда:

Energies

Слайд 9

Описание слайда:

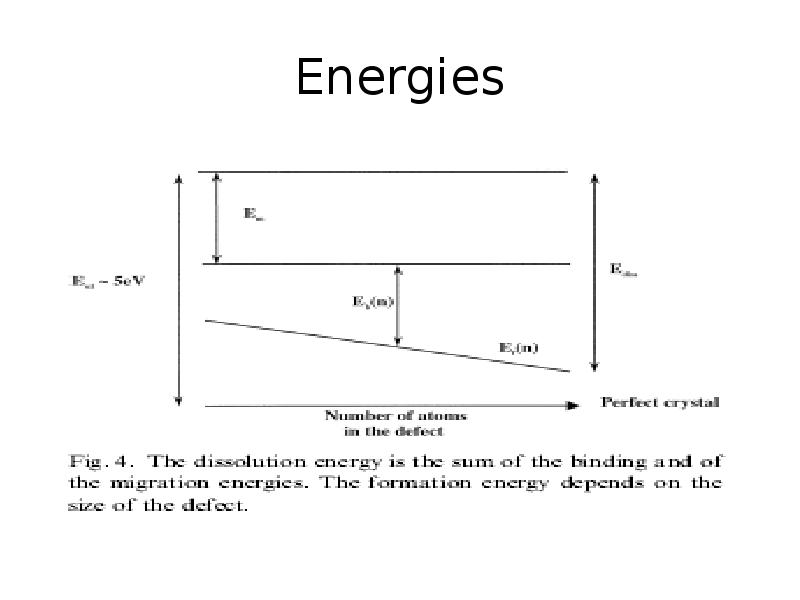

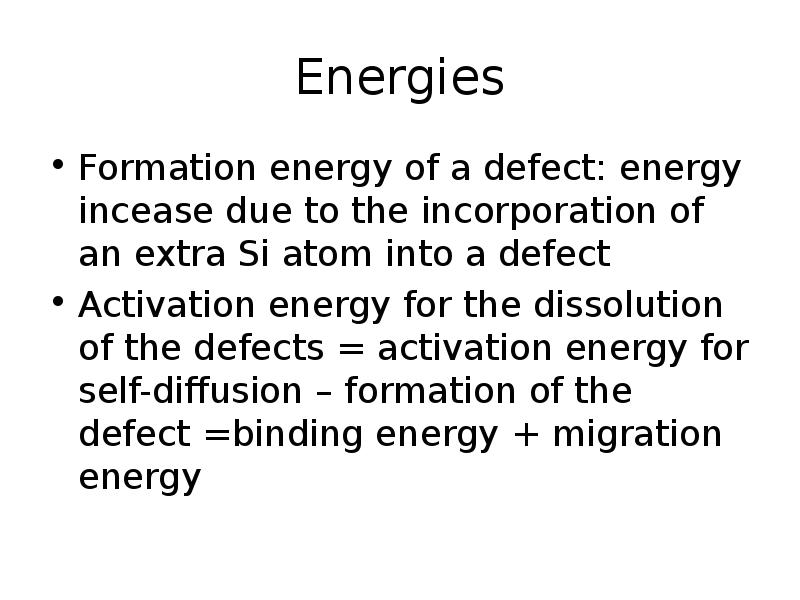

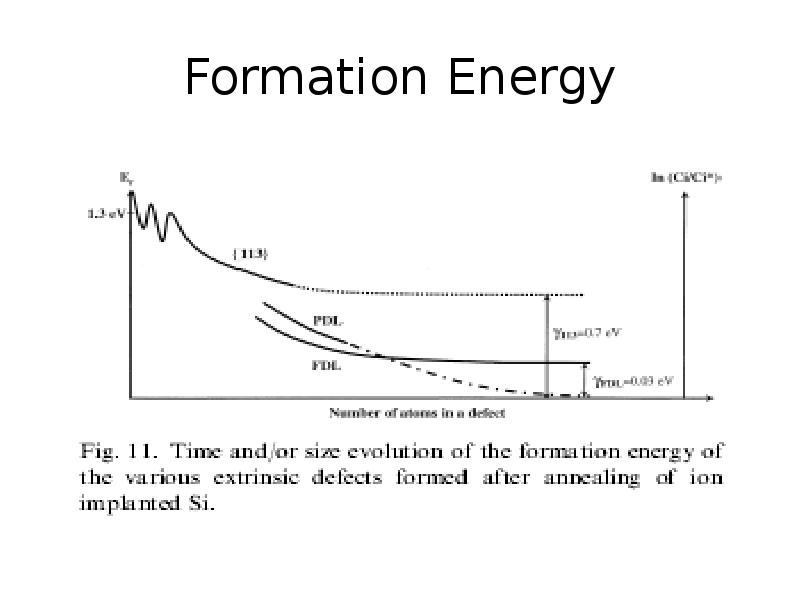

Energies Formation energy of a defect: energy incease due to the incorporation of an extra Si atom into a defect Activation energy for the dissolution of the defects = activation energy for self-diffusion – formation of the defect =binding energy + migration energy

Слайд 10

Описание слайда:

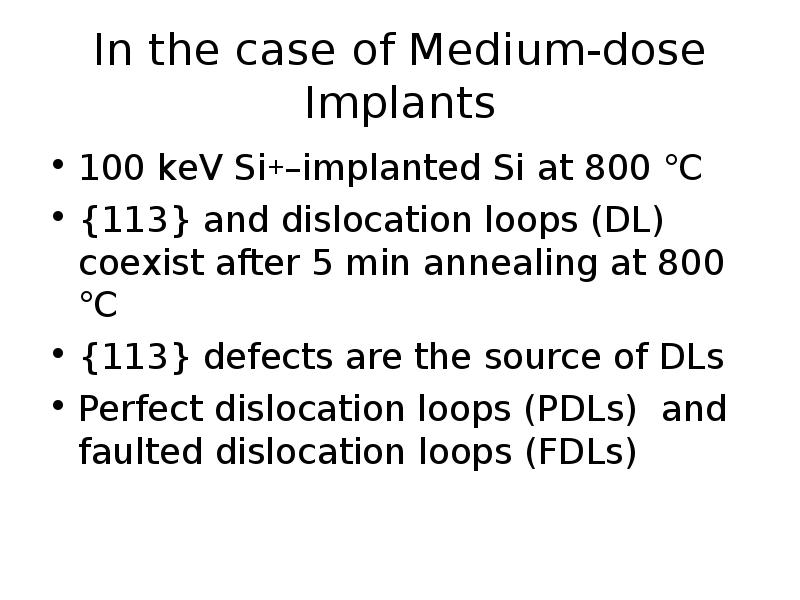

In the case of Medium-dose Implants 100 keV Si+–implanted Si at 800 ℃ {113} and dislocation loops (DL) coexist after 5 min annealing at 800 ℃ {113} defects are the source of DLs Perfect dislocation loops (PDLs) and faulted dislocation loops (FDLs)

Слайд 11

Описание слайда:

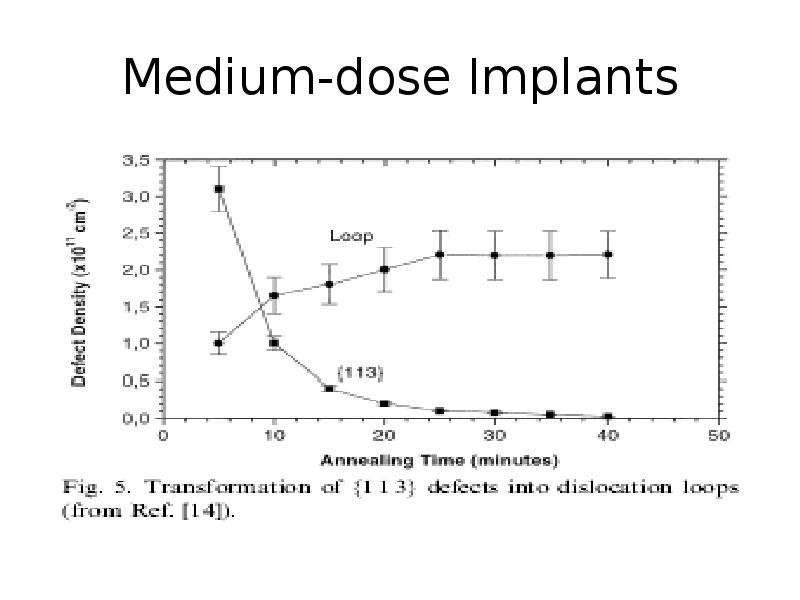

Medium-dose Implants

Слайд 12

Описание слайда:

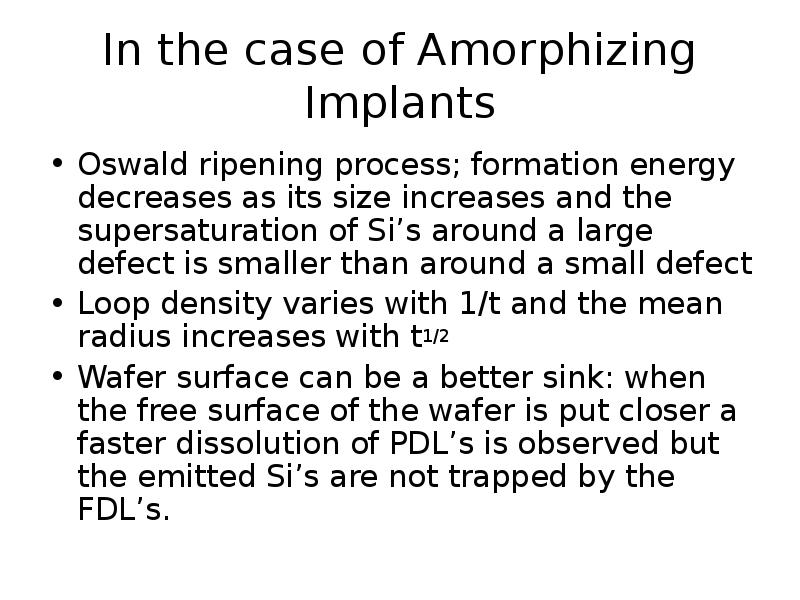

In the case of Amorphizing Implants Oswald ripening process; formation energy decreases as its size increases and the supersaturation of Si’s around a large defect is smaller than around a small defect Loop density varies with 1/t and the mean radius increases with t1/2 Wafer surface can be a better sink: when the free surface of the wafer is put closer a faster dissolution of PDL’s is observed but the emitted Si’s are not trapped by the FDL’s.

Слайд 13

Описание слайда:

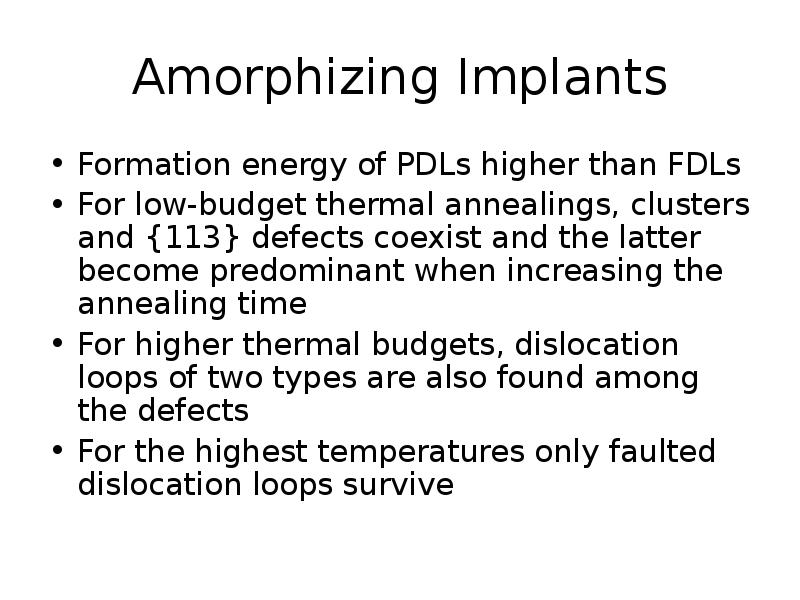

Amorphizing Implants Formation energy of PDLs higher than FDLs For low-budget thermal annealings, clusters and {113} defects coexist and the latter become predominant when increasing the annealing time For higher thermal budgets, dislocation loops of two types are also found among the defects For the highest temperatures only faulted dislocation loops survive

Слайд 14

Описание слайда:

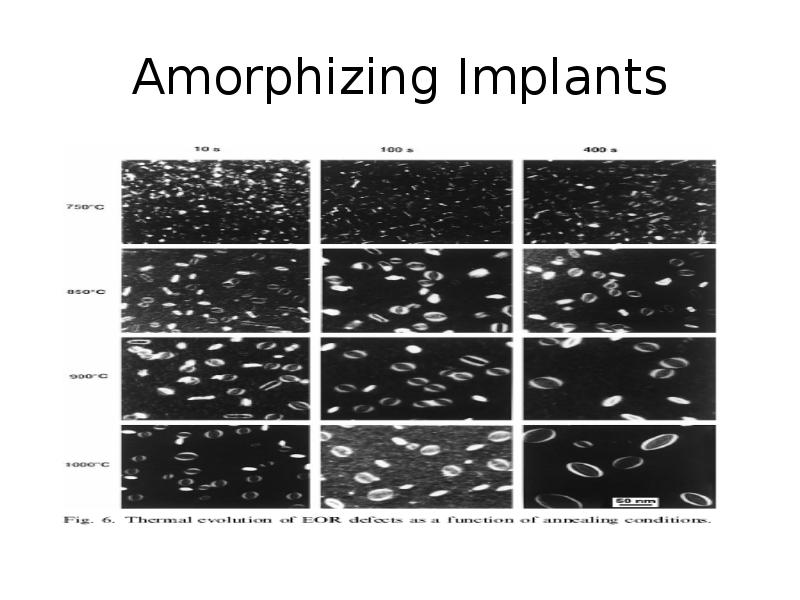

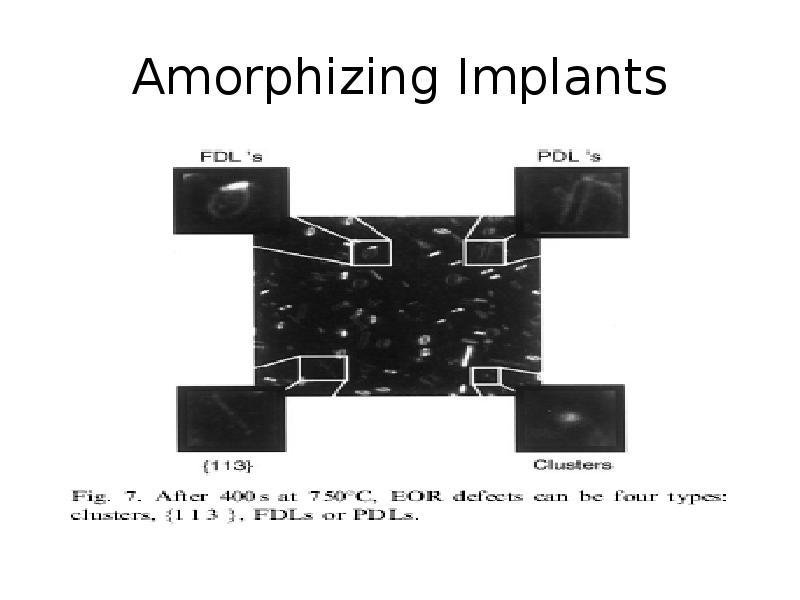

Amorphizing Implants

Слайд 15

Описание слайда:

Amorphizing Implants

Слайд 16

Описание слайда:

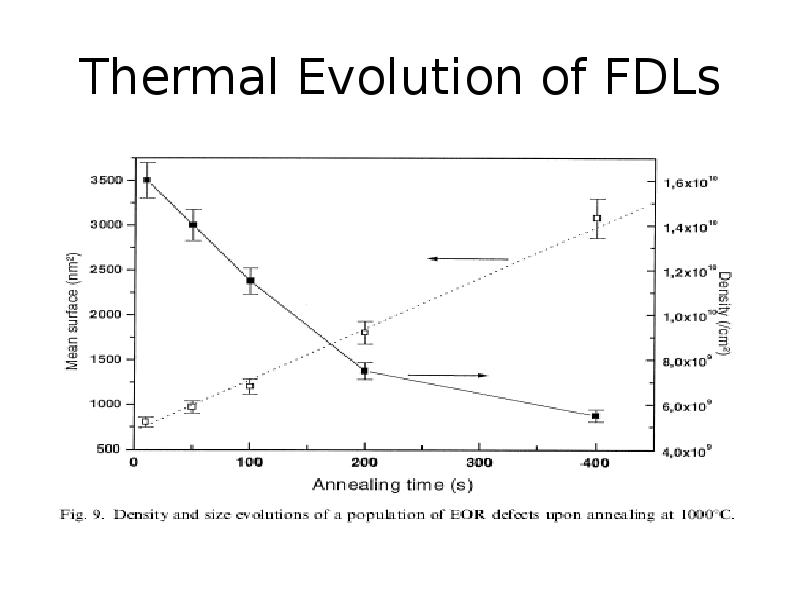

Thermal Evolution of FDLs

Слайд 17

Описание слайда:

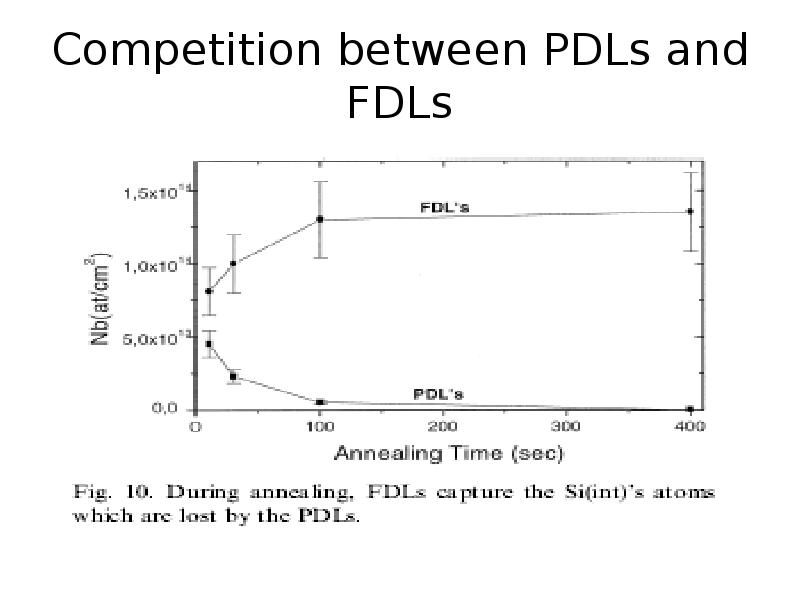

Competition between PDLs and FDLs

Слайд 18

Описание слайда:

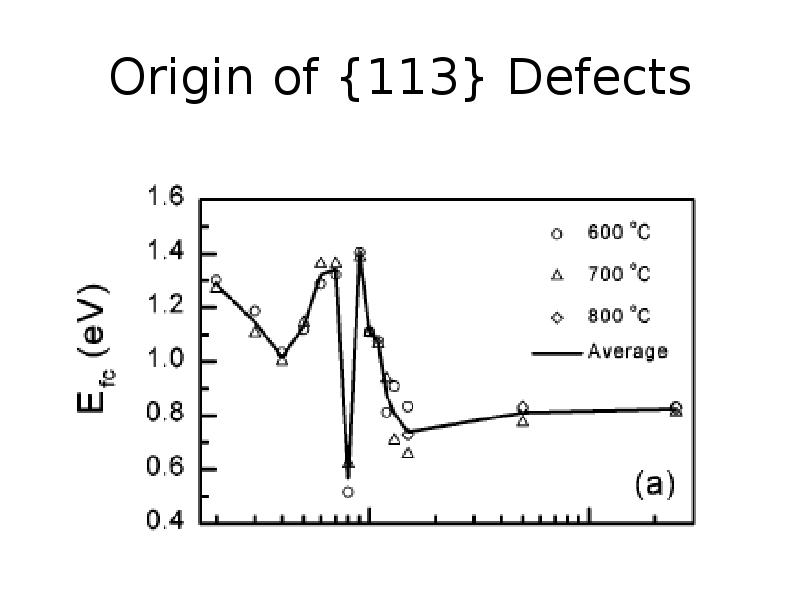

Origin of {113} Defects

Слайд 19

Описание слайда:

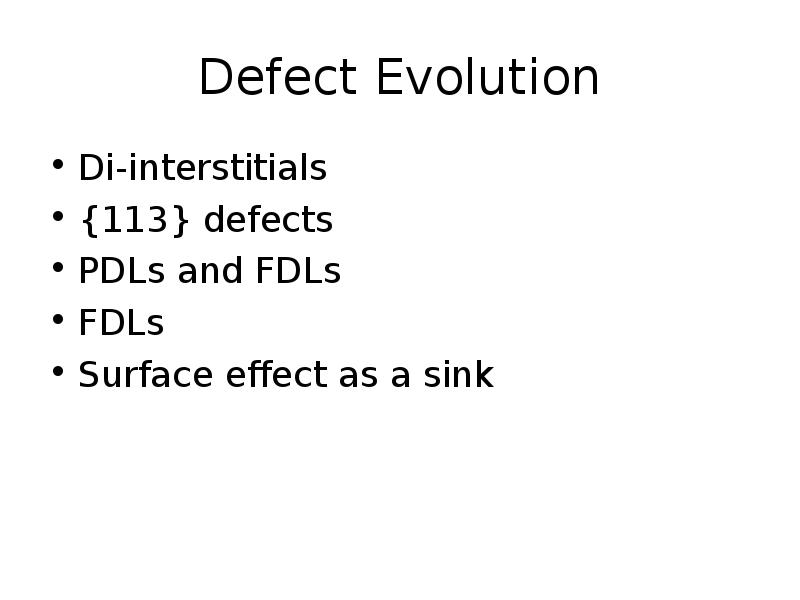

Defect Evolution Di-interstitials {113} defects PDLs and FDLs FDLs Surface effect as a sink

Слайд 20

Описание слайда:

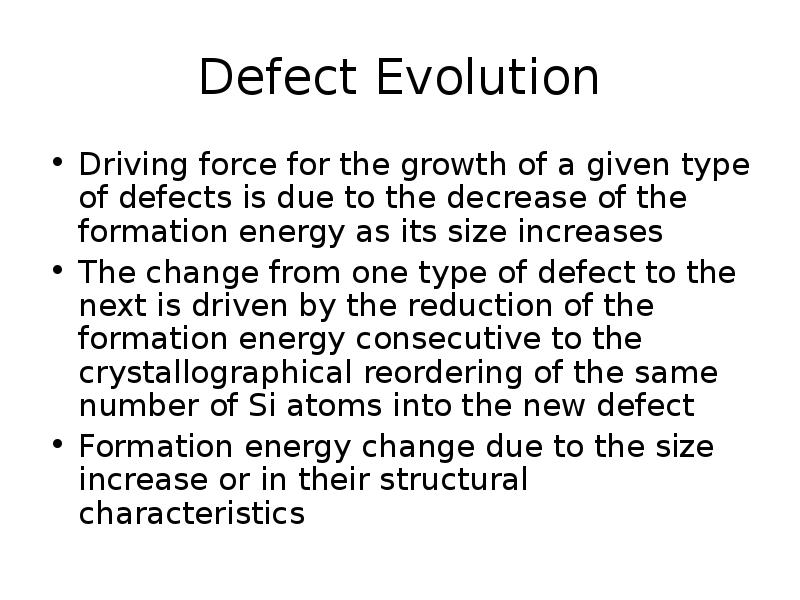

Defect Evolution Driving force for the growth of a given type of defects is due to the decrease of the formation energy as its size increases The change from one type of defect to the next is driven by the reduction of the formation energy consecutive to the crystallographical reordering of the same number of Si atoms into the new defect Formation energy change due to the size increase or in their structural characteristics
