Слайд 1

Описание слайда:

RHODIUM

Слайд 2

Описание слайда:

Слайд 3

Описание слайда:

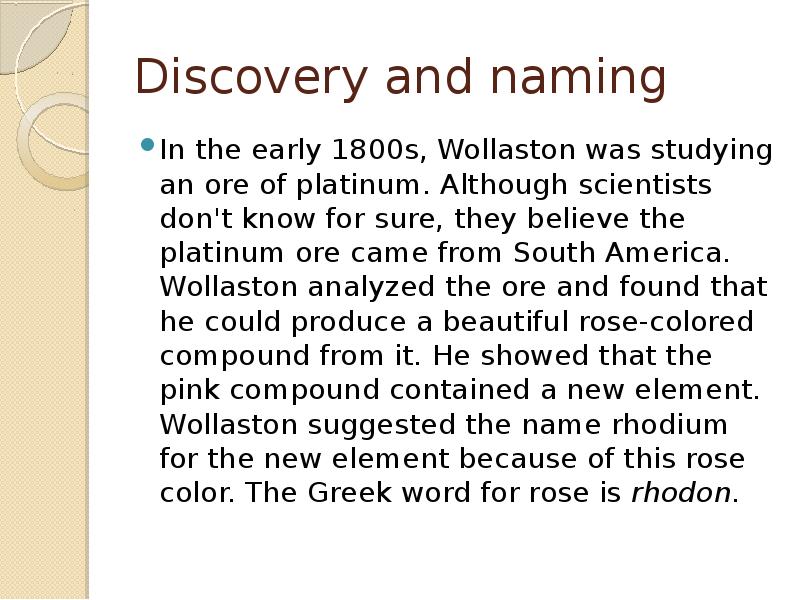

Discovery and naming In the early 1800s, Wollaston was studying an ore of platinum. Although scientists don't know for sure, they believe the platinum ore came from South America. Wollaston analyzed the ore and found that he could produce a beautiful rose-colored compound from it. He showed that the pink compound contained a new element. Wollaston suggested the name rhodium for the new element because of this rose color. The Greek word for rose is rhodon.

Слайд 4

Описание слайда:

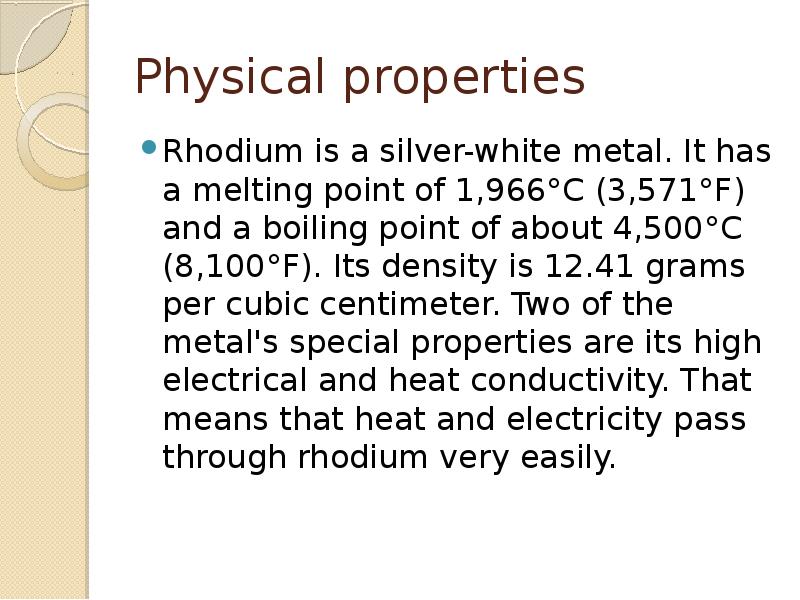

Physical properties Rhodium is a silver-white metal. It has a melting point of 1,966°C (3,571°F) and a boiling point of about 4,500°C (8,100°F). Its density is 12.41 grams per cubic centimeter. Two of the metal's special properties are its high electrical and heat conductivity. That means that heat and electricity pass through rhodium very easily.

Слайд 5

Описание слайда:

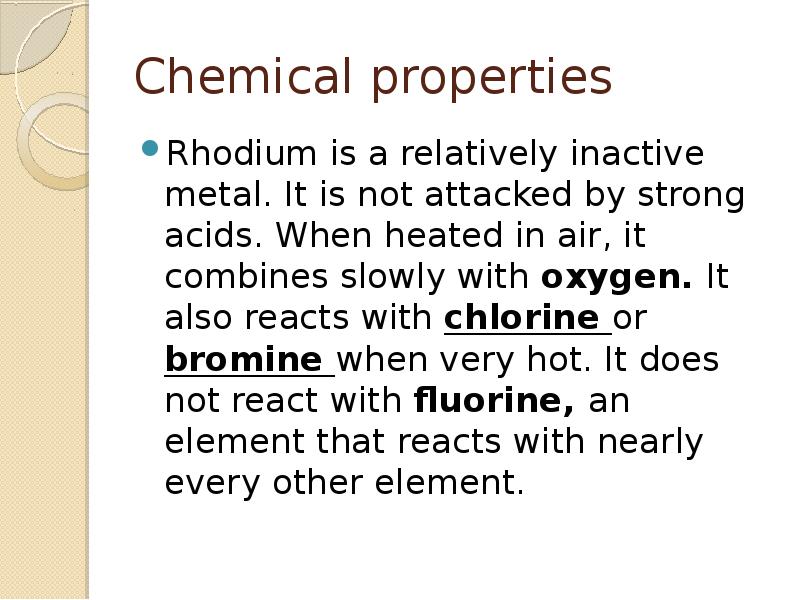

Chemical properties Rhodium is a relatively inactive metal. It is not attacked by strong acids. When heated in air, it combines slowly with oxygen. It also reacts with chlorine or bromine when very hot. It does not react with fluorine, an element that reacts with nearly every other element.

Слайд 6

Описание слайда:

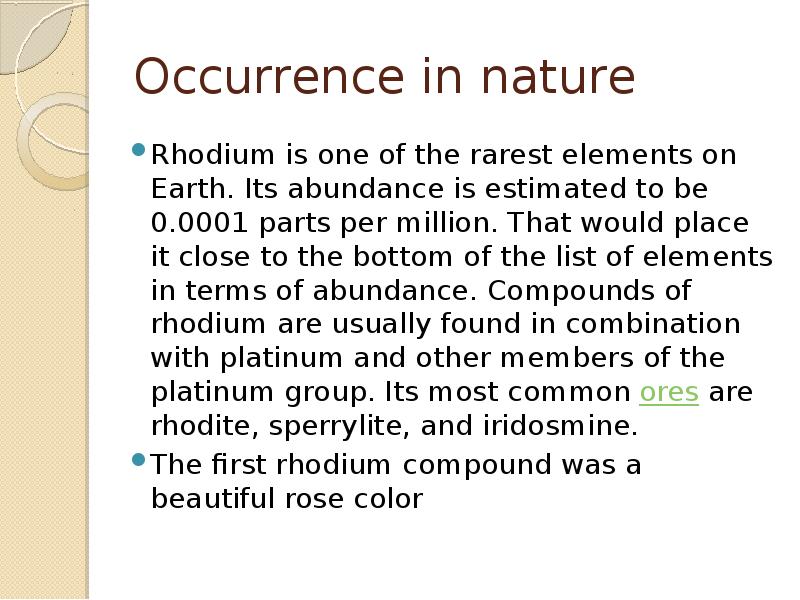

Occurrence in nature Rhodium is one of the rarest elements on Earth. Its abundance is estimated to be 0.0001 parts per million. That would place it close to the bottom of the list of elements in terms of abundance. Compounds of rhodium are usually found in combination with platinum and other members of the platinum group. Its most common ores are rhodite, sperrylite, and iridosmine. The first rhodium compound was a beautiful rose color

Слайд 7

Описание слайда:

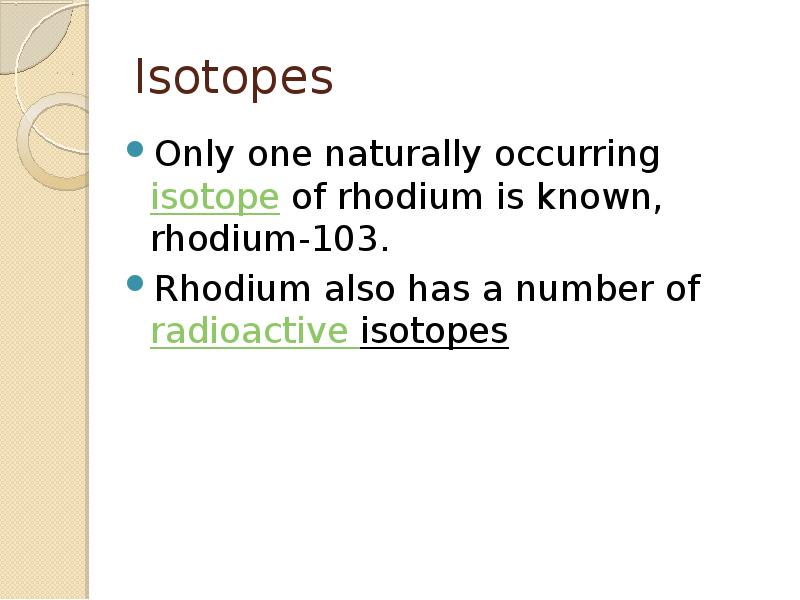

Isotopes Only one naturally occurring isotope of rhodium is known, rhodium-103. Rhodium also has a number of radioactive isotopes

Слайд 8

Описание слайда:

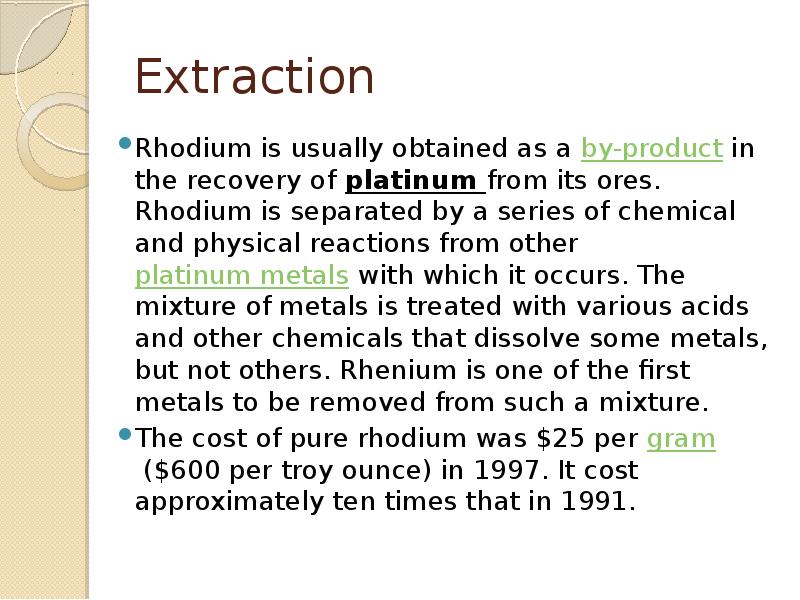

Extraction Rhodium is usually obtained as a by-product in the recovery of platinum from its ores. Rhodium is separated by a series of chemical and physical reactions from other platinum metals with which it occurs. The mixture of metals is treated with various acids and other chemicals that dissolve some metals, but not others. Rhenium is one of the first metals to be removed from such a mixture. The cost of pure rhodium was $25 per gram ($600 per troy ounce) in 1997. It cost approximately ten times that in 1991.

Слайд 9

Описание слайда:

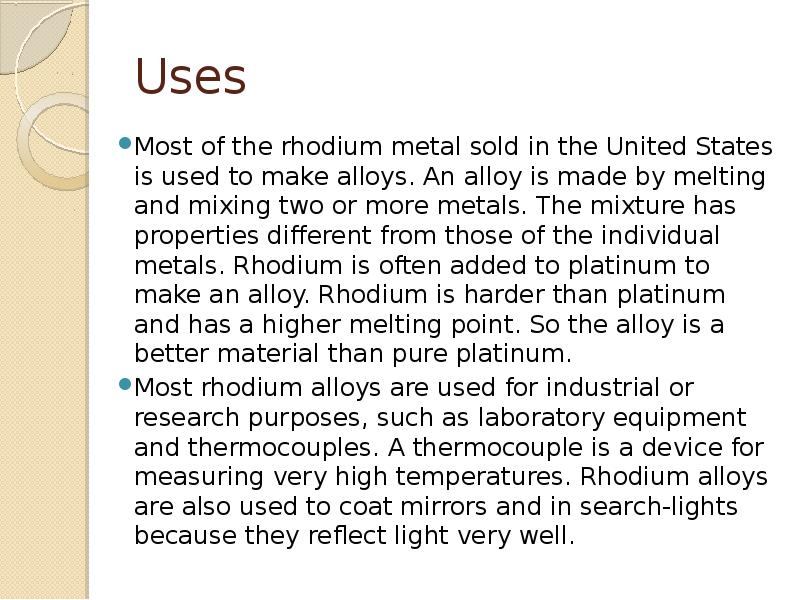

Uses Most of the rhodium metal sold in the United States is used to make alloys. An alloy is made by melting and mixing two or more metals. The mixture has properties different from those of the individual metals. Rhodium is often added to platinum to make an alloy. Rhodium is harder than platinum and has a higher melting point. So the alloy is a better material than pure platinum. Most rhodium alloys are used for industrial or research purposes, such as laboratory equipment and thermocouples. A thermocouple is a device for measuring very high temperatures. Rhodium alloys are also used to coat mirrors and in search-lights because they reflect light very well.

Слайд 10

Описание слайда:

Слайд 11

Описание слайда:

Слайд 12

Описание слайда:

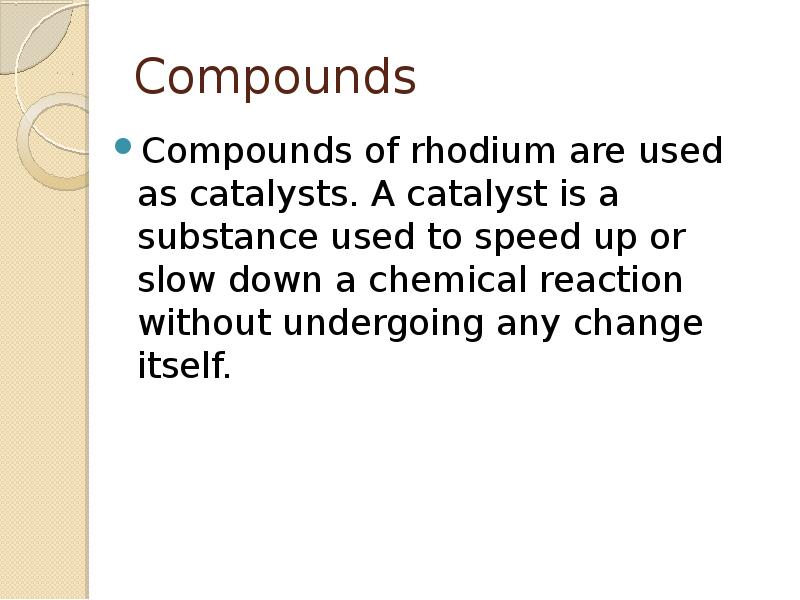

Compounds Compounds of rhodium are used as catalysts. A catalyst is a substance used to speed up or slow down a chemical reaction without undergoing any change itself.

Слайд 13

Описание слайда:

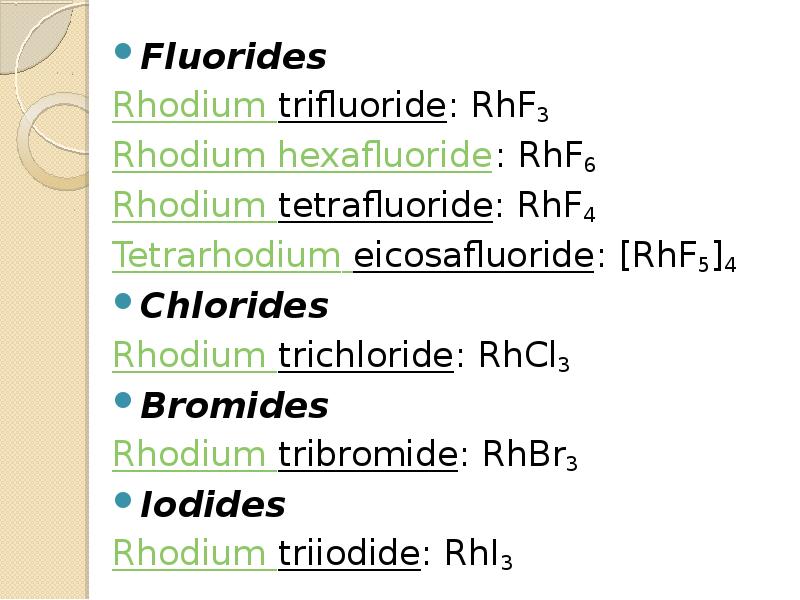

Fluorides Fluorides Rhodium trifluoride: RhF3 Rhodium hexafluoride: RhF6 Rhodium tetrafluoride: RhF4 Tetrarhodium eicosafluoride: [RhF5]4 Chlorides Rhodium trichloride: RhCl3 Bromides Rhodium tribromide: RhBr3 Iodides Rhodium triiodide: RhI3

Слайд 14

Описание слайда:

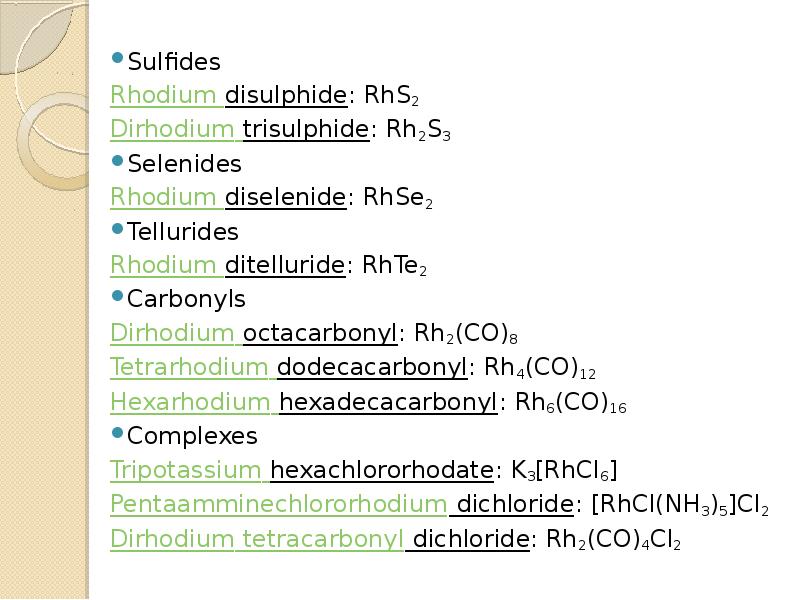

Sulfides Sulfides Rhodium disulphide: RhS2 Dirhodium trisulphide: Rh2S3 Selenides Rhodium diselenide: RhSe2 Tellurides Rhodium ditelluride: RhTe2 Carbonyls Dirhodium octacarbonyl: Rh2(CO)8 Tetrarhodium dodecacarbonyl: Rh4(CO)12 Hexarhodium hexadecacarbonyl: Rh6(CO)16 Complexes Tripotassium hexachlororhodate: K3[RhCl6] Pentaamminechlororhodium dichloride: [RhCl(NH3)5]Cl2 Dirhodium tetracarbonyl dichloride: Rh2(CO)4Cl2

Слайд 15

Описание слайда:

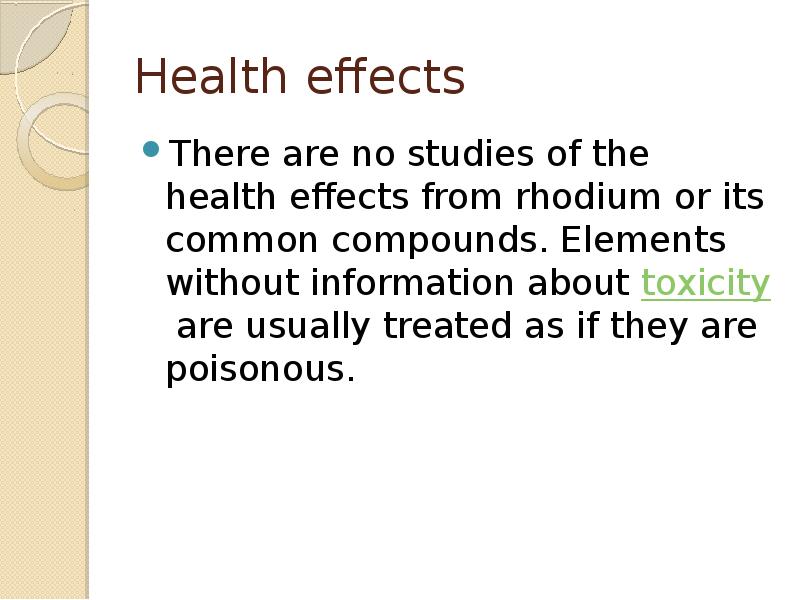

Health effects There are no studies of the health effects from rhodium or its common compounds. Elements without information about toxicity are usually treated as if they are poisonous.
