Слайд 1


ROTAVIRUSES by WINDA ZULAIHA SHAHABUDIN GROUP 24
Описание слайда:
ROTAVIRUSES by WINDA ZULAIHA SHAHABUDIN GROUP 24

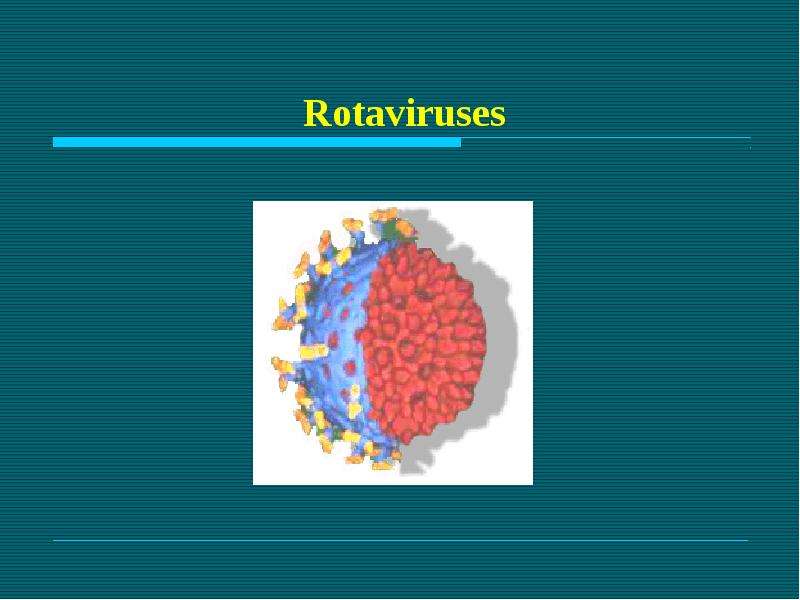

Слайд 2


Rotaviruses, слайд №2
Описание слайда:

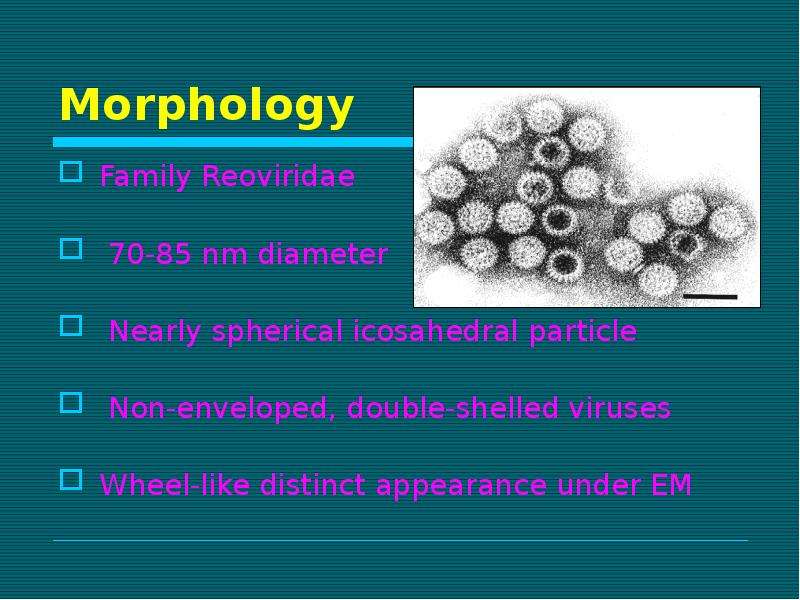

Слайд 3


Morphology Family Reoviridae 70-85 nm diameter Nearly spherical icosahedral particle Non-enveloped, double-shelled viruses Wheel-like distinct...
Описание слайда:
Morphology Family Reoviridae 70-85 nm diameter Nearly spherical icosahedral particle Non-enveloped, double-shelled viruses Wheel-like distinct appearance under EM

Слайд 4

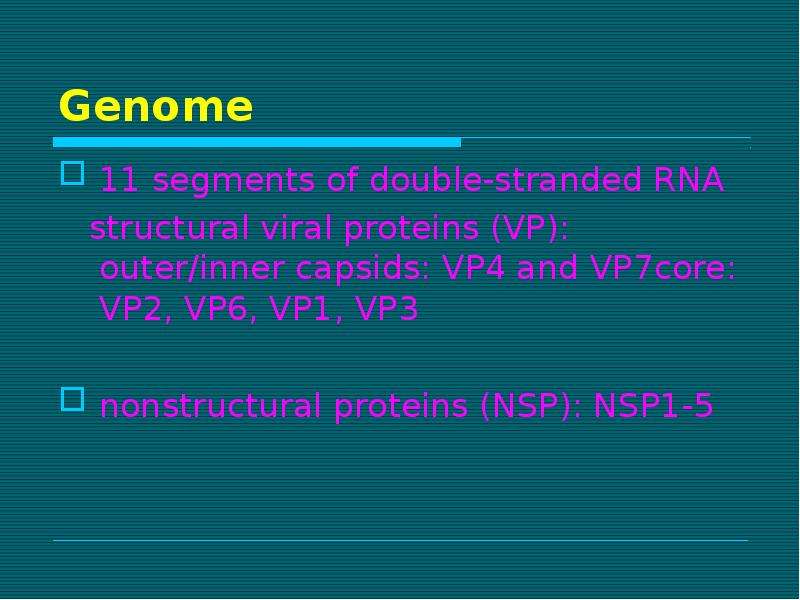

Genome 11 segments of double-stranded RNA structural viral proteins (VP): outer/inner capsids: VP4 and VP7core: VP2, VP6, VP1, VP3 nonstructural...
Описание слайда:
Genome 11 segments of double-stranded RNA structural viral proteins (VP): outer/inner capsids: VP4 and VP7core: VP2, VP6, VP1, VP3 nonstructural proteins (NSP): NSP1-5

Слайд 5

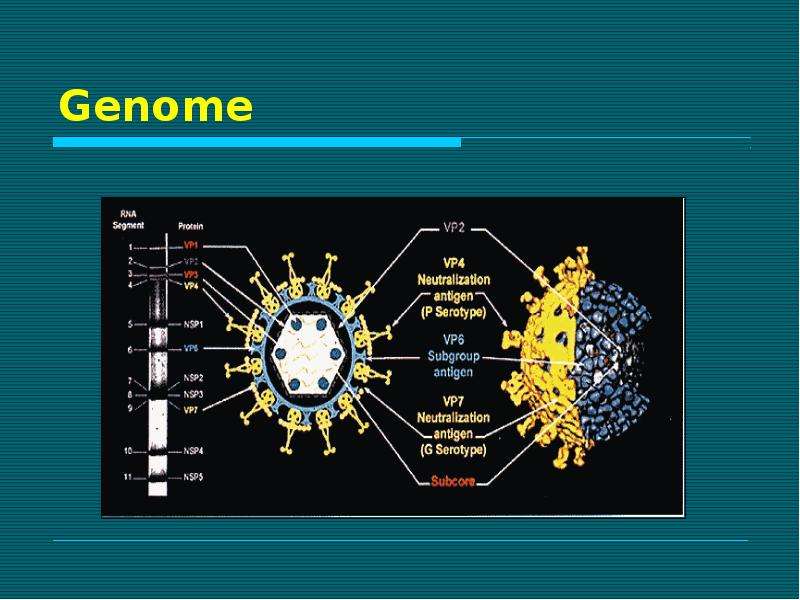

Genome
Описание слайда:
Genome

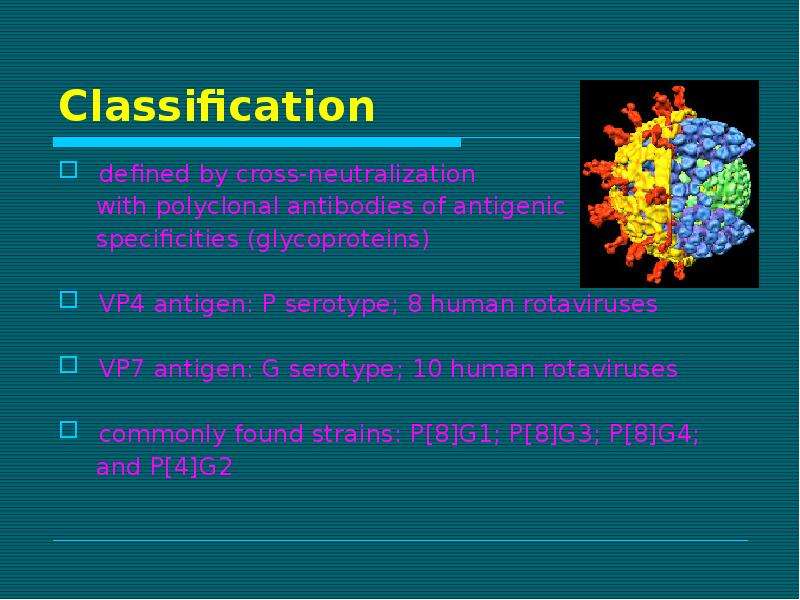

Слайд 6


Classification defined by cross-neutralization with polyclonal antibodies of antigenic specificities (glycoproteins) VP4 antigen: P serotype; 8 human...
Описание слайда:
Classification defined by cross-neutralization with polyclonal antibodies of antigenic specificities (glycoproteins) VP4 antigen: P serotype; 8 human rotaviruses VP7 antigen: G serotype; 10 human rotaviruses commonly found strains: P[8]G1; P[8]G3; P[8]G4; and P[4]G2

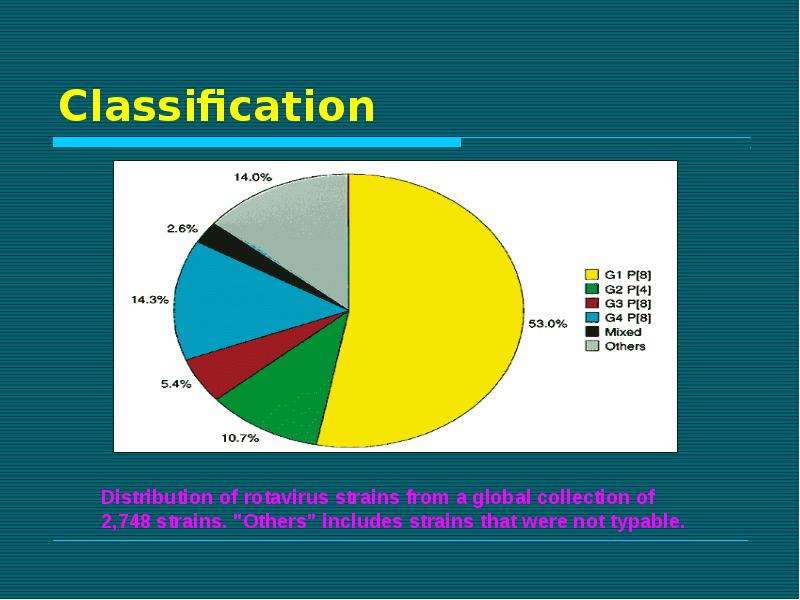

Слайд 7


Classification
Описание слайда:
Classification

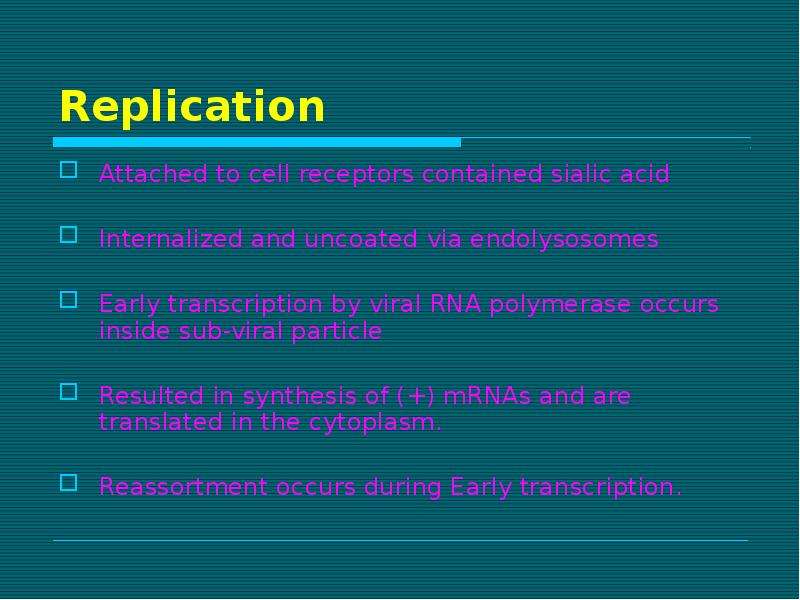

Слайд 8


Replication Attached to cell receptors contained sialic acid Internalized and uncoated via endolysosomes Early transcription by viral RNA polymerase...
Описание слайда:
Replication Attached to cell receptors contained sialic acid Internalized and uncoated via endolysosomes Early transcription by viral RNA polymerase occurs inside sub-viral particle Resulted in synthesis of (+) mRNAs and are translated in the cytoplasm. Reassortment occurs during Early transcription.

Слайд 9

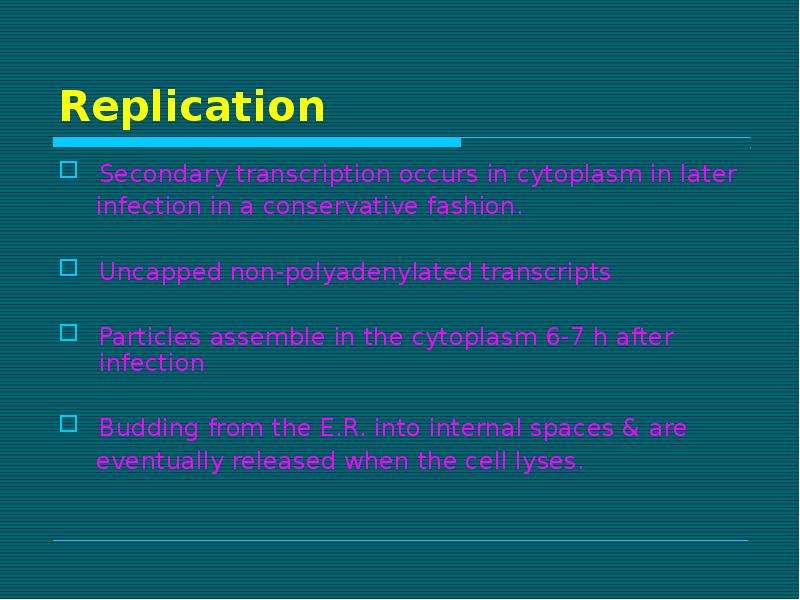

Replication Secondary transcription occurs in cytoplasm in later infection in a conservative fashion. Uncapped non-polyadenylated transcripts...
Описание слайда:
Replication Secondary transcription occurs in cytoplasm in later infection in a conservative fashion. Uncapped non-polyadenylated transcripts Particles assemble in the cytoplasm 6-7 h after infection Budding from the E.R. into internal spaces & are eventually released when the cell lyses.

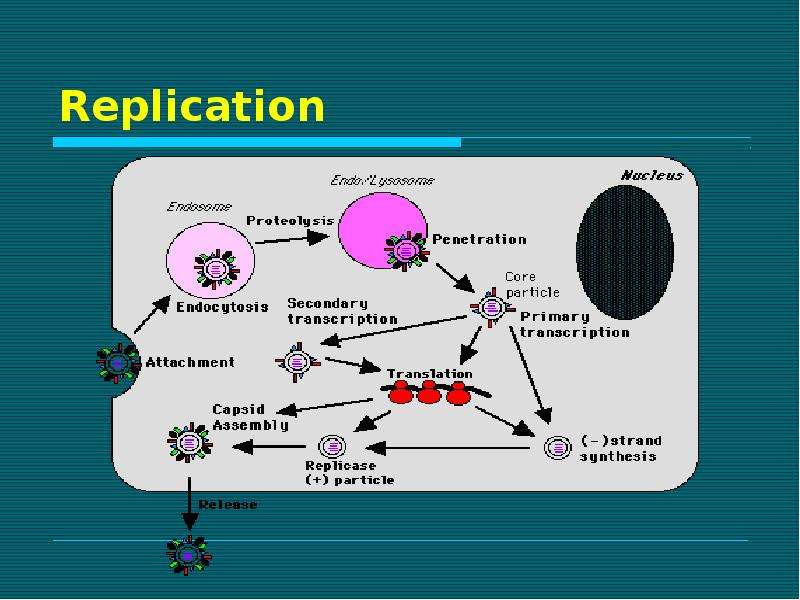

Слайд 10


Replication
Описание слайда:
Replication

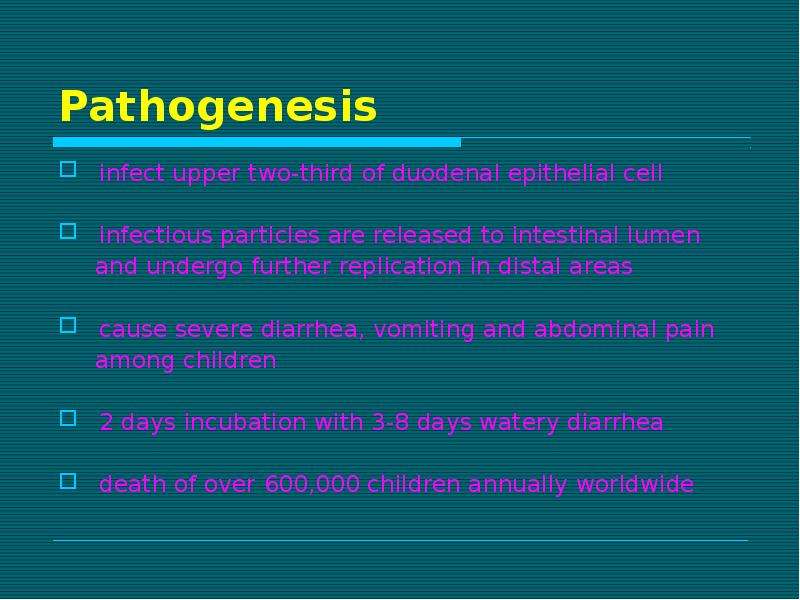

Слайд 11


Pathogenesis infect upper two-third of duodenal epithelial cell infectious particles are released to intestinal lumen and undergo further replication...
Описание слайда:
Pathogenesis infect upper two-third of duodenal epithelial cell infectious particles are released to intestinal lumen and undergo further replication in distal areas cause severe diarrhea, vomiting and abdominal pain among children 2 days incubation with 3-8 days watery diarrhea death of over 600,000 children annually worldwide

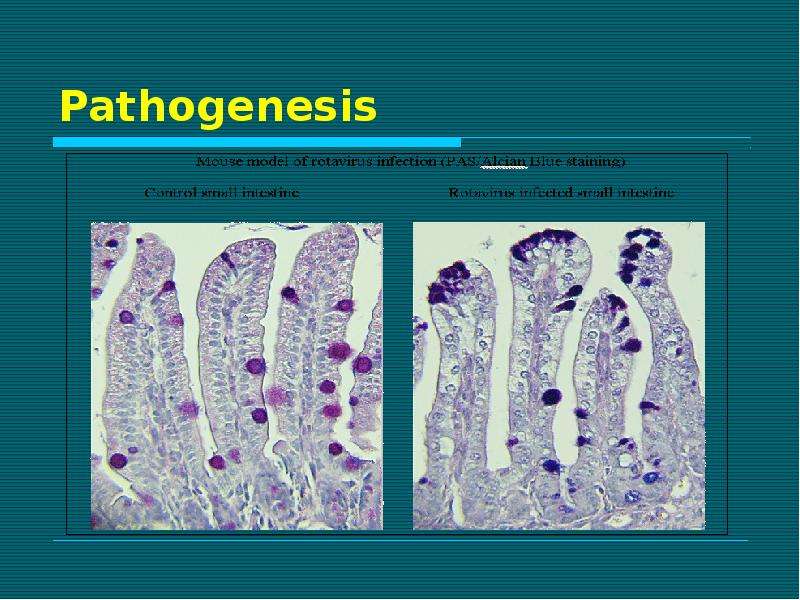

Слайд 12


Pathogenesis
Описание слайда:
Pathogenesis

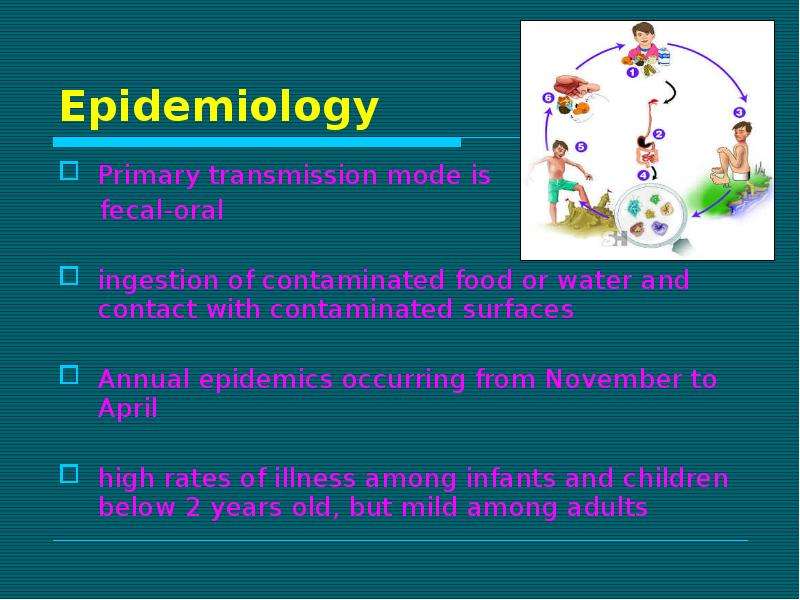

Слайд 13


Epidemiology Primary transmission mode is fecal-oral ingestion of contaminated food or water and contact with contaminated surfaces Annual epidemics...
Описание слайда:
Epidemiology Primary transmission mode is fecal-oral ingestion of contaminated food or water and contact with contaminated surfaces Annual epidemics occurring from November to April high rates of illness among infants and children below 2 years old, but mild among adults

Слайд 14


Epidemiology
Описание слайда:
Epidemiology

Слайд 15

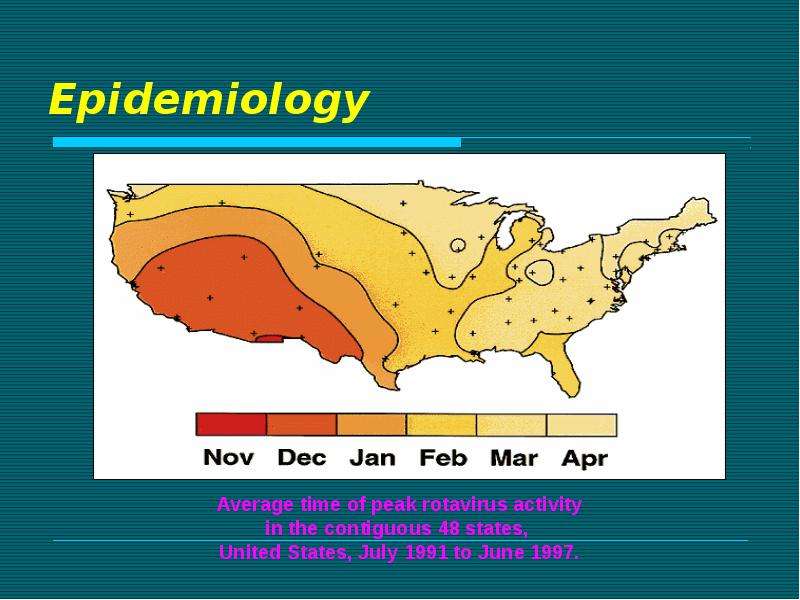

Epidemiology
Описание слайда:
Epidemiology

Слайд 16

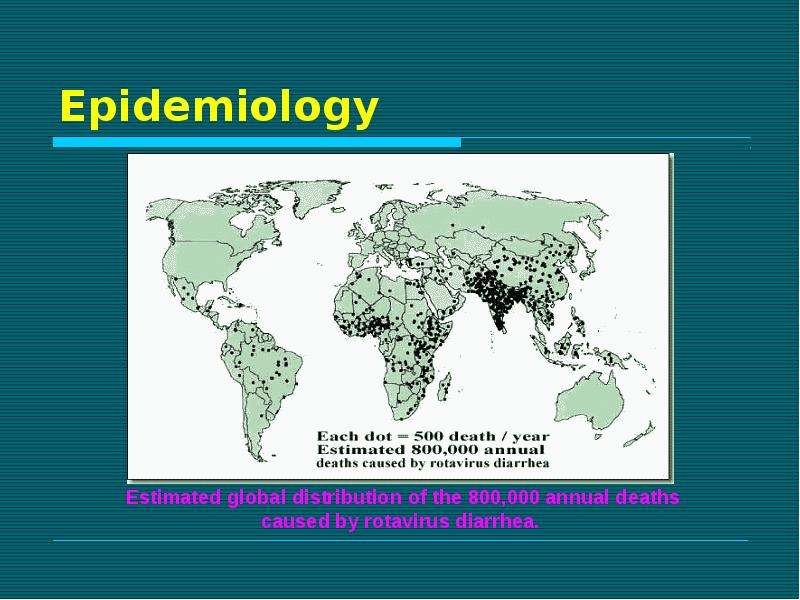

Epidemiology
Описание слайда:
Epidemiology

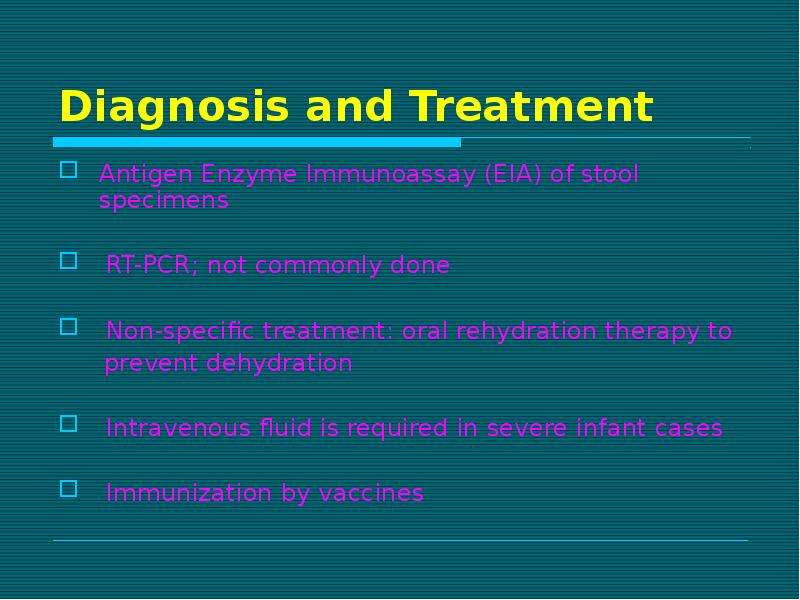

Слайд 17


Diagnosis and Treatment Antigen Enzyme Immunoassay (EIA) of stool specimens RT-PCR; not commonly done Non-specific treatment: oral rehydration...
Описание слайда:
Diagnosis and Treatment Antigen Enzyme Immunoassay (EIA) of stool specimens RT-PCR; not commonly done Non-specific treatment: oral rehydration therapy to prevent dehydration Intravenous fluid is required in severe infant cases Immunization by vaccines

Слайд 18


Diagnosis and Treatment
Описание слайда:
Diagnosis and Treatment

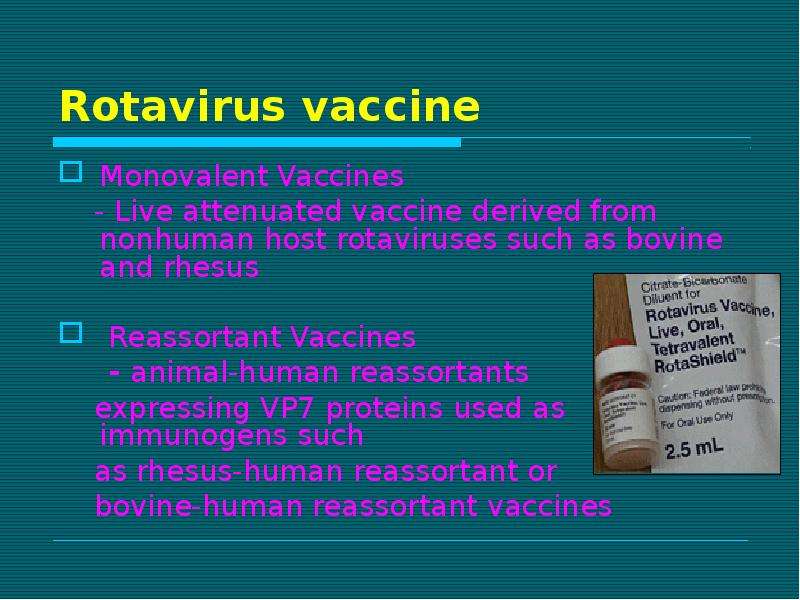

Слайд 19


Rotavirus vaccine Monovalent Vaccines - Live attenuated vaccine derived from nonhuman host rotaviruses such as bovine and rhesus Reassortant Vaccines...
Описание слайда:
Rotavirus vaccine Monovalent Vaccines - Live attenuated vaccine derived from nonhuman host rotaviruses such as bovine and rhesus Reassortant Vaccines - animal-human reassortants expressing VP7 proteins used as immunogens such as rhesus-human reassortant or bovine-human reassortant vaccines

Слайд 20

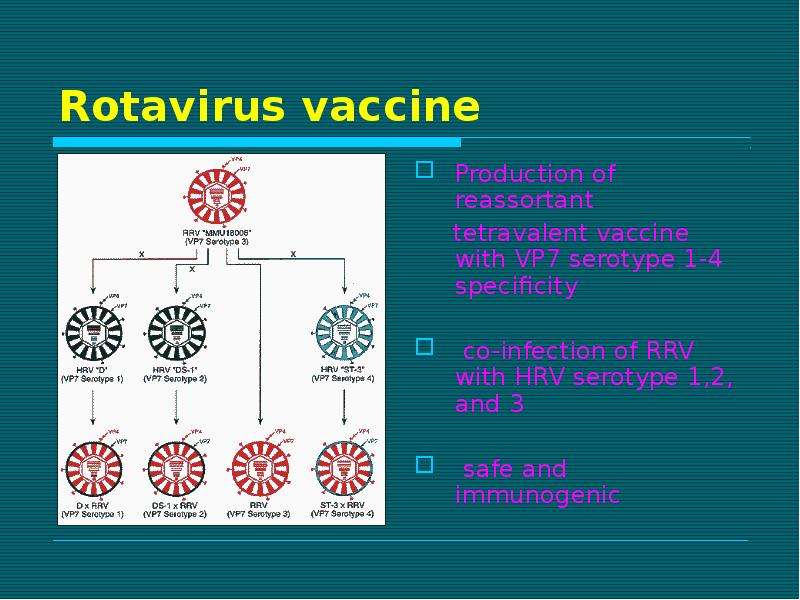

Rotavirus vaccine Production of reassortant tetravalent vaccine with VP7 serotype 1-4 specificity co-infection of RRV with HRV serotype 1,2, and 3...
Описание слайда:
Rotavirus vaccine Production of reassortant tetravalent vaccine with VP7 serotype 1-4 specificity co-infection of RRV with HRV serotype 1,2, and 3 safe and immunogenic

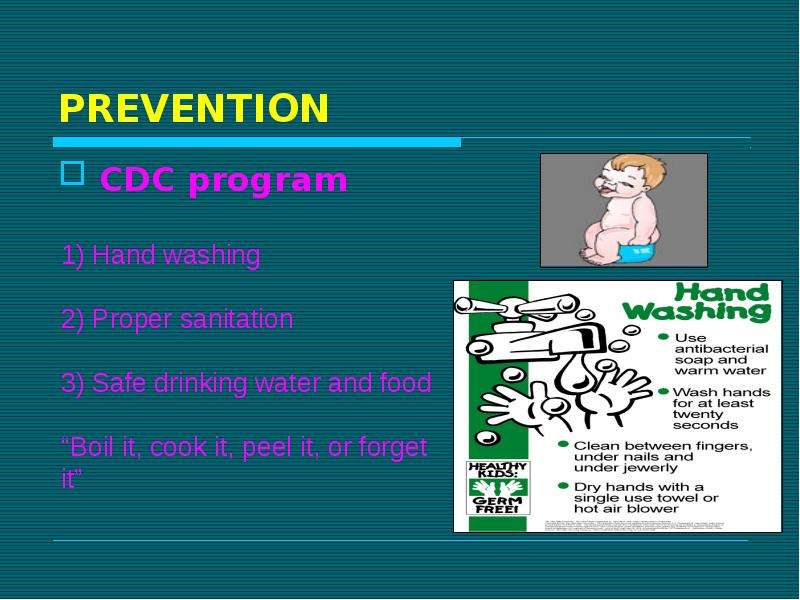

Слайд 21


PREVENTION CDC program
Описание слайда:
PREVENTION CDC program
