Слайд 1

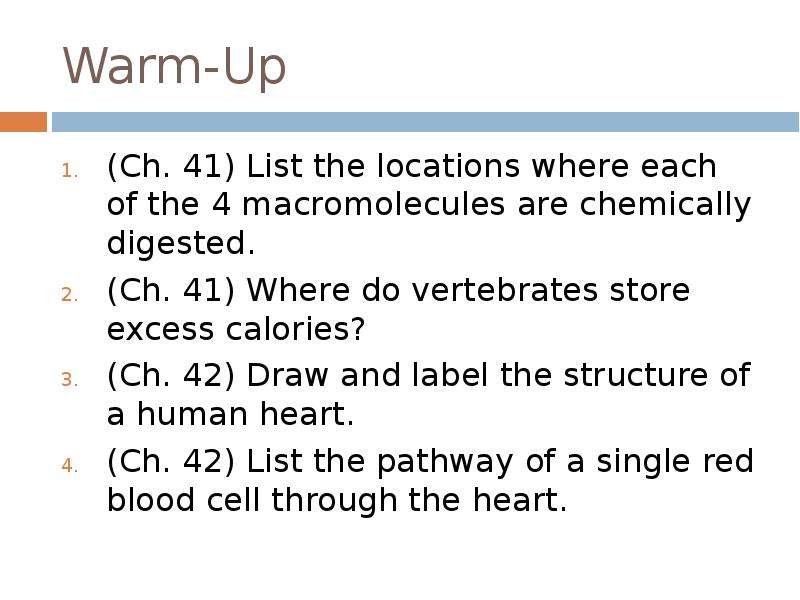

Warm-Up (Ch. 41) List the locations where each of the 4 macromolecules are chemically digested. (Ch. 41) Where do vertebrates store excess calories?...
Описание слайда:
Warm-Up (Ch. 41) List the locations where each of the 4 macromolecules are chemically digested. (Ch. 41) Where do vertebrates store excess calories? (Ch. 42) Draw and label the structure of a human heart. (Ch. 42) List the pathway of a single red blood cell through the heart.

Слайд 2


Circulation Chapter 42 – Part I
Описание слайда:
Circulation Chapter 42 – Part I

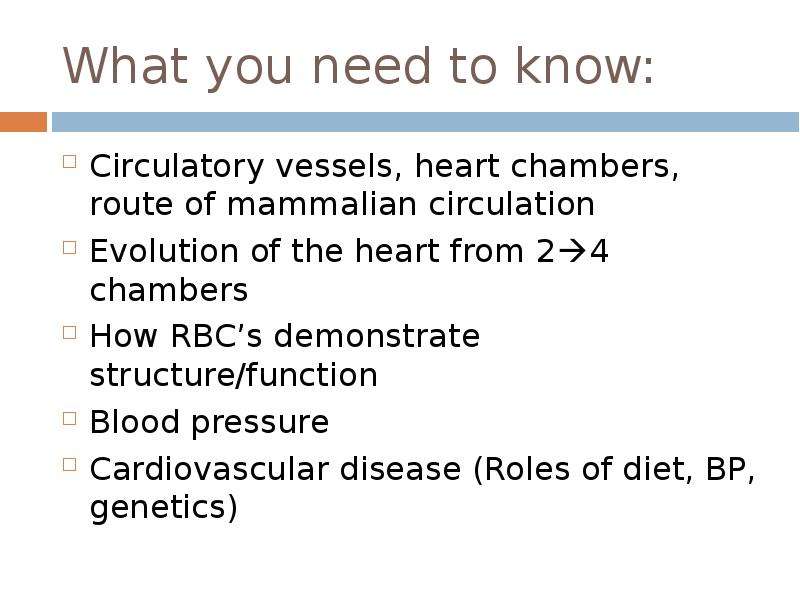

Слайд 3


What you need to know: Circulatory vessels, heart chambers, route of mammalian circulation Evolution of the heart from 24 chambers How RBC’s...
Описание слайда:
What you need to know: Circulatory vessels, heart chambers, route of mammalian circulation Evolution of the heart from 24 chambers How RBC’s demonstrate structure/function Blood pressure Cardiovascular disease (Roles of diet, BP, genetics)

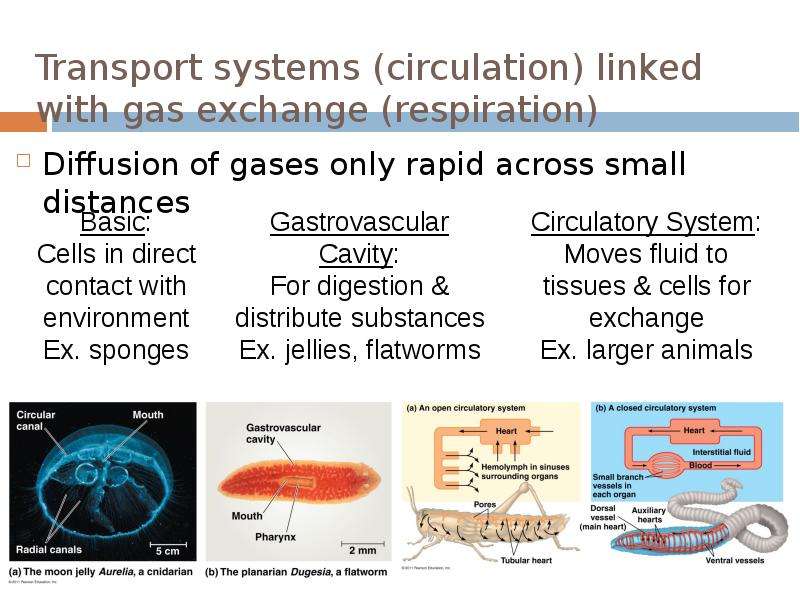

Слайд 4


Transport systems (circulation) linked with gas exchange (respiration) Diffusion of gases only rapid across small distances
Описание слайда:
Transport systems (circulation) linked with gas exchange (respiration) Diffusion of gases only rapid across small distances

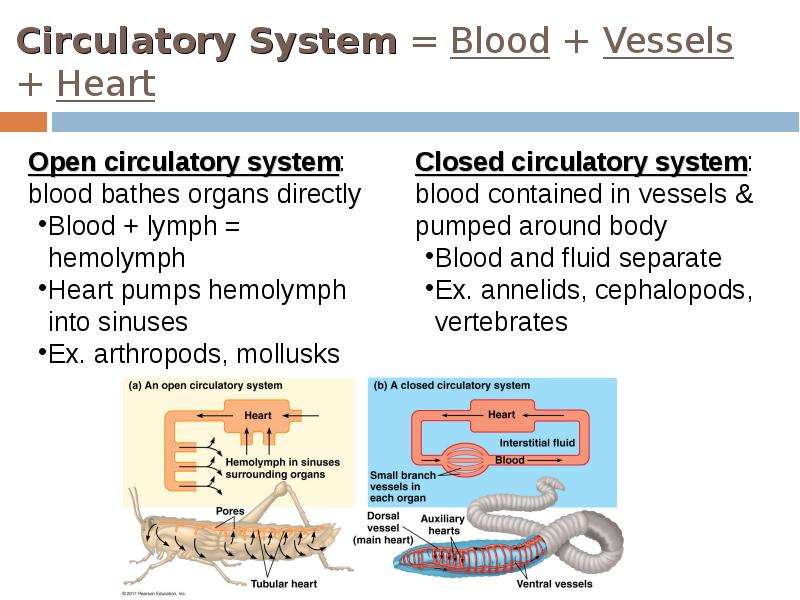

Слайд 5


Circulatory System = Blood + Vessels + Heart
Описание слайда:
Circulatory System = Blood + Vessels + Heart

Слайд 6


Figure 42.10a
Описание слайда:
Figure 42.10a

Слайд 7

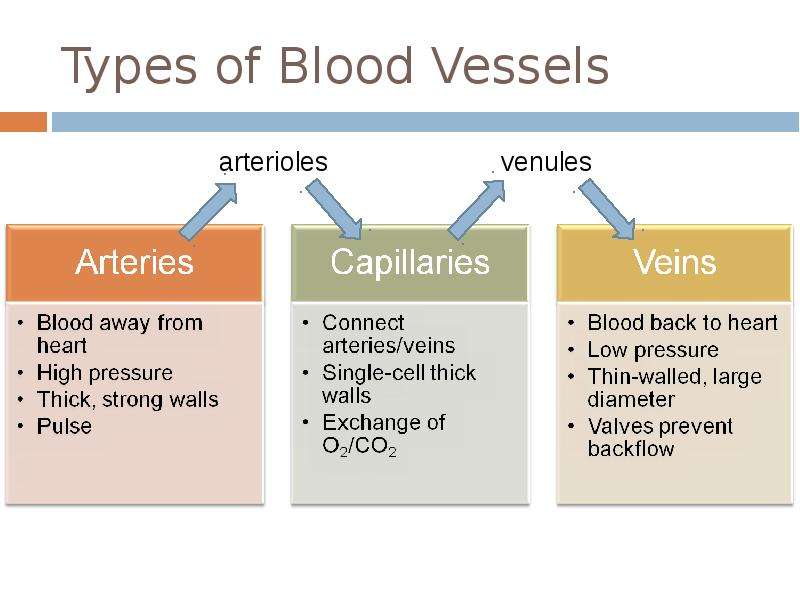

Types of Blood Vessels
Описание слайда:
Types of Blood Vessels

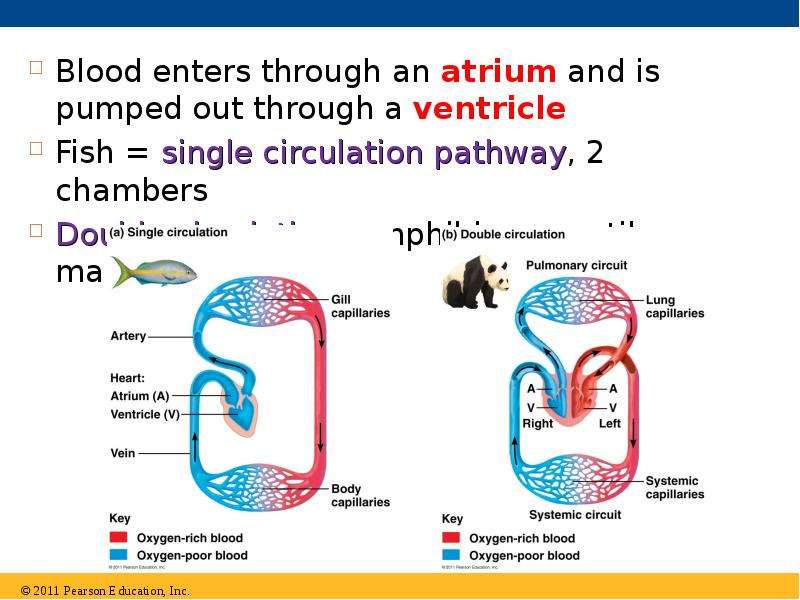

Слайд 8


Blood enters through an atrium and is pumped out through a ventricle Blood enters through an atrium and is pumped out through a ventricle Fish =...
Описание слайда:
Blood enters through an atrium and is pumped out through a ventricle Blood enters through an atrium and is pumped out through a ventricle Fish = single circulation pathway, 2 chambers Double circulation: amphibians, reptiles, mammals

Слайд 9


Double circulation pathways in vertebrates
Описание слайда:
Double circulation pathways in vertebrates

Слайд 10

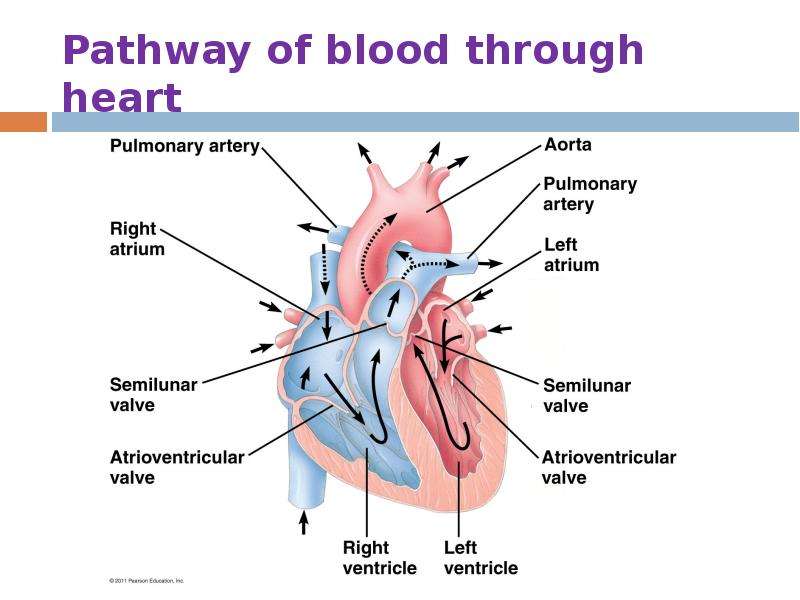

Pathway of blood through heart
Описание слайда:
Pathway of blood through heart

Слайд 11


Figure 42.6
Описание слайда:
Figure 42.6

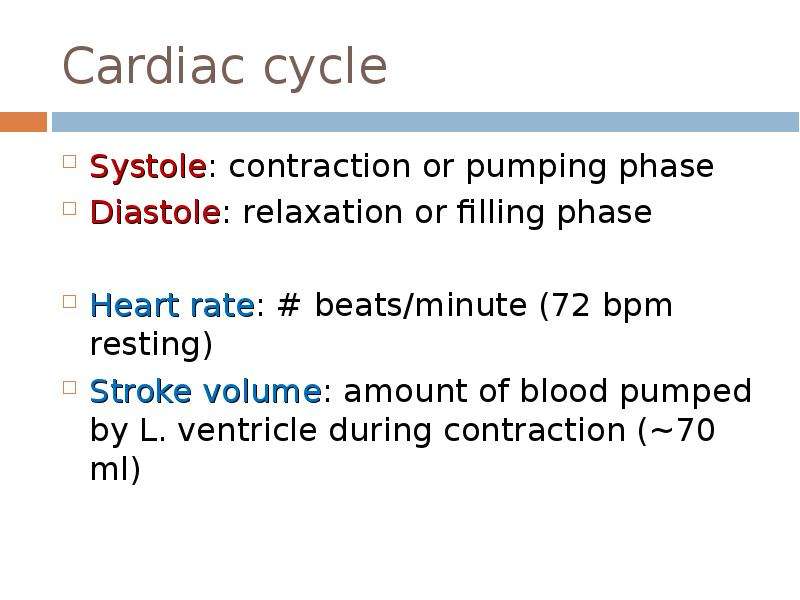

Слайд 12


Cardiac cycle Systole: contraction or pumping phase Diastole: relaxation or filling phase Heart rate: # beats/minute (72 bpm resting) Stroke volume:...
Описание слайда:
Cardiac cycle Systole: contraction or pumping phase Diastole: relaxation or filling phase Heart rate: # beats/minute (72 bpm resting) Stroke volume: amount of blood pumped by L. ventricle during contraction (~70 ml)

Слайд 13

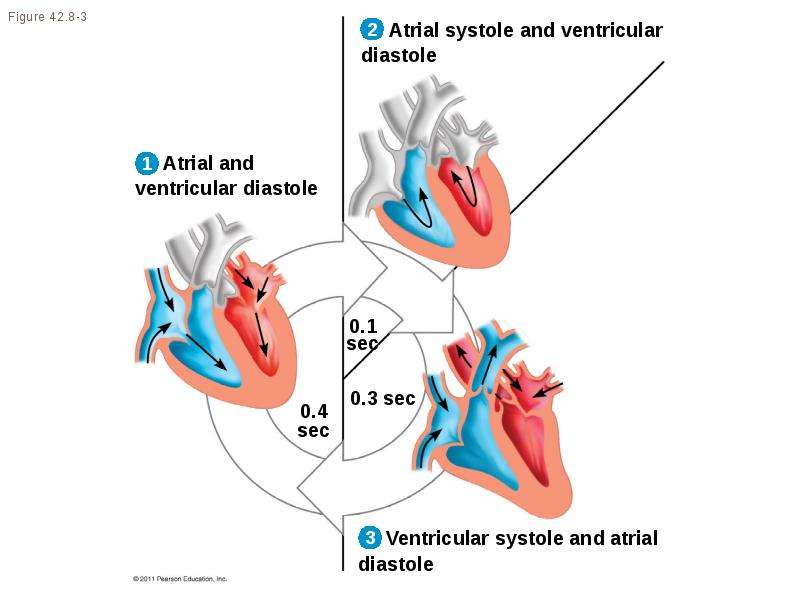

Figure 42.8-3
Описание слайда:
Figure 42.8-3

Слайд 14


Valves: prevent backflow of blood The atrioventricular (AV) valves (tricuspid, bicuspid) separate each atrium and ventricle The semilunar valves...
Описание слайда:
Valves: prevent backflow of blood The atrioventricular (AV) valves (tricuspid, bicuspid) separate each atrium and ventricle The semilunar valves control blood flow to the aorta and the pulmonary artery “Lub-dup” sound = blood against closed AV valves (lub) / the semilunar (dup) valves Heart murmur: backflow of blood through a defective valve

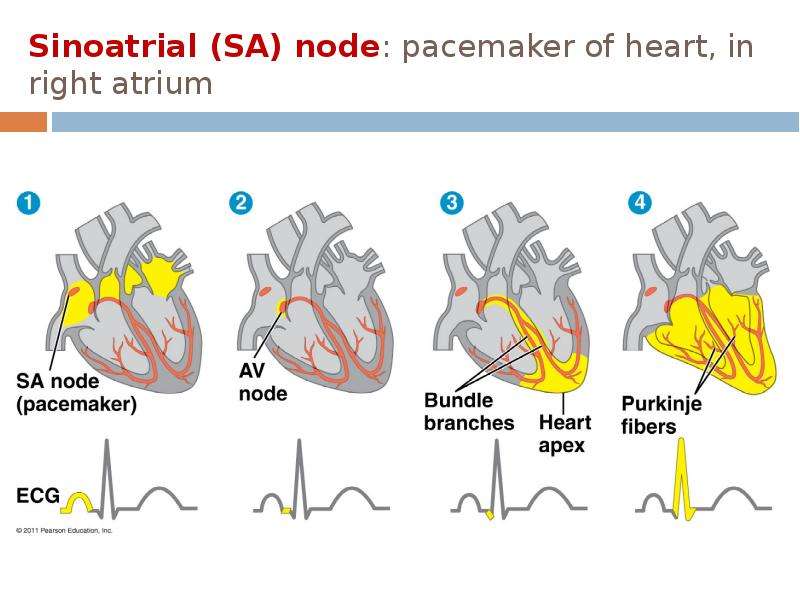

Слайд 15


Sinoatrial (SA) node: pacemaker of heart, in right atrium
Описание слайда:
Sinoatrial (SA) node: pacemaker of heart, in right atrium

Слайд 16

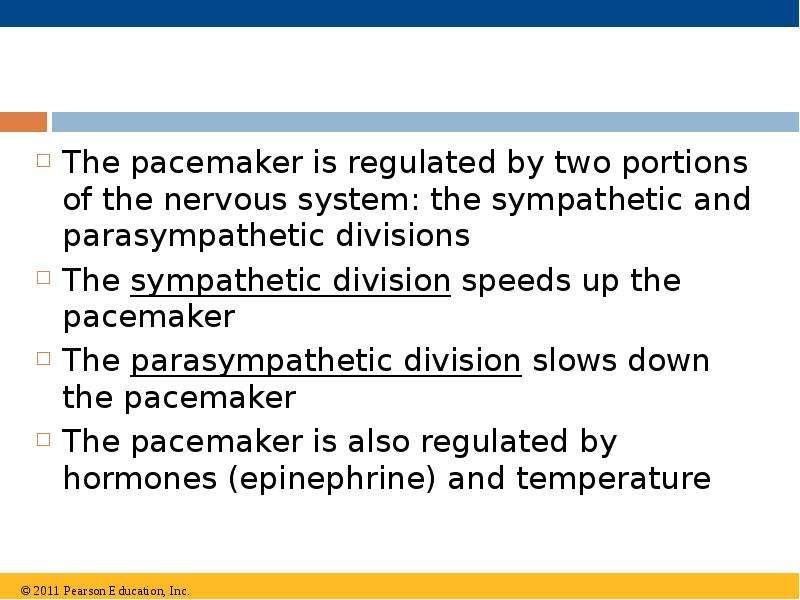

The pacemaker is regulated by two portions of the nervous system: the sympathetic and parasympathetic divisions The pacemaker is regulated by two...
Описание слайда:
The pacemaker is regulated by two portions of the nervous system: the sympathetic and parasympathetic divisions The pacemaker is regulated by two portions of the nervous system: the sympathetic and parasympathetic divisions The sympathetic division speeds up the pacemaker The parasympathetic division slows down the pacemaker The pacemaker is also regulated by hormones (epinephrine) and temperature

Слайд 17


Blood Pressure BP = systolic/diastolic pressure Systolic: heart contracts Diastolic: heart relaxed Normal: 120/70 Pulse: rhythmic bulging of artery...
Описание слайда:
Blood Pressure BP = systolic/diastolic pressure Systolic: heart contracts Diastolic: heart relaxed Normal: 120/70 Pulse: rhythmic bulging of artery walls with each heartbeat

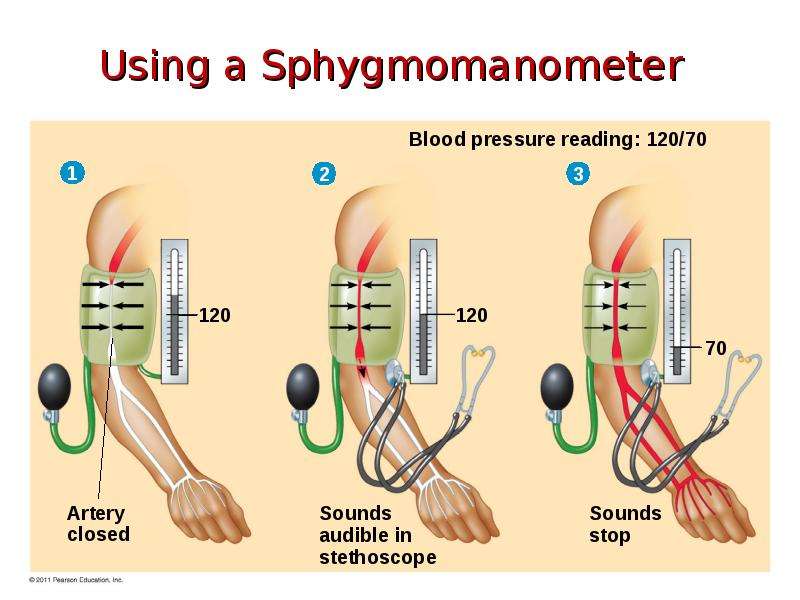

Слайд 18


Using a Sphygmomanometer
Описание слайда:
Using a Sphygmomanometer

Слайд 19


Figure 42.13
Описание слайда:
Figure 42.13

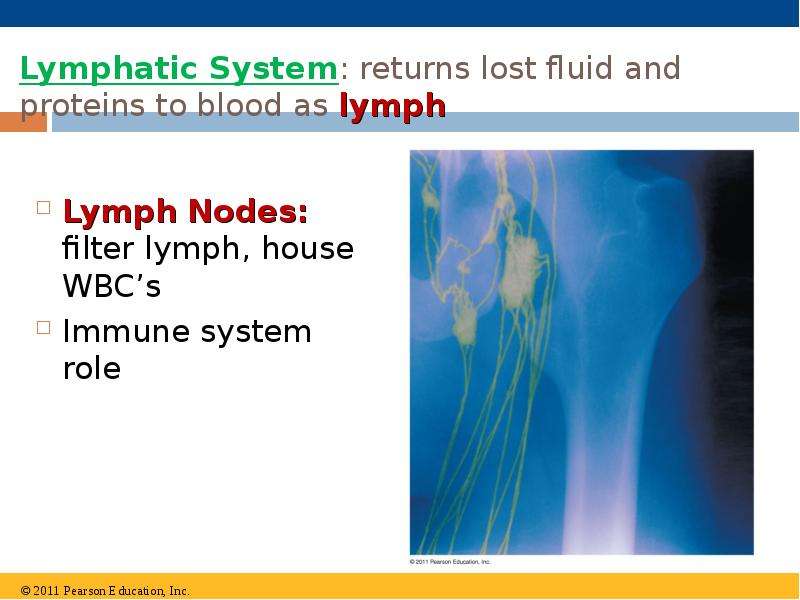

Слайд 20


Lymphatic System: returns lost fluid and proteins to blood as lymph Lymph Nodes: filter lymph, house WBC’s Immune system role
Описание слайда:
Lymphatic System: returns lost fluid and proteins to blood as lymph Lymph Nodes: filter lymph, house WBC’s Immune system role

Слайд 21

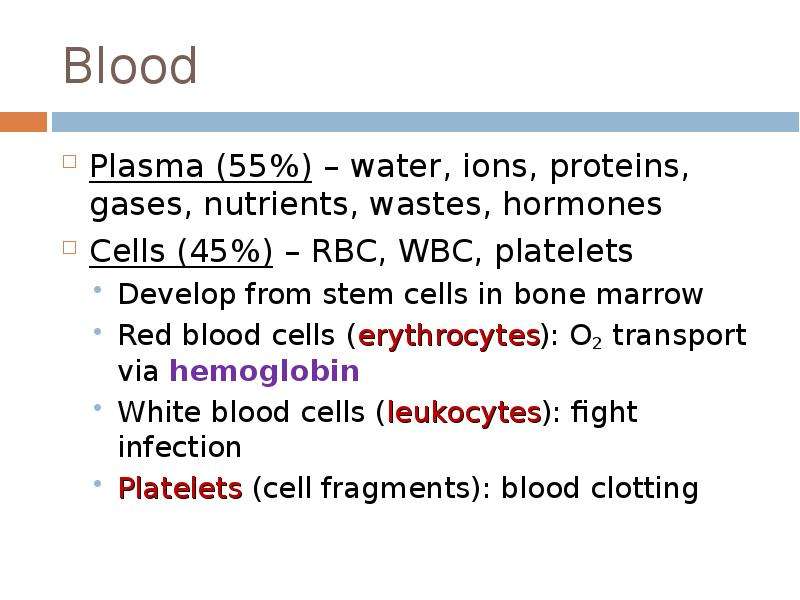

Blood Plasma (55%) – water, ions, proteins, gases, nutrients, wastes, hormones Cells (45%) – RBC, WBC, platelets Develop from stem cells in bone...
Описание слайда:
Blood Plasma (55%) – water, ions, proteins, gases, nutrients, wastes, hormones Cells (45%) – RBC, WBC, platelets Develop from stem cells in bone marrow Red blood cells (erythrocytes): O2 transport via hemoglobin White blood cells (leukocytes): fight infection Platelets (cell fragments): blood clotting

Слайд 22


Figure 42.17
Описание слайда:
Figure 42.17

Слайд 23


Figure 42.18
Описание слайда:
Figure 42.18

Слайд 24


Cardiovascular Disease Atherosclerosis: buildup of plaque deposits within arteries Heart attack (myocardial infarction): blockage of one or more...
Описание слайда:
Cardiovascular Disease Atherosclerosis: buildup of plaque deposits within arteries Heart attack (myocardial infarction): blockage of one or more coronary arteries Stroke: rupture or blockage of arteries in the head Hypertension: high blood pressure; promotes atherosclerosis and increases the risk of heart attack and stroke

Слайд 25

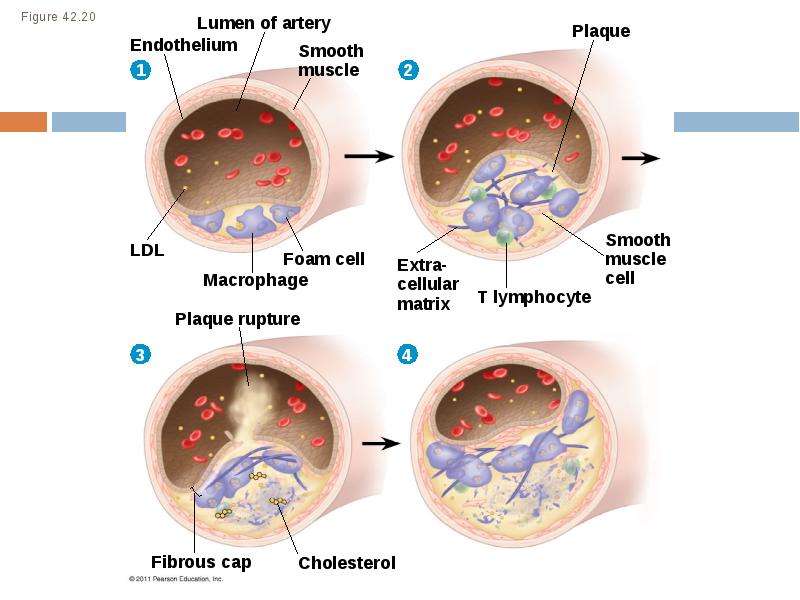

Figure 42.20
Описание слайда:
Figure 42.20
