Слайд 1


Introduction to Vectors Karashbayeva Zh.O.
Описание слайда:
Introduction to Vectors Karashbayeva Zh.O.

Слайд 2

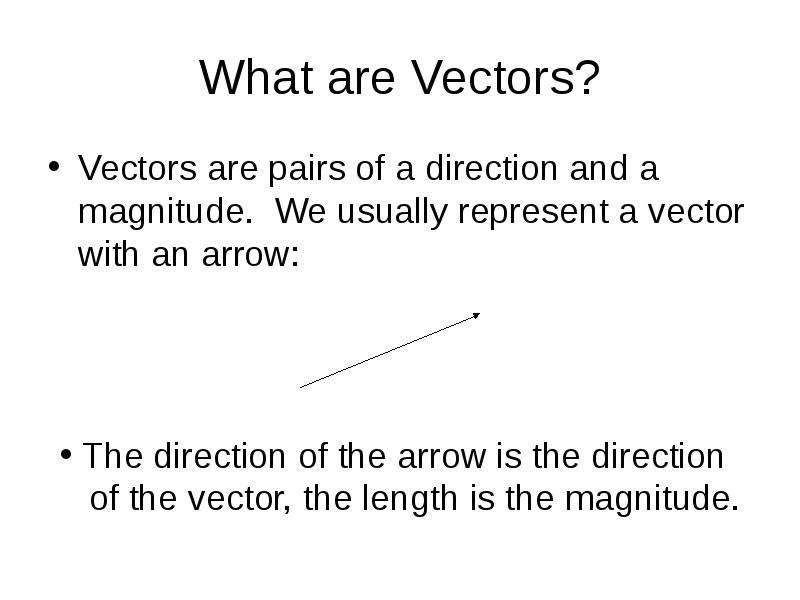

What are Vectors? Vectors are pairs of a direction and a magnitude. We usually represent a vector with an arrow:
Описание слайда:
What are Vectors? Vectors are pairs of a direction and a magnitude. We usually represent a vector with an arrow:

Слайд 3

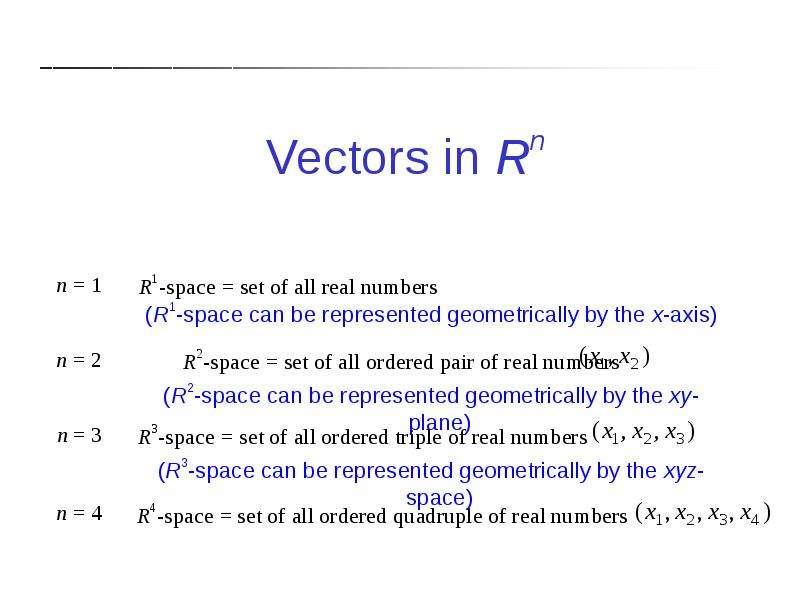

Vectors in Rn
Описание слайда:
Vectors in Rn

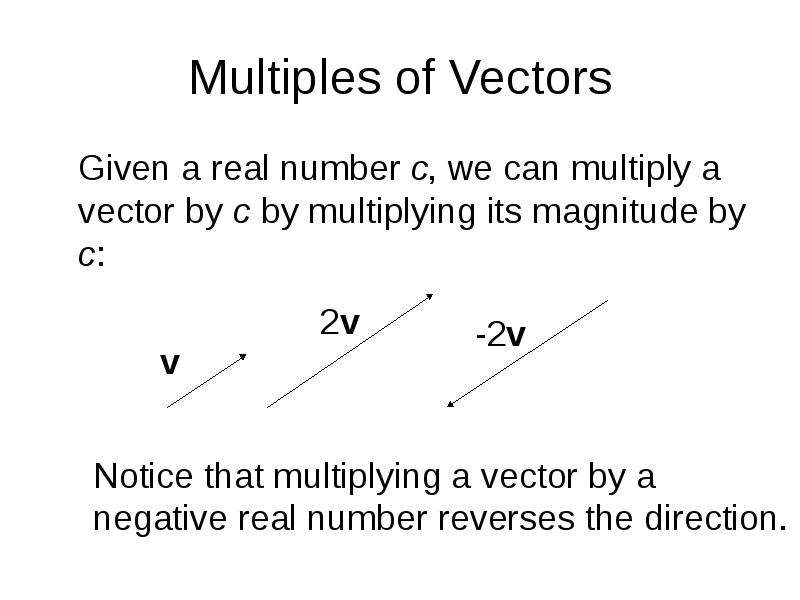

Слайд 4


Multiples of Vectors Given a real number c, we can multiply a vector by c by multiplying its magnitude by c:
Описание слайда:
Multiples of Vectors Given a real number c, we can multiply a vector by c by multiplying its magnitude by c:

Слайд 5

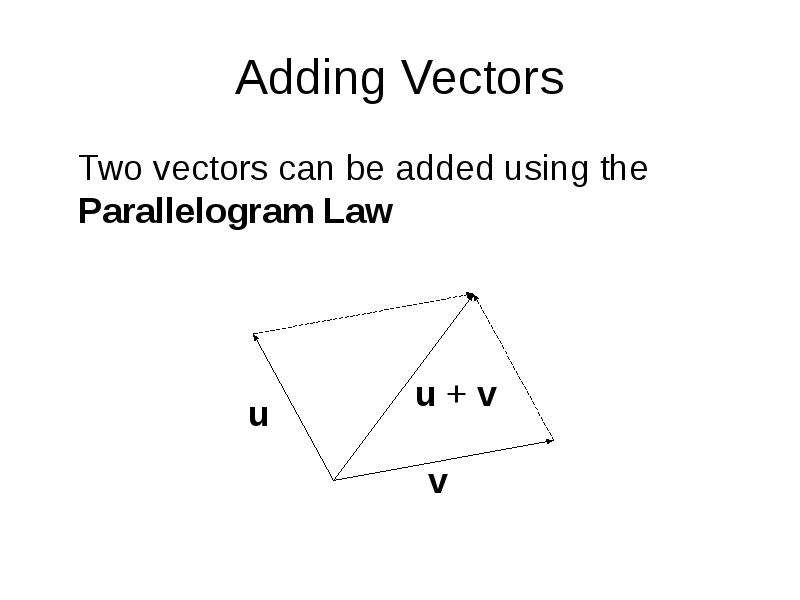

Adding Vectors Two vectors can be added using the Parallelogram Law
Описание слайда:
Adding Vectors Two vectors can be added using the Parallelogram Law

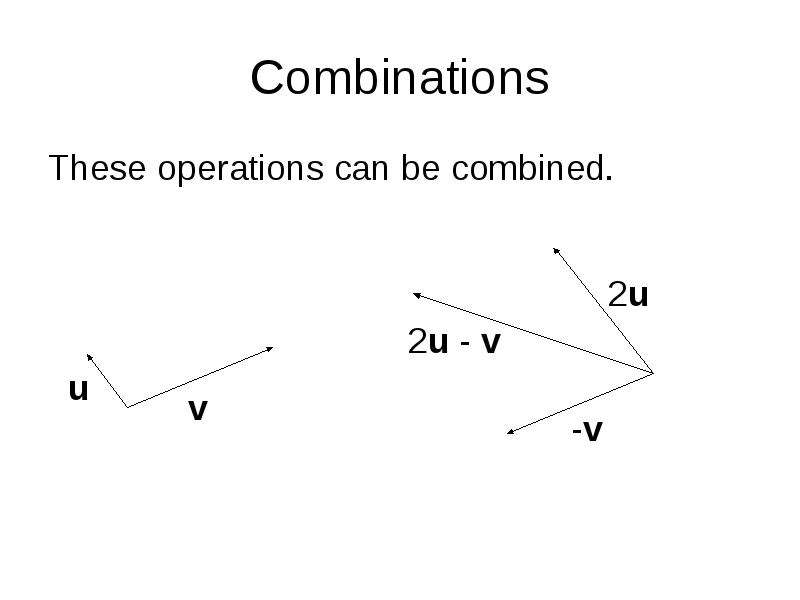

Слайд 6


Combinations These operations can be combined.
Описание слайда:
Combinations These operations can be combined.

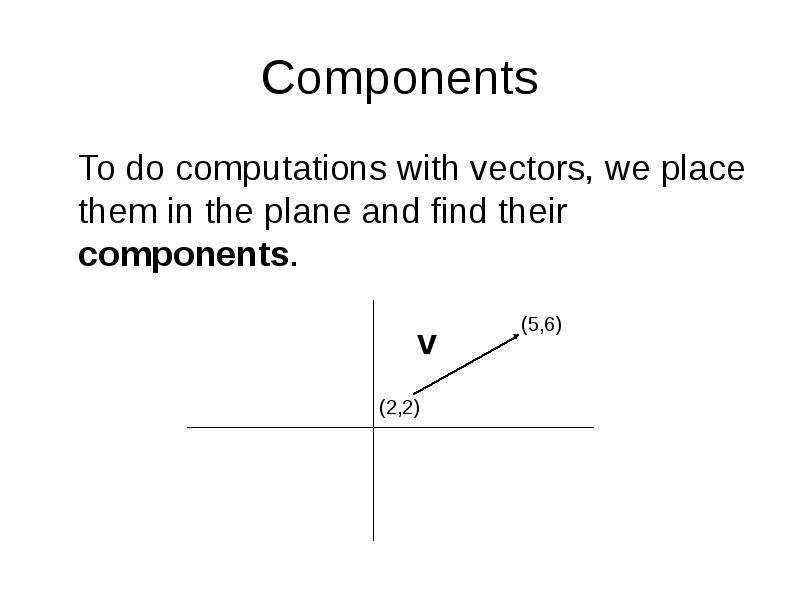

Слайд 7


Components To do computations with vectors, we place them in the plane and find their components.
Описание слайда:
Components To do computations with vectors, we place them in the plane and find their components.

Слайд 8


Components The initial point is the tail, the head is the terminal point. The components are obtained by subtracting coordinates of the initial point from those of the terminal point.
Описание слайда:
Components The initial point is the tail, the head is the terminal point. The components are obtained by subtracting coordinates of the initial point from those of the terminal point.

Слайд 9


Components The first component of v is 5 -2 = 3. The second is 6 -2 = 4. We write v = <3,4>
Описание слайда:
Components The first component of v is 5 -2 = 3. The second is 6 -2 = 4. We write v = <3,4>

Слайд 10

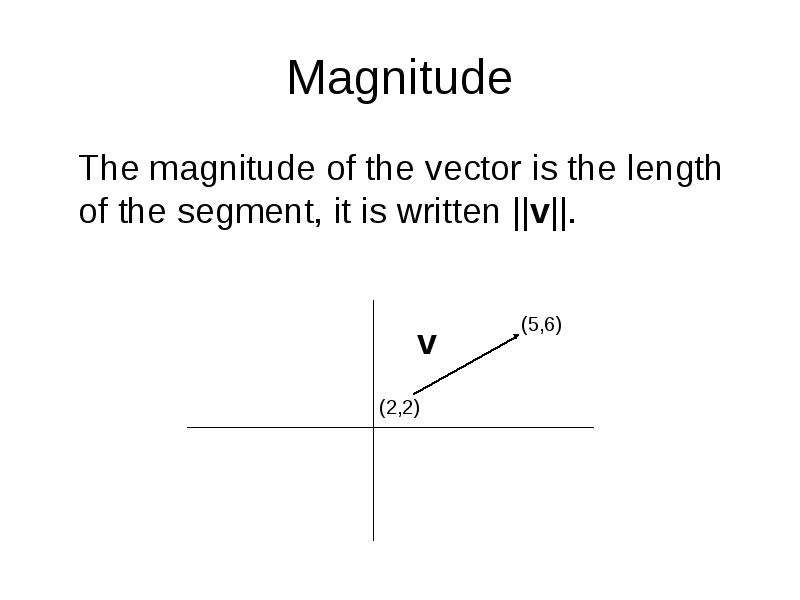

Magnitude The magnitude of the vector is the length of the segment, it is written ||v||.
Описание слайда:
Magnitude The magnitude of the vector is the length of the segment, it is written ||v||.

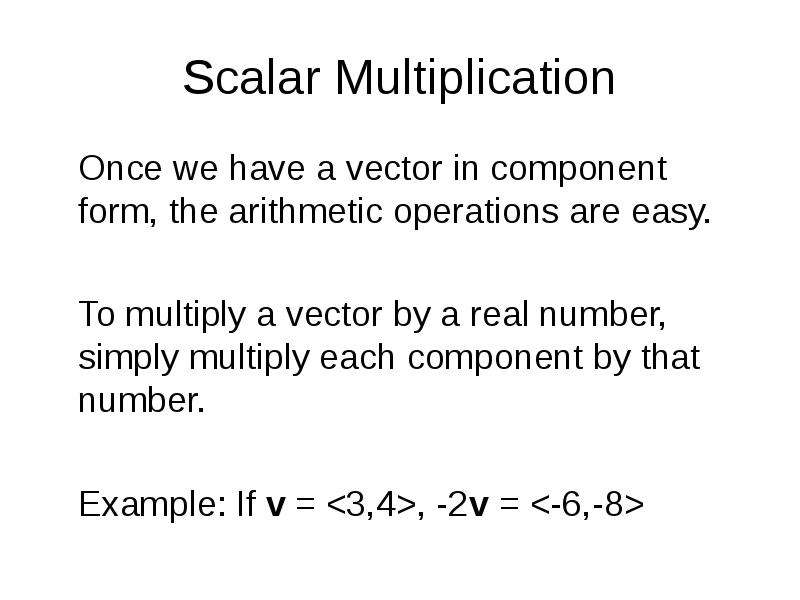

Слайд 11


Scalar Multiplication Once we have a vector in component form, the arithmetic operations are easy. To multiply a vector by a real number, simply multiply each component by that number. Example: If v = <3,4>, -2v = <-6,-8>
Описание слайда:
Scalar Multiplication Once we have a vector in component form, the arithmetic operations are easy. To multiply a vector by a real number, simply multiply each component by that number. Example: If v = <3,4>, -2v = <-6,-8>

Слайд 12

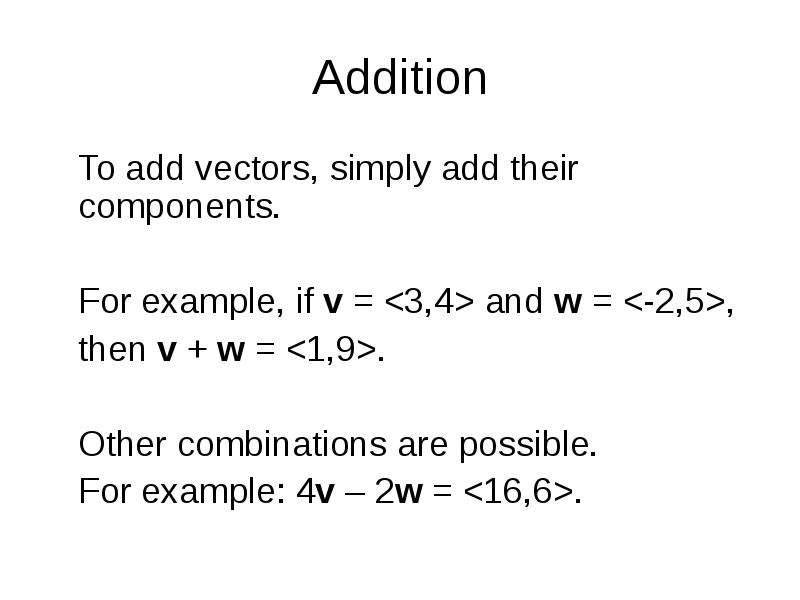

Addition To add vectors, simply add their components. For example, if v = <3,4> and w = <-2,5>, then v + w = <1,9>. Other combinations are possible. For example: 4v – 2w = <16,6>.
Описание слайда:
Addition To add vectors, simply add their components. For example, if v = <3,4> and w = <-2,5>, then v + w = <1,9>. Other combinations are possible. For example: 4v – 2w = <16,6>.

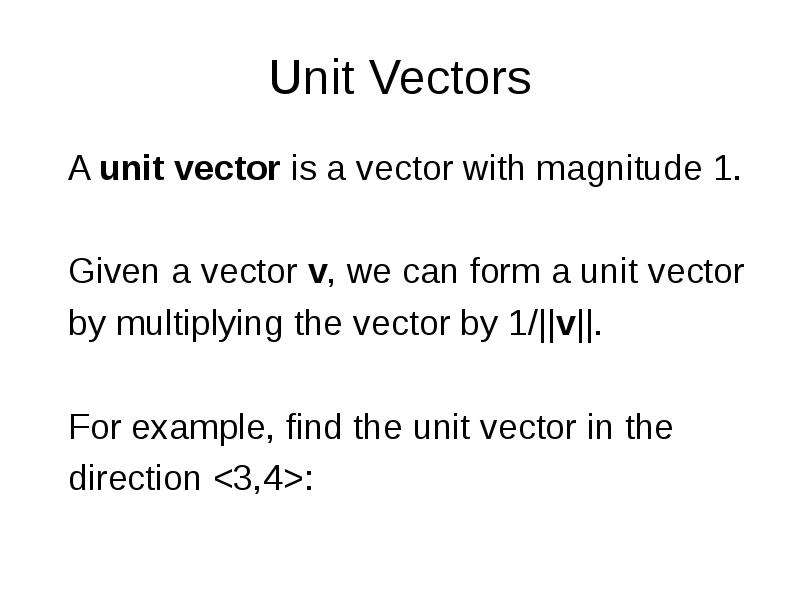

Слайд 13


Unit Vectors A unit vector is a vector with magnitude 1. Given a vector v, we can form a unit vector by multiplying the vector by 1/||v||. For example, find the unit vector in the direction <3,4>:
Описание слайда:
Unit Vectors A unit vector is a vector with magnitude 1. Given a vector v, we can form a unit vector by multiplying the vector by 1/||v||. For example, find the unit vector in the direction <3,4>:

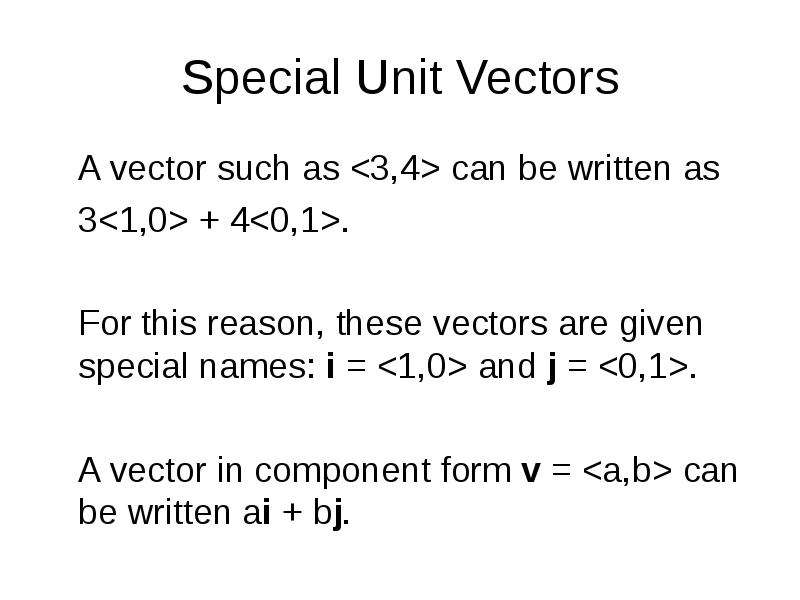

Слайд 14


Special Unit Vectors A vector such as <3,4> can be written as 3<1,0> + 4<0,1>. For this reason, these vectors are given special names: i = <1,0> and j = <0,1>. A vector in component form v = <a,b> can be written ai + bj.
Описание слайда:
Special Unit Vectors A vector such as <3,4> can be written as 3<1,0> + 4<0,1>. For this reason, these vectors are given special names: i = <1,0> and j = <0,1>. A vector in component form v = <a,b> can be written ai + bj.

Слайд 15

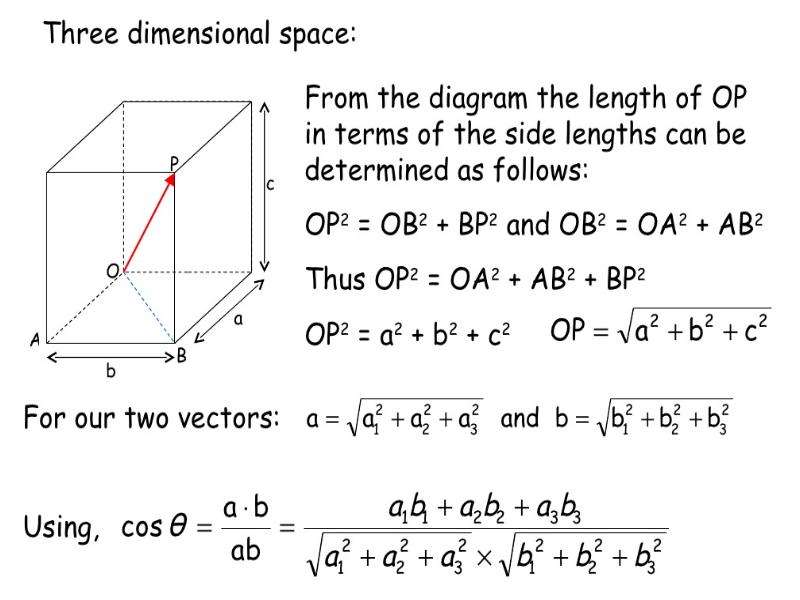

Introduction to vectors, слайд №15
Описание слайда:

Слайд 16


Introduction to vectors, слайд №16
Описание слайда:

Слайд 17

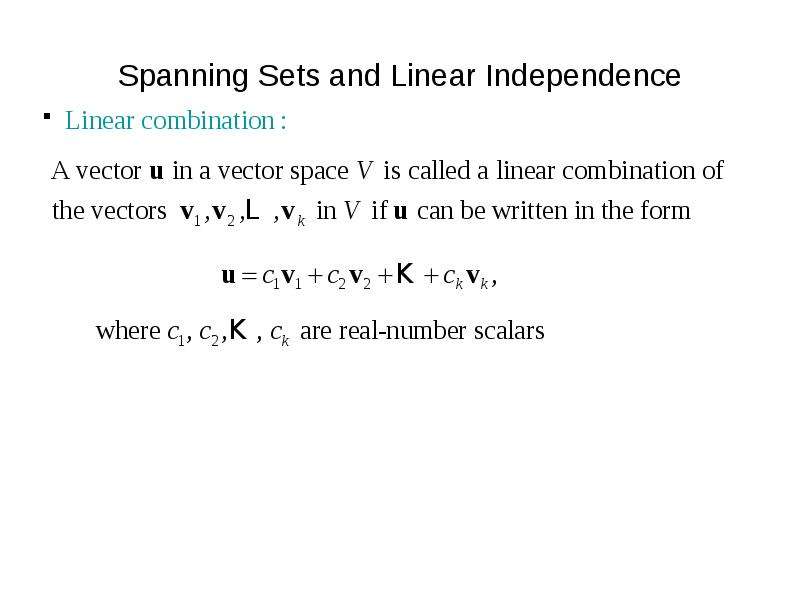

Spanning Sets and Linear Independence
Описание слайда:
Spanning Sets and Linear Independence

Слайд 18

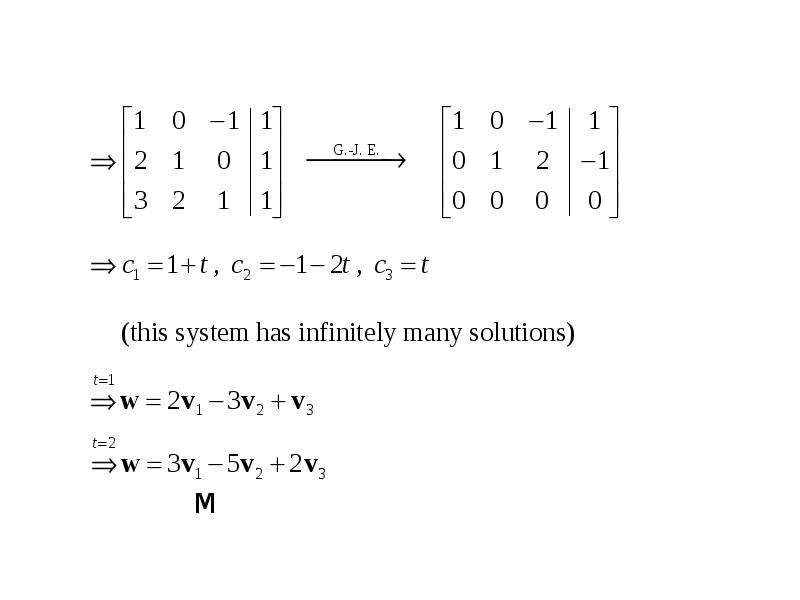

Introduction to vectors, слайд №18
Описание слайда:

Слайд 19


Introduction to vectors, слайд №19
Описание слайда:

Слайд 20


Introduction to vectors, слайд №20
Описание слайда:

Слайд 21


Introduction to vectors, слайд №21
Описание слайда:

Слайд 22


Introduction to vectors, слайд №22
Описание слайда:

Слайд 23


Introduction to vectors, слайд №23
Описание слайда:

Слайд 24


Introduction to vectors, слайд №24
Описание слайда:

Слайд 25


Introduction to vectors, слайд №25
Описание слайда:

Слайд 26


Introduction to vectors, слайд №26
Описание слайда:

Слайд 27


EX: Testing for linear independence EX: Testing for linear independence Determine whether the following set of vectors in P2 is L.I. or L.D.
Описание слайда:
EX: Testing for linear independence EX: Testing for linear independence Determine whether the following set of vectors in P2 is L.I. or L.D.

Слайд 28

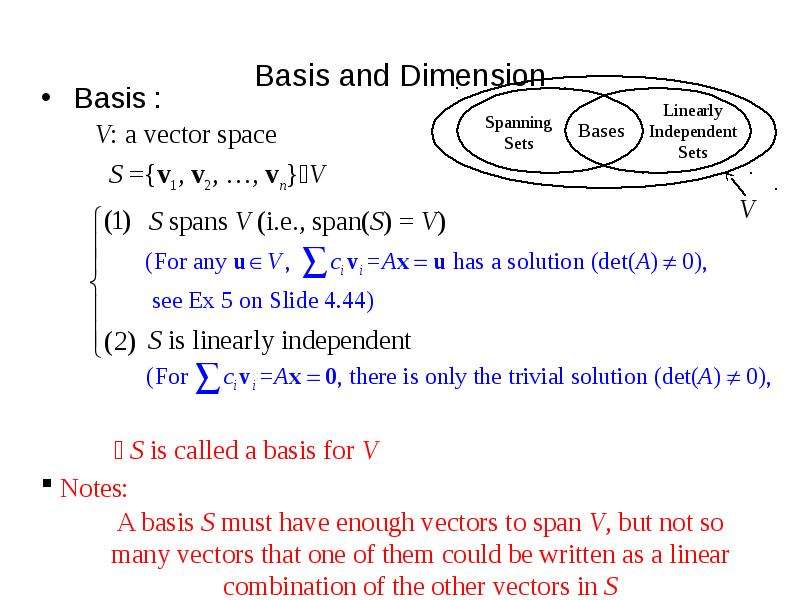

Basis and Dimension Basis :
Описание слайда:
Basis and Dimension Basis :

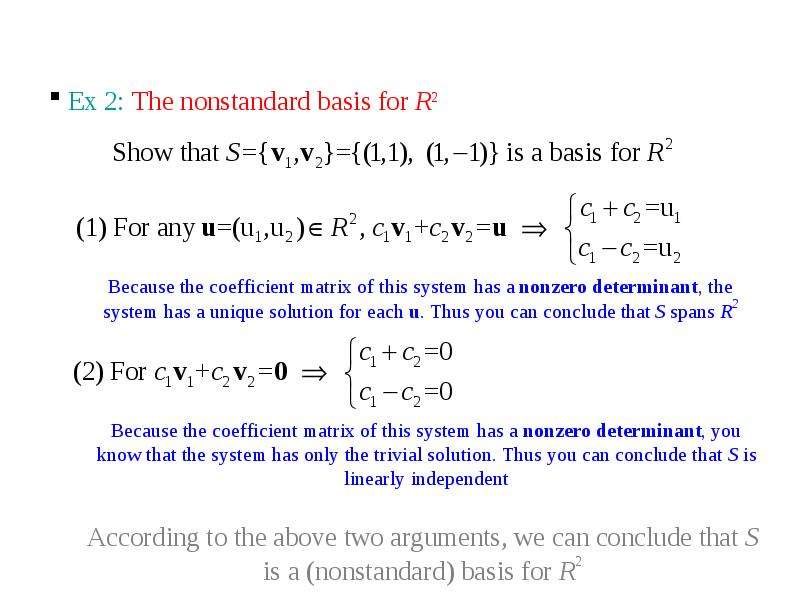

Слайд 29


Introduction to vectors, слайд №29
Описание слайда:

Слайд 30


Introduction to vectors, слайд №30
Описание слайда:

Слайд 31


Introduction to vectors, слайд №31
Описание слайда:
