Слайд 1

Описание слайда:

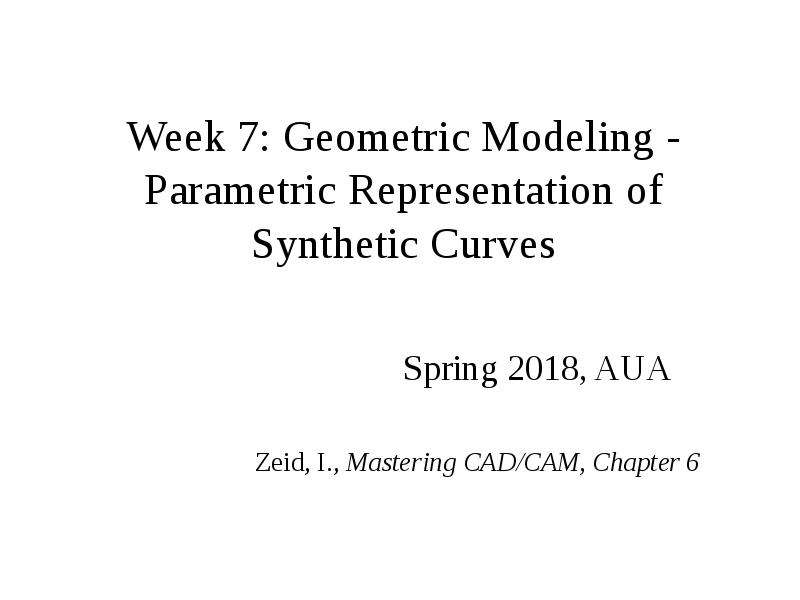

Week 7: Geometric Modeling - Parametric Representation of Synthetic Curves Spring 2018, AUA

Слайд 2

Описание слайда:

Planar vs. Space

Слайд 3

Описание слайда:

Analytic (known form) vs. Synthetic (free form)

Слайд 4

Описание слайда:

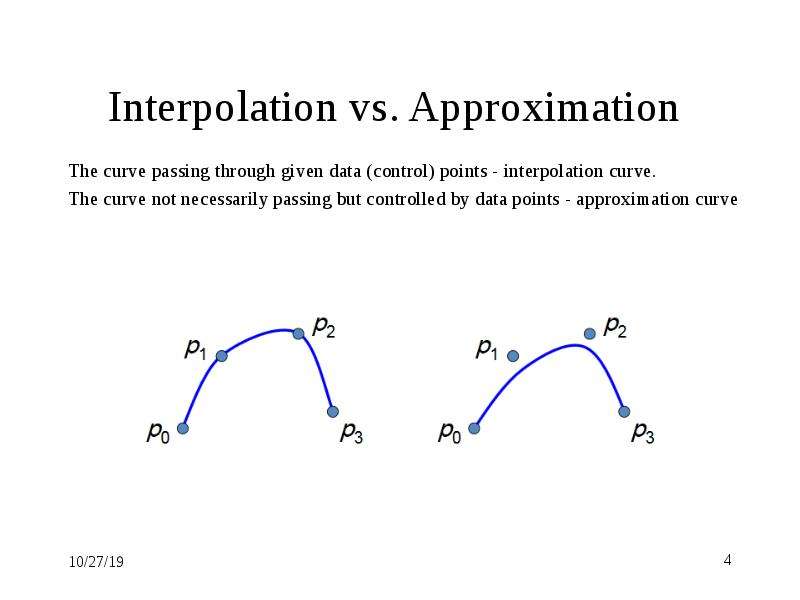

Interpolation vs. Approximation The curve passing through given data (control) points - interpolation curve. The curve not necessarily passing but controlled by data points - approximation curve

Слайд 5

Описание слайда:

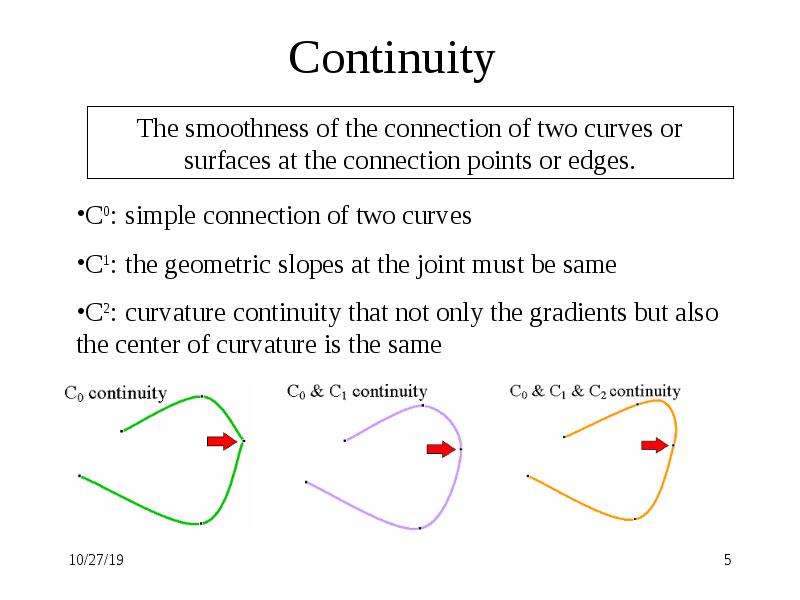

Continuity

Слайд 6

Описание слайда:

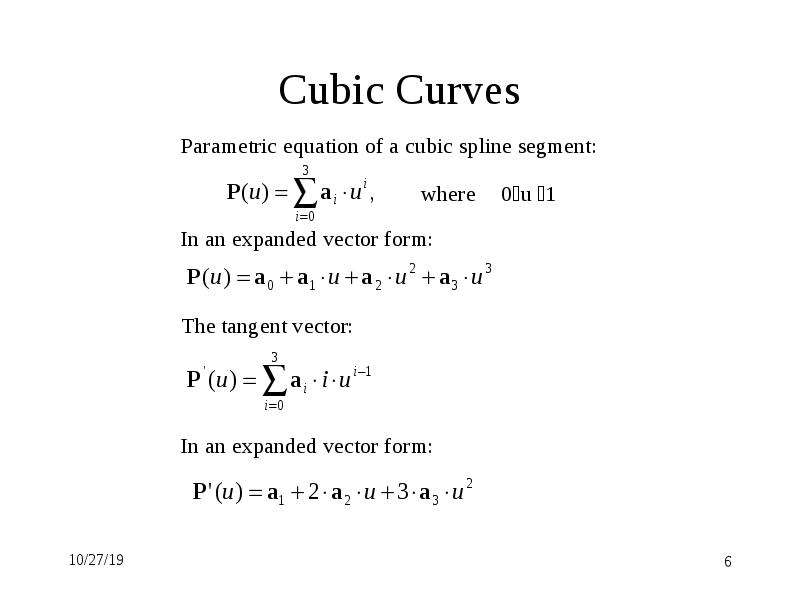

Cubic Curves

Слайд 7

Описание слайда:

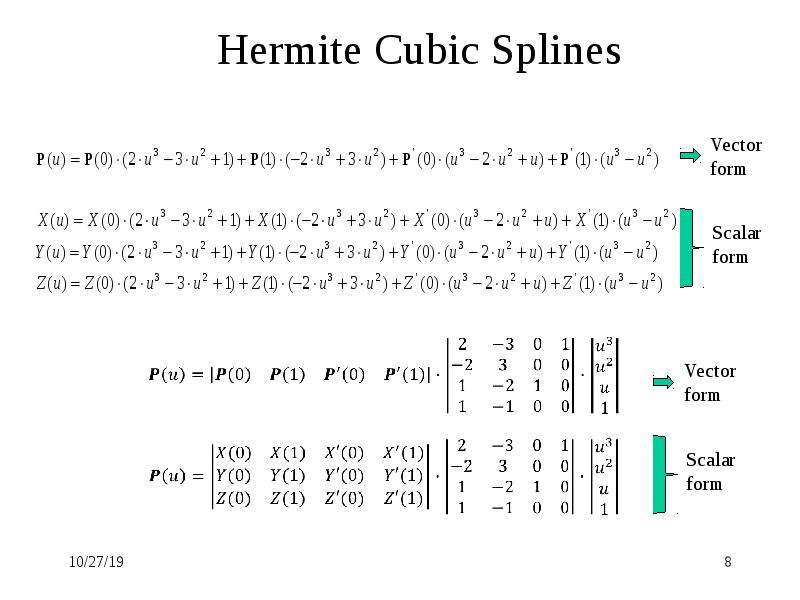

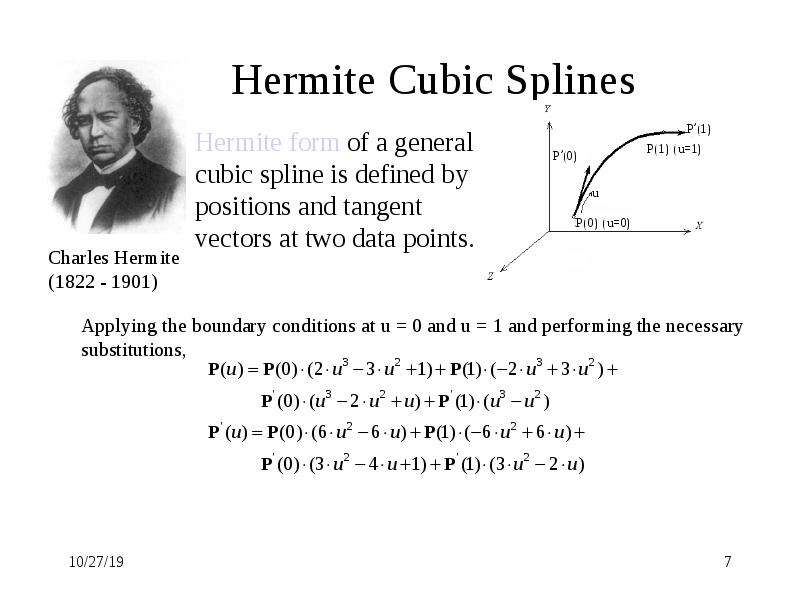

Hermite Cubic Splines

Слайд 8

Описание слайда:

Hermite Cubic Splines

Слайд 9

Описание слайда:

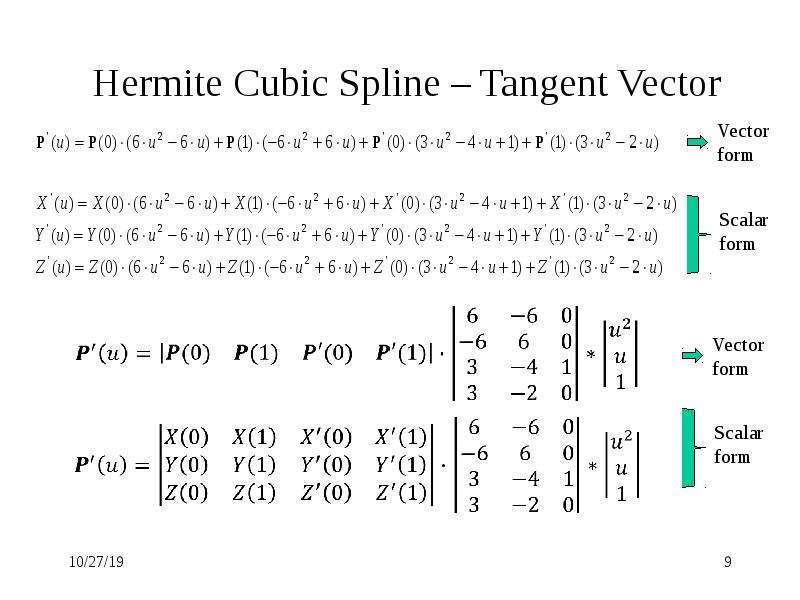

Hermite Cubic Spline – Tangent Vector

Слайд 10

Описание слайда:

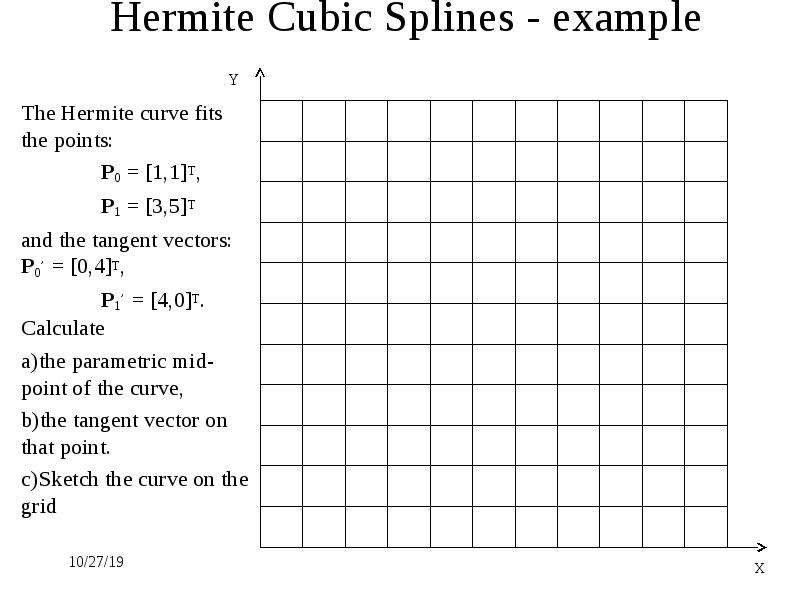

Hermite Cubic Splines - example The Hermite curve fits the points: P0 = [1,1]T, P1 = [3,5]T and the tangent vectors: P0’ = [0,4]T, P1’ = [4,0]T. Calculate the parametric mid-point of the curve, the tangent vector on that point. Sketch the curve on the grid

Слайд 11

Описание слайда:

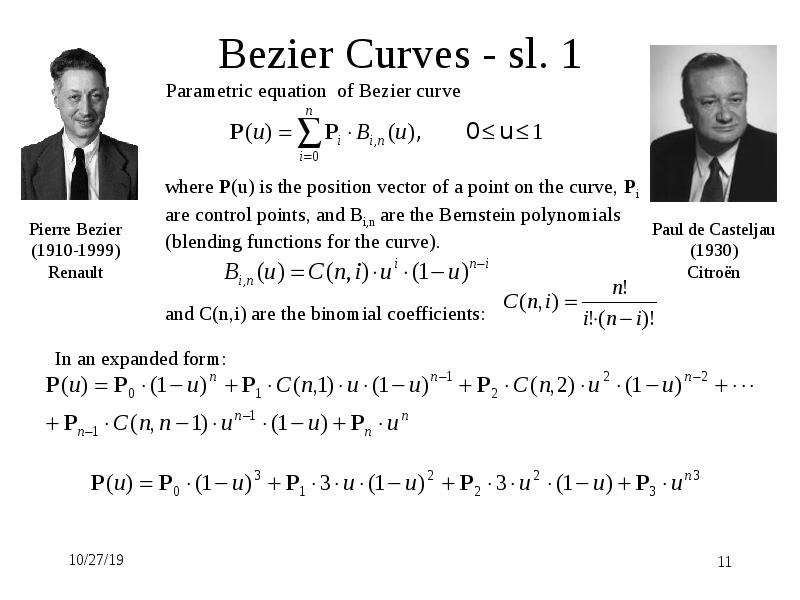

Bezier Curves - sl. 1

Слайд 12

Описание слайда:

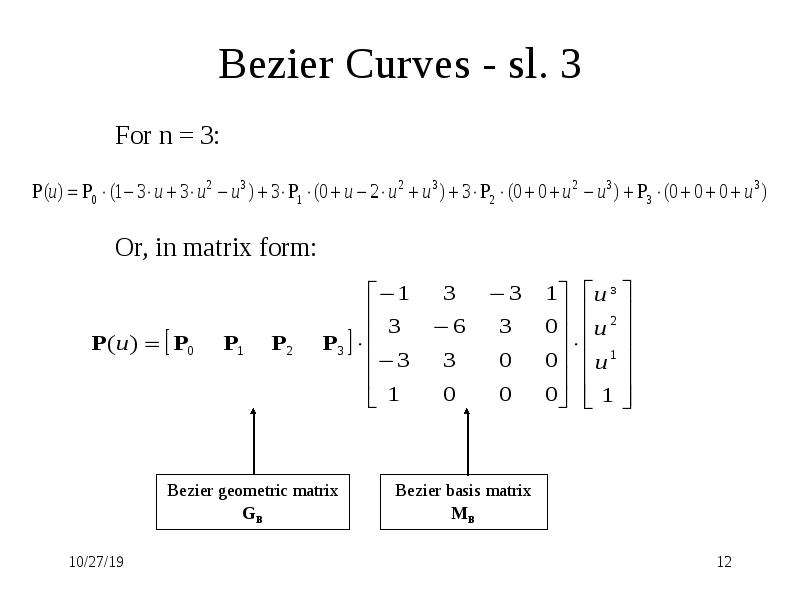

Bezier Curves - sl. 3

Слайд 13

Описание слайда:

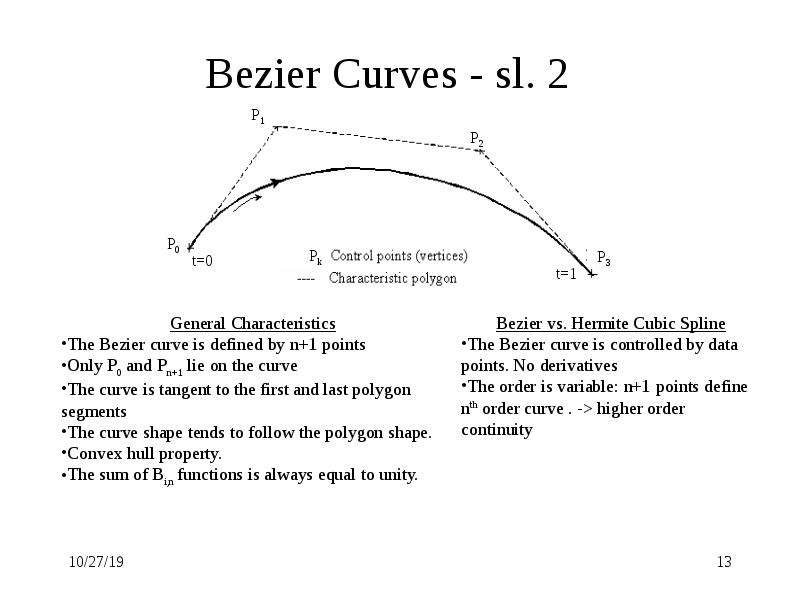

Bezier Curves - sl. 2

Слайд 14

Описание слайда:

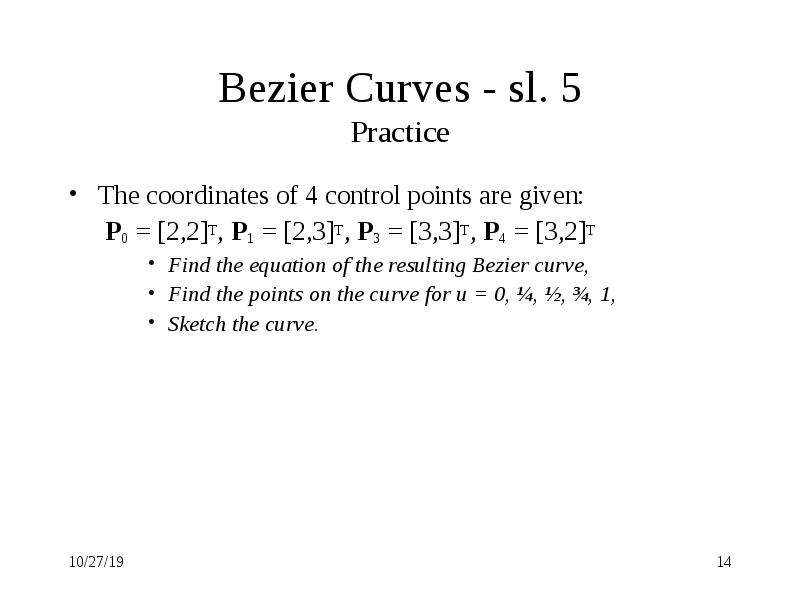

Bezier Curves - sl. 5 Practice The coordinates of 4 control points are given: P0 = [2,2]T, P1 = [2,3]T, P3 = [3,3]T, P4 = [3,2]T Find the equation of the resulting Bezier curve, Find the points on the curve for u = 0, ¼, ½, ¾, 1, Sketch the curve.

Слайд 15

Описание слайда:

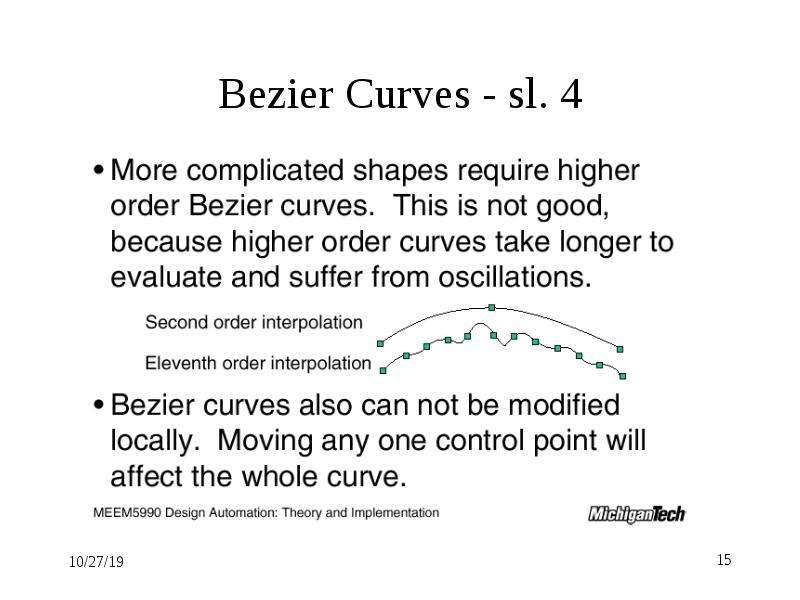

Bezier Curves - sl. 4

Слайд 16

Описание слайда:

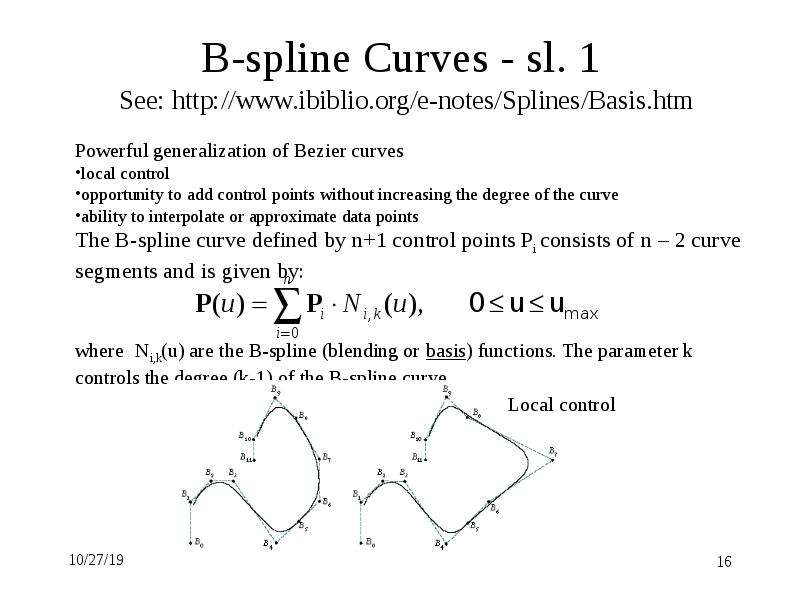

B-spline Curves - sl. 1 See:

Слайд 17

Описание слайда:

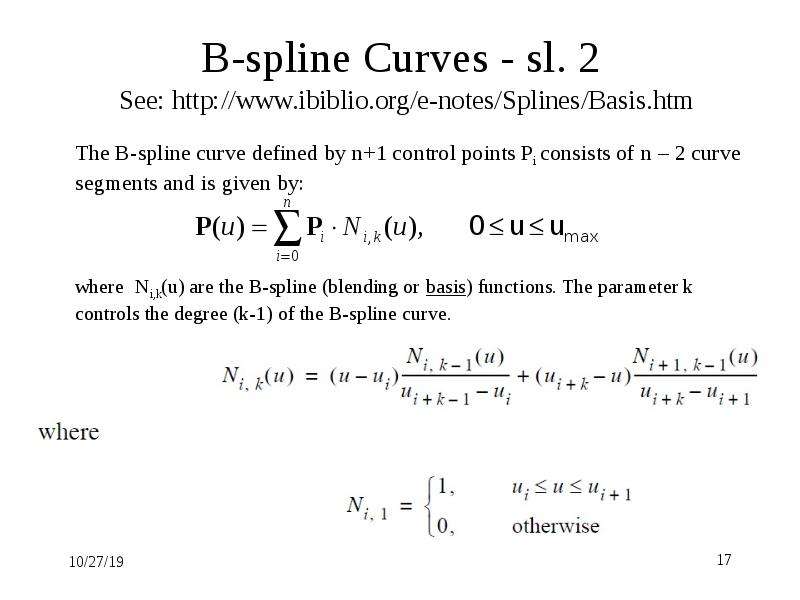

B-spline Curves - sl. 2 See:

Слайд 18

Описание слайда:

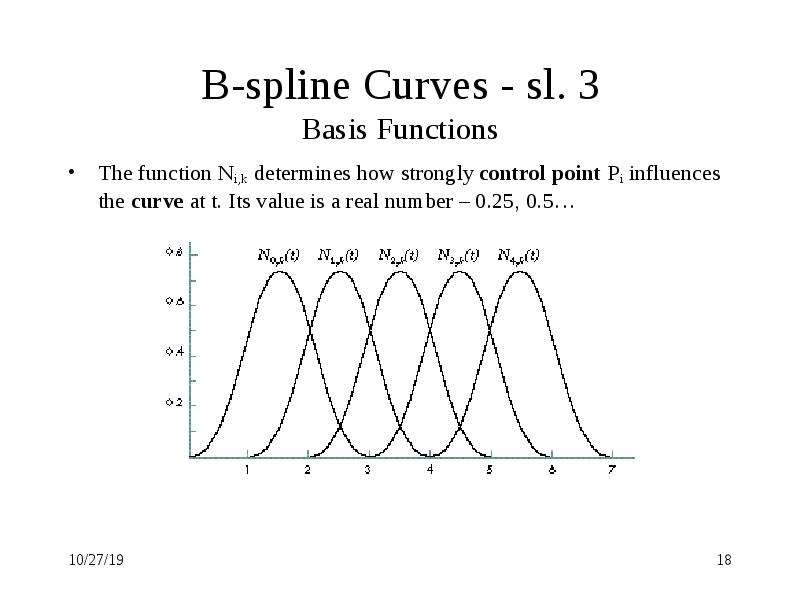

B-spline Curves - sl. 3 Basis Functions The function Ni,k determines how strongly control point Pi influences the curve at t. Its value is a real number – 0.25, 0.5…
