Слайд 1

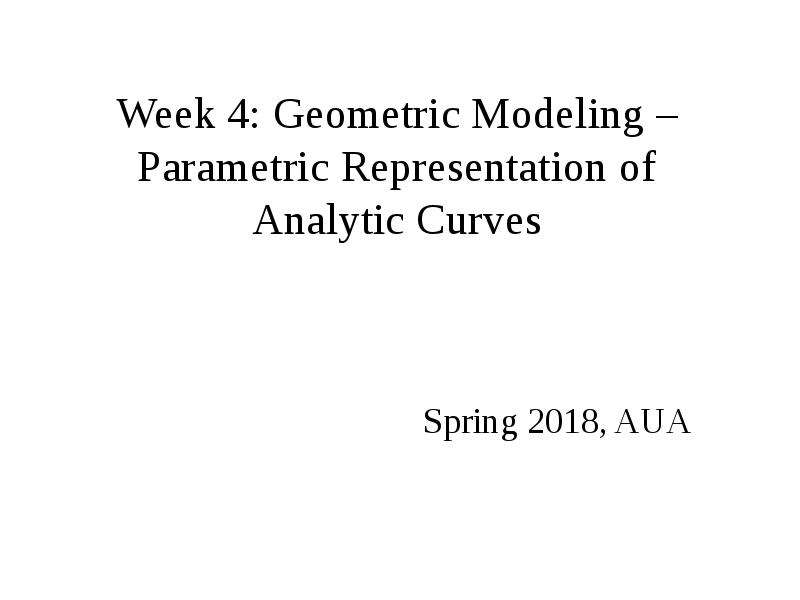

Week 4: Geometric Modeling – Parametric Representation of Analytic Curves Spring 2018, AUA
Описание слайда:
Week 4: Geometric Modeling – Parametric Representation of Analytic Curves Spring 2018, AUA

Слайд 2

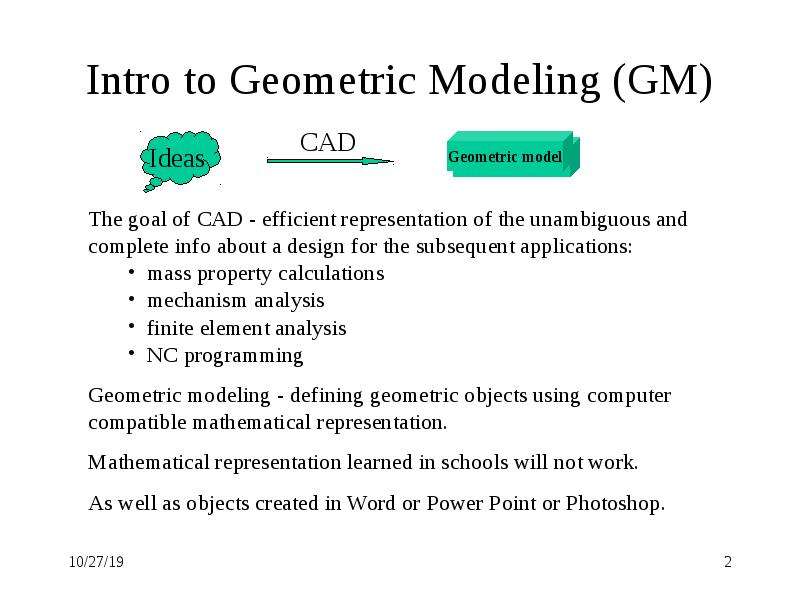

Intro to Geometric Modeling (GM)
Описание слайда:
Intro to Geometric Modeling (GM)

Слайд 3

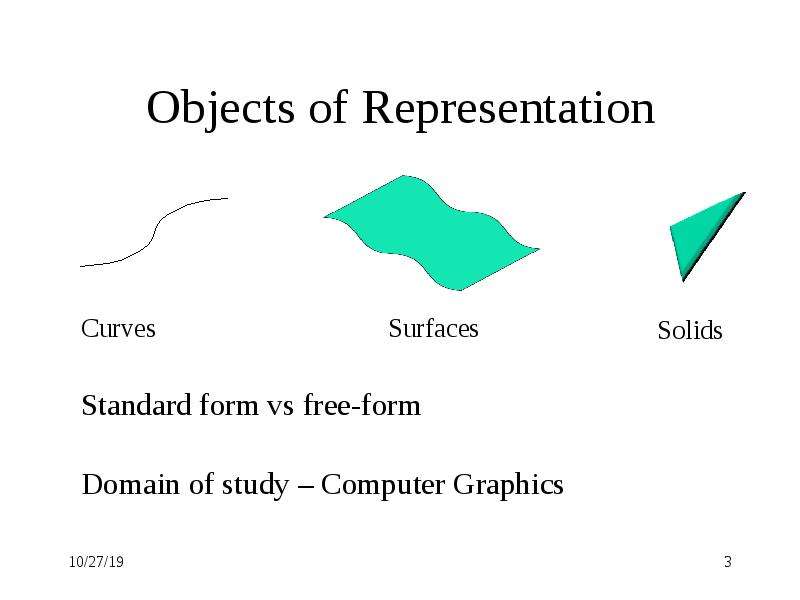

Objects of Representation
Описание слайда:
Objects of Representation

Слайд 4

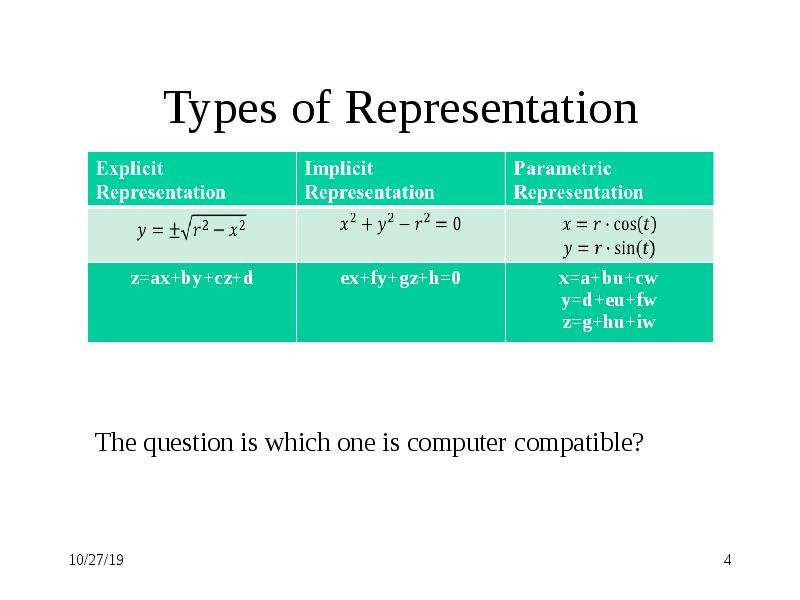

Types of Representation
Описание слайда:
Types of Representation

Слайд 5

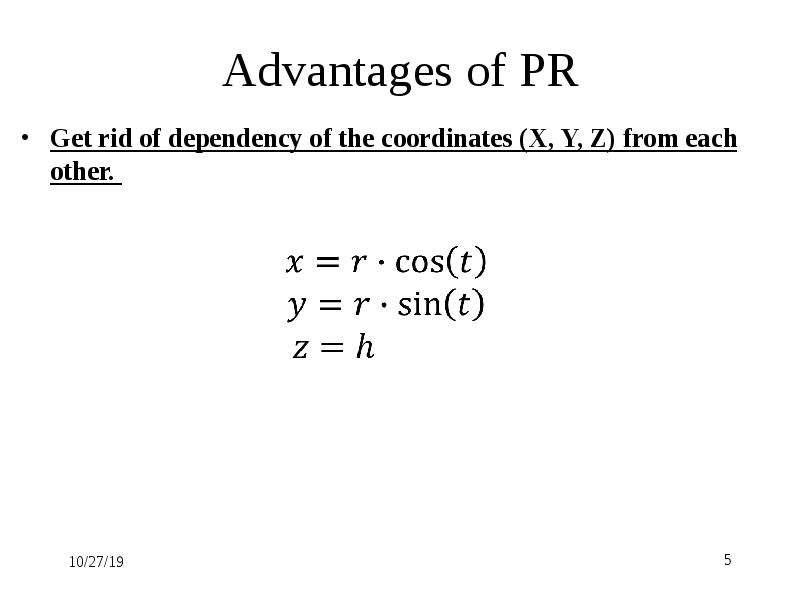

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other.
Описание слайда:
Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other.

Слайд 6

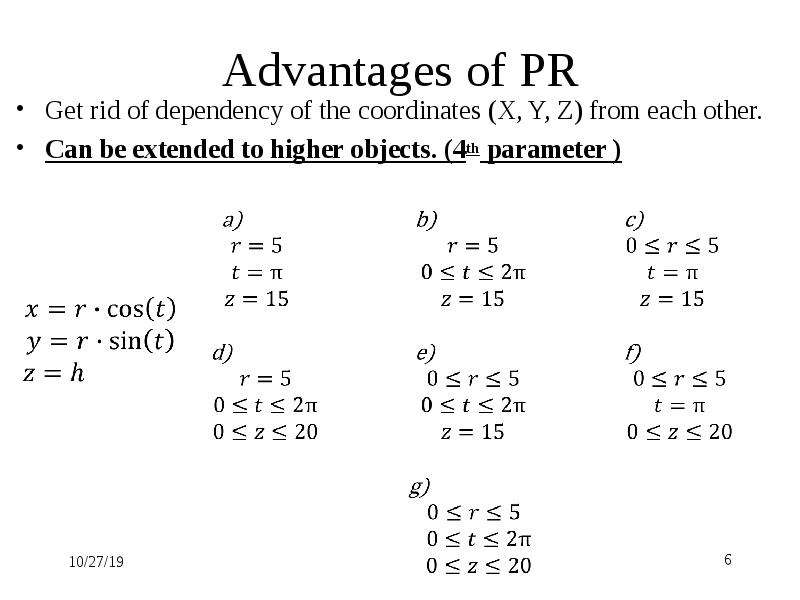

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter )
Описание слайда:
Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter )

Слайд 7

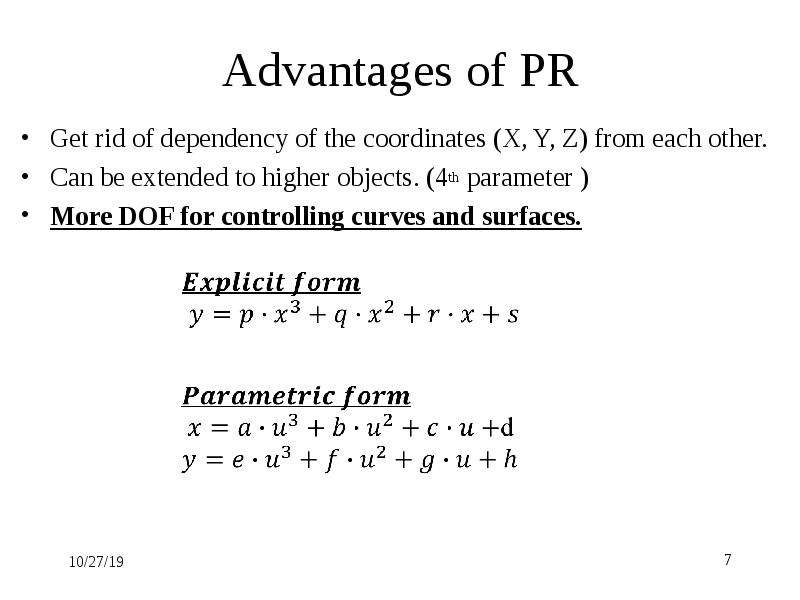

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:
Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces.

Слайд 8


Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:

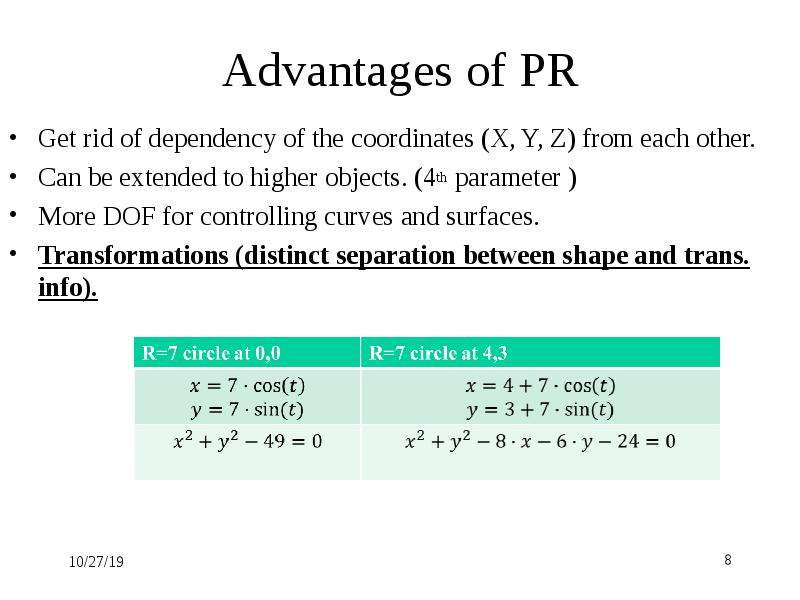

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces. Transformations (distinct separation between shape and trans. info).

Слайд 9


Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:

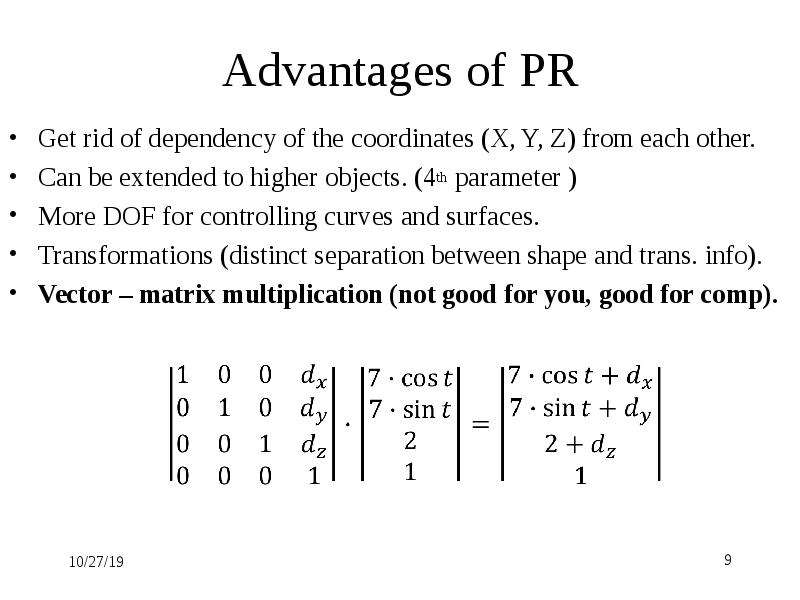

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces. Transformations (distinct separation between shape and trans. info). Vector – matrix multiplication (not good for you, good for comp).

Слайд 10


Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:

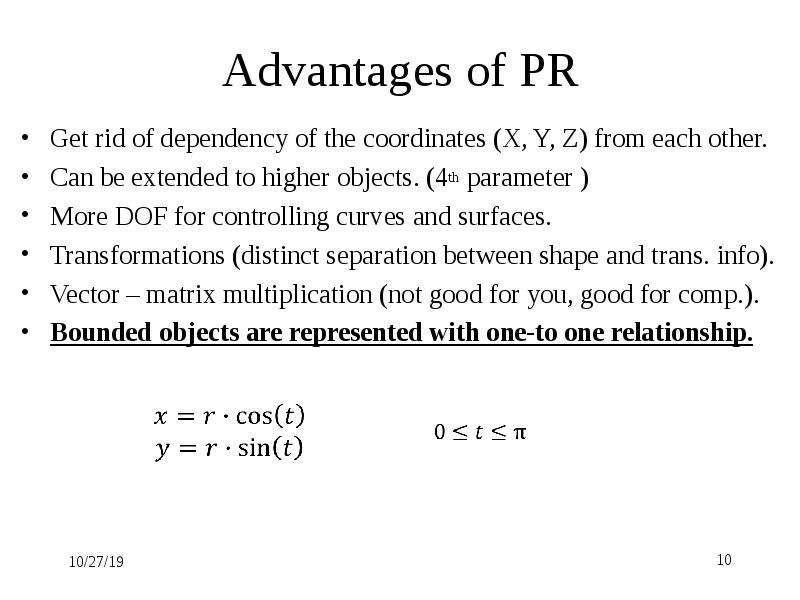

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces. Transformations (distinct separation between shape and trans. info). Vector – matrix multiplication (not good for you, good for comp.). Bounded objects are represented with one-to one relationship.

Слайд 11


Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:

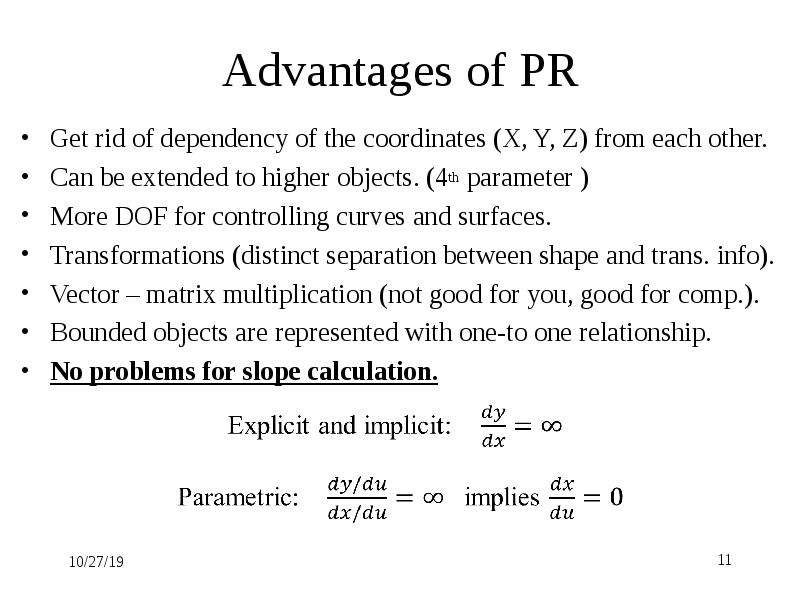

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces. Transformations (distinct separation between shape and trans. info). Vector – matrix multiplication (not good for you, good for comp.). Bounded objects are represented with one-to one relationship. No problems for slope calculation.

Слайд 12


Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for...
Описание слайда:

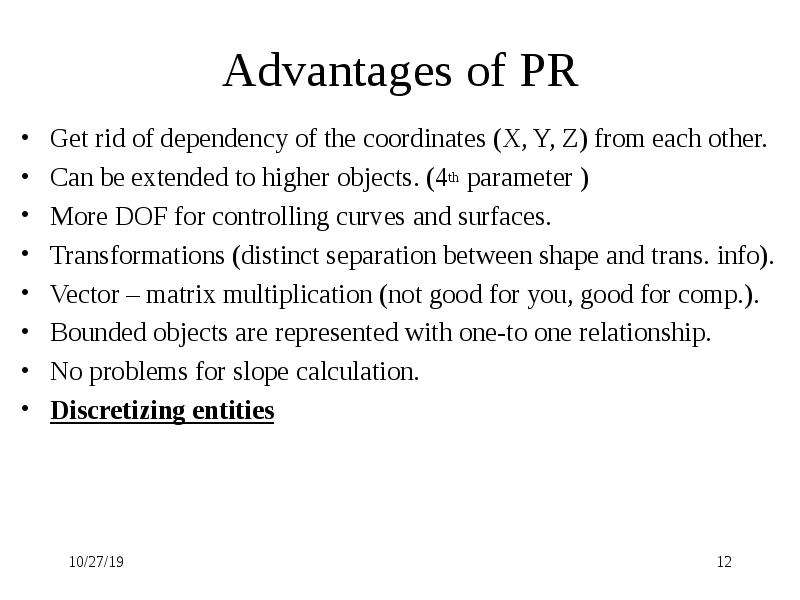

Advantages of PR Get rid of dependency of the coordinates (X, Y, Z) from each other. Can be extended to higher objects. (4th parameter ) More DOF for controlling curves and surfaces. Transformations (distinct separation between shape and trans. info). Vector – matrix multiplication (not good for you, good for comp.). Bounded objects are represented with one-to one relationship. No problems for slope calculation. Discretizing entities

Слайд 13

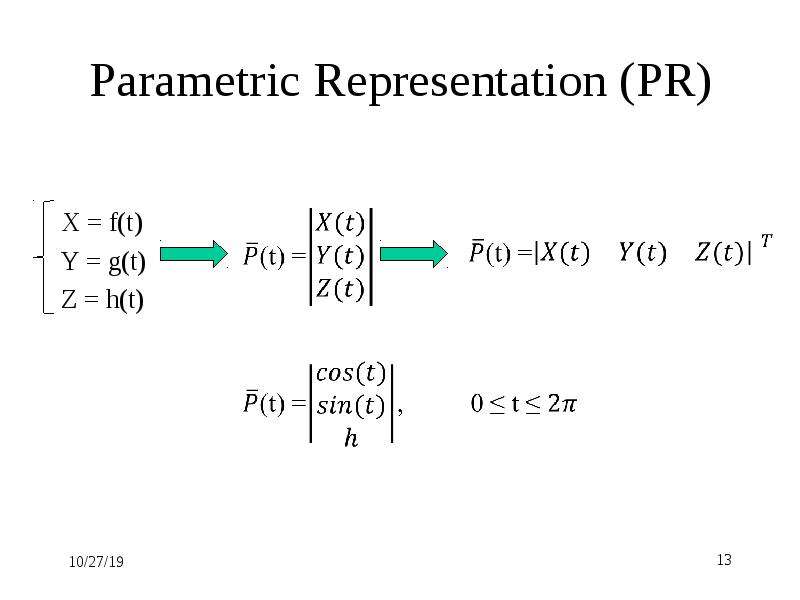

Parametric Representation (PR) X = f(t) Y = g(t) Z = h(t)
Описание слайда:
Parametric Representation (PR) X = f(t) Y = g(t) Z = h(t)

Слайд 14

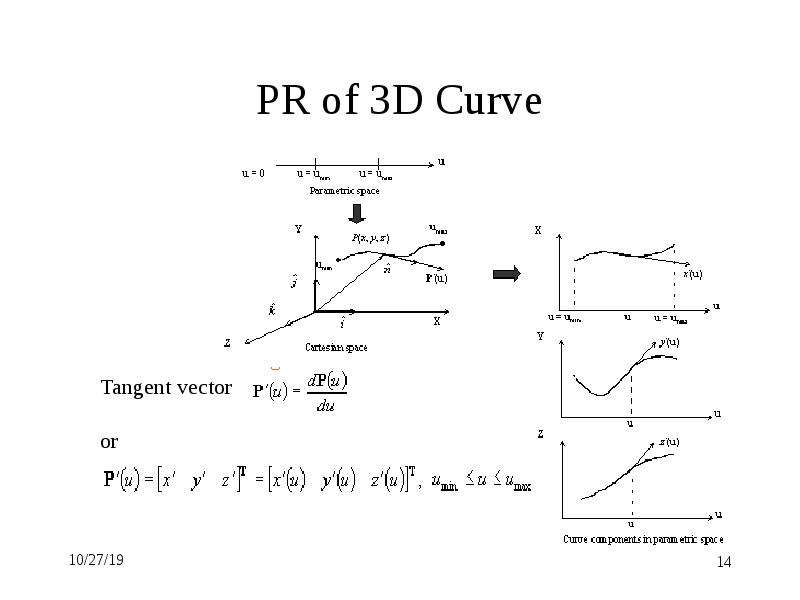

PR of 3D Curve
Описание слайда:
PR of 3D Curve

Слайд 15

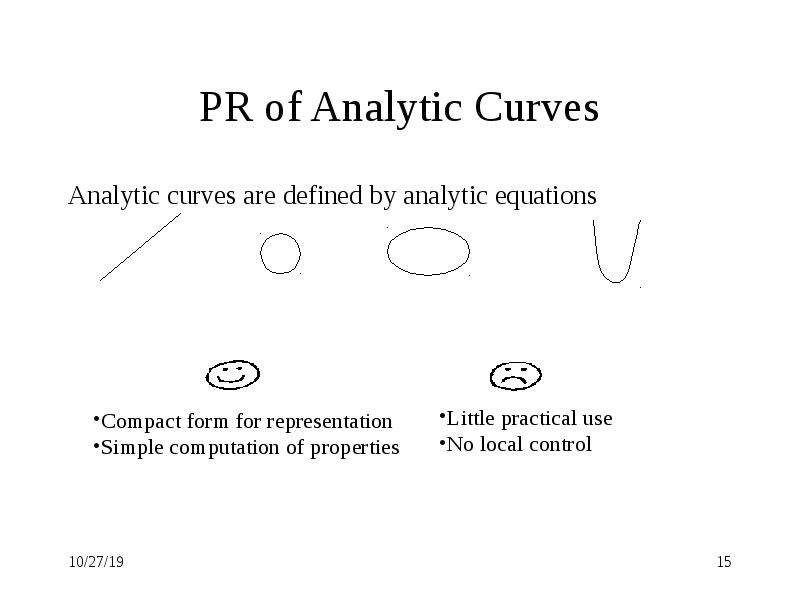

PR of Analytic Curves Analytic curves are defined by analytic equations
Описание слайда:
PR of Analytic Curves Analytic curves are defined by analytic equations

Слайд 16

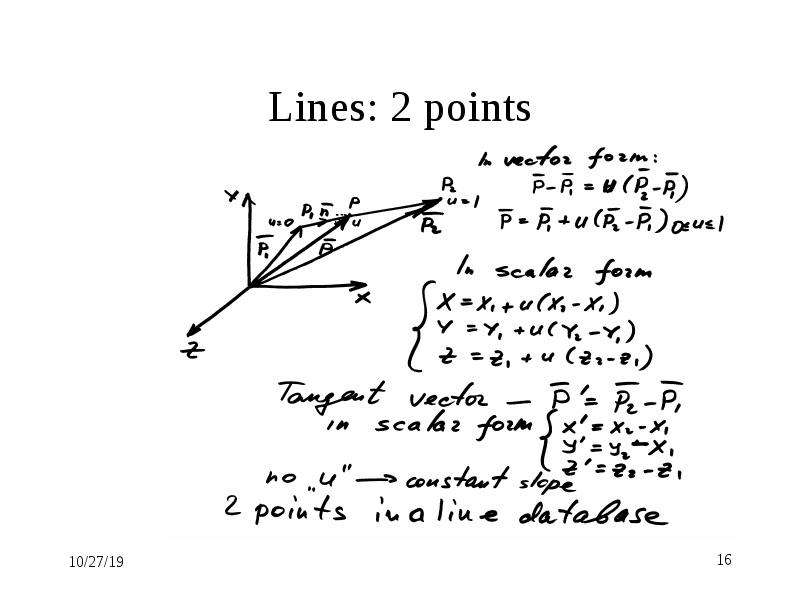

Lines: 2 points
Описание слайда:
Lines: 2 points

Слайд 17

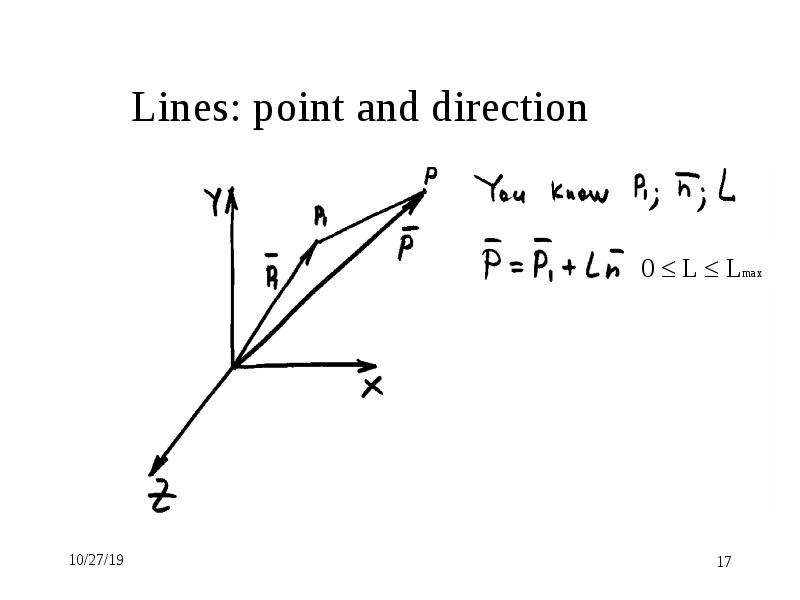

Lines: point and direction
Описание слайда:
Lines: point and direction

Слайд 18

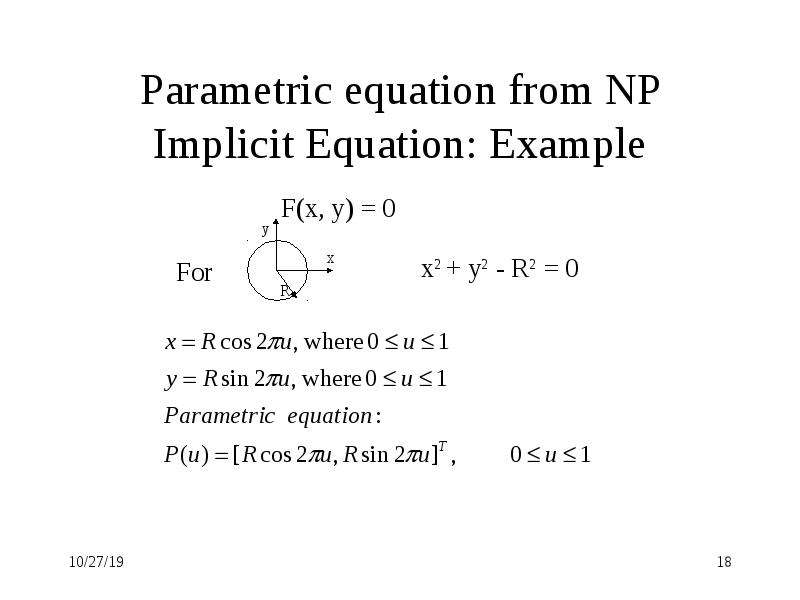

Parametric equation from NP Implicit Equation: Example
Описание слайда:
Parametric equation from NP Implicit Equation: Example

Слайд 19

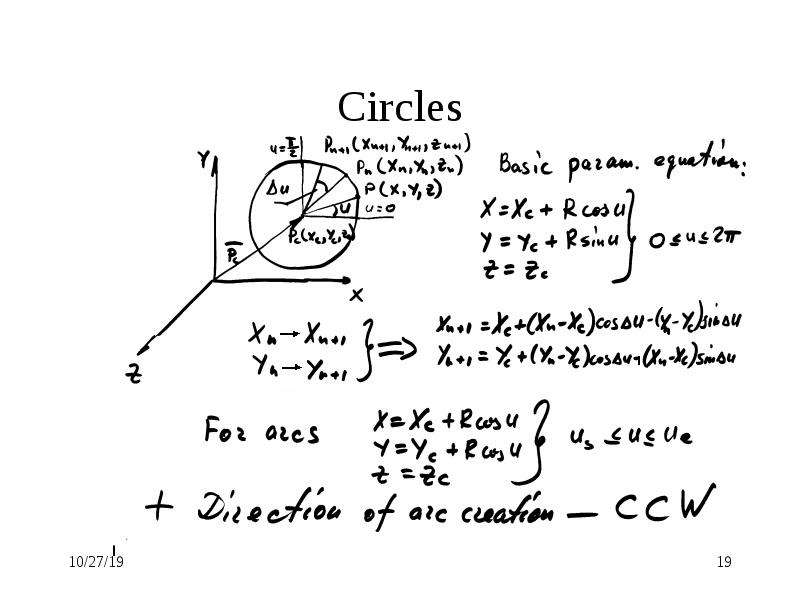

Circles
Описание слайда:
Circles

Слайд 20

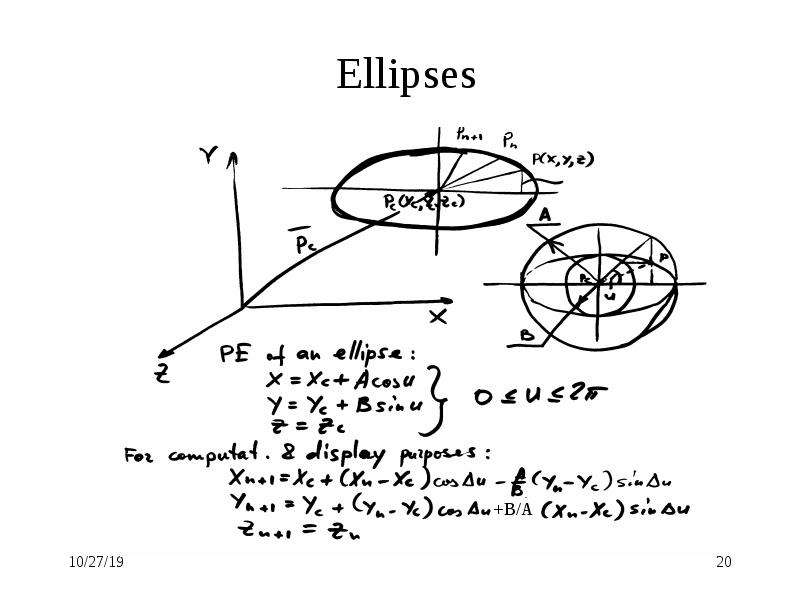

Ellipses
Описание слайда:
Ellipses

Слайд 21

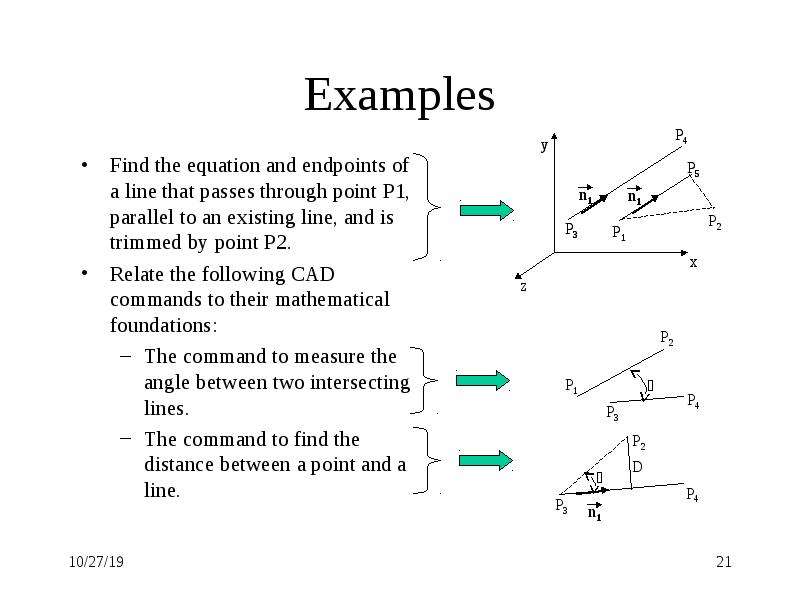

Examples Find the equation and endpoints of a line that passes through point P1, parallel to an existing line, and is trimmed by point P2. Relate the...
Описание слайда:
Examples Find the equation and endpoints of a line that passes through point P1, parallel to an existing line, and is trimmed by point P2. Relate the following CAD commands to their mathematical foundations: The command to measure the angle between two intersecting lines. The command to find the distance between a point and a line.
